Arrays, Edge Type, Mezzanine (Board to Board)(37146)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Mounting Type | Features | Base Product Number | Height Above Board | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | ECCN | HTSUS | Standard Package | Connector Type | Pitch | Number of Rows | Contact Finish | Contact Finish Thickness | Number of Positions | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QSE-020-01-C-D-A-RT1-K-TR | 11.7079 |  |
8938 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Ground Bus (Plane), Mounting Flange, Pick and Place | QSE-020 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 375 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 50.0µin (1.27µm) | 40 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
QSE-020-01-F-D-A-FL-K-TR | - | |
4605 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Friction Lock, Ground Bus (Plane), Pick and Place | QSE-020 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 200 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 3.00µin (0.076µm) | 40 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
QSE-020-01-H-D-A-L-K-TR | 9.2849 | |
6698 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Ground Bus (Plane), Latch Lock, Pick and Place | QSE-020 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 450 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | 40 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
QSE-028-01-L-D-DP-LC-TR | - | |
7486 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tape & Reel (TR) | Active | Surface Mount | Board Lock, Ground Bus (Plane) | QSE-028 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | Differential Pair Array, Female | 0.031" (0.80mm) | 2 | Gold | 10.0µin (0.25µm) | 56 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
QSE-040-01-C-D-K-TR | - | |
5231 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tape & Reel (TR) | Active | Surface Mount | Ground Bus (Plane), Pick and Place | QSE-040 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 50.0µin (1.27µm) | 80 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
 |

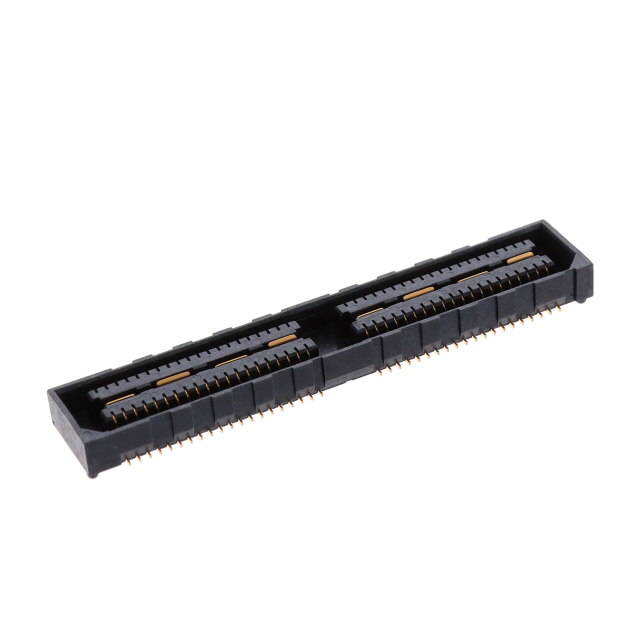

QSE-040-01-H-D-A-K-TR | 16.6700 | |
1 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Ground Bus (Plane), Pick and Place | QSE-040 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 475 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | 80 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
QSE-060-01-S-D-A-K-TR | - | |
9888 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Ground Bus (Plane), Pick and Place | QSE-060 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | 120 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
QSE-060-01-S-D-A-TR | - | |
4757 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Ground Bus (Plane) | QSE-060 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | 120 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
LSHM-120-L6.0-L-DV-A-S-K-TR | 6.4969 | |
7847 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place, Shielded | LSHM-120 | 0.293" (7.45mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 375 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 10.0µin (0.25µm) | 40 | 8.5mm, 9mm, 10mm, 12mm | ||
|
LSHM-130-01-F-DH-A-N-TR | 8.3160 | |
1159 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Board Guide | LSHM-130 | 0.202" (5.13mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 350 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 3.00µin (0.076µm) | 60 | - | ||
|
LSHM-130-01-F-RH-A-N-TR | 9.3744 | |
3228 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount, Right Angle, Reverse | Board Guide | LSHM-130 | 0.202" (5.13mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 375 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 3.00µin (0.076µm) | 60 | - | ||
|
LSHM-130-01-L-RH-A-N-TR | 9.7650 | |
7360 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount, Right Angle, Reverse | Board Guide | LSHM-130 | 0.202" (5.13mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 375 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 10.0µin (0.25µm) | 60 | - | ||
|
LSHM-130-L3.0-L-DV-A-S-TR | - | |
5904 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Shielded | LSHM-130 | 0.175" (4.45mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 10.0µin (0.25µm) | 60 | 5.5mm, 6mm, 7mm, 9mm | ||
 |
LSHM-140-02.5-L-DV-A-N-K-TR | 9.2900 | |
3 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | LSHM-140 | 0.156" (3.96mm) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 600 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 10.0µin (0.25µm) | 80 | 5mm, 5.5mm, 6.5mm, 8.5mm | |
|
LSHM-140-L2.5-F-DV-A-N-K-TR | - | |
2530 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | LSHM-140 | 0.156" (3.96mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 3.00µin (0.076µm) | 80 | 5mm, 5.5mm, 6.5mm, 8.5mm | ||
 |
LSHM-150-01-F-RH-A-S-TR | 16.7300 | |
626 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount, Right Angle, Reverse | Board Guide, Shielded | LSHM-150 | 0.202" (5.13mm) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 375 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 3.00µin (0.076µm) | 100 | - | |
|
LSHM-150-02.5-L-DV-A-N-K-K-TR | - | |
6275 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | LSHM-150 | 0.156" (3.96mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 10.0µin (0.25µm) | 100 | 5mm, 5.5mm, 6.5mm, 8.5mm | ||
|
LSHM-150-L3.0-L-DV-A-N-TR | - | |
2695 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount | Board Guide | LSHM-150 | 0.175" (4.45mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 10.0µin (0.25µm) | 100 | 5.5mm, 6mm, 7mm, 9mm | ||
|
LSHM-150-L6.0-F-DV-A-N-K-TR | - | |
5164 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | LSHM-150 | 0.293" (7.45mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 3.00µin (0.076µm) | 100 | 8.5mm, 9mm, 10mm, 12mm | ||
|
LSHM-150-L6.0-L-DV-A-N-TR | 9.6023 | |
9480 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount | Board Guide | LSHM-150 | 0.293" (7.45mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 300 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 10.0µin (0.25µm) | 100 | 8.5mm, 9mm, 10mm, 12mm | ||
|
LSHM-150-L6.0-L-DV-A-S-K-TR | 10.1882 | |
4475 | 0.00000000 | Samtec Inc. | Razor Beam™ LSHM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place, Shielded | LSHM-150 | 0.293" (7.45mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 275 | Self Mating, Non-Gendered, Hermaphroditic | 0.020" (0.50mm) | 2 | Gold | 10.0µin (0.25µm) | 100 | 8.5mm, 9mm, 10mm, 12mm | ||
|
QSE-020-01-H-D | 12.0488 | |
6172 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tray | Active | Surface Mount | Ground Bus (Plane) | QSE-020 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 90 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | 40 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
QSE-040-01-H-D-LC | 16.9225 | |
1894 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tray | Active | Surface Mount | Board Lock, Ground Bus (Plane) | QSE-040 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 64 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | 80 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
QSE-040-01-L-D-A-RT1-K | 16.8762 | |
3566 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tray | Active | Surface Mount | Board Guide, Ground Bus (Plane), Mounting Flange, Pick and Place | QSE-040 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 39 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 10.0µin (0.25µm) | 80 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
QSE-040-01-L-D-GP | 14.1173 | |
3635 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tray | Active | Surface Mount | Ground Bus (Plane), Mating Flange | QSE-040 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 22 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 10.0µin (0.25µm) | 80 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
QSE-042-01-L-D-DP-EM2 | 17.1473 | |
5596 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tray | Active | Board Edge, Straddle Mount | Ground Bus (Plane) | QSE-042 | - | download | ROHS3 Compliant | Not Applicable | EAR99 | 8536.69.4040 | 22 | Differential Pair Array, Female | 0.031" (0.80mm) | 2 | Gold | 10.0µin (0.25µm) | 84 | - | ||
|
QSE-042-01-L-D-DP-EM2-GP | 18.2709 | |
8719 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tray | Active | Board Edge, Straddle Mount | Ground Bus (Plane), Mating Flange | QSE-042 | - | download | ROHS3 Compliant | Not Applicable | EAR99 | 8536.69.4040 | 44 | Differential Pair Array, Female | 0.031" (0.80mm) | 2 | Gold | 10.0µin (0.25µm) | 84 | - | ||
|
QSE-060-01-F-D-A-GP | 14.4850 | |
4553 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tray | Active | Surface Mount | Board Guide, Ground Bus (Plane), Mating Flange | QSE-060 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 22 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 3.00µin (0.076µm) | 120 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
QSE-060-01-F-D-GP | 13.5300 | |
4911 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tray | Active | Surface Mount | Ground Bus (Plane), Mating Flange | QSE-060 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 42 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 3.00µin (0.076µm) | 120 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | ||
|
QSE-060-01-F-D-K | 12.6533 | |
1043 | 0.00000000 | Samtec Inc. | Q Strip® QSE | Tray | Active | Surface Mount | Ground Bus (Plane), Pick and Place | QSE-060 | 0.128" (3.25mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 48 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | 3.00µin (0.076µm) | 120 | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm |
