Backplane Connectors(70811)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Accessory Type | Color | For Use With/Related Products | Termination | Note | Specifications | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Pitch | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Material Flammability Rating | Number of Positions | Number of Positions Loaded | Voltage Rating | Connector Style | Connector Usage | Number of Columns | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1-6600333-1 | 13.0236 |  |
4845 | 0.00000000 | TE Connectivity AMP Connectors | MULTI-BEAM XL | Tray | Active | -20°C ~ 105°C | Through Hole | Board Lock, Mating Guide | 6600333 | Black | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 90 | Header, Male Pins and Blades | 0.100" (2.54mm) | - | Gold | 30.0µin (0.76µm) | - | UL94 V-0 | 30 | All | - | Multi-Beam | - | - | 24 Signal, 6 Power | ||||||
 |
1-6600333-2 | 9.0864 | |
6596 | 0.00000000 | TE Connectivity AMP Connectors | MULTI-BEAM XL | Tray | Active | -20°C ~ 105°C | Through Hole | Board Lock, Mating Guide | 6600333 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 60 | Header, Male Pins and Blades | 0.100" (2.54mm) | - | Gold | 30.0µin (0.76µm) | - | UL94 V-0 | 28 | All | - | Multi-Beam | - | - | 24 Signal, 4 Power | ||||||
 |
1892302-1 | 8.9400 | |
896 | 0.00000000 | TE Connectivity AMP Connectors | MULTI-BEAM XL | Tray | Active | -20°C ~ 105°C | Through Hole, Right Angle | Board Lock, Mating Guide | 1892302 | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 22 | Header, Male Pins and Blades | 0.100" (2.54mm) | 4 | Gold | 30.0µin (0.76µm) | - | UL94 V-0 | 23 | 20 | - | Multi-Beam | - | - | 12 Signal, 11 Power | ||||||
|
1892430-4 | 10.1819 | |
6058 | 0.00000000 | TE Connectivity AMP Connectors | MULTI-BEAM XL | Tray | Active | -20°C ~ 105°C | Through Hole | Board Lock, Guide Pin | 1892430 | - | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 110 | Receptacle, Female Sockets and Blade Sockets | 0.100" (2.54mm) | 4 | Gold | 30.0µin (0.76µm) | - | UL94 V-0 | 36 | All | - | Multi-Beam | - | - | 24 Signal, 12 Power | ||||||
 |
1892430-5 | 6.2872 | |
3311 | 0.00000000 | TE Connectivity AMP Connectors | MULTI-BEAM XL | Tray | Active | -20°C ~ 105°C | Through Hole | Board Lock, Guide Pin | 1892430 | - | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 220 | Receptacle, Female Sockets and Blade Sockets | 0.100" (2.54mm) | 4 | Gold | 30.0µin (0.76µm) | - | UL94 V-0 | 28 | 28 | - | Multi-Beam | - | - | 24 Signal, 4 Power | ||||||
 |
1926720-2 | 7.2779 | |
5142 | 0.00000000 | TE Connectivity AMP Connectors | MINIPAK HDL | Tray | Active | -40°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mating Guide | 1926720 | Black | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 392 | Header, Male Pins and Blades | 0.079" (2.00mm) | - | Gold or Gold-Palladium | 30.0µin (0.76µm) | 16A | UL94 V-0 | 19 | All | 250V | - | - | - | 15 Signal, 4 Power | ||||||
 |
1857990-1 | 22.1100 | |
245 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK | Tube | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 1857990 | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 11 | Receptacle, Female Sockets | 0.079" (2.00mm) | 5 | - | - | 1.5 A | 125 | All | 500Vrms | B 25 | - | ||||||||||
|
1857996-1 | 4.9758 | |
6601 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK | Tube | Active | -55°C ~ 125°C | Through Hole, Right Angle | Upper Shield | 1857996 | Press-Fit | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 330 | Receptacle, Female Sockets | 0.079" (2.00mm) | 5 | - | - | 1.5 A | 55 | All | 500Vrms | C 11 | - | ||||||||||
 |
1934222-1 | 23.2900 | |
153 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Board Edge, Through Hole, Right Angle | - | 1934222 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 32 | Receptacle, Female Sockets | 0.075" (1.90mm) | 12 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 96 | All | 250V | High Speed | Coplanar, Daughtercard | 8 | - | ||||||
 |
1934225-1 | 39.8600 | |
351 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Board Edge, Through Hole, Right Angle | - | 1934225 | Black | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 16 | Receptacle, Female Sockets | 0.075" (1.90mm) | 12 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 192 | All | 250V | High Speed | Coplanar, Daughtercard | 16 | - | ||||||
 |
1934275-1 | 20.5333 | |
6277 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Board Edge, Through Hole, Right Angle | - | 1934275 | Black | Press-Fit | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 108 | Receptacle, Female Sockets | 0.075" (1.90mm) | 12 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 168 | All | 250V | - | Coplanar, Daughtercard | 14 | - | ||||||
 |
1934276-1 | 24.4444 | |
5136 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Board Edge, Through Hole, Right Angle | - | 1934276 | Black | Press-Fit | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 72 | Receptacle, Female Sockets | 0.075" (1.90mm) | 15 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 210 | All | 250V | - | - | 14 | - | ||||||
 |
1934303-1 | 9.2271 | |
3378 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Through Hole | - | 1934303 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 372 | Header, Male Pins | 0.075" (1.90mm) | 12 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 96 | All | 250V | High Speed | - | 8 | - | ||||||
 |
1934306-1 | 14.3800 | |
336 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Through Hole | - | 1934306 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 28 | Header, Male Pins | 0.075" (1.90mm) | 12 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 96 | All | 250V | High Speed | - | 8 | - | ||||||
 |
1934312-1 | 11.1300 | |
242 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Through Hole | - | 1934312 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 23 | Header, Male Pins | 0.075" (1.90mm) | 12 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 120 | All | 250V | High Speed | - | 10 | - | ||||||
 |
1934326-1 | 15.8190 | |
4048 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Through Hole | - | 1934326 | Black | Press-Fit | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 276 | Header, Male Pins | 0.075" (1.90mm) | 15 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 150 | All | 250V | - | - | 10 | - | ||||||
|
1934333-1 | 17.5019 | |
9564 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Through Hole | - | 1934333 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 192 | Header, Male Pins | 0.075" (1.90mm) | 15 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 240 | All | 250V | High Speed | - | 16 | - | ||||||
 |
1934335-1 | 13.1920 | |
4221 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Through Hole | - | 1934335 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 704 | Header, Male Pins | 0.075" (1.90mm) | 9 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 54 | All | 250V | - | - | 6 | - | ||||||
 |
1934341-1 | 17.5887 | |
4186 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Through Hole | - | 1934341 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | 2266-1934341-1 | EAR99 | 8536.69.4040 | 384 | Header, Male Pins | 0.075" (1.90mm) | 9 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 90 | All | 250V | High Speed | - | 10 | - | |||||
 |
1934347-1 | 63.3600 | |
13 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Through Hole, Right Angle | - | 1934347 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 16 | Header, Male Pins | 0.075" (1.90mm) | 15 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 240 | All | 250V | High Speed | Coplanar, Daughtercard | 16 | - | ||||||
 |
1934349-1 | 19.7600 | |
26 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Through Hole, Right Angle | - | 1934349 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 31 | Header, Male Pins | 0.075" (1.90mm) | 15 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 120 | All | 250V | High Speed | Coplanar, Daughtercard | 8 | - | ||||||
 |

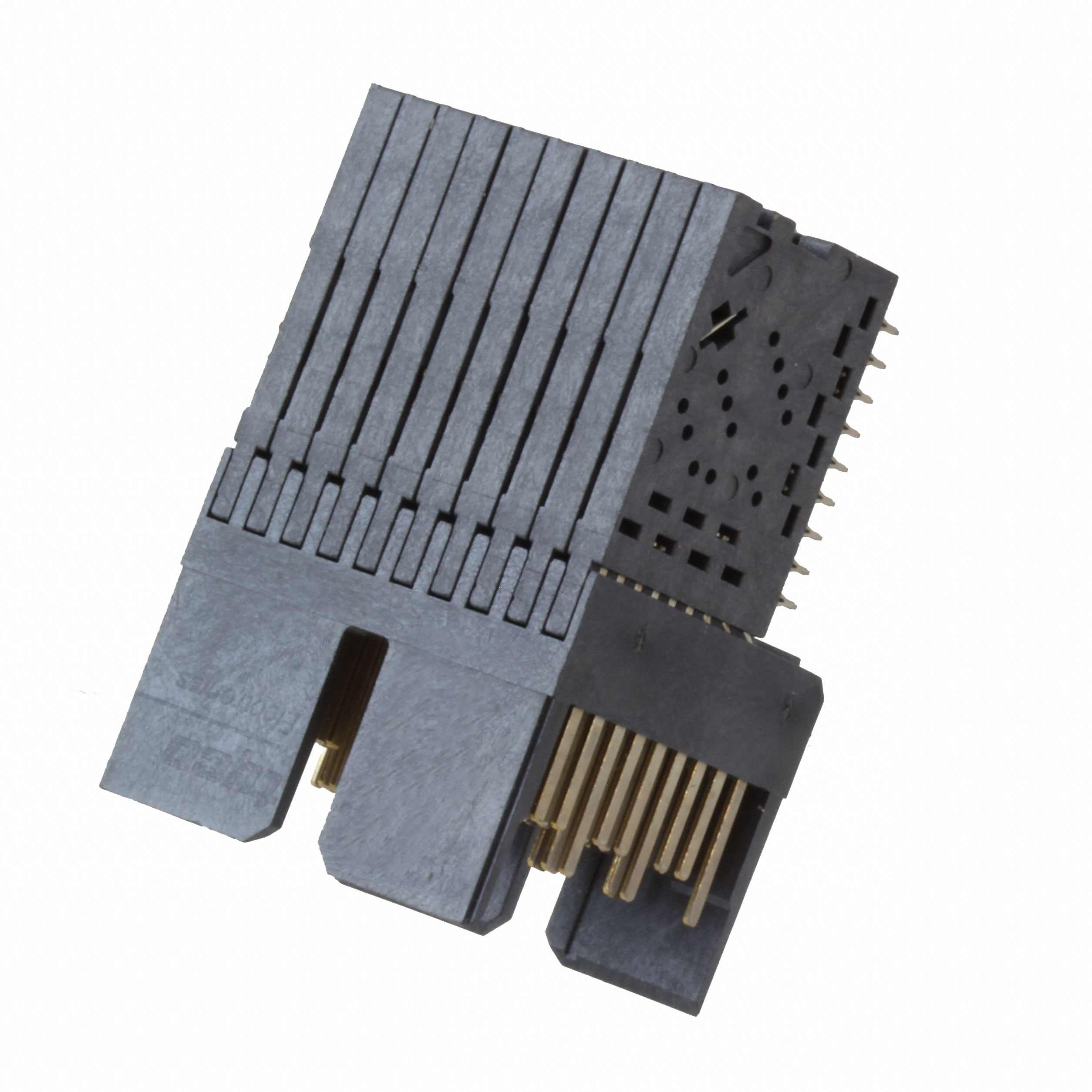

1934357-1 | 22.0200 | |
161 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Through Hole, Right Angle | - | 1934357 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 26 | Header, Male Pins | 0.075" (1.90mm) | 9 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 90 | All | 250V | High Speed | Coplanar, Daughtercard | 10 | - | ||||||
 |
1934359-1 | 15.3010 | |
6921 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Through Hole, Right Angle | - | 1934359 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 256 | Header, Male Pins | 0.075" (1.90mm) | 9 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 72 | All | 250V | High Speed | Coplanar, Daughtercard | 8 | - | ||||||
 |
1934515-1 | 15.6095 | |
7479 | 0.00000000 | TE Connectivity AMP Connectors | Z-PACK TinMan | Tube | Active | -65°C ~ 90°C | Through Hole | - | 1934515 | Black | Press-Fit | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 260 | Header, Male Pins | 0.075" (1.90mm) | 18 | Gold | 30.0µin (0.76µm) | 0.5A | UL94 V-0 | 144 | All | 250V | High Speed | - | 8 | - | ||||||
 |
2007741-1 | 23.3364 | |
5981 | 0.00000000 | TE Connectivity AMP Connectors | Impact | Tube | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | - | 2007741 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 104 | Receptacle, Female Sockets | 0.075" (1.91mm) | 18 | Gold | 30.0µin (0.76µm) | - | UL94 V-0 | 180 | All | - | Impact | Daughtercard | 10 | - | ||||||
 |
1410548-4 | 4.1800 | |
2 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | 1410548 | Polarizing Key | - | - | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8538.90.8180 | 500 | ||||||||||||||||||||||
 |
1600636-9 | 15.9000 | |
9973 | 0.00000000 | TE Connectivity AMP Connectors | MULTI-BEAM XL | Bulk | Active | Panel Mount | Guide Pin | 1600636 | Black | Contacts Not Included | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 180 | Housing for Female Sockets and Blade Sockets | - | - | 26 (24 + 2 Power) | Multi-Beam | Receptacle | |||||||||||||||
 |
1645498-7 | 8.0177 | |
3103 | 0.00000000 | TE Connectivity AMP Connectors | UPM (Universal Power Modules) | Bulk | Active | -55°C ~ 125°C | Through Hole | - | 1645498 | Natural | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 252 | Plug, Male Blades | 0.118" (3.00mm) | - | Gold | 50.0µin (1.27µm) | - | UL94 V-0 | 9 | All | 250V | Blade Power | - | - | 9 Power | ||||||
 |
1892120-5 | - | |
2053 | 0.00000000 | TE Connectivity AMP Connectors | MULTI-BEAM XLE | Bulk | Obsolete | - | Through Hole, Right Angle | Mating Guide | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 1,056 | Header, Male Pins and Blades | 0.100" (2.54mm) | 4 | Gold | 30.0µin (0.76µm) | - | UL94 V-0 | 30 | All | - | Multi-Beam | - | - | 24 Signal, 6 Power | |||||||
|
122A13089X | 10.3887 | |
6844 | 0.00000000 | Conec | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 50 |
