Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
396-036-540-202 EDAC Inc. 396-036-540-202 8.4232
RFQ
 ECAD 6397 0.00000000 EDAC Inc. 396 Bulk Active -40°C ~ 105°C Through Hole - 396-036 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
746-064-525-606 EDAC Inc. 746-064-525-606 10.0408
RFQ
 ECAD 3037 0.00000000 EDAC Inc. 746 Box Active -40°C ~ 105°C Through Hole - 746-064 Black Press-Fit download ROHS3 Compliant REACH Unaffected 151-746-064-525-606 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 64 Female Non Specified - Dual Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2

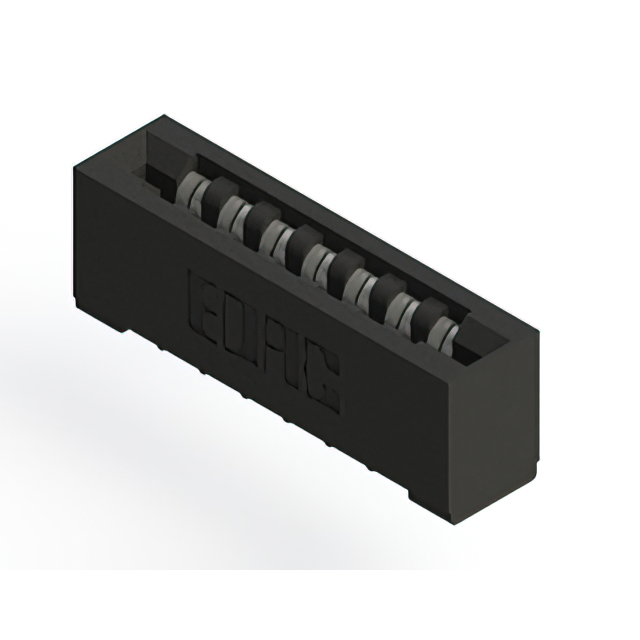

357-007-453-101 EDAC Inc. 357-007-453-101 15.5716
RFQ
 ECAD 1624 0.00000000 EDAC Inc. 357 Bulk Active -40°C ~ 105°C Board Edge, Straddle Mount - 357-007 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-357-007-453-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 14 Female Non Specified - Dual Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 1
833-048-558-812 EDAC Inc. 833-048-558-812 69.9300
RFQ
 ECAD 9463 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole, Right Angle - 833-048 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-048-558-812 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Dual Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
845-096-521-202 EDAC Inc. 845-096-521-202 83.9948
RFQ
 ECAD 2678 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-096 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-096-521-202 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 96 Female Non Specified - Dual Edge 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
846-045-500-607 EDAC Inc. 846-045-500-607 105.4936
RFQ
 ECAD 5901 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-045 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-846-045-500-607 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 45 Female Non Specified - Single Edge 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 1

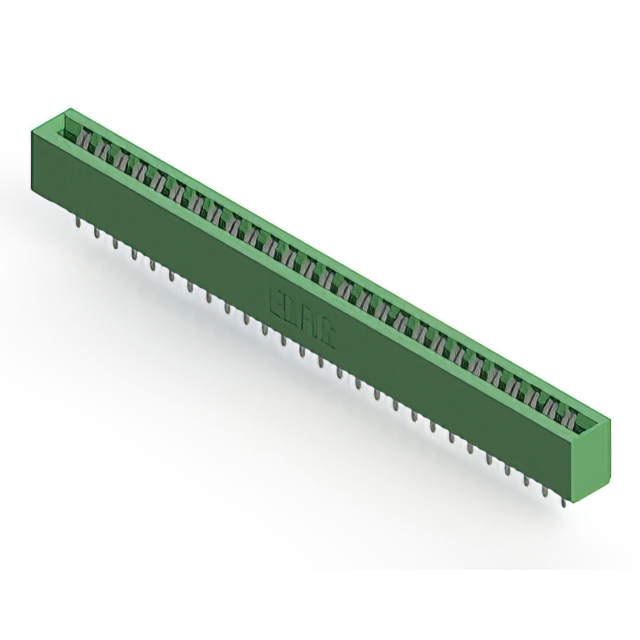

306-027-420-101 EDAC Inc. 306-027-420-101 16.9172
RFQ
 ECAD 6775 0.00000000 EDAC Inc. 306 Bulk Active -40°C ~ 105°C Through Hole - 306-027 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-306-027-420-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Cantilever 54 Female Non Specified - Dual Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 1

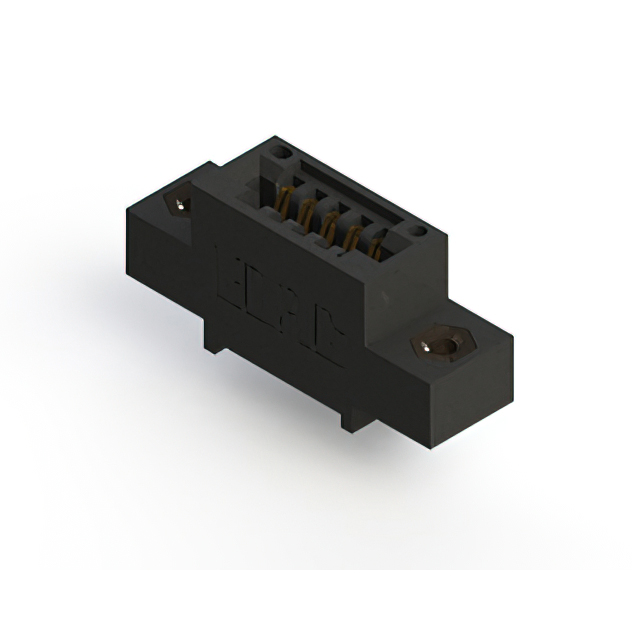

895-005-500-408 EDAC Inc. 895-005-500-408 56.7000
RFQ
 ECAD 1185 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-005 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-005-500-408 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 5 Female Non Specified - Single Edge 5 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 1
846-018-500-602 EDAC Inc. 846-018-500-602 72.2924
RFQ
 ECAD 7264 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-018 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-846-018-500-602 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 18 Female Non Specified - Single Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1

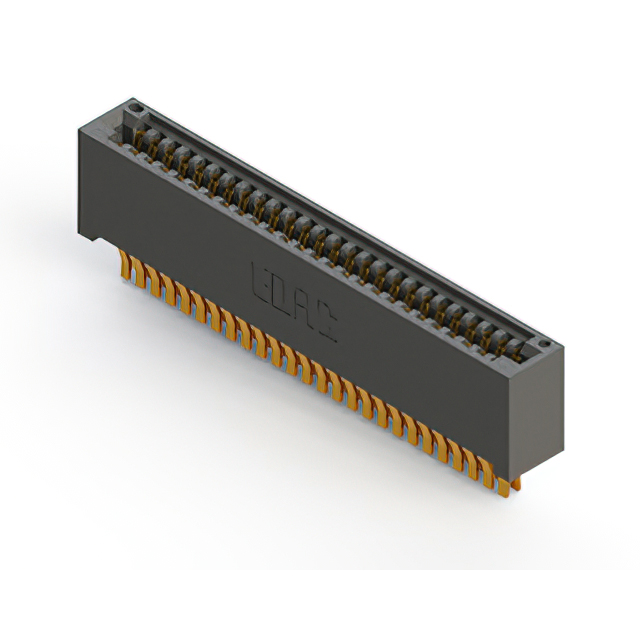

895-052-560-201 EDAC Inc. 895-052-560-201 76.9072
RFQ
 ECAD 9444 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 895-052 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-052-560-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 52 Female Non Specified - Dual Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyphenylene Sulfide (PPS) 2
395-071-541-107 EDAC Inc. 395-071-541-107 17.1892
RFQ
 ECAD 2845 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-071 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-071-541-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 71 Female Non Specified - Single Edge 71 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1

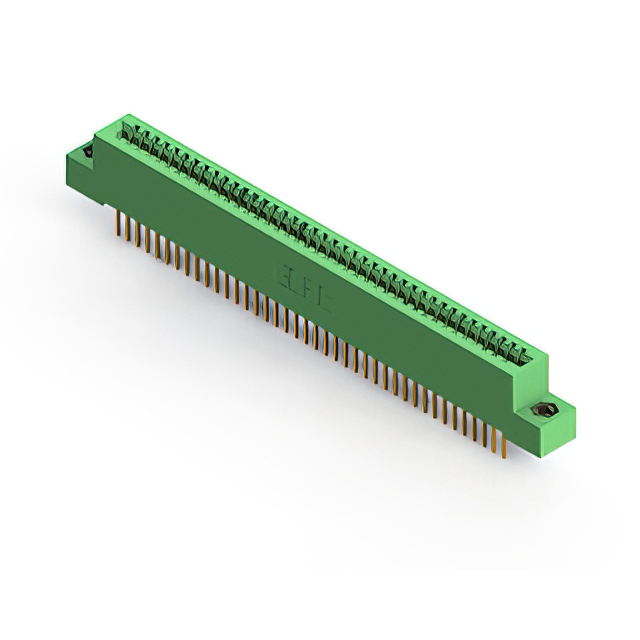

842-080-541-208 EDAC Inc. 842-080-541-208 104.1864
RFQ
 ECAD 9223 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-080 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-842-080-541-208 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 80 Female Non Specified - Dual Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
345-067-544-604 EDAC Inc. 345-067-544-604 23.0456
RFQ
 ECAD 3160 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-067 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-067-544-604 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 67 Female Non Specified - Single Edge 67 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
337-050-520-202 EDAC Inc. 337-050-520-202 12.0252
RFQ
 ECAD 4499 0.00000000 EDAC Inc. 337 Bulk Active -40°C ~ 105°C Through Hole - 337-050 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 50 Female Non Specified - Dual Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

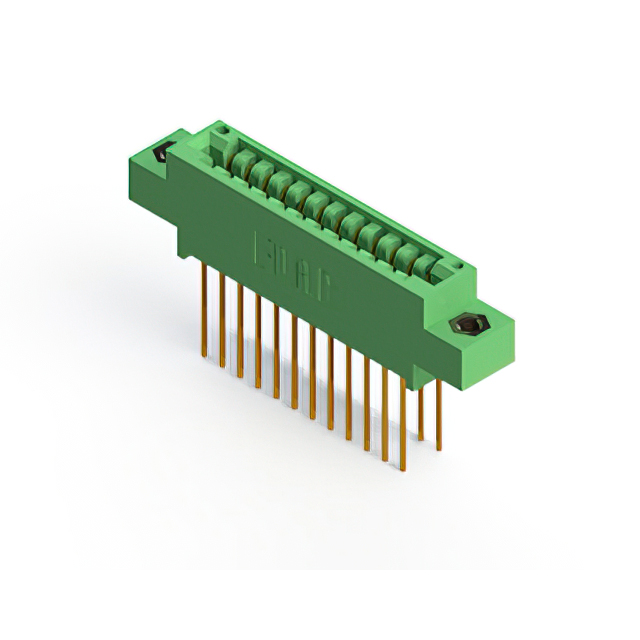

346-024-541-807 EDAC Inc. 346-024-541-807 9.5636
RFQ
 ECAD 7892 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-024 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-024-541-807 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 24 Female Non Specified - Dual Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
346-100-526-202 EDAC Inc. 346-100-526-202 14.8824
RFQ
 ECAD 5481 0.00000000 EDAC Inc. 346 Bulk Active -40°C ~ 105°C Through Hole - 346-100 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 100 Female Non Specified - Dual Edge 50 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
395-042-542-403 EDAC Inc. 395-042-542-403 14.9484
RFQ
 ECAD 5288 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-042 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-042-542-403 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 42 Female Non Specified - Single Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1

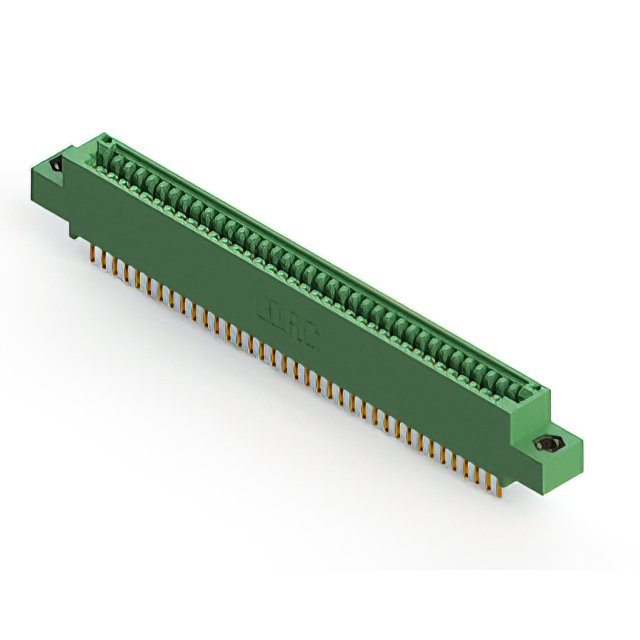

845-037-558-407 EDAC Inc. 845-037-558-407 96.9884
RFQ
 ECAD 6813 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole, Right Angle - 845-037 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-037-558-407 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 37 Female Non Specified - Single Edge 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 1
387-016-542-207 EDAC Inc. 387-016-542-207 11.7600
RFQ
 ECAD 8374 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-016 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-387-016-542-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
807-031-557-102 EDAC Inc. 807-031-557-102 212.2180
RFQ
 ECAD 5200 0.00000000 EDAC Inc. 807 Box Active -40°C ~ 125°C Through Hole, Right Angle - 807-031 Green Solder download ROHS3 Compliant REACH Unaffected 151-807-031-557-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 62 Female Non Specified - Dual Edge 31 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
307-026-454-158 EDAC Inc. 307-026-454-158 31.4664
RFQ
 ECAD 2812 0.00000000 EDAC Inc. 307 Bulk Active -40°C ~ 105°C Surface Mount Card Guides 307-026 Green Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-307-026-454-158 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 52 Female Non Specified - Dual Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
345-102-541-203 EDAC Inc. 345-102-541-203 16.7360
RFQ
 ECAD 8297 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-102 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-102-541-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 102 Female Non Specified - Dual Edge 51 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
395-098-558-808 EDAC Inc. 395-098-558-808 16.9196
RFQ
 ECAD 9716 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole, Right Angle - 395-098 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-098-558-808 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 98 Female Non Specified - Dual Edge 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
337-043-558-112 EDAC Inc. 337-043-558-112 14.2908
RFQ
 ECAD 5541 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole, Right Angle - 337-043 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-043-558-112 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 43 Female Non Specified - Single Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
846-026-541-603 EDAC Inc. 846-026-541-603 58.9524
RFQ
 ECAD 2442 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-026 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-846-026-541-603 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Single Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 1

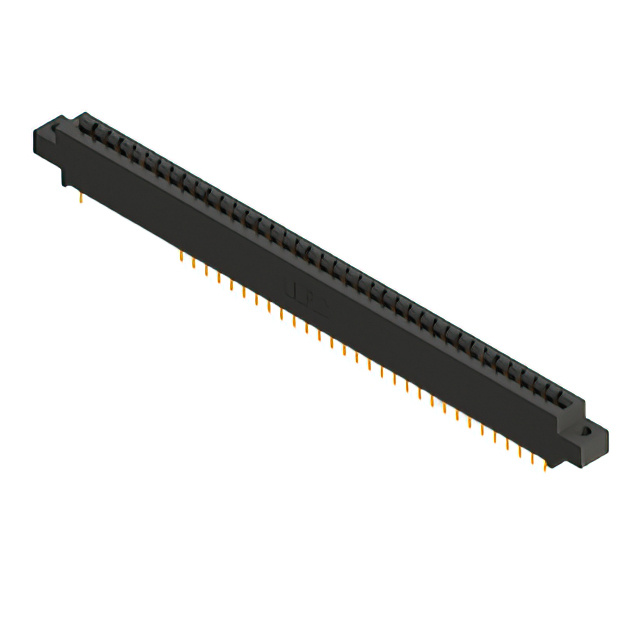

387-076-542-804 EDAC Inc. 387-076-542-804 21.4444
RFQ
 ECAD 6863 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-076 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-387-076-542-804 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 76 Female Non Specified - Dual Edge 38 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
342-027-544-107 EDAC Inc. 342-027-544-107 16.3564
RFQ
 ECAD 5342 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-027 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-342-027-544-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 27 Female Non Specified - Single Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
846-058-555-204 EDAC Inc. 846-058-555-204 73.3636
RFQ
 ECAD 7558 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 846-058 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-846-058-555-204 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 58 Female Non Specified - Dual Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 2
845-074-500-512 EDAC Inc. 845-074-500-512 153.5460
RFQ
 ECAD 7085 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-074 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-845-074-500-512 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 74 Female Non Specified - Dual Edge 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
357-050-400-202 EDAC Inc. 357-050-400-202 12.5852
RFQ
 ECAD 5070 0.00000000 EDAC Inc. 357 Bulk Active -40°C ~ 105°C Through Hole - 357-050 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-357-050-400-202 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 50 Female Non Specified - Dual Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
