Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows

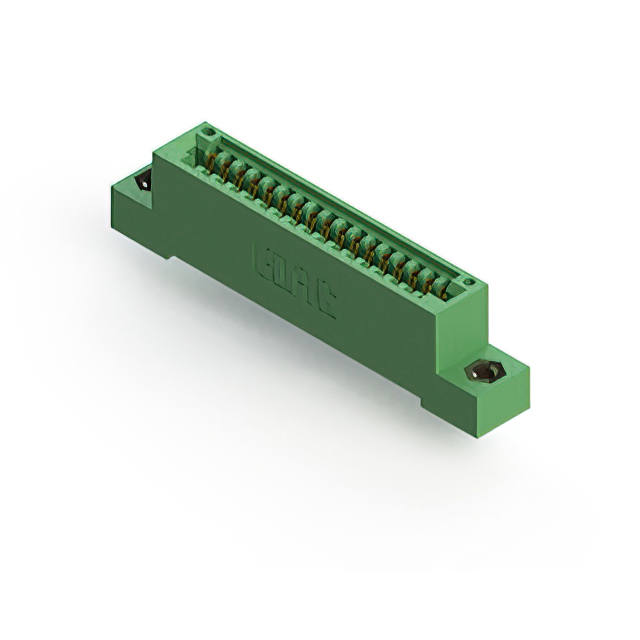

845-017-542-108 EDAC Inc. 845-017-542-108 70.4024
RFQ
 ECAD 5322 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-017 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-845-017-542-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 17 Female Non Specified - Single Edge 17 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 1
395-040-541-888 EDAC Inc. 395-040-541-888 12.6440
RFQ
 ECAD 8024 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-040 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-040-541-888 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 40 Female Non Specified - Dual Edge 20 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
833-025-523-604 EDAC Inc. 833-025-523-604 42.5248
RFQ
 ECAD 8218 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-025 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-025-523-604 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 25 Female Non Specified - Single Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 1
725-090-522-201 EDAC Inc. 725-090-522-201 13.5252
RFQ
 ECAD 8398 0.00000000 EDAC Inc. 725 Box Active -40°C ~ 105°C Through Hole - 725-090 Black Press-Fit download ROHS3 Compliant REACH Unaffected 151-725-090-522-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 90 Female Non Specified - Dual Edge 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
846-022-522-612 EDAC Inc. 846-022-522-612 51.1560
RFQ
 ECAD 8057 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-022 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-022-522-612 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Single Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
845-080-540-502 EDAC Inc. 845-080-540-502 73.1272
RFQ
 ECAD 7487 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-080 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-845-080-540-502 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 80 Female Non Specified - Dual Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
392-054-542-204 EDAC Inc. 392-054-542-204 12.2700
RFQ
 ECAD 1463 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole - 392-054 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-392-054-542-204 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 54 Female Non Specified - Dual Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
345-005-523-412 EDAC Inc. 345-005-523-412 5.1244
RFQ
 ECAD 9556 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-005 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-005-523-412 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 5 Female Non Specified - Single Edge 5 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
345-014-520-804 EDAC Inc. 345-014-520-804 8.0876
RFQ
 ECAD 4248 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-014 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-014-520-804 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 14 Female Non Specified - Dual Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
337-018-523-212 EDAC Inc. 337-018-523-212 10.5524
RFQ
 ECAD 5702 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-018 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-018-523-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 18 Female Non Specified - Dual Edge 9 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
833-041-524-101 EDAC Inc. 833-041-524-101 60.7164
RFQ
 ECAD 2979 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-041 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-041-524-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 41 Female Non Specified - Single Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Diallyl Phthalate (DAP) 1
342-094-524-203 EDAC Inc. 342-094-524-203 16.6980
RFQ
 ECAD 9667 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-094 Green Solder download ROHS3 Compliant REACH Unaffected 151-342-094-524-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 94 Female Non Specified - Dual Edge 47 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
345-100-541-508 EDAC Inc. 345-100-541-508 16.5912
RFQ
 ECAD 3273 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-100 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-100-541-508 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 100 Female Non Specified - Dual Edge 50 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
395-053-540-402 EDAC Inc. 395-053-540-402 14.2816
RFQ
 ECAD 5634 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-053 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-053-540-402 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 53 Female Non Specified - Single Edge 53 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
346-084-555-802 EDAC Inc. 346-084-555-802 15.0416
RFQ
 ECAD 6358 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 346-084 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-346-084-555-802 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 84 Female Non Specified - Dual Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
307-032-531-104 EDAC Inc. 307-032-531-104 16.7308
RFQ
 ECAD 3629 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-032 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-032-531-104 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 32 Female Non Specified - Single Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
395-013-542-102 EDAC Inc. 395-013-542-102 9.6152
RFQ
 ECAD 7511 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-013 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-013-542-102 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 13 Female Non Specified - Single Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
345-102-556-512 EDAC Inc. 345-102-556-512 16.3888
RFQ
 ECAD 6674 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 345-102 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-102-556-512 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 102 Female Non Specified - Dual Edge 51 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
345-007-559-188 EDAC Inc. 345-007-559-188 11.5960
RFQ
 ECAD 3436 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 345-007 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-007-559-188 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 7 Female Non Specified - Single Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

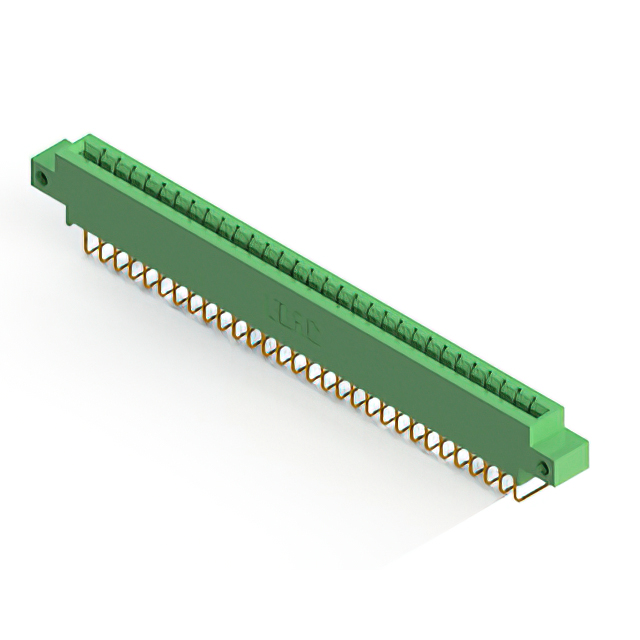

333-030-558-612 EDAC Inc. 333-030-558-612 12.9152
RFQ
 ECAD 6232 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole, Right Angle - 333-030 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-030-558-612 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Single Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
346-092-522-212 EDAC Inc. 346-092-522-212 15.4656
RFQ
 ECAD 7275 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-092 Green Solder download ROHS3 Compliant REACH Unaffected 151-346-092-522-212 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 92 Female Non Specified - Dual Edge 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
345-116-560-258 EDAC Inc. 345-116-560-258 18.4720
RFQ
 ECAD 9516 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender, Card Guides 345-116 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-116-560-258 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 116 Female Non Specified - Dual Edge 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
345-100-556-558 EDAC Inc. 345-100-556-558 17.9188
RFQ
 ECAD 8119 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender, Card Guides 345-100 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-100-556-558 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 100 Female Non Specified - Dual Edge 50 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
837-017-542-604 EDAC Inc. 837-017-542-604 34.6656
RFQ
 ECAD 7187 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-017 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-837-017-542-604 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 17 Female Non Specified - Single Edge 17 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 1
846-080-520-201 EDAC Inc. 846-080-520-201 73.1272
RFQ
 ECAD 7642 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-080 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-080-520-201 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 80 Female Non Specified - Dual Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Diallyl Phthalate (DAP) 2

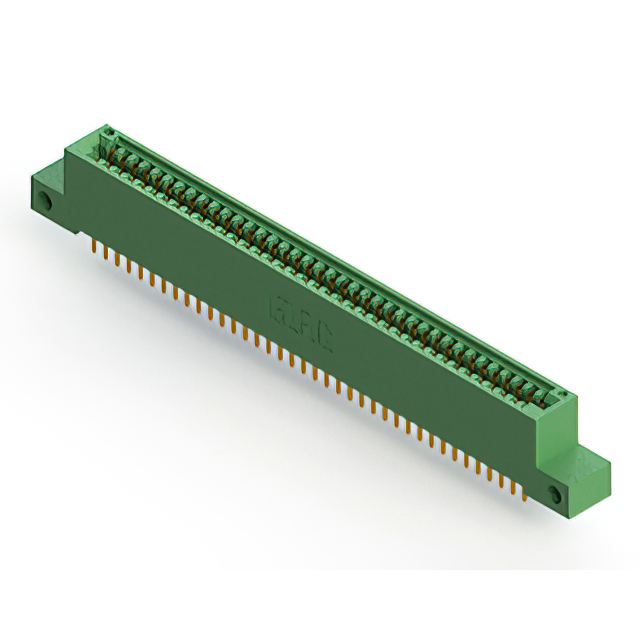

345-076-521-212 EDAC Inc. 345-076-521-212 10.5328
RFQ
 ECAD 7270 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-076 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-076-521-212 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 76 Female Non Specified - Dual Edge 38 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

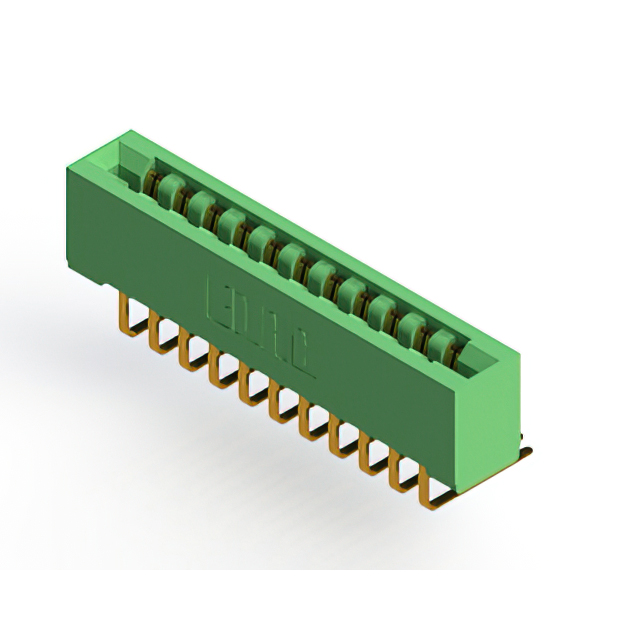

307-011-559-101 EDAC Inc. 307-011-559-101 11.5960
RFQ
 ECAD 3702 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole, Right Angle - 307-011 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-011-559-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 11 Female Non Specified - Single Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1
395-012-560-258 EDAC Inc. 395-012-560-258 13.3140
RFQ
 ECAD 5724 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender, Card Guides 395-012 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-012-560-258 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
395-006-540-603 EDAC Inc. 395-006-540-603 11.0096
RFQ
 ECAD 5696 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-006 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-006-540-603 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
842-084-540-203 EDAC Inc. 842-084-540-203 107.1472
RFQ
 ECAD 4219 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-084 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-842-084-540-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 84 Female Non Specified - Dual Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2
