Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows

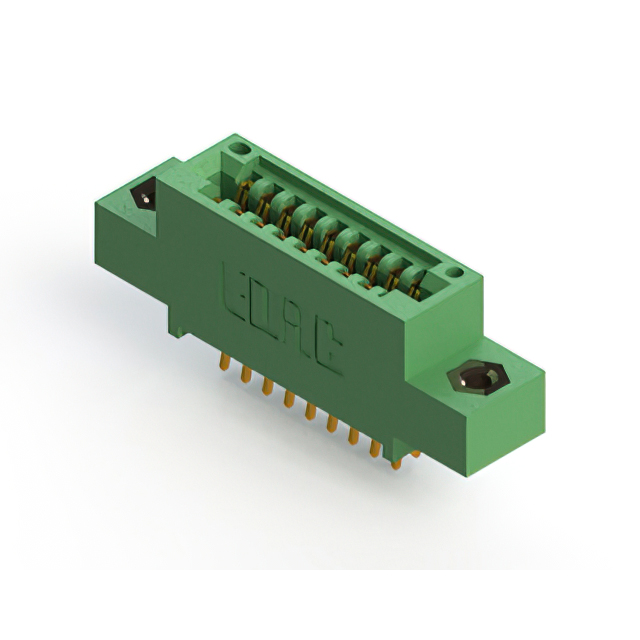

845-018-556-508 EDAC Inc. 845-018-556-508 75.8364
RFQ
 ECAD 7398 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 845-018 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-018-556-508 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 18 Female Non Specified - Dual Edge 9 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
837-043-524-612 EDAC Inc. 837-043-524-612 72.7648
RFQ
 ECAD 5523 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-043 Green Solder download ROHS3 Compliant REACH Unaffected 151-837-043-524-612 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 43 Female Non Specified - Single Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1

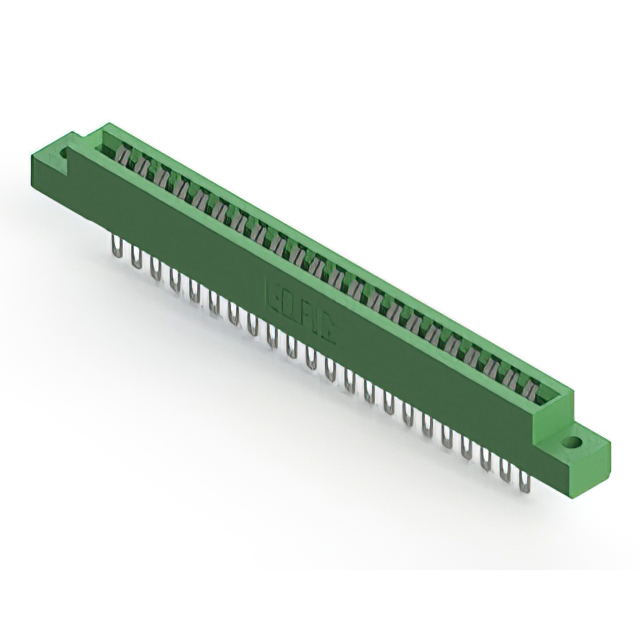

306-022-400-102 EDAC Inc. 306-022-400-102 14.2000
RFQ
 ECAD 8973 0.00000000 EDAC Inc. 306 Bulk Active -40°C ~ 105°C Panel Mount - 306-022 Green Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-306-022-400-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Cantilever 44 Female Non Specified - Dual Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1

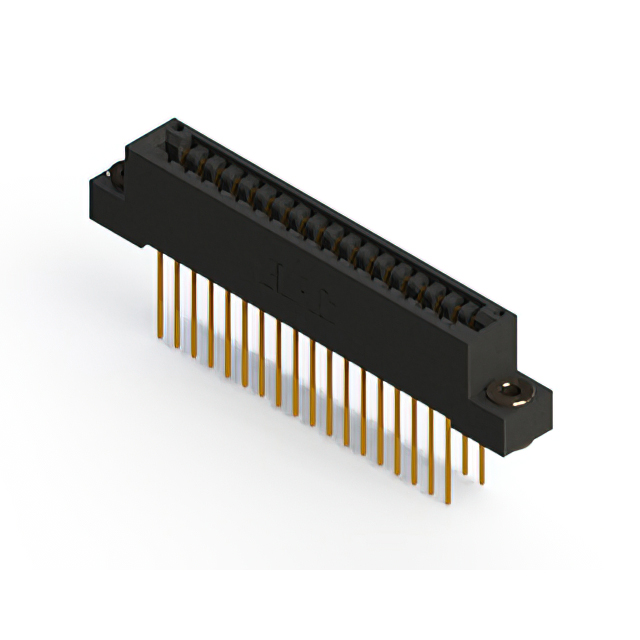

896-036-540-203 EDAC Inc. 896-036-540-203 60.2212
RFQ
 ECAD 8995 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-036 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-036-540-203 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2
387-068-555-207 EDAC Inc. 387-068-555-207 23.8844
RFQ
 ECAD 9718 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 387-068 Black Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-387-068-555-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 68 Female Non Specified - Dual Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2

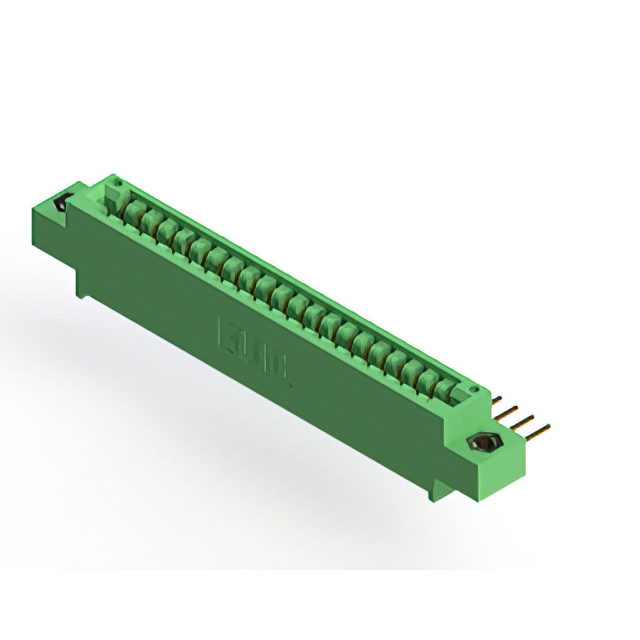

346-021-558-607 EDAC Inc. 346-021-558-607 12.1768
RFQ
 ECAD 6448 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole, Right Angle - 346-021 Green Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-021-558-607 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 21 Female Non Specified - Single Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 1

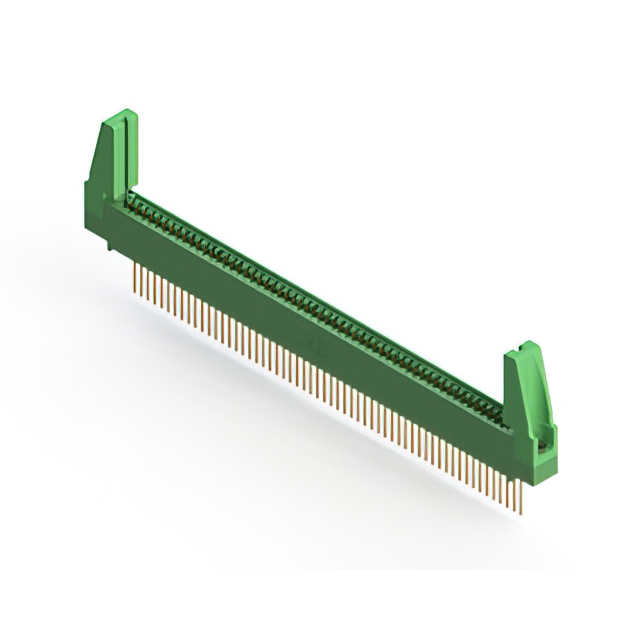

345-058-542-488 EDAC Inc. 345-058-542-488 20.9948
RFQ
 ECAD 5613 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-058 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-058-542-488 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 58 Female Non Specified - Single Edge 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

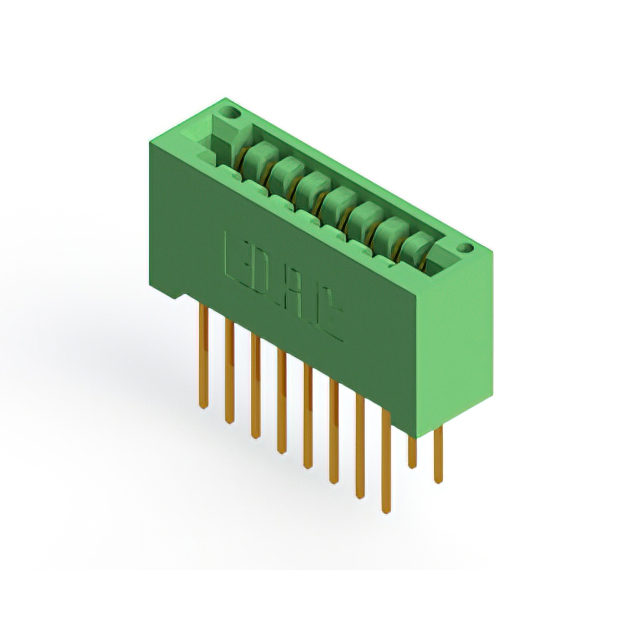

846-016-522-201 EDAC Inc. 846-016-522-201 39.1904
RFQ
 ECAD 8077 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-016 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-016-522-201 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Diallyl Phthalate (DAP) 2

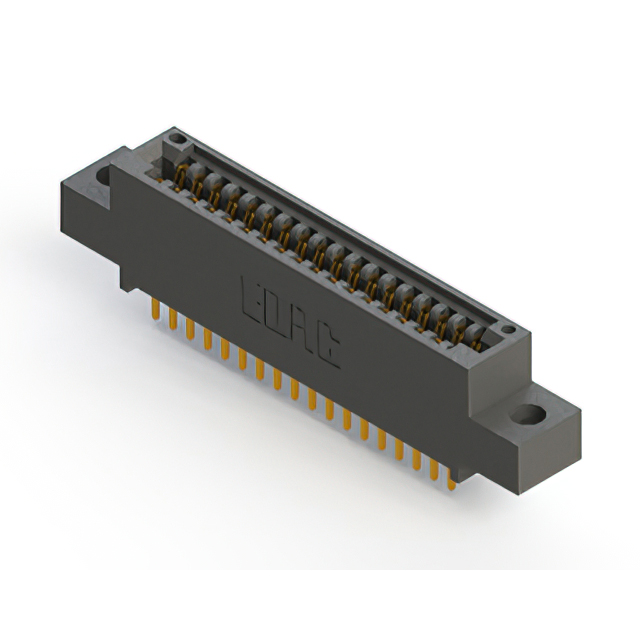

895-036-521-504 EDAC Inc. 895-036-521-504 47.8484
RFQ
 ECAD 2250 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-036 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-036-521-504 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2
833-060-542-207 EDAC Inc. 833-060-542-207 67.2208
RFQ
 ECAD 5971 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-060 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-833-060-542-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2

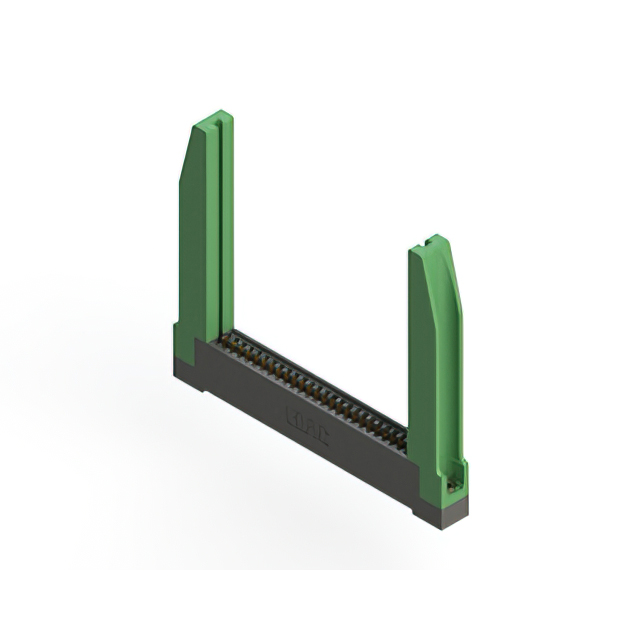

395-027-524-178 EDAC Inc. 395-027-524-178 13.6244
RFQ
 ECAD 3554 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-027 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-027-524-178 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 27 Female Non Specified - Single Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
395-069-524-602 EDAC Inc. 395-069-524-602 16.6144
RFQ
 ECAD 5409 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-069 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-069-524-602 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 69 Female Non Specified - Single Edge 69 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
837-078-524-802 EDAC Inc. 837-078-524-802 89.4284
RFQ
 ECAD 3035 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-078 Green Solder download ROHS3 Compliant REACH Unaffected 151-837-078-524-802 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 78 Female Non Specified - Dual Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
345-144-560-503 EDAC Inc. 345-144-560-503 21.6620
RFQ
 ECAD 6661 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 345-144 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-144-560-503 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 144 Female Non Specified - Dual Edge 72 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
342-050-520-203 EDAC Inc. 342-050-520-203 14.6672
RFQ
 ECAD 1849 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-050 Green Solder download ROHS3 Compliant REACH Unaffected 151-342-050-520-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 50 Female Non Specified - Dual Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

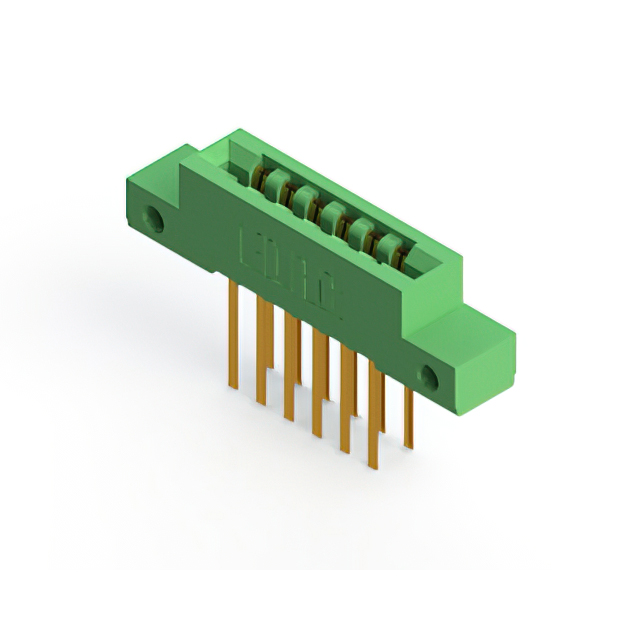

807-012-540-212 EDAC Inc. 807-012-540-212 41.4696
RFQ
 ECAD 3558 0.00000000 EDAC Inc. 807 Box Active -40°C ~ 125°C Through Hole - 807-012 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-807-012-540-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
342-007-523-107 EDAC Inc. 342-007-523-107 12.0488
RFQ
 ECAD 7534 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-007 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-342-007-523-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 7 Female Non Specified - Single Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
807-042-556-212 EDAC Inc. 807-042-556-212 99.1148
RFQ
 ECAD 5259 0.00000000 EDAC Inc. 807 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 807-042 Green Solder download ROHS3 Compliant REACH Unaffected 151-807-042-556-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 42 Female Non Specified - Dual Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
357-026-558-202 EDAC Inc. 357-026-558-202 13.6592
RFQ
 ECAD 9418 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Through Hole, Right Angle - 357-026 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-357-026-558-202 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 26 Female Non Specified - Dual Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
842-052-559-102 EDAC Inc. 842-052-559-102 148.3680
RFQ
 ECAD 9918 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole, Right Angle - 842-052 Green Solder download ROHS3 Compliant REACH Unaffected 151-842-052-559-102 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 52 Female Non Specified - Single Edge 52 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
357-006-525-107 EDAC Inc. 357-006-525-107 9.6900
RFQ
 ECAD 6617 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Through Hole - 357-006 Black Solder download ROHS3 Compliant REACH Unaffected 151-357-006-525-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
345-009-521-108 EDAC Inc. 345-009-521-108 10.3952
RFQ
 ECAD 7193 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-009 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-009-521-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 9 Female Non Specified - Single Edge 9 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
387-014-559-112 EDAC Inc. 387-014-559-112 10.2416
RFQ
 ECAD 8166 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole, Right Angle - 387-014 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-387-014-559-112 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 14 Female Non Specified - Single Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
345-048-542-804 EDAC Inc. 345-048-542-804 10.5524
RFQ
 ECAD 3223 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-048 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-048-542-804 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Dual Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
845-070-521-612 EDAC Inc. 845-070-521-612 160.1868
RFQ
 ECAD 5670 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-070 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-070-521-612 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 70 Female Non Specified - Single Edge 70 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
341-018-560-202 EDAC Inc. 341-018-560-202 11.4976
RFQ
 ECAD 3784 0.00000000 EDAC Inc. 341 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 341-018 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-341-018-560-202 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 18 Female Non Specified - Dual Edge 9 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
895-044-521-804 EDAC Inc. 895-044-521-804 53.1564
RFQ
 ECAD 7262 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-044 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-044-521-804 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 44 Female Non Specified - Dual Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2
345-082-560-202 EDAC Inc. 345-082-560-202 14.6168
RFQ
 ECAD 9871 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 345-082 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-082-560-202 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
845-052-520-407 EDAC Inc. 845-052-520-407 114.7072
RFQ
 ECAD 7397 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-052 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-052-520-407 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 52 Female Non Specified - Single Edge 52 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 1
895-049-540-112 EDAC Inc. 895-049-540-112 93.2936
RFQ
 ECAD 7138 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-049 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-049-540-112 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 49 Female Non Specified - Single Edge 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1
