Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
346-050-559-103 EDAC Inc. 346-050-559-103 13.5392
RFQ
 ECAD 5480 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole, Right Angle - 346-050 Green Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-050-559-103 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 50 Female Non Specified - Single Edge 50 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
842-006-559-103 EDAC Inc. 842-006-559-103 81.1596
RFQ
 ECAD 1450 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole, Right Angle - 842-006 Green Solder download ROHS3 Compliant REACH Unaffected 151-842-006-559-103 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 1
342-112-523-207 EDAC Inc. 342-112-523-207 18.6184
RFQ
 ECAD 1339 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-112 Green Solder download ROHS3 Compliant REACH Unaffected 151-342-112-523-207 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 112 Female Non Specified - Dual Edge 56 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
395-116-541-558 EDAC Inc. 395-116-541-558 16.2812
RFQ
 ECAD 2374 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-116 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-116-541-558 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 116 Female Non Specified - Dual Edge 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
345-020-523-604 EDAC Inc. 345-020-523-604 9.8436
RFQ
 ECAD 1118 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-020 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-020-523-604 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 20 Female Non Specified - Single Edge 20 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
833-044-556-803 EDAC Inc. 833-044-556-803 73.7100
RFQ
 ECAD 7046 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 833-044 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-044-556-803 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 44 Female Non Specified - Dual Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2
387-078-555-803 EDAC Inc. 387-078-555-803 26.4376
RFQ
 ECAD 7646 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 387-078 Black Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-387-078-555-803 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 78 Female Non Specified - Dual Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
837-062-540-202 EDAC Inc. 837-062-540-202 85.4124
RFQ
 ECAD 7882 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-062 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-837-062-540-202 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 62 Female Non Specified - Dual Edge 31 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
887-086-521-804 EDAC Inc. 887-086-521-804 94.8624
RFQ
 ECAD 2382 0.00000000 EDAC Inc. 887 Bulk Active -40°C ~ 125°C Through Hole - 887-086 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-887-086-521-804 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2
345-112-523-588 EDAC Inc. 345-112-523-588 17.9496
RFQ
 ECAD 3954 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-112 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-112-523-588 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 112 Female Non Specified - Dual Edge 56 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
345-040-523-688 EDAC Inc. 345-040-523-688 16.1200
RFQ
 ECAD 4501 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-040 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-040-523-688 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 40 Female Non Specified - Single Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
355-048-520-204 EDAC Inc. 355-048-520-204 10.6240
RFQ
 ECAD 3894 0.00000000 EDAC Inc. 355 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 355-048 Black Solder download ROHS3 Compliant REACH Unaffected 151-355-048-520-204 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 48 Female Non Specified - Dual Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
345-023-525-407 EDAC Inc. 345-023-525-407 12.2336
RFQ
 ECAD 3180 0.00000000 EDAC Inc. 345 Bulk Active -40°C ~ 105°C Through Hole - 345-023 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-345-023-525-407 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 23 Female Non Specified - Single Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 1
846-088-556-258 EDAC Inc. 846-088-556-258 -
RFQ
 ECAD 9797 0.00000000 EDAC Inc. 846 Box Obsolete 846-088 download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-846-088-556-258 EAR99 8536.69.4040 25
807-040-555-203 EDAC Inc. 807-040-555-203 103.6036
RFQ
 ECAD 7106 0.00000000 EDAC Inc. 807 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 807-040 Green Solder download ROHS3 Compliant REACH Unaffected 151-807-040-555-203 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 40 Female Non Specified - Dual Edge 20 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2
345-011-525-158 EDAC Inc. 345-011-525-158 12.7380
RFQ
 ECAD 5839 0.00000000 EDAC Inc. 345 Bulk Active -40°C ~ 105°C Through Hole Card Guides 345-011 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-345-011-525-158 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 11 Female Non Specified - Single Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
395-070-560-504 EDAC Inc. 395-070-560-504 14.1652
RFQ
 ECAD 6026 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 395-070 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-070-560-504 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 70 Female Non Specified - Dual Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2

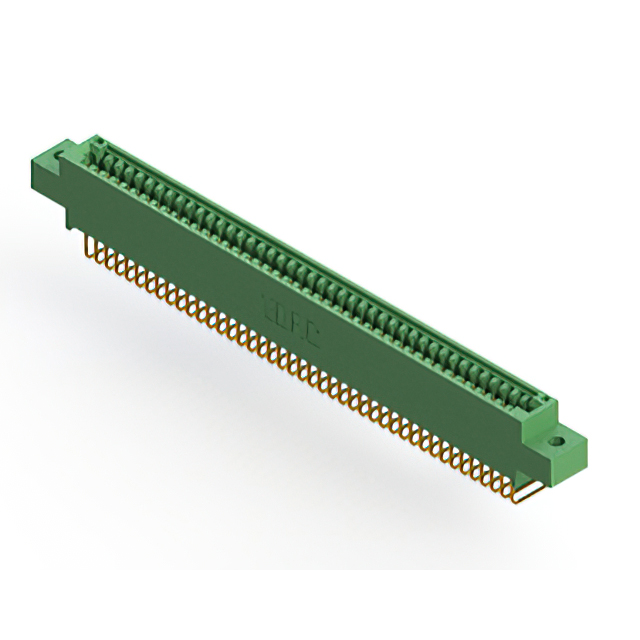

345-043-558-602 EDAC Inc. 345-043-558-602 15.9752
RFQ
 ECAD 8099 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle - 345-043 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-043-558-602 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 43 Female Non Specified - Single Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1

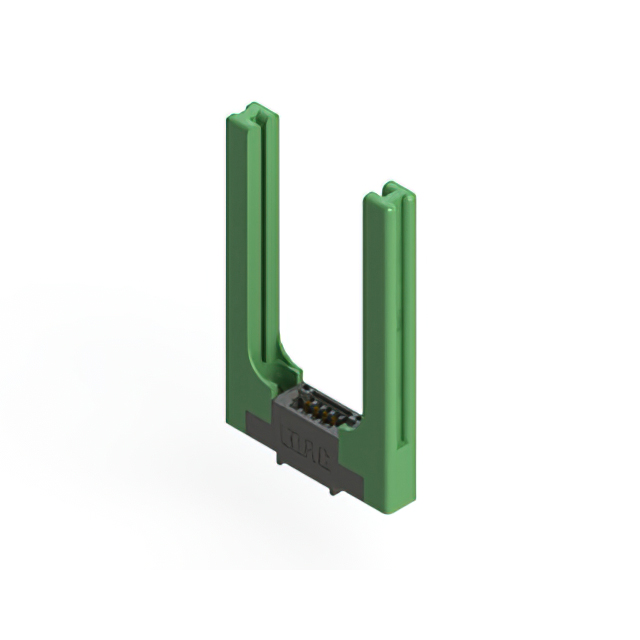

395-005-520-458 EDAC Inc. 395-005-520-458 11.8168
RFQ
 ECAD 9109 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-005 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-005-520-458 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 5 Female Non Specified - Single Edge 5 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
337-016-560-858 EDAC Inc. 337-016-560-858 13.8740
RFQ
 ECAD 1499 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender, Card Guides 337-016 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-016-560-858 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
887-018-541-607 EDAC Inc. 887-018-541-607 48.4044
RFQ
 ECAD 2691 0.00000000 EDAC Inc. 887 Bulk Active -40°C ~ 125°C Through Hole - 887-018 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-887-018-541-607 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 18 Female Non Specified - Single Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 1
392-116-555-204 EDAC Inc. 392-116-555-204 18.1284
RFQ
 ECAD 4693 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 392-116 Black Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-392-116-555-204 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 116 Female Non Specified - Dual Edge 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
833-032-542-101 EDAC Inc. 833-032-542-101 50.4472
RFQ
 ECAD 8091 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-032 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-833-032-542-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 32 Female Non Specified - Single Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Diallyl Phthalate (DAP) 1
846-084-540-208 EDAC Inc. 846-084-540-208 95.4448
RFQ
 ECAD 9390 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-084 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-846-084-540-208 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 84 Female Non Specified - Dual Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
837-056-540-808 EDAC Inc. 837-056-540-808 90.6096
RFQ
 ECAD 1873 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-056 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-837-056-540-808 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
833-032-542-102 EDAC Inc. 833-032-542-102 50.4472
RFQ
 ECAD 1697 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-032 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-833-032-542-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 32 Female Non Specified - Single Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
395-069-523-403 EDAC Inc. 395-069-523-403 17.4688
RFQ
 ECAD 7935 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-069 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-069-523-403 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 69 Female Non Specified - Single Edge 69 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
846-036-540-603 EDAC Inc. 846-036-540-603 63.6772
RFQ
 ECAD 8004 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-036 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-846-036-540-603 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Single Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 1
345-060-556-878 EDAC Inc. 345-060-556-878 15.9028
RFQ
 ECAD 6238 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender, Card Guides 345-060 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-060-556-878 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

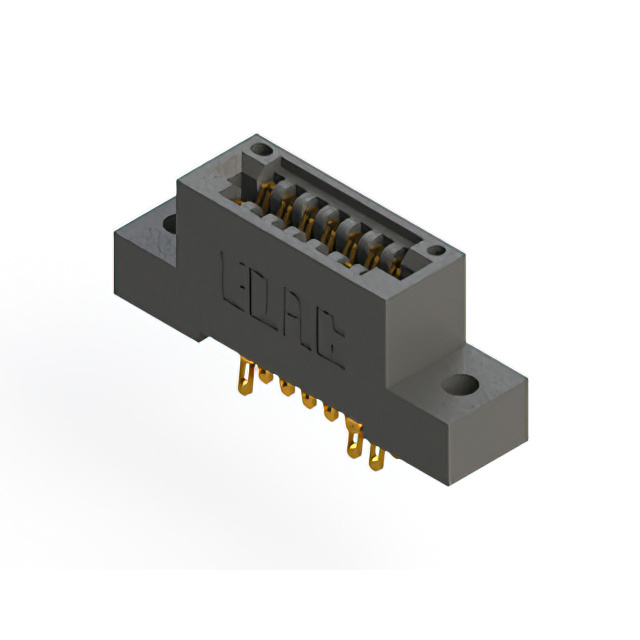

395-014-555-202 EDAC Inc. 395-014-555-202 9.9184
RFQ
 ECAD 7878 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 395-014 Black Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-395-014-555-202 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 14 Female Non Specified - Dual Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
