Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows

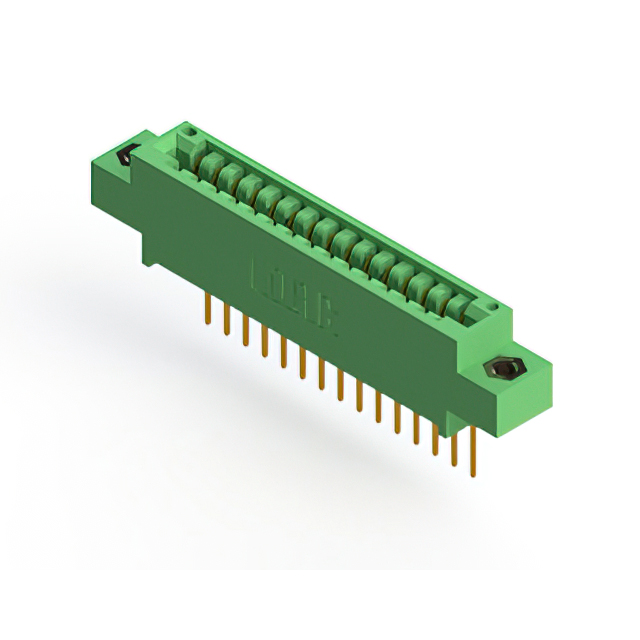

846-015-522-607 EDAC Inc. 846-015-522-607 53.7548
RFQ
 ECAD 1151 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-015 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-015-522-607 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 15 Female Non Specified - Single Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 1

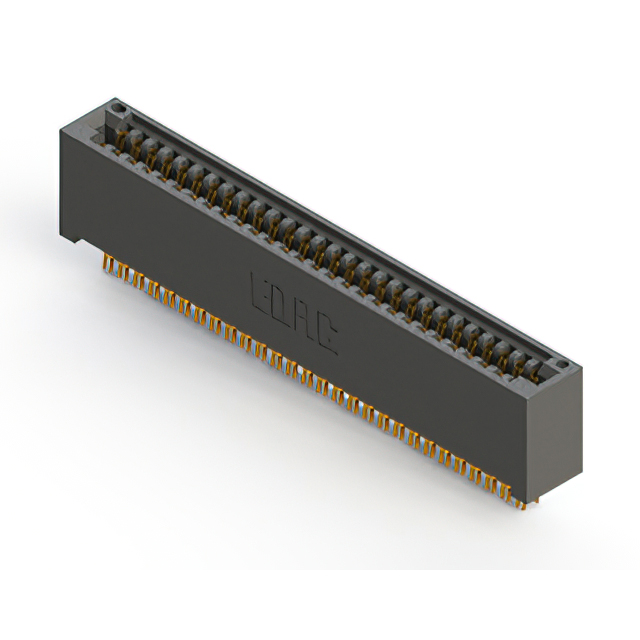

895-056-555-201 EDAC Inc. 895-056-555-201 74.5448
RFQ
 ECAD 3838 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 895-056 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-056-555-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyphenylene Sulfide (PPS) 2

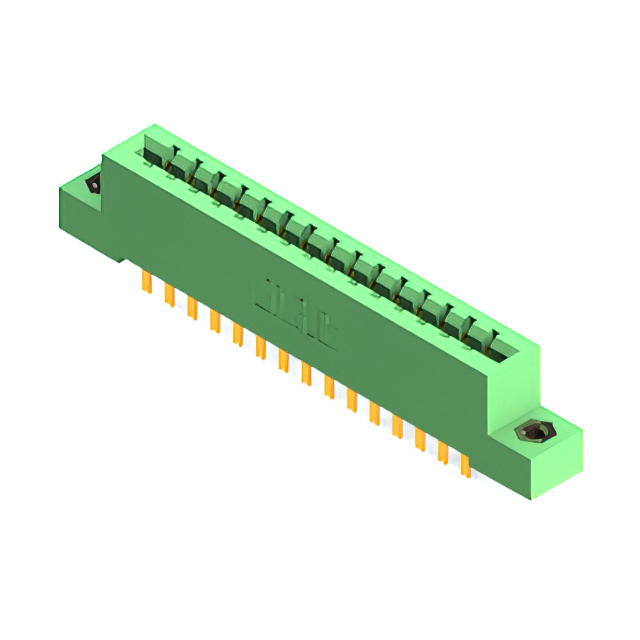

337-030-500-208 EDAC Inc. 337-030-500-208 16.6004
RFQ
 ECAD 2276 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-030 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-030-500-208 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Dual Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

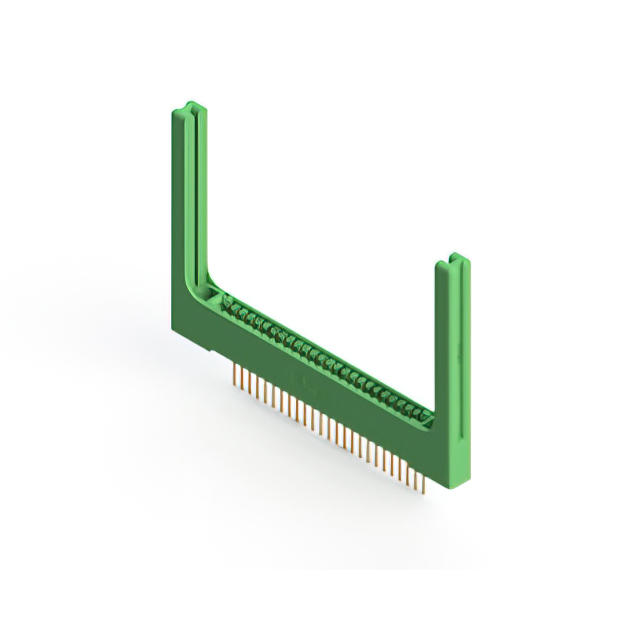

346-025-541-158 EDAC Inc. 346-025-541-158 10.8892
RFQ
 ECAD 9421 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole Card Guides 346-025 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-025-541-158 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 25 Female Non Specified - Single Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
342-062-556-207 EDAC Inc. 342-062-556-207 17.2792
RFQ
 ECAD 2921 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 342-062 Green Solder download ROHS3 Compliant REACH Unaffected 151-342-062-556-207 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 62 Female Non Specified - Dual Edge 31 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
395-058-520-204 EDAC Inc. 395-058-520-204 10.6944
RFQ
 ECAD 9240 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-058 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-058-520-204 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 58 Female Non Specified - Dual Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
307-062-422-204 EDAC Inc. 307-062-422-204 14.9428
RFQ
 ECAD 4096 0.00000000 EDAC Inc. 307 Bulk Active -40°C ~ 105°C Through Hole - 307-062 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-307-062-422-204 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 62 Female Non Specified - Dual Edge 31 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
345-110-525-558 EDAC Inc. 345-110-525-558 17.9496
RFQ
 ECAD 7629 0.00000000 EDAC Inc. 345 Bulk Active -40°C ~ 105°C Through Hole Card Guides 345-110 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-345-110-525-558 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 110 Female Non Specified - Dual Edge 55 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
345-018-544-103 EDAC Inc. 345-018-544-103 12.5608
RFQ
 ECAD 1630 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-018 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-018-544-103 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 18 Female Non Specified - Single Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
387-026-523-203 EDAC Inc. 387-026-523-203 13.5304
RFQ
 ECAD 7363 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-026 Black Solder download ROHS3 Compliant REACH Unaffected 151-387-026-523-203 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Dual Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
842-045-500-102 EDAC Inc. 842-045-500-102 190.4796
RFQ
 ECAD 1141 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-045 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-842-045-500-102 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 45 Female Non Specified - Single Edge 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
845-008-523-101 EDAC Inc. 845-008-523-101 37.4812
RFQ
 ECAD 6600 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-008 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-008-523-101 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 8 Female Non Specified - Single Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Diallyl Phthalate (DAP) 1
845-063-544-188 EDAC Inc. 845-063-544-188 -
RFQ
 ECAD 8096 0.00000000 EDAC Inc. 845 Box Obsolete 845-063 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-063-544-188 EAR99 8536.69.4040 25
337-022-524-201 EDAC Inc. 337-022-524-201 9.5620
RFQ
 ECAD 1020 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-022 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-022-524-201 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
387-018-558-204 EDAC Inc. 387-018-558-204 12.3092
RFQ
 ECAD 2748 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole, Right Angle - 387-018 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-387-018-558-204 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 18 Female Non Specified - Dual Edge 9 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
341-055-520-104 EDAC Inc. 341-055-520-104 23.9732
RFQ
 ECAD 5768 0.00000000 EDAC Inc. 341 Box Active -40°C ~ 105°C Through Hole - 341-055 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-341-055-520-104 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 55 Female Non Specified - Single Edge 55 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
345-126-540-807 EDAC Inc. 345-126-540-807 17.9840
RFQ
 ECAD 2247 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-126 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-126-540-807 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 126 Female Non Specified - Dual Edge 63 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
357-041-557-101 EDAC Inc. 357-041-557-101 41.9712
RFQ
 ECAD 6008 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Through Hole, Right Angle - 357-041 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-357-041-557-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 1
306-008-500-101 EDAC Inc. 306-008-500-101 7.8652
RFQ
 ECAD 8490 0.00000000 EDAC Inc. 306 Bulk Active -40°C ~ 105°C Free Hanging (In-Line) - 306-008 Green Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 1
746-023-541-506 EDAC Inc. 746-023-541-506 8.3508
RFQ
 ECAD 2709 0.00000000 EDAC Inc. 746 Bulk Active -40°C ~ 105°C Through Hole - 746-023 Black Press-Fit, Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-746-023-541-506 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 23 Female Non Specified - Single Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1
342-068-542-208 EDAC Inc. 342-068-542-208 15.4860
RFQ
 ECAD 8859 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-068 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-342-068-542-208 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 68 Female Non Specified - Dual Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
387-056-541-807 EDAC Inc. 387-056-541-807 15.5008
RFQ
 ECAD 3417 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-056 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-387-056-541-807 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
396-008-558-604 EDAC Inc. 396-008-558-604 10.0560
RFQ
 ECAD 5559 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole, Right Angle - 396-008 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-008-558-604 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 8 Female Non Specified - Single Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
895-021-524-604 EDAC Inc. 895-021-524-604 53.7520
RFQ
 ECAD 3818 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-021 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-021-524-604 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 21 Female Non Specified - Single Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 1
395-017-542-101 EDAC Inc. 395-017-542-101 9.6392
RFQ
 ECAD 4010 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-017 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-017-542-101 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 17 Female Non Specified - Single Edge 17 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1
345-106-556-808 EDAC Inc. 345-106-556-808 17.3816
RFQ
 ECAD 1046 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 345-106 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-106-556-808 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 106 Female Non Specified - Dual Edge 53 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
356-027-521-103 EDAC Inc. 356-027-521-103 17.4852
RFQ
 ECAD 7508 0.00000000 EDAC Inc. 356 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 356-027 Black Solder download ROHS3 Compliant REACH Unaffected 151-356-027-521-103 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 54 Female Non Specified - Dual Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
345-132-559-201 EDAC Inc. 345-132-559-201 18.0976
RFQ
 ECAD 2414 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle - 345-132 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-132-559-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 132 Female Non Specified - Dual Edge 66 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
355-064-556-504 EDAC Inc. 355-064-556-504 14.9660
RFQ
 ECAD 5722 0.00000000 EDAC Inc. 355 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 355-064 Black Solder download ROHS3 Compliant REACH Unaffected 151-355-064-556-504 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 64 Female Non Specified - Dual Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
387-027-524-608 EDAC Inc. 387-027-524-608 11.0404
RFQ
 ECAD 6355 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-027 Black Solder download ROHS3 Compliant REACH Unaffected 151-387-027-524-608 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 27 Female Non Specified - Single Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
