Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows

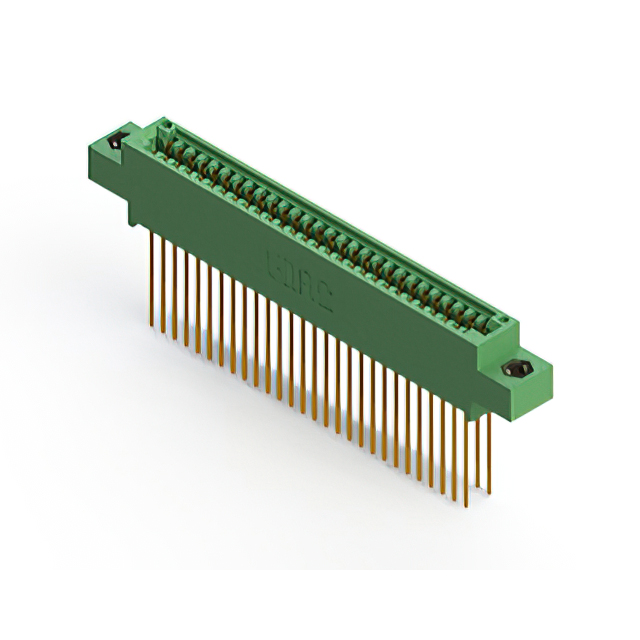

345-056-541-808 EDAC Inc. 345-056-541-808 13.2692
RFQ
 ECAD 1132 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-056 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-056-541-808 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
307-080-522-208 EDAC Inc. 307-080-522-208 19.0416
RFQ
 ECAD 5350 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-080 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-080-522-208 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 80 Female Non Specified - Dual Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

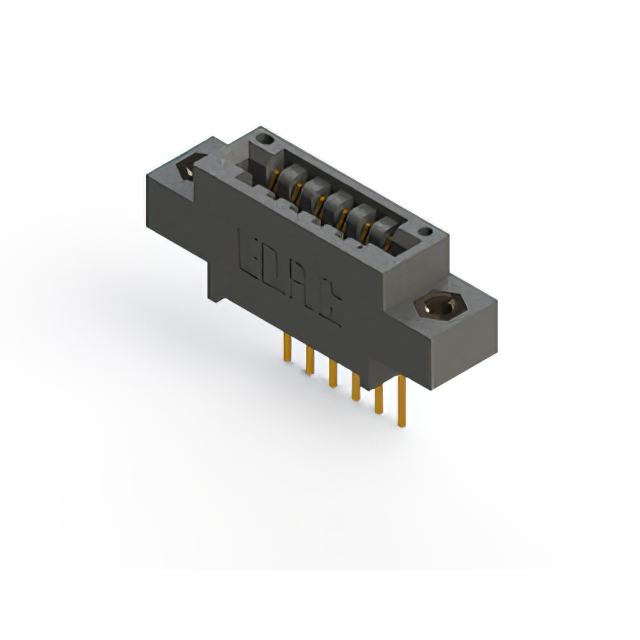

396-006-540-608 EDAC Inc. 396-006-540-608 9.8476
RFQ
 ECAD 6553 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-006 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-006-540-608 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

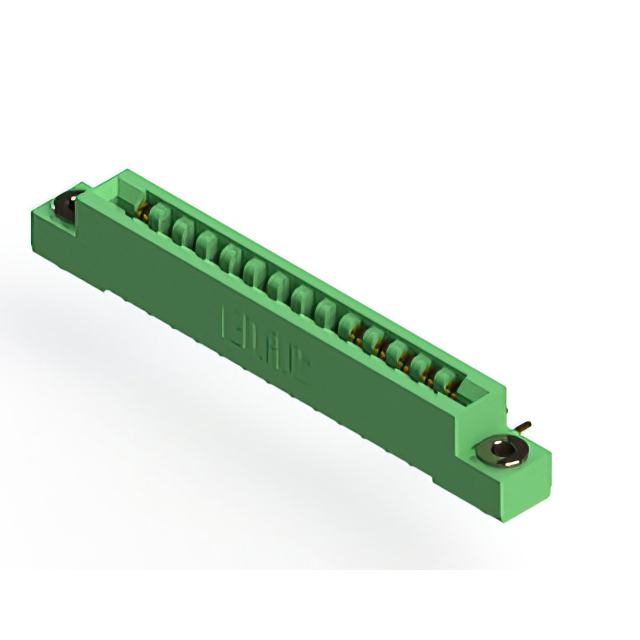

307-014-557-103 EDAC Inc. 307-014-557-103 22.8340
RFQ
 ECAD 8497 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole, Right Angle - 307-014 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-014-557-103 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 28 Female Non Specified - Dual Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
396-062-540-803 EDAC Inc. 396-062-540-803 12.7828
RFQ
 ECAD 8215 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-062 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-062-540-803 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 62 Female Non Specified - Dual Edge 31 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
337-022-541-868 EDAC Inc. 337-022-541-868 12.9544
RFQ
 ECAD 2631 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-022 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-022-541-868 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

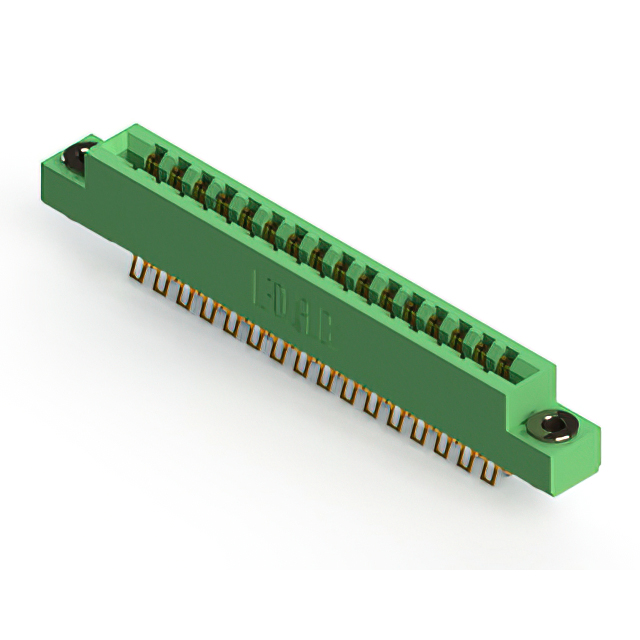

305-032-555-203 EDAC Inc. 305-032-555-203 13.6828
RFQ
 ECAD 3961 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 305-032 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-032-555-203 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 32 Female Non Specified - Dual Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

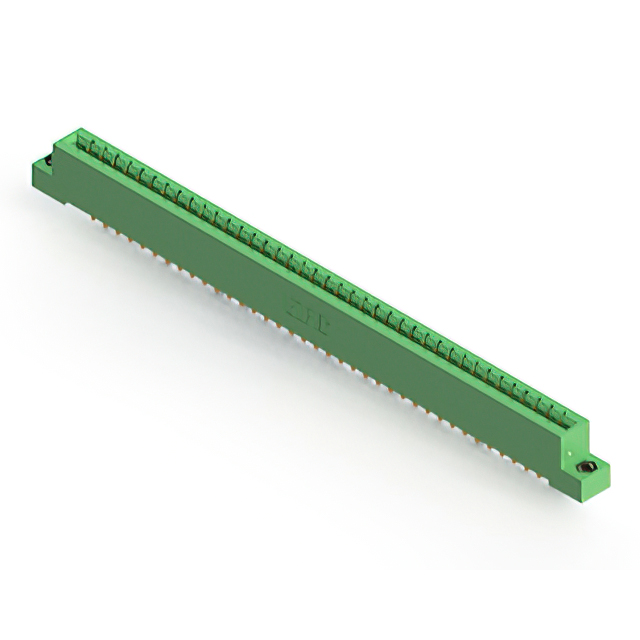

333-039-500-108 EDAC Inc. 333-039-500-108 27.8952
RFQ
 ECAD 5155 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-039 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-039-500-108 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 39 Female Non Specified - Single Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 1

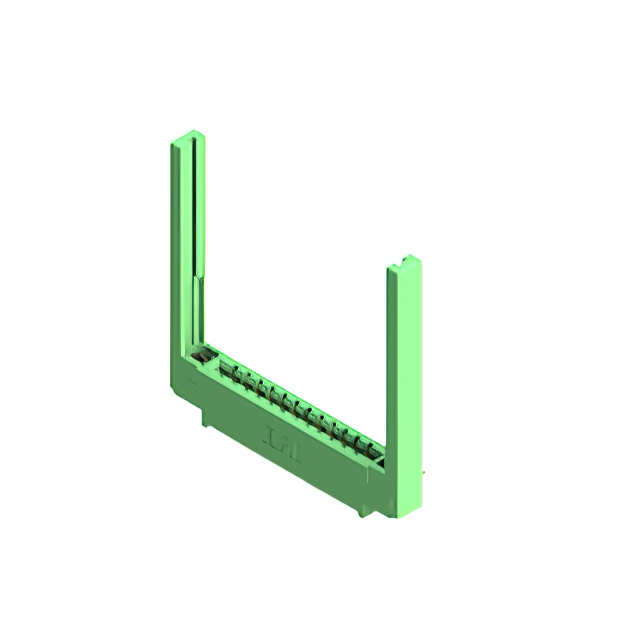

337-012-559-668 EDAC Inc. 337-012-559-668 11.3596
RFQ
 ECAD 4854 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole, Right Angle - 337-012 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-012-559-668 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Single Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

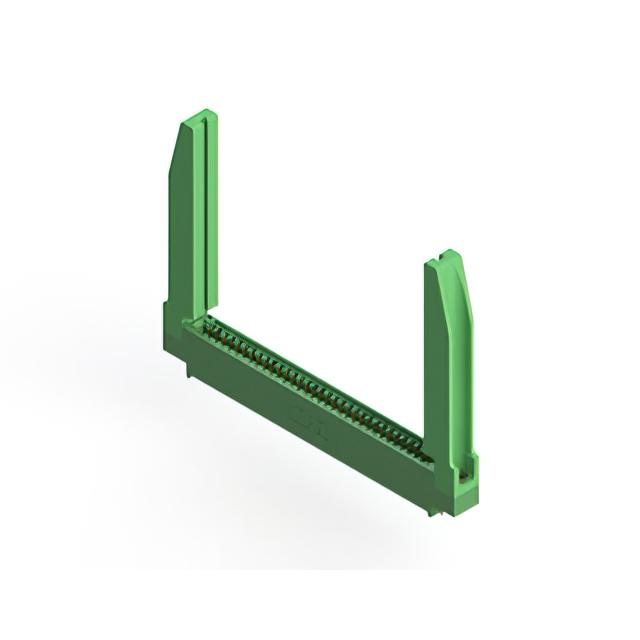

345-034-520-678 EDAC Inc. 345-034-520-678 14.0372
RFQ
 ECAD 5382 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-034 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-034-520-678 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 34 Female Non Specified - Single Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

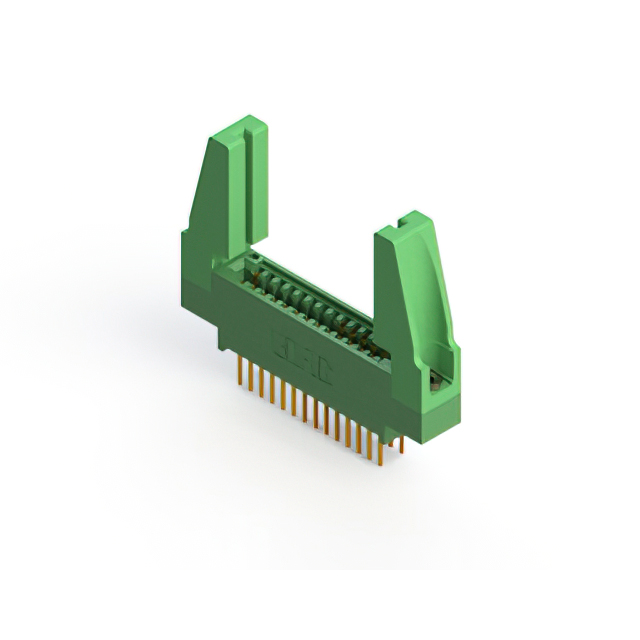

345-028-542-888 EDAC Inc. 345-028-542-888 12.5804
RFQ
 ECAD 8247 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-028 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-028-542-888 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Dual Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

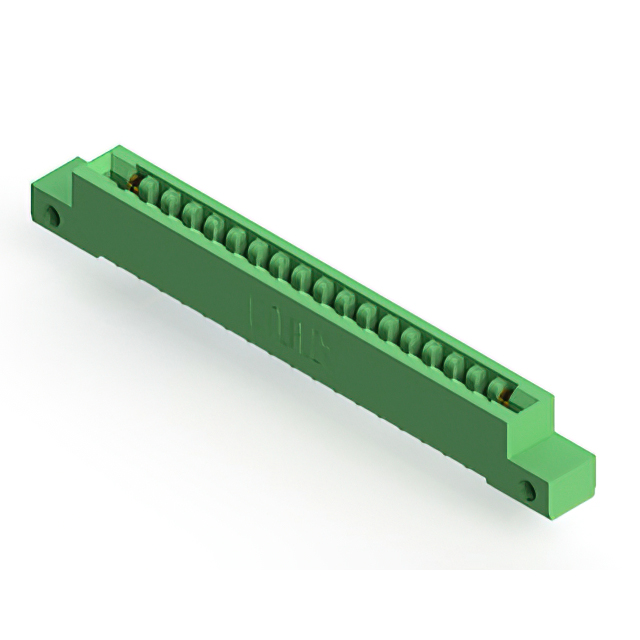

307-018-553-112 EDAC Inc. 307-018-553-112 25.9424
RFQ
 ECAD 4930 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole, Right Angle - 307-018 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-018-553-112 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1

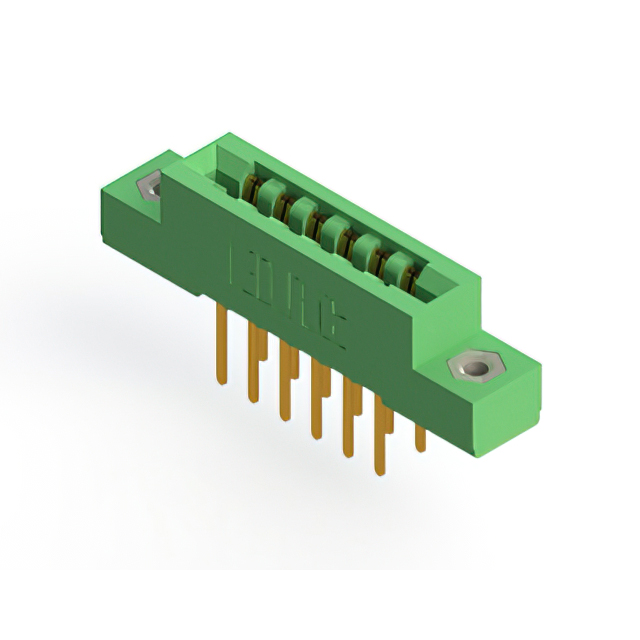

307-012-522-208 EDAC Inc. 307-012-522-208 8.7020
RFQ
 ECAD 4176 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-012 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-012-522-208 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

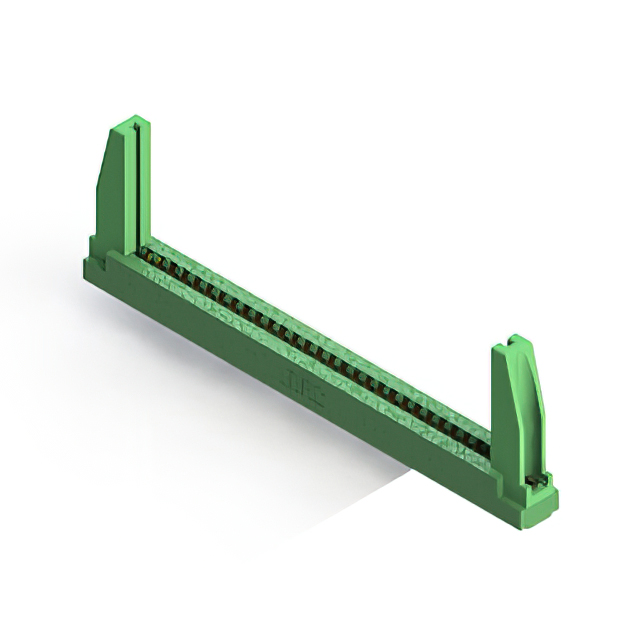

316-030-521-178 EDAC Inc. 316-030-521-178 19.7092
RFQ
 ECAD 6209 0.00000000 EDAC Inc. 316 Box Active -40°C ~ 105°C Panel Mount, Through Hole Card Guides 316-030 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-316-030-521-178 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

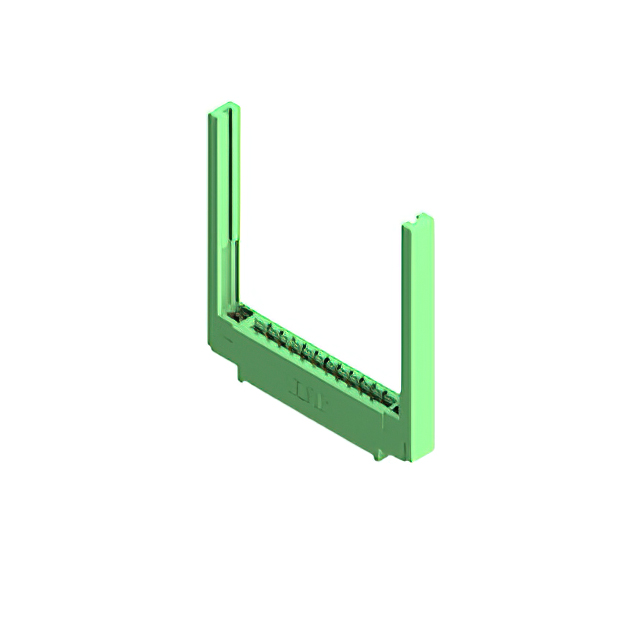

337-011-541-668 EDAC Inc. 337-011-541-668 8.8044
RFQ
 ECAD 3956 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-011 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-011-541-668 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 11 Female Non Specified - Single Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
395-012-558-603 EDAC Inc. 395-012-558-603 14.0896
RFQ
 ECAD 7136 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole, Right Angle - 395-012 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-012-558-603 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Single Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1

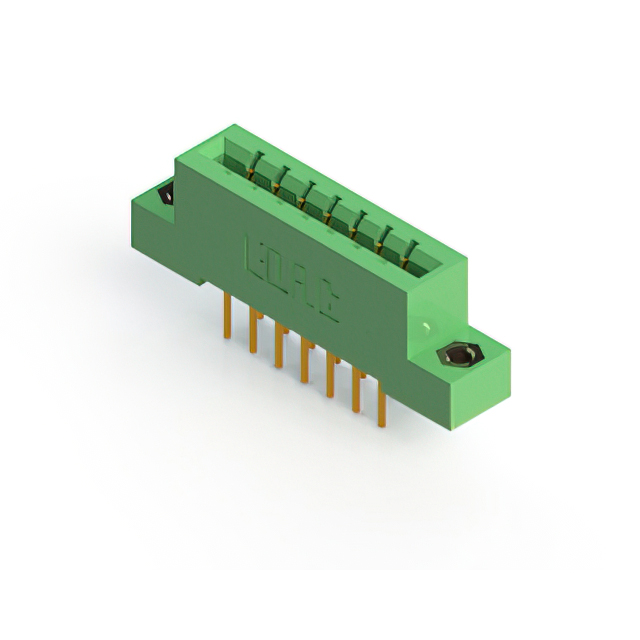

333-014-542-207 EDAC Inc. 333-014-542-207 7.9240
RFQ
 ECAD 4314 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-014 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-014-542-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 14 Female Non Specified - Dual Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
395-102-558-202 EDAC Inc. 395-102-558-202 16.1160
RFQ
 ECAD 3168 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole, Right Angle - 395-102 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-102-558-202 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 102 Female Non Specified - Dual Edge 51 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

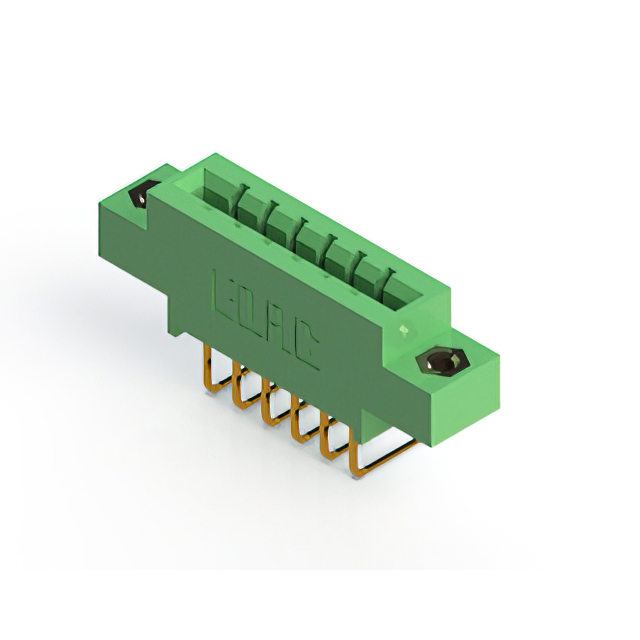

333-006-558-608 EDAC Inc. 333-006-558-608 9.5208
RFQ
 ECAD 3794 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole, Right Angle - 333-006 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-006-558-608 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

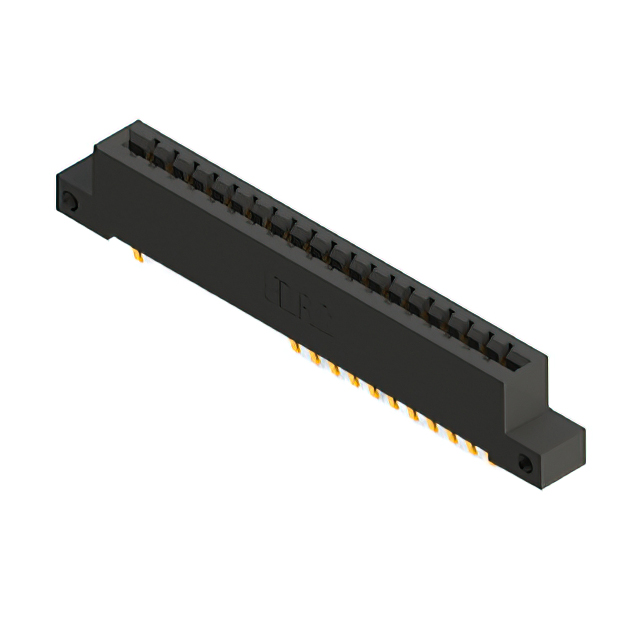

387-038-560-212 EDAC Inc. 387-038-560-212 16.5864
RFQ
 ECAD 8452 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 387-038 Black Solder download ROHS3 Compliant REACH Unaffected 151-387-038-560-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 38 Female Non Specified - Dual Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

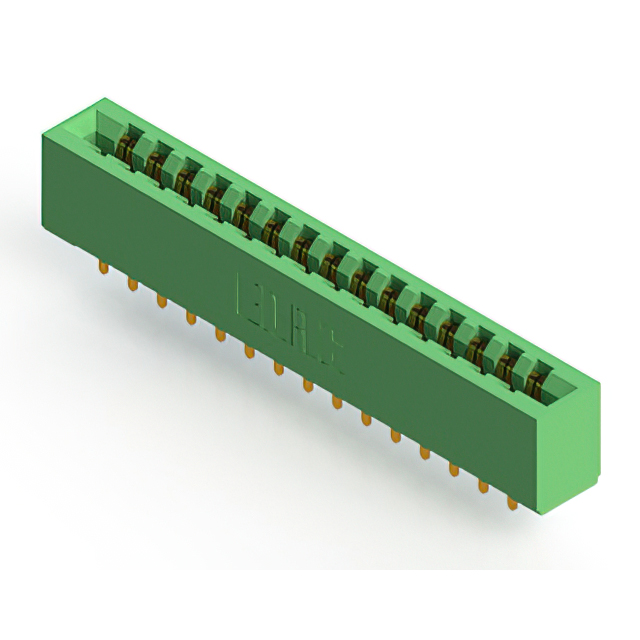

315-030-521-201 EDAC Inc. 315-030-521-201 8.3744
RFQ
 ECAD 1676 0.00000000 EDAC Inc. 315 Box Active -40°C ~ 105°C Through Hole - 315-030 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-315-030-521-201 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 30 Female Non Specified - Dual Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
837-041-542-607 EDAC Inc. 837-041-542-607 76.4348
RFQ
 ECAD 2599 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-041 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-837-041-542-607 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 41 Female Non Specified - Single Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 1

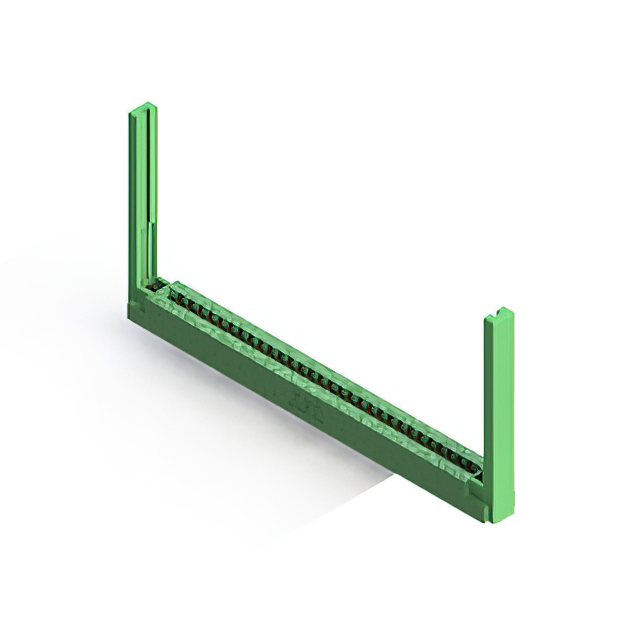

316-030-520-168 EDAC Inc. 316-030-520-168 19.7092
RFQ
 ECAD 6154 0.00000000 EDAC Inc. 316 Box Active -40°C ~ 105°C Panel Mount, Through Hole Card Guides 316-030 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-316-030-520-168 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
833-050-524-812 EDAC Inc. 833-050-524-812 55.8808
RFQ
 ECAD 4299 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-050 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-050-524-812 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 50 Female Non Specified - Dual Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2

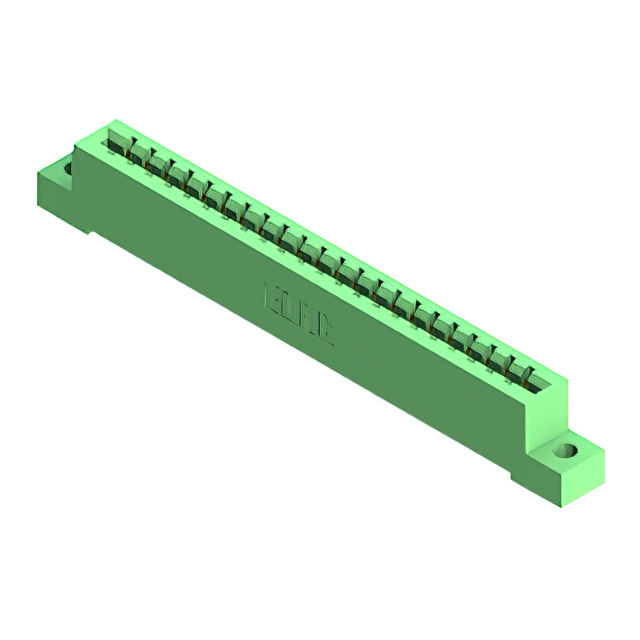

337-022-500-104 EDAC Inc. 337-022-500-104 17.1700
RFQ
 ECAD 5868 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-022 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-022-500-104 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Single Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1

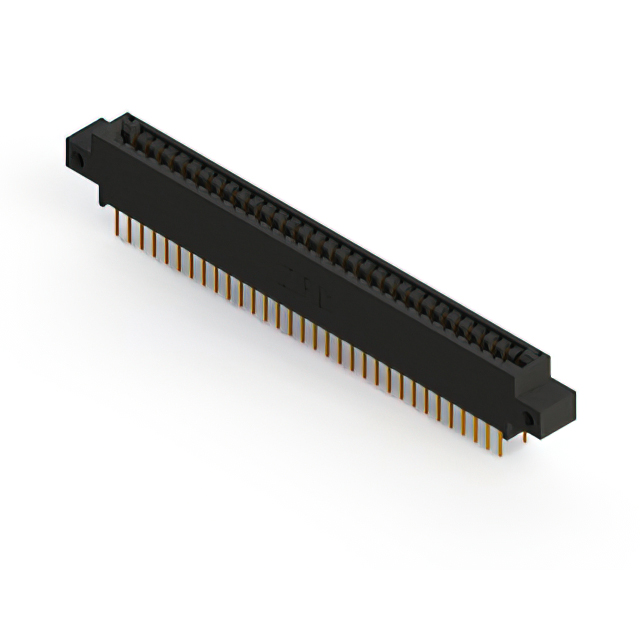

396-064-541-812 EDAC Inc. 396-064-541-812 11.8548
RFQ
 ECAD 5580 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-064 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-064-541-812 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 64 Female Non Specified - Dual Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

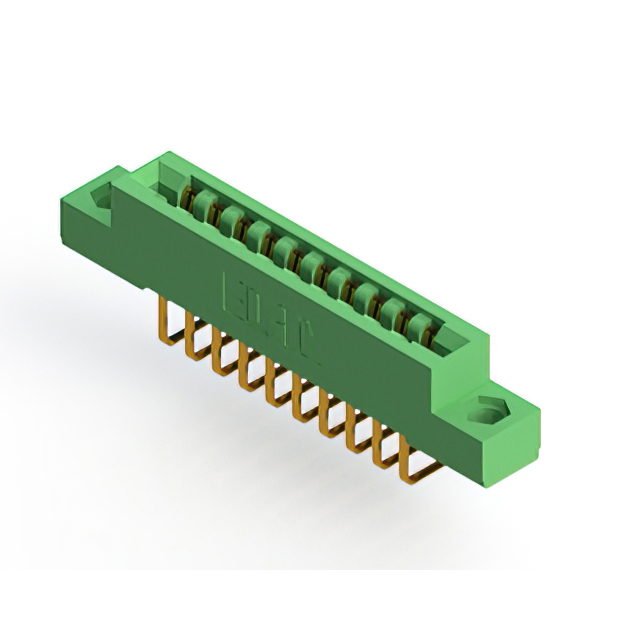

307-010-558-104 EDAC Inc. 307-010-558-104 10.8280
RFQ
 ECAD 9112 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole, Right Angle - 307-010 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-010-558-104 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 10 Female Non Specified - Single Edge 10 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
307-017-554-102 EDAC Inc. 307-017-554-102 23.4848
RFQ
 ECAD 3162 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Surface Mount - 307-017 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-017-554-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 34 Female Non Specified - Dual Edge 17 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
342-054-542-203 EDAC Inc. 342-054-542-203 14.0192
RFQ
 ECAD 4368 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-054 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-342-054-542-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 54 Female Non Specified - Dual Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

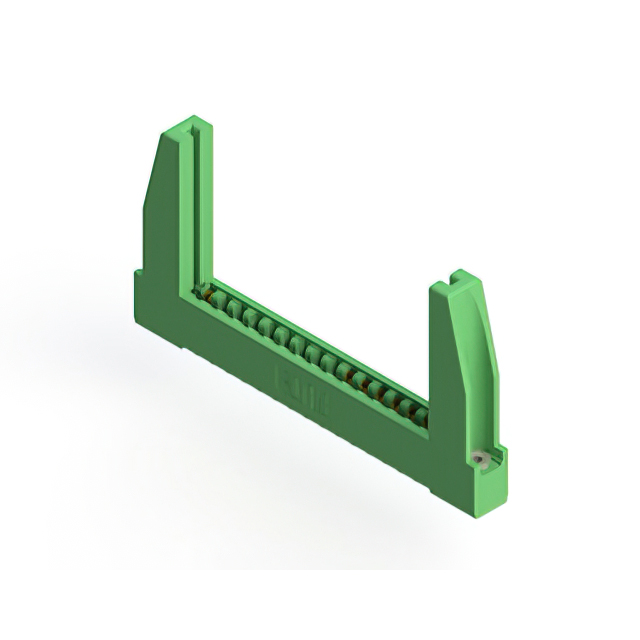

307-016-521-178 EDAC Inc. 307-016-521-178 23.3220
RFQ
 ECAD 5955 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole Card Guides 307-016 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-016-521-178 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 32 Female Non Specified - Dual Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
