Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows

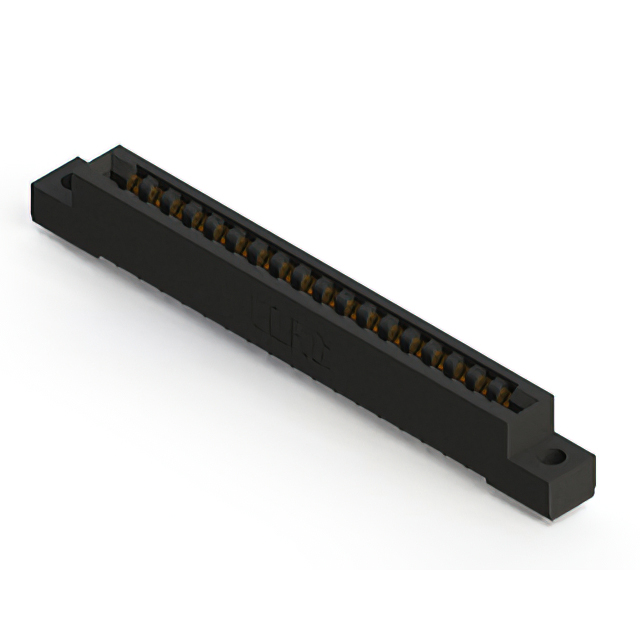

357-018-553-102 EDAC Inc. 357-018-553-102 23.7644
RFQ
 ECAD 4061 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Through Hole, Right Angle - 357-018 Black Solder download ROHS3 Compliant REACH Unaffected 151-357-018-553-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
396-066-520-208 EDAC Inc. 396-066-520-208 12.9720
RFQ
 ECAD 1322 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-066 Black Solder download ROHS3 Compliant REACH Unaffected 151-396-066-520-208 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 66 Female Non Specified - Dual Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

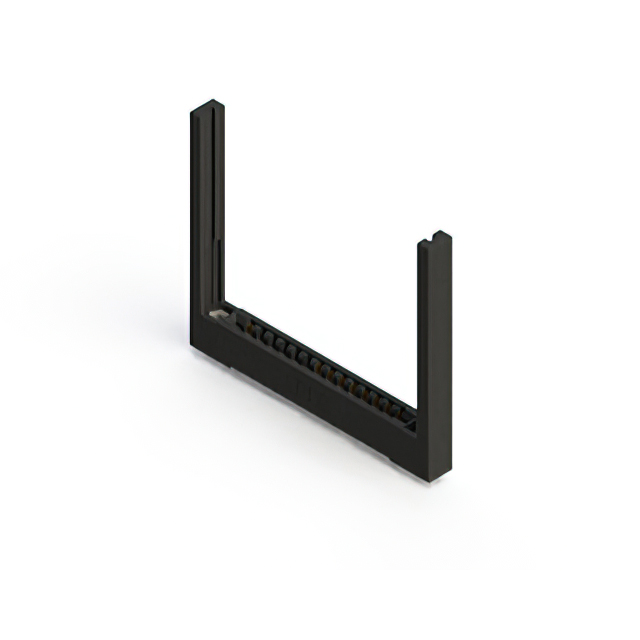

357-014-545-168 EDAC Inc. 357-014-545-168 14.0328
RFQ
 ECAD 3144 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Through Hole Card Guides 357-014 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-357-014-545-168 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 14 Female Non Specified - Single Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
845-092-540-288 EDAC Inc. 845-092-540-288 -
RFQ
 ECAD 1325 0.00000000 EDAC Inc. 845 Box Obsolete 845-092 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-092-540-288 EAR99 8536.69.4040 25

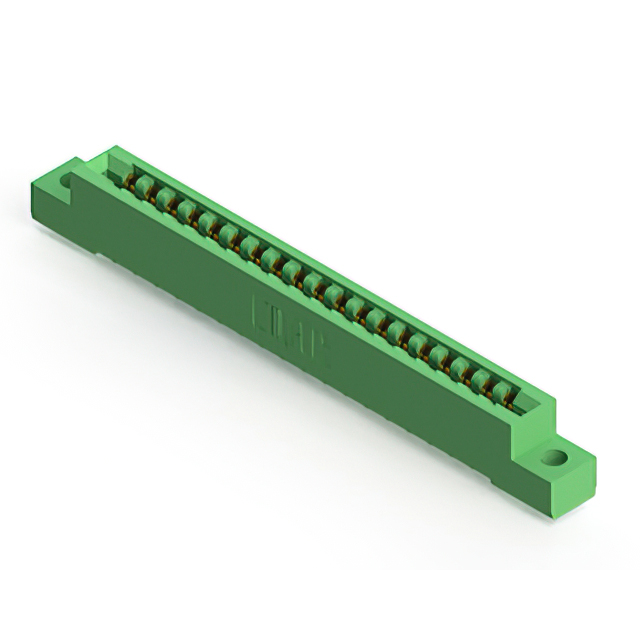

307-019-553-102 EDAC Inc. 307-019-553-102 25.0472
RFQ
 ECAD 5936 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole, Right Angle - 307-019 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-019-553-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 38 Female Non Specified - Dual Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
333-017-544-107 EDAC Inc. 333-017-544-107 9.0500
RFQ
 ECAD 6285 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-017 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-017-544-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 17 Female Non Specified - Single Edge 17 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
307-052-524-207 EDAC Inc. 307-052-524-207 15.7396
RFQ
 ECAD 7973 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-052 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-052-524-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 52 Female Non Specified - Dual Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
307-038-520-202 EDAC Inc. 307-038-520-202 12.4820
RFQ
 ECAD 4804 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-038 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-038-520-202 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 38 Female Non Specified - Dual Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
307-021-554-102 EDAC Inc. 307-021-554-102 26.1376
RFQ
 ECAD 7831 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Surface Mount - 307-021 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-021-554-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 42 Female Non Specified - Dual Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
846-046-555-858 EDAC Inc. 846-046-555-858 -
RFQ
 ECAD 5011 0.00000000 EDAC Inc. 846 Box Obsolete 846-046 download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-846-046-555-858 EAR99 8536.69.4040 25

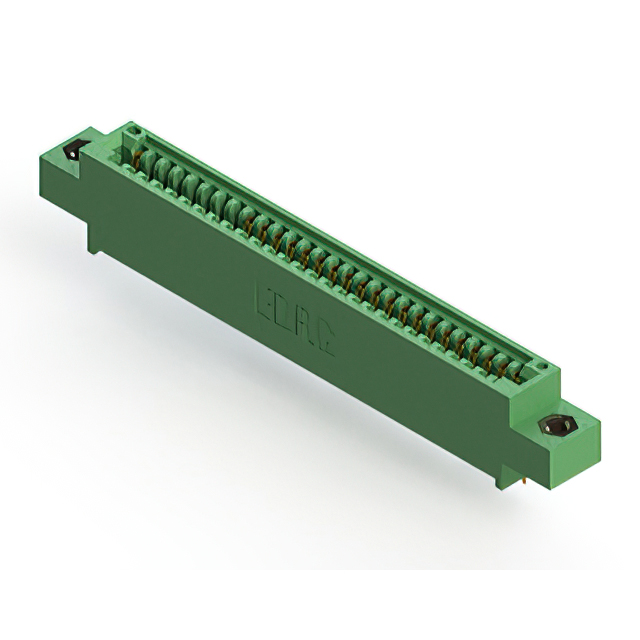

345-028-524-608 EDAC Inc. 345-028-524-608 12.8756
RFQ
 ECAD 2034 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-028 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-028-524-608 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Single Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
845-021-541-678 EDAC Inc. 845-021-541-678 -
RFQ
 ECAD 8327 0.00000000 EDAC Inc. 845 Box Obsolete 845-021 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-021-541-678 EAR99 8536.69.4040 25

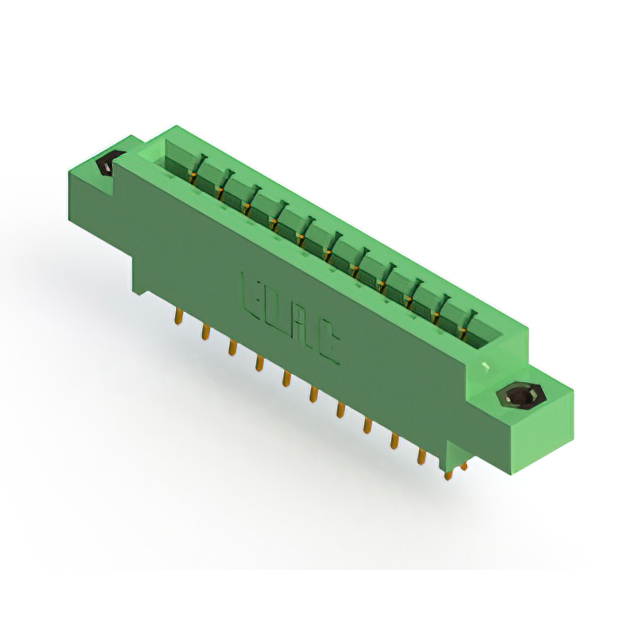

333-022-556-807 EDAC Inc. 333-022-556-807 11.0644
RFQ
 ECAD 1655 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 333-022 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-022-556-807 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
307-025-501-107 EDAC Inc. 307-025-501-107 28.3836
RFQ
 ECAD 4233 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-025 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-025-501-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 50 Female Non Specified - Dual Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
333-029-542-604 EDAC Inc. 333-029-542-604 8.6608
RFQ
 ECAD 2921 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-029 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-029-542-604 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 29 Female Non Specified - Single Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1

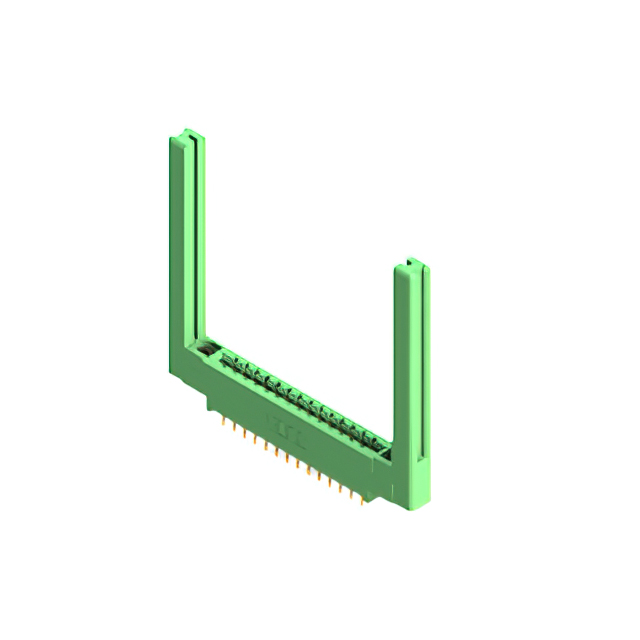

337-028-559-858 EDAC Inc. 337-028-559-858 15.0152
RFQ
 ECAD 5932 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole, Right Angle - 337-028 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-028-559-858 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Dual Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

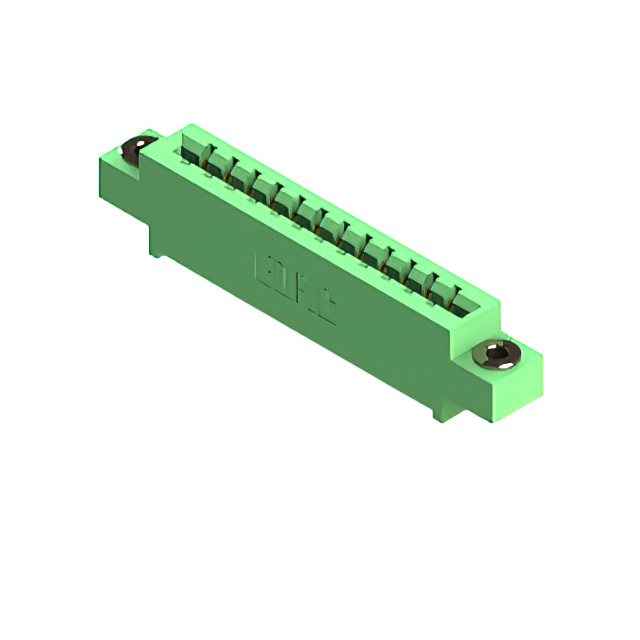

337-012-540-603 EDAC Inc. 337-012-540-603 8.0056
RFQ
 ECAD 3257 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-012 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-012-540-603 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Single Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
395-028-542-658 EDAC Inc. 395-028-542-658 13.7812
RFQ
 ECAD 3334 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-028 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-028-542-658 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Single Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

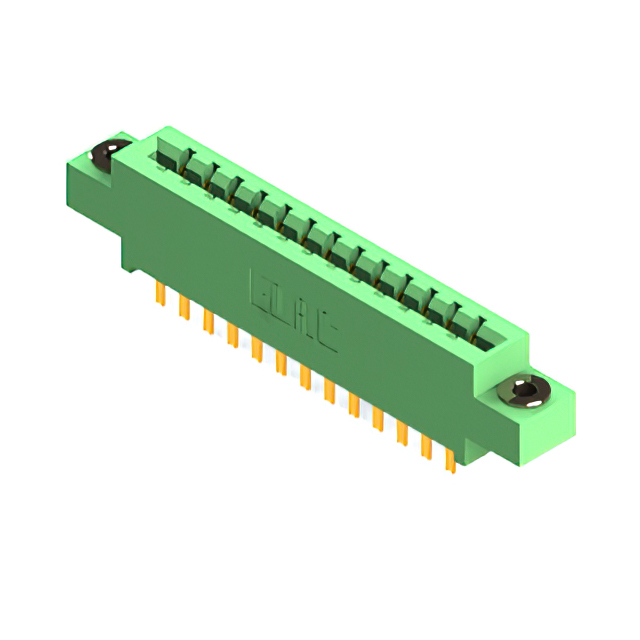

337-026-500-803 EDAC Inc. 337-026-500-803 17.9856
RFQ
 ECAD 5861 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-026 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-026-500-803 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Dual Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

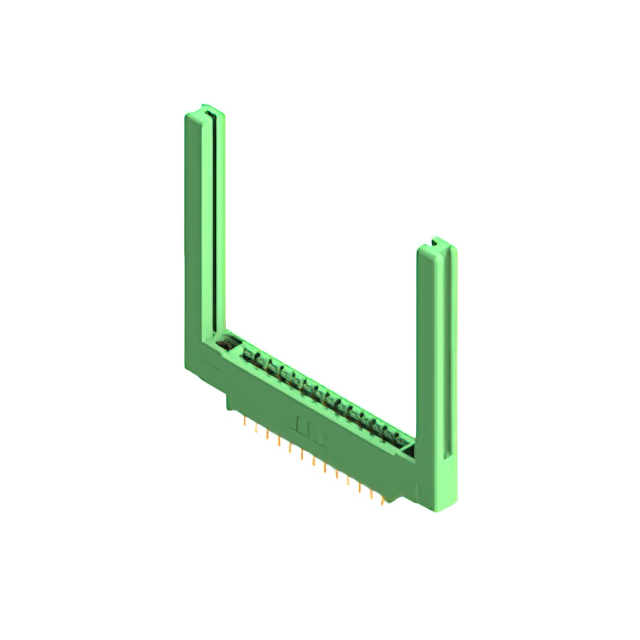

337-026-524-858 EDAC Inc. 337-026-524-858 13.4072
RFQ
 ECAD 8666 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-026 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-026-524-858 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Dual Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

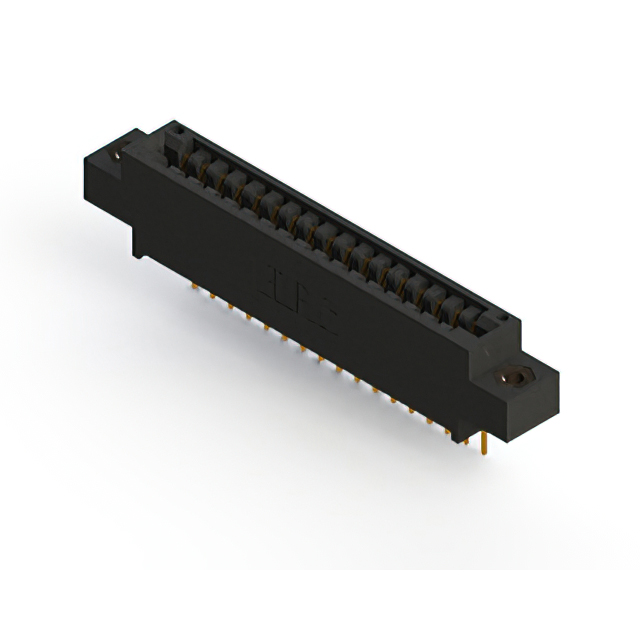

396-017-522-607 EDAC Inc. 396-017-522-607 11.5140
RFQ
 ECAD 1598 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-017 Black Solder download ROHS3 Compliant REACH Unaffected 151-396-017-522-607 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 17 Female Non Specified - Single Edge 17 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 1

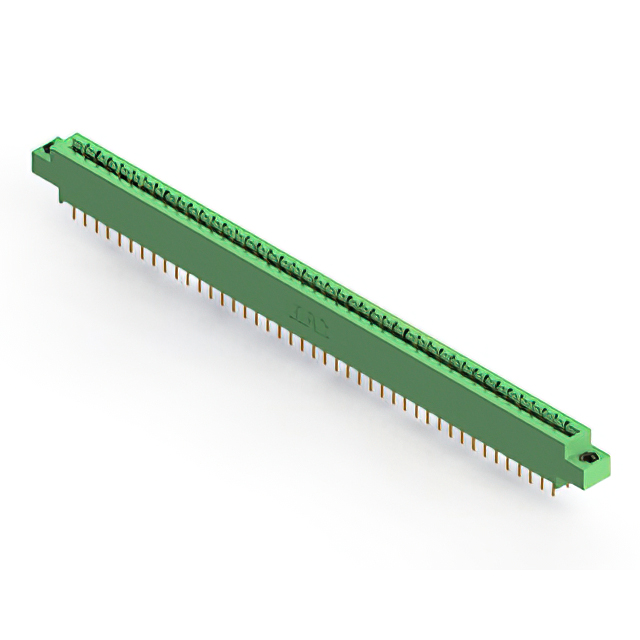

833-086-520-808 EDAC Inc. 833-086-520-808 80.3248
RFQ
 ECAD 4063 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-086 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-086-520-808 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2

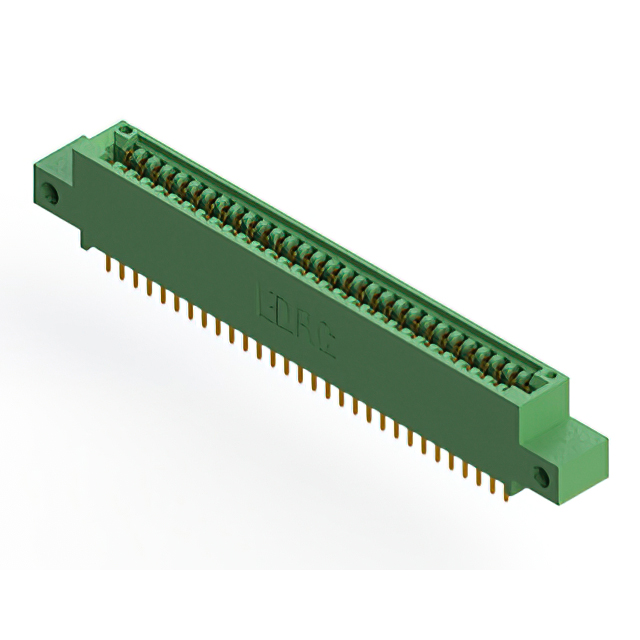

845-060-521-512 EDAC Inc. 845-060-521-512 71.2372
RFQ
 ECAD 4801 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-060 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-060-521-512 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
396-054-559-204 EDAC Inc. 396-054-559-204 12.0820
RFQ
 ECAD 5260 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole, Right Angle - 396-054 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-054-559-204 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 54 Female Non Specified - Dual Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
307-018-554-158 EDAC Inc. 307-018-554-158 27.6188
RFQ
 ECAD 4642 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Surface Mount Card Guides 307-018 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-018-554-158 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
307-035-545-104 EDAC Inc. 307-035-545-104 18.0488
RFQ
 ECAD 9283 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-035 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-035-545-104 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 35 Female Non Specified - Single Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1

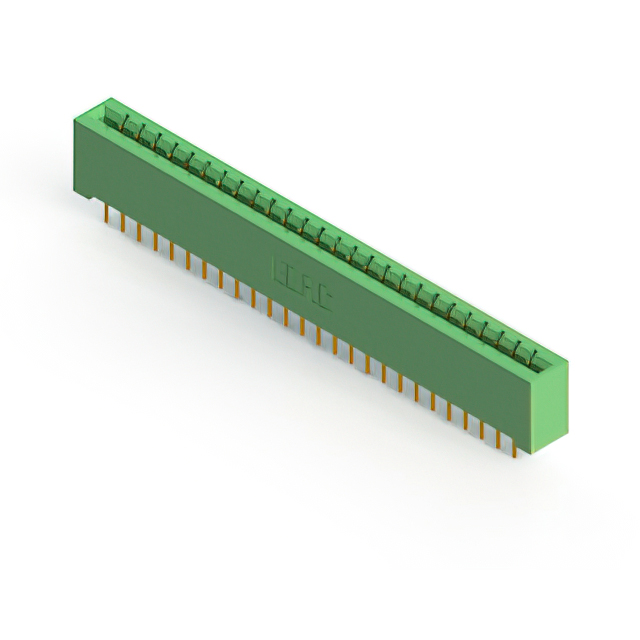

333-052-541-201 EDAC Inc. 333-052-541-201 8.6608
RFQ
 ECAD 5915 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-052 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-052-541-201 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 52 Female Non Specified - Dual Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2

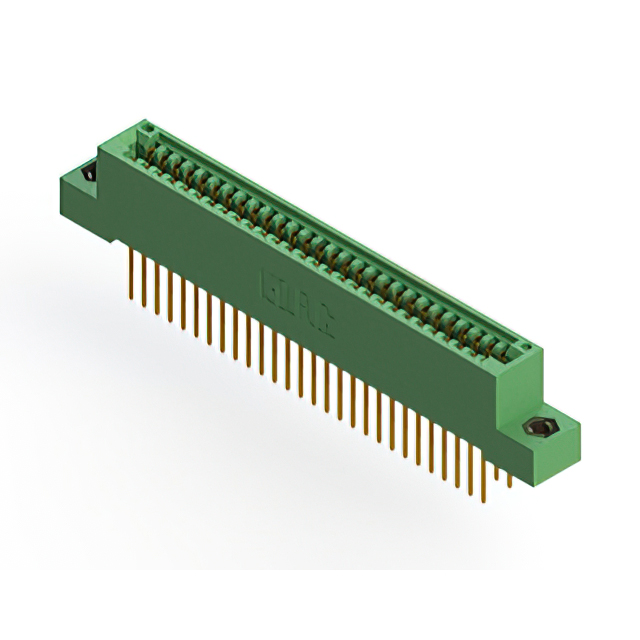

845-056-523-207 EDAC Inc. 845-056-523-207 75.1276
RFQ
 ECAD 5754 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-056 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-056-523-207 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2

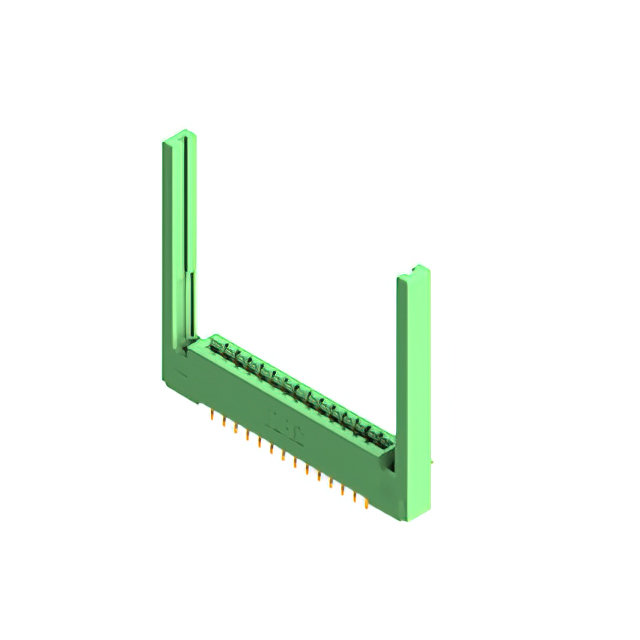

337-028-559-268 EDAC Inc. 337-028-559-268 15.0152
RFQ
 ECAD 1383 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole, Right Angle - 337-028 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-028-559-268 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Dual Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

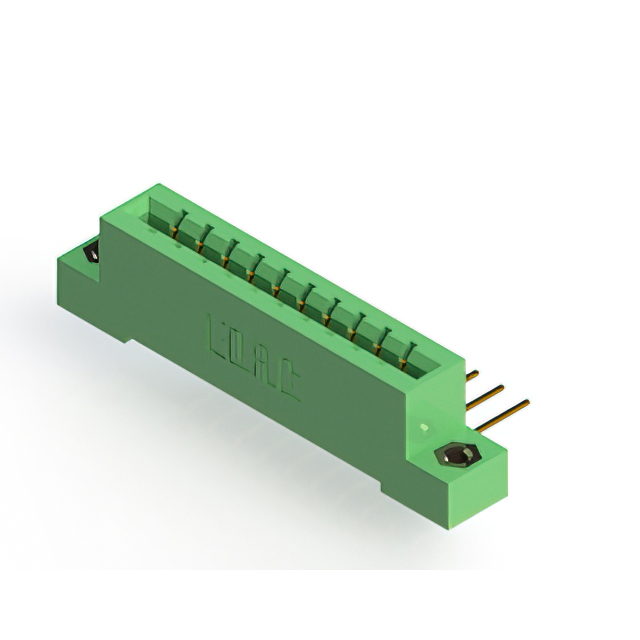

333-010-559-108 EDAC Inc. 333-010-559-108 9.9620
RFQ
 ECAD 6690 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole, Right Angle - 333-010 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-010-559-108 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 10 Female Non Specified - Single Edge 10 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
