Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
845-018-558-201 EDAC Inc. 845-018-558-201 60.1336
RFQ
 ECAD 1763 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole, Right Angle - 845-018 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-018-558-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 18 Female Non Specified - Dual Edge 9 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Diallyl Phthalate (DAP) 2
315-066-521-203 EDAC Inc. 315-066-521-203 15.5404
RFQ
 ECAD 7070 0.00000000 EDAC Inc. 315 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 315-066 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-315-066-521-203 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 66 Female Non Specified - Dual Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
307-013-558-178 EDAC Inc. 307-013-558-178 15.3232
RFQ
 ECAD 6101 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 307-013 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-013-558-178 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 13 Female Non Specified - Single Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
395-016-556-212 EDAC Inc. 395-016-556-212 11.0404
RFQ
 ECAD 3115 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 395-016 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-016-556-212 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
307-035-525-103 EDAC Inc. 307-035-525-103 20.3436
RFQ
 ECAD 1541 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-035 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-035-525-103 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 35 Female Non Specified - Single Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
845-076-556-808 EDAC Inc. 845-076-556-808 80.6872
RFQ
 ECAD 8810 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 845-076 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-076-556-808 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 76 Female Non Specified - Dual Edge 38 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
845-020-559-808 EDAC Inc. 845-020-559-808 70.1664
RFQ
 ECAD 5241 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole, Right Angle - 845-020 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-020-559-808 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 20 Female Non Specified - Dual Edge 10 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
345-036-541-558 EDAC Inc. 345-036-541-558 12.2064
RFQ
 ECAD 3327 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-036 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-036-541-558 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
305-082-555-508 EDAC Inc. 305-082-555-508 17.8864
RFQ
 ECAD 4754 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 305-082 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-082-555-508 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
305-022-500-207 EDAC Inc. 305-022-500-207 9.8832
RFQ
 ECAD 8984 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Panel Mount - 305-022 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-022-500-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
345-035-500-107 EDAC Inc. 345-035-500-107 19.7740
RFQ
 ECAD 1170 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-035 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-345-035-500-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 35 Female Non Specified - Single Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
315-084-520-268 EDAC Inc. 315-084-520-268 16.5680
RFQ
 ECAD 7904 0.00000000 EDAC Inc. 315 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 315-084 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-315-084-520-268 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 84 Female Non Specified - Dual Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
396-058-558-802 EDAC Inc. 396-058-558-802 12.3852
RFQ
 ECAD 7599 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole, Right Angle - 396-058 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-058-558-802 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 58 Female Non Specified - Dual Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
307-042-545-107 EDAC Inc. 307-042-545-107 23.6476
RFQ
 ECAD 1563 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-042 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-042-545-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 42 Female Non Specified - Single Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
337-012-500-107 EDAC Inc. 337-012-500-107 16.1200
RFQ
 ECAD 5386 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-012 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-012-500-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Single Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
342-024-500-201 EDAC Inc. 342-024-500-201 14.5688
RFQ
 ECAD 5270 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-024 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-342-024-500-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 24 Female Non Specified - Dual Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
325-026-540-201 EDAC Inc. 325-026-540-201 14.0176
RFQ
 ECAD 3778 0.00000000 EDAC Inc. 325 Box Active -65°C ~ 125°C Through Hole - 325-026 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-325-026-540-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Dual Edge 13 0.125" (3.18mm) Dual - Diallyl Phthalate (DAP) 2
307-064-560-201 EDAC Inc. 307-064-560-201 17.8228
RFQ
 ECAD 7795 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 307-064 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-064-560-201 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 64 Female Non Specified - Dual Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
845-020-523-212 EDAC Inc. 845-020-523-212 49.1400
RFQ
 ECAD 6594 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-020 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-020-523-212 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 20 Female Non Specified - Dual Edge 10 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
396-054-540-807 EDAC Inc. 396-054-540-807 12.1768
RFQ
 ECAD 4328 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-054 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-054-540-807 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 54 Female Non Specified - Dual Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
391-060-520-203 EDAC Inc. 391-060-520-203 15.8024
RFQ
 ECAD 1021 0.00000000 EDAC Inc. 391 Box Active -40°C ~ 105°C Through Hole - 391-060 Black Solder download ROHS3 Compliant REACH Unaffected 151-391-060-520-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
837-086-542-204 EDAC Inc. 837-086-542-204 94.8624
RFQ
 ECAD 3820 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-086 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-837-086-542-204 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 2
345-112-521-507 EDAC Inc. 345-112-521-507 17.0440
RFQ
 ECAD 3932 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-112 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-112-521-507 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 112 Female Non Specified - Dual Edge 56 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
305-014-556-504 EDAC Inc. 305-014-556-504 9.5208
RFQ
 ECAD 1114 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 305-014 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-014-556-504 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 14 Female Non Specified - Dual Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
845-045-524-608 EDAC Inc. 845-045-524-608 100.2960
RFQ
 ECAD 8574 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-045 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-045-524-608 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 45 Female Non Specified - Single Edge 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 1
305-072-521-504 EDAC Inc. 305-072-521-504 13.8380
RFQ
 ECAD 4430 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 305-072 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-072-521-504 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 72 Female Non Specified - Dual Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2

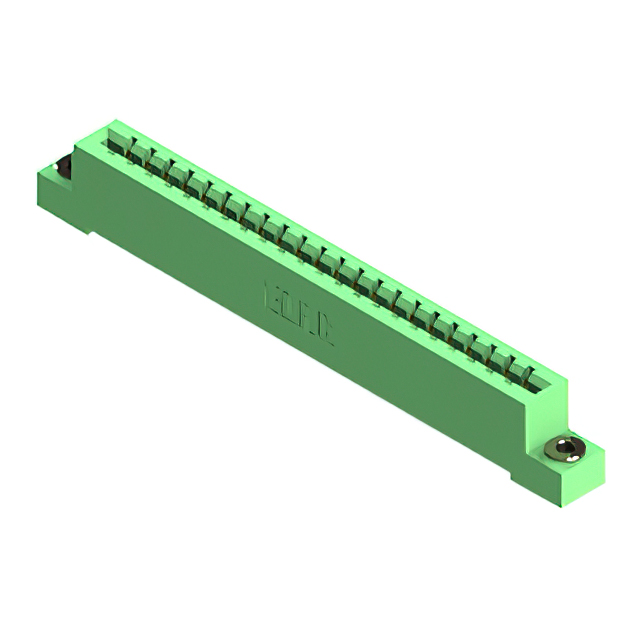

337-022-500-103 EDAC Inc. 337-022-500-103 19.4648
RFQ
 ECAD 1250 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-022 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-022-500-103 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Single Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
346-076-556-258 EDAC Inc. 346-076-556-258 16.4296
RFQ
 ECAD 6370 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender, Card Guides 346-076 Green Solder download ROHS3 Compliant REACH Unaffected 151-346-076-556-258 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 76 Female Non Specified - Dual Edge 38 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
337-052-542-203 EDAC Inc. 337-052-542-203 14.2908
RFQ
 ECAD 4845 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-052 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-052-542-203 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 52 Female Non Specified - Dual Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
345-048-555-278 EDAC Inc. 345-048-555-278 15.6312
RFQ
 ECAD 2009 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender, Card Guides 345-048 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-345-048-555-278 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Dual Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
