Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows

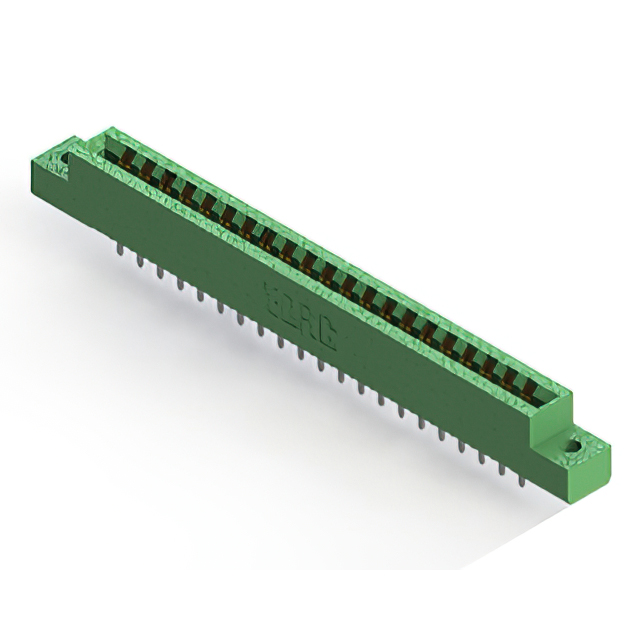

306-021-520-102 EDAC Inc. 306-021-520-102 13.7112
RFQ
 ECAD 1556 0.00000000 EDAC Inc. 306 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 306-021 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-306-021-520-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 42 Female Non Specified - Dual Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
845-058-520-203 EDAC Inc. 845-058-520-203 80.4512
RFQ
 ECAD 2847 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-058 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-058-520-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 58 Female Non Specified - Dual Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2
395-051-541-602 EDAC Inc. 395-051-541-602 13.7812
RFQ
 ECAD 3653 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-051 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-051-541-602 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 51 Female Non Specified - Single Edge 51 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
306-033-500-178 EDAC Inc. 306-033-500-178 21.0272
RFQ
 ECAD 7129 0.00000000 EDAC Inc. 306 Box Active -40°C ~ 105°C Panel Mount Card Guides 306-033 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-306-033-500-178 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 66 Female Non Specified - Dual Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
387-006-541-612 EDAC Inc. 387-006-541-612 6.1288
RFQ
 ECAD 8940 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-006 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-387-006-541-612 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
337-080-559-804 EDAC Inc. 337-080-559-804 17.2248
RFQ
 ECAD 3212 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole, Right Angle - 337-080 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-080-559-804 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 80 Female Non Specified - Dual Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2

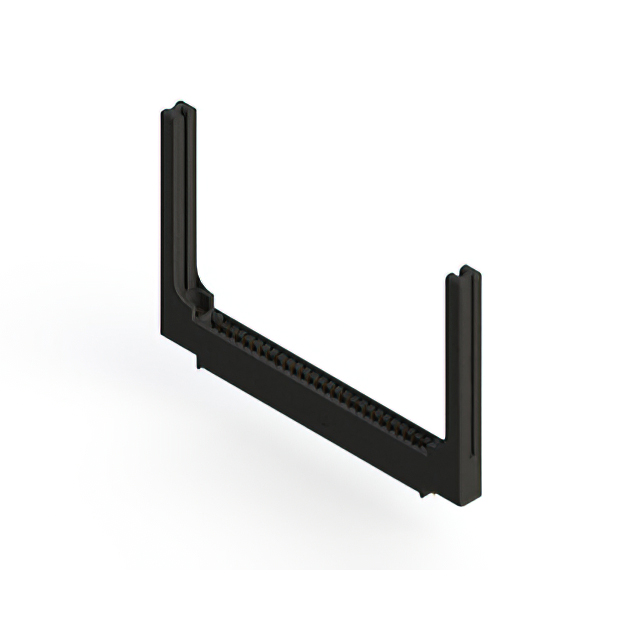

396-027-520-658 EDAC Inc. 396-027-520-658 13.9948
RFQ
 ECAD 4068 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole Card Guides 396-027 Black Solder download ROHS3 Compliant REACH Unaffected 151-396-027-520-658 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 27 Female Non Specified - Single Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
846-078-520-803 EDAC Inc. 846-078-520-803 86.5936
RFQ
 ECAD 5267 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-078 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-078-520-803 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 78 Female Non Specified - Dual Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2

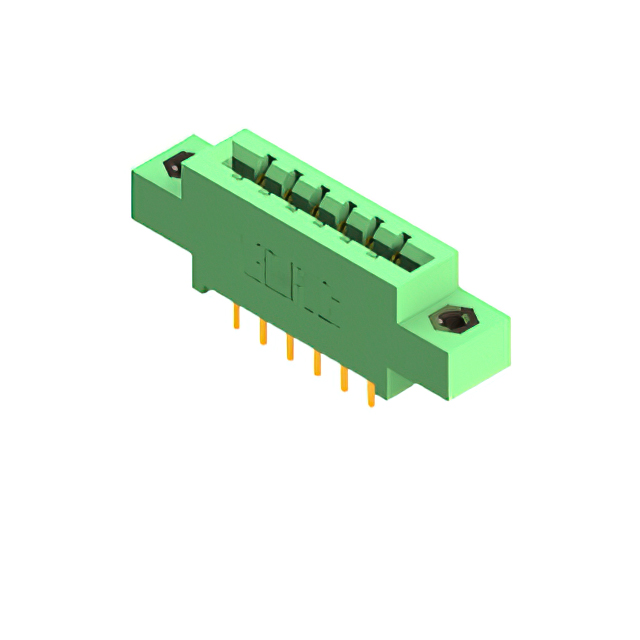

337-012-542-808 EDAC Inc. 337-012-542-808 11.0644
RFQ
 ECAD 8650 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-012 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-012-542-808 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Dual Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
346-018-558-207 EDAC Inc. 346-018-558-207 11.7792
RFQ
 ECAD 8609 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole, Right Angle - 346-018 Green Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-018-558-207 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 18 Female Non Specified - Dual Edge 9 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
337-012-520-207 EDAC Inc. 337-012-520-207 11.0644
RFQ
 ECAD 1140 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-012 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-012-520-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
307-022-527-104 EDAC Inc. 307-022-527-104 14.3128
RFQ
 ECAD 4278 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-022 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-022-527-104 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 22 Female Non Specified - Single Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
837-050-540-212 EDAC Inc. 837-050-540-212 80.5612
RFQ
 ECAD 2103 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-050 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-837-050-540-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 50 Female Non Specified - Dual Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
333-076-542-802 EDAC Inc. 333-076-542-802 10.5720
RFQ
 ECAD 5780 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-076 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-076-542-802 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 76 Female Non Specified - Dual Edge 38 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

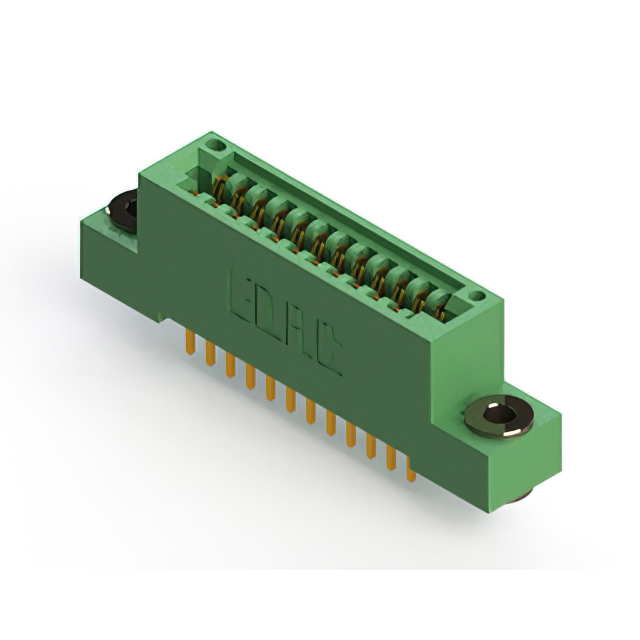

845-024-521-203 EDAC Inc. 845-024-521-203 57.2984
RFQ
 ECAD 7033 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-024 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-024-521-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 24 Female Non Specified - Dual Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2
833-050-559-802 EDAC Inc. 833-050-559-802 61.1888
RFQ
 ECAD 4390 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole, Right Angle - 833-050 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-050-559-802 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 50 Female Non Specified - Dual Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
337-031-558-112 EDAC Inc. 337-031-558-112 13.1316
RFQ
 ECAD 7472 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole, Right Angle - 337-031 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-031-558-112 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 31 Female Non Specified - Single Edge 31 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
337-013-541-612 EDAC Inc. 337-013-541-612 7.4908
RFQ
 ECAD 2163 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-013 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-013-541-612 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 13 Female Non Specified - Single Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1

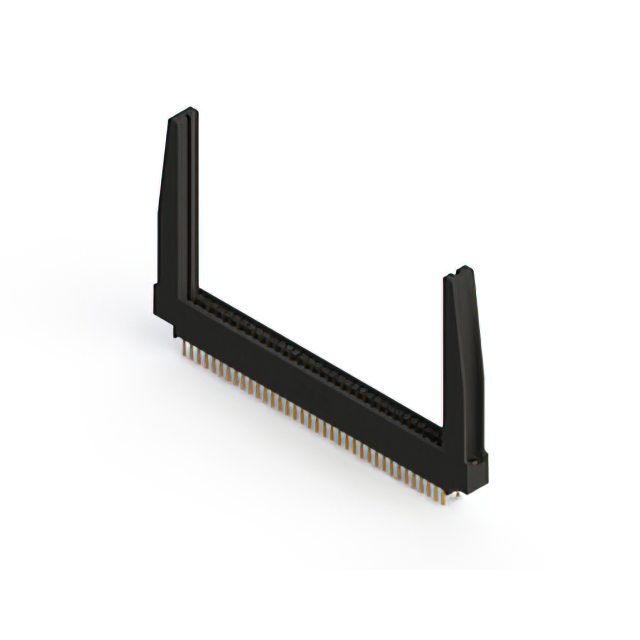

396-072-540-878 EDAC Inc. 396-072-540-878 13.2760
RFQ
 ECAD 9671 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole Card Guides 396-072 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-072-540-878 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 72 Female Non Specified - Dual Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
395-050-555-507 EDAC Inc. 395-050-555-507 13.6768
RFQ
 ECAD 6022 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 395-050 Black Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-395-050-555-507 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 50 Female Non Specified - Dual Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
842-040-500-202 EDAC Inc. 842-040-500-202 96.6264
RFQ
 ECAD 2945 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-040 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-842-040-500-202 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 40 Female Non Specified - Dual Edge 20 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
846-096-540-207 EDAC Inc. 846-096-540-207 106.4384
RFQ
 ECAD 6481 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-096 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-846-096-540-207 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 96 Female Non Specified - Dual Edge 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2
333-022-500-101 EDAC Inc. 333-022-500-101 17.1700
RFQ
 ECAD 8530 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-022 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-022-500-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Single Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Diallyl Phthalate (DAP) 1
395-046-559-103 EDAC Inc. 395-046-559-103 16.0620
RFQ
 ECAD 4964 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole, Right Angle - 395-046 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-046-559-103 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 46 Female Non Specified - Single Edge 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1

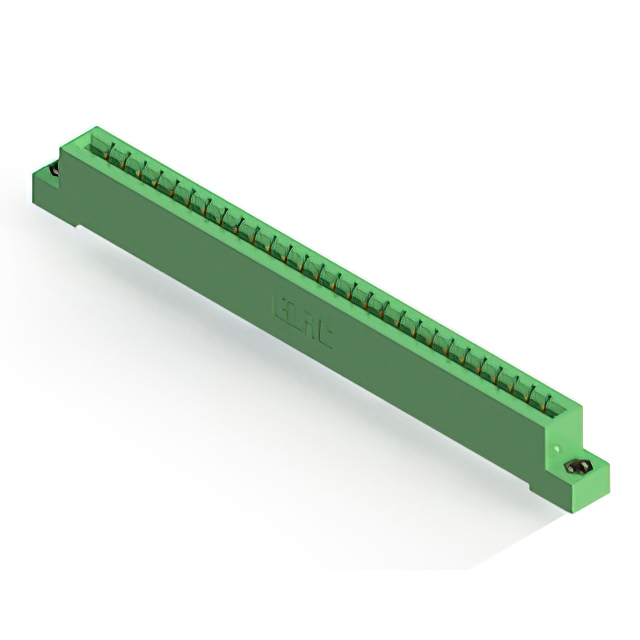

333-028-521-108 EDAC Inc. 333-028-521-108 10.8872
RFQ
 ECAD 2259 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-028 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-028-521-108 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Single Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
845-056-524-502 EDAC Inc. 845-056-524-502 59.4248
RFQ
 ECAD 2060 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-056 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-056-524-502 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2

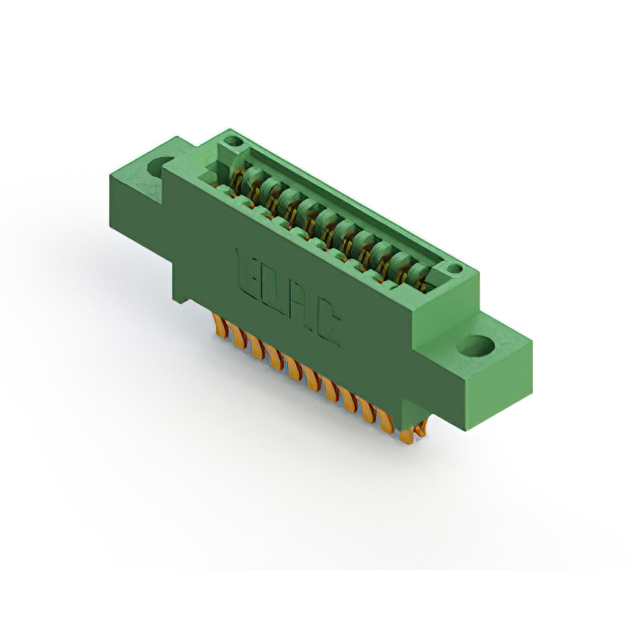

845-022-560-804 EDAC Inc. 845-022-560-804 62.1336
RFQ
 ECAD 2902 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 845-022 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-022-560-804 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 2
387-006-521-678 EDAC Inc. 387-006-521-678 7.8584
RFQ
 ECAD 7150 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-006 Black Solder download ROHS3 Compliant REACH Unaffected 151-387-006-521-678 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
355-074-555-503 EDAC Inc. 355-074-555-503 16.5316
RFQ
 ECAD 1666 0.00000000 EDAC Inc. 355 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 355-074 Black Solder download ROHS3 Compliant REACH Unaffected 151-355-074-555-503 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 74 Female Non Specified - Dual Edge 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

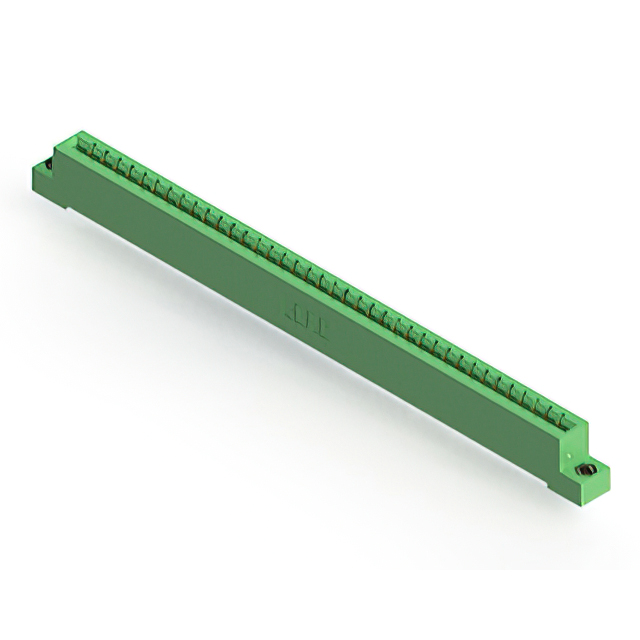

333-038-520-107 EDAC Inc. 333-038-520-107 12.8952
RFQ
 ECAD 8447 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-038 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-038-520-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 38 Female Non Specified - Single Edge 38 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
