Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
346-092-559-202 EDAC Inc. 346-092-559-202 16.0636
RFQ
 ECAD 8350 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole, Right Angle - 346-092 Green Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-092-559-202 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 92 Female Non Specified - Dual Edge 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
845-045-544-608 EDAC Inc. 845-045-544-608 100.2960
RFQ
 ECAD 9865 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-045 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-845-045-544-608 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 45 Female Non Specified - Single Edge 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 1
396-060-560-203 EDAC Inc. 396-060-560-203 13.9032
RFQ
 ECAD 9849 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 396-060 Black Solder download ROHS3 Compliant REACH Unaffected 151-396-060-560-203 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

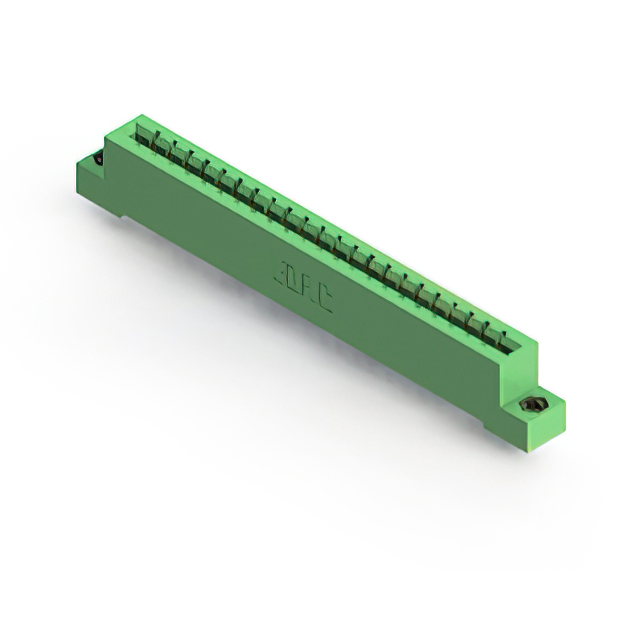

833-022-544-108 EDAC Inc. 833-022-544-108 54.9360
RFQ
 ECAD 8933 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-022 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-833-022-544-108 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Single Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 1
333-033-544-608 EDAC Inc. 333-033-544-608 11.8912
RFQ
 ECAD 3905 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-033 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-033-544-608 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 33 Female Non Specified - Single Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
333-022-541-103 EDAC Inc. 333-022-541-103 10.0940
RFQ
 ECAD 2037 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-022 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-022-541-103 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Single Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
845-048-559-512 EDAC Inc. 845-048-559-512 84.7036
RFQ
 ECAD 4389 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole, Right Angle - 845-048 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-048-559-512 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Dual Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
333-033-540-103 EDAC Inc. 333-033-540-103 11.8912
RFQ
 ECAD 6482 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-033 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-033-540-103 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 33 Female Non Specified - Single Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
337-027-559-668 EDAC Inc. 337-027-559-668 14.3324
RFQ
 ECAD 6668 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole, Right Angle - 337-027 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-027-559-668 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 27 Female Non Specified - Single Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
337-026-521-868 EDAC Inc. 337-026-521-868 13.4072
RFQ
 ECAD 2100 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-026 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-026-521-868 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Dual Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

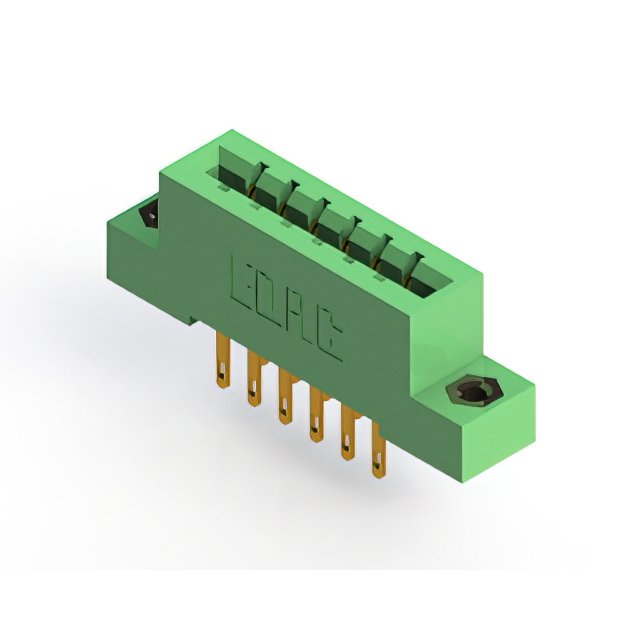

833-012-500-208 EDAC Inc. 833-012-500-208 53.9912
RFQ
 ECAD 3486 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-012 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-833-012-500-208 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2

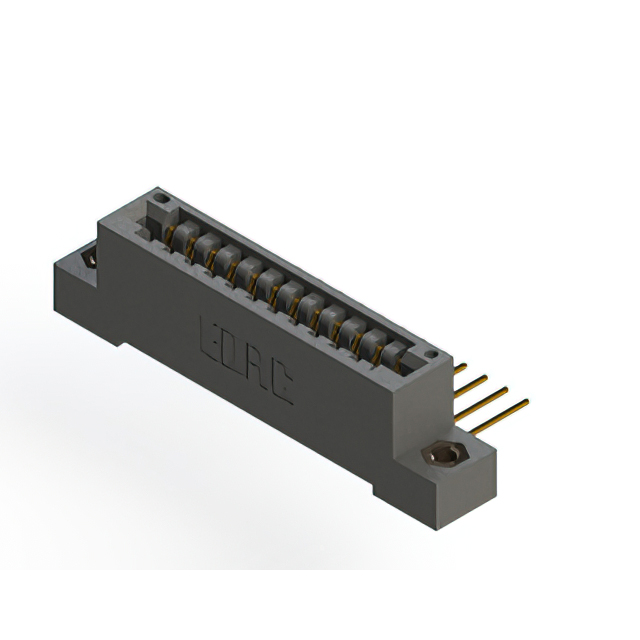

396-012-558-107 EDAC Inc. 396-012-558-107 13.3320
RFQ
 ECAD 9235 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole, Right Angle - 396-012 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-012-558-107 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Single Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
315-056-520-207 EDAC Inc. 315-056-520-207 14.0916
RFQ
 ECAD 2130 0.00000000 EDAC Inc. 315 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 315-056 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-315-056-520-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2

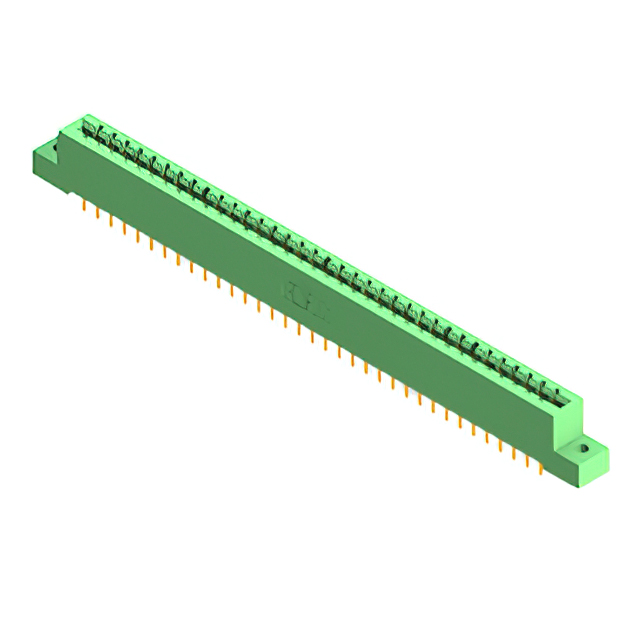

337-070-540-202 EDAC Inc. 337-070-540-202 13.8740
RFQ
 ECAD 2893 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-070 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-070-540-202 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 70 Female Non Specified - Dual Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
337-020-524-807 EDAC Inc. 337-020-524-807 11.7928
RFQ
 ECAD 5134 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-020 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-020-524-807 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 20 Female Non Specified - Dual Edge 10 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
307-034-531-107 EDAC Inc. 307-034-531-107 19.9044
RFQ
 ECAD 9691 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-034 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-034-531-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 34 Female Non Specified - Single Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1

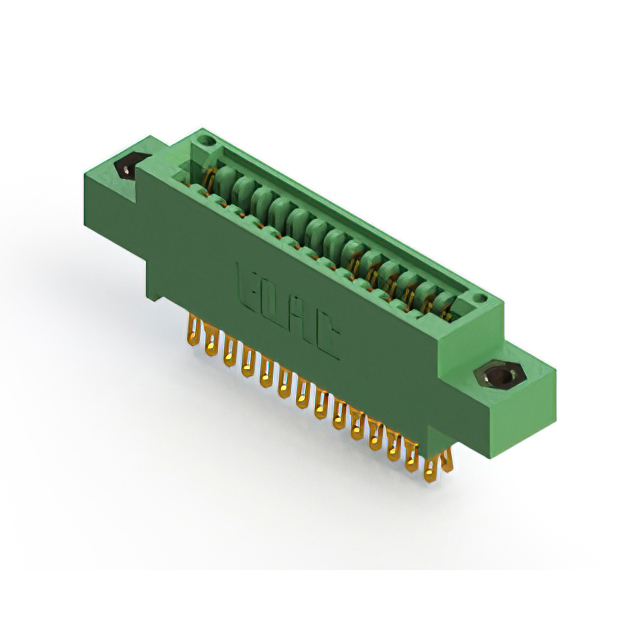

845-028-555-807 EDAC Inc. 845-028-555-807 80.7976
RFQ
 ECAD 3935 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 845-028 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-028-555-807 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Dual Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2
837-074-540-807 EDAC Inc. 837-074-540-807 102.4224
RFQ
 ECAD 2267 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-074 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-837-074-540-807 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 74 Female Non Specified - Dual Edge 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2
305-052-521-507 EDAC Inc. 305-052-521-507 14.6868
RFQ
 ECAD 6949 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 305-052 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-052-521-507 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 52 Female Non Specified - Dual Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2

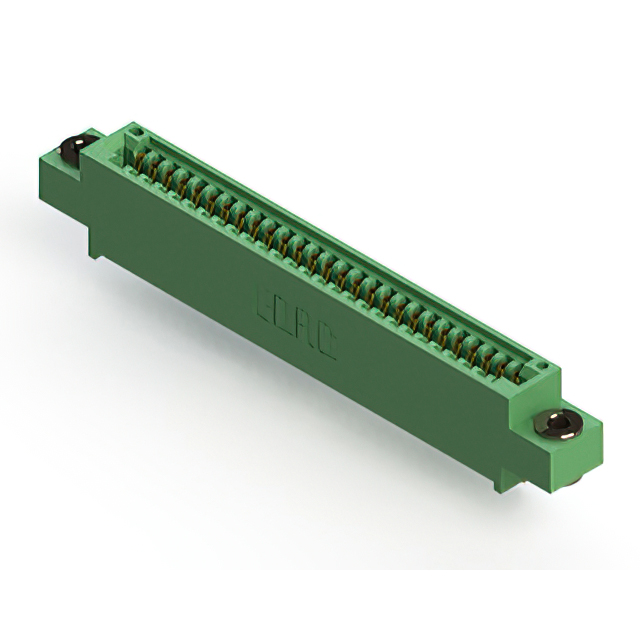

845-027-521-603 EDAC Inc. 845-027-521-603 72.6548
RFQ
 ECAD 3575 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-027 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-027-521-603 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 27 Female Non Specified - Single Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 1

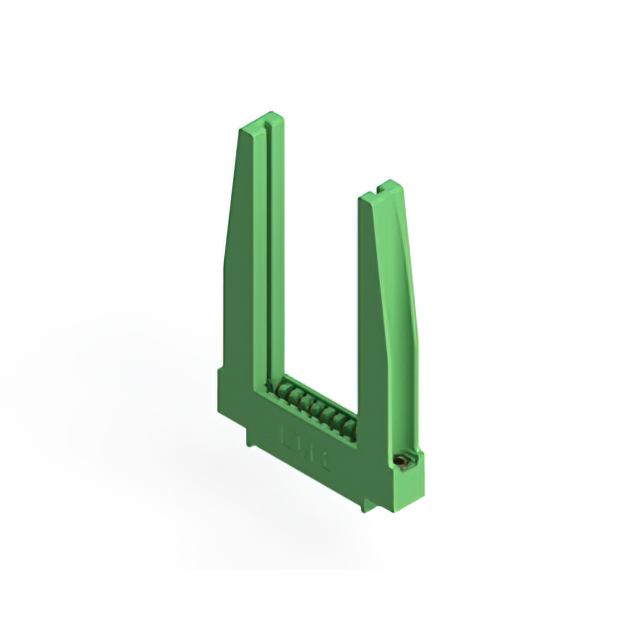

346-010-521-678 EDAC Inc. 346-010-521-678 10.2768
RFQ
 ECAD 4914 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-010 Green Solder download ROHS3 Compliant REACH Unaffected 151-346-010-521-678 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 10 Female Non Specified - Single Edge 10 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
355-056-521-507 EDAC Inc. 355-056-521-507 13.6244
RFQ
 ECAD 6147 0.00000000 EDAC Inc. 355 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 355-056 Black Solder download ROHS3 Compliant REACH Unaffected 151-355-056-521-507 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
333-015-520-107 EDAC Inc. 333-015-520-107 8.6200
RFQ
 ECAD 9443 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-015 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-015-520-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 15 Female Non Specified - Single Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
337-016-500-602 EDAC Inc. 337-016-500-602 15.7760
RFQ
 ECAD 1420 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-016 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-016-500-602 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Single Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
345-016-560-504 EDAC Inc. 345-016-560-504 10.4540
RFQ
 ECAD 7017 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 345-016 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-016-560-504 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
392-048-558-208 EDAC Inc. 392-048-558-208 15.0180
RFQ
 ECAD 4237 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole, Right Angle - 392-048 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-392-048-558-208 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Dual Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
845-032-542-512 EDAC Inc. 845-032-542-512 61.7872
RFQ
 ECAD 9854 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-032 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-845-032-542-512 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 32 Female Non Specified - Dual Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
345-096-524-507 EDAC Inc. 345-096-524-507 16.2108
RFQ
 ECAD 3446 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-096 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-096-524-507 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 96 Female Non Specified - Dual Edge 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
333-070-560-208 EDAC Inc. 333-070-560-208 14.2728
RFQ
 ECAD 7002 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 333-070 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-070-560-208 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 70 Female Non Specified - Dual Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
845-110-555-807 EDAC Inc. 845-110-555-807 120.0152
RFQ
 ECAD 1777 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 845-110 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-110-555-807 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 110 Female Non Specified - Dual Edge 55 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2
