Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows

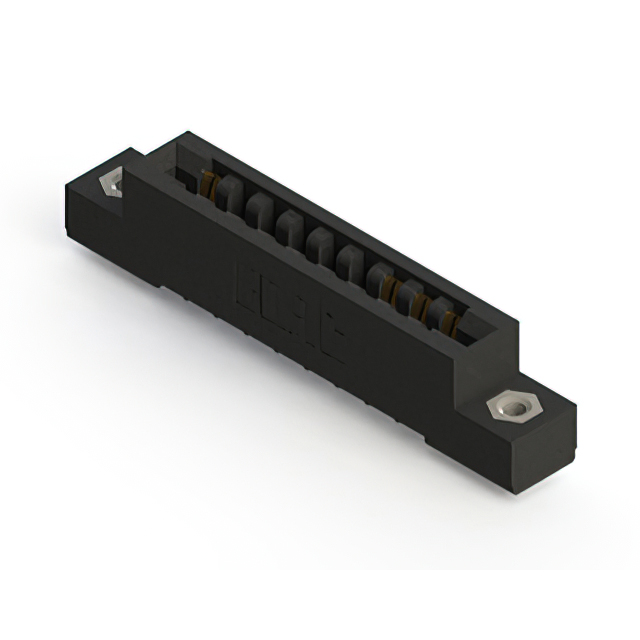

857-009-525-108 EDAC Inc. 857-009-525-108 62.4960
RFQ
 ECAD 6771 0.00000000 EDAC Inc. 857 Bulk Active -40°C ~ 125°C Through Hole - 857-009 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-857-009-525-108 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 9 Female Non Specified - Single Edge 9 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 1
895-030-521-504 EDAC Inc. 895-030-521-504 43.8592
RFQ
 ECAD 2436 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-030 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-030-521-504 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Dual Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2

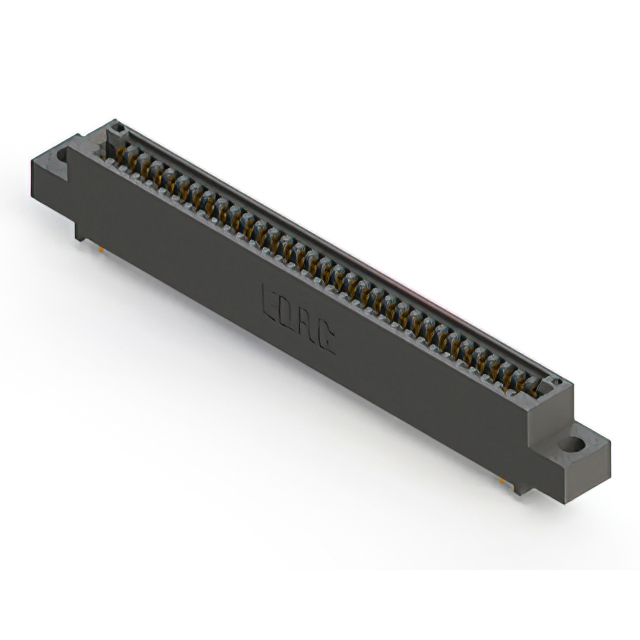

895-066-524-504 EDAC Inc. 895-066-524-504 68.2764
RFQ
 ECAD 9027 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-066 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-066-524-504 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 66 Female Non Specified - Dual Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2

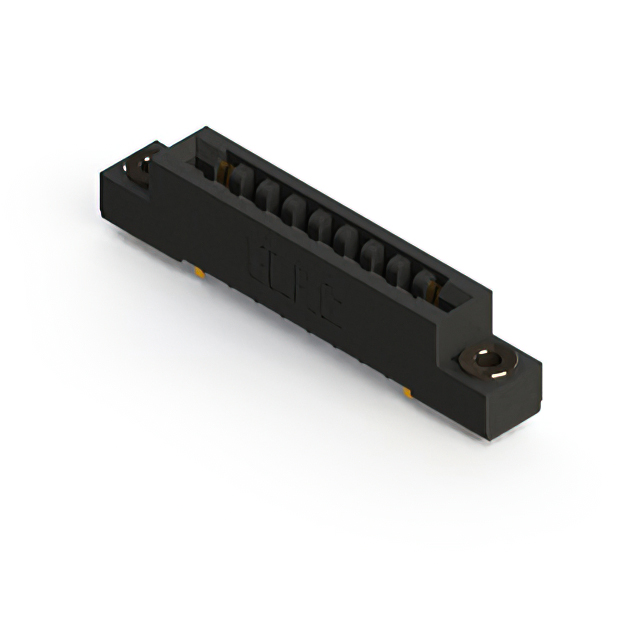

857-018-542-203 EDAC Inc. 857-018-542-203 81.1596
RFQ
 ECAD 5528 0.00000000 EDAC Inc. 857 Bulk Active -40°C ~ 125°C Through Hole - 857-018 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-857-018-542-203 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 18 Female Non Specified - Dual Edge 9 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2

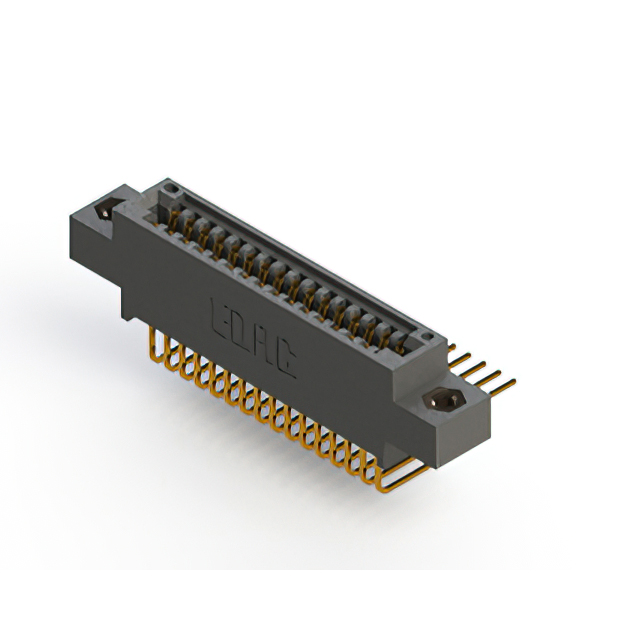

895-032-558-808 EDAC Inc. 895-032-558-808 82.8136
RFQ
 ECAD 1100 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 895-032 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-032-558-808 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 32 Female Non Specified - Dual Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 2
807-058-442-212 EDAC Inc. 807-058-442-212 96.5160
RFQ
 ECAD 9231 0.00000000 EDAC Inc. 807 Bulk Active -40°C ~ 125°C Through Hole - 807-058 Green Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-058-442-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 58 Female Non Specified - Dual Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
857-086-540-204 EDAC Inc. 857-086-540-204 123.0864
RFQ
 ECAD 1300 0.00000000 EDAC Inc. 857 Bulk Active -40°C ~ 125°C Through Hole - 857-086 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-857-086-540-204 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2
895-019-540-604 EDAC Inc. 895-019-540-604 53.4036
RFQ
 ECAD 8467 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-019 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-019-540-604 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 19 Female Non Specified - Single Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 1

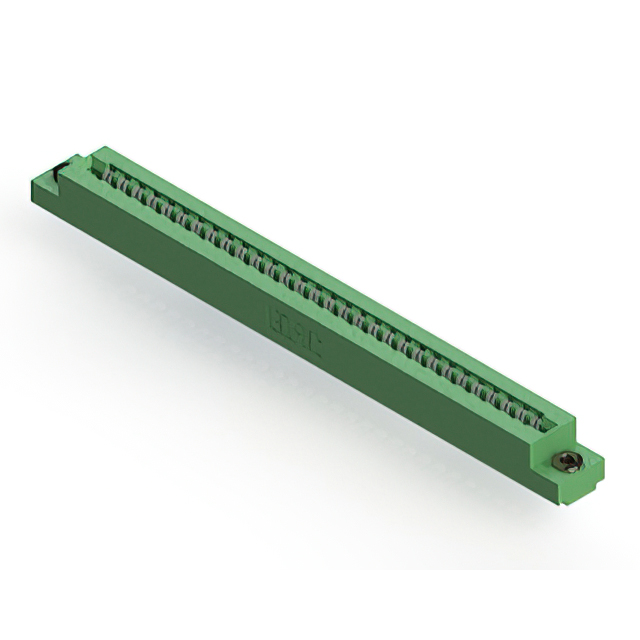

807-030-454-103 EDAC Inc. 807-030-454-103 253.2616
RFQ
 ECAD 1367 0.00000000 EDAC Inc. 807 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 807-030 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-030-454-103 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 1
895-048-555-203 EDAC Inc. 895-048-555-203 87.1580
RFQ
 ECAD 9368 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 895-048 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-048-555-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Dual Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2
892-025-521-112 EDAC Inc. 892-025-521-112 97.8388
RFQ
 ECAD 2727 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Through Hole - 892-025 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-025-521-112 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 25 Female Non Specified - Single Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1
895-048-555-212 EDAC Inc. 895-048-555-212 81.4768
RFQ
 ECAD 1065 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 895-048 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-048-555-212 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Dual Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 2
892-064-540-203 EDAC Inc. 892-064-540-203 89.0820
RFQ
 ECAD 6525 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Through Hole - 892-064 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-064-540-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 64 Female Non Specified - Dual Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2

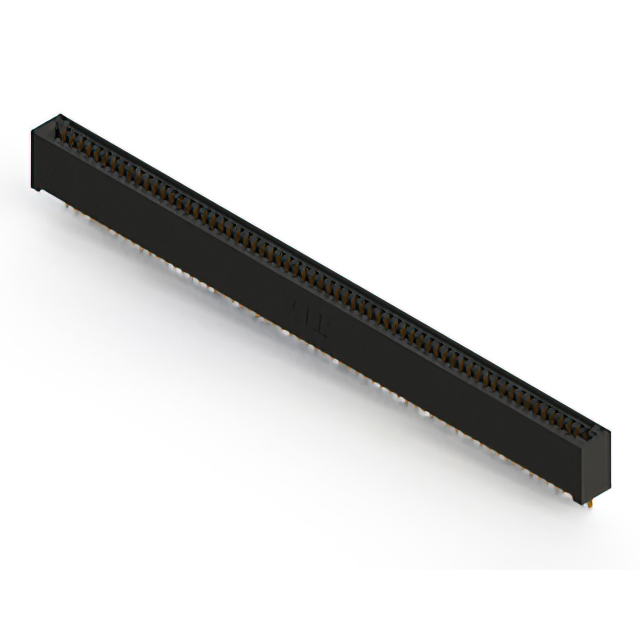

895-064-500-101 EDAC Inc. 895-064-500-101 221.9260
RFQ
 ECAD 3508 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-064 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-064-500-101 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 64 Female Non Specified - Single Edge 64 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyphenylene Sulfide (PPS) 1
895-047-540-107 EDAC Inc. 895-047-540-107 97.7176
RFQ
 ECAD 4866 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-047 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-047-540-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 47 Female Non Specified - Single Edge 47 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 1
895-104-525-503 EDAC Inc. 895-104-525-503 103.0048
RFQ
 ECAD 1762 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-104 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-104-525-503 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 104 Female Non Specified - Dual Edge 52 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2
895-036-559-408 EDAC Inc. 895-036-559-408 93.0824
RFQ
 ECAD 4297 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 895-036 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-036-559-408 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Single Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 1
895-063-540-604 EDAC Inc. 895-063-540-604 136.6984
RFQ
 ECAD 5536 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-063 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-063-540-604 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 63 Female Non Specified - Single Edge 63 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 1
857-033-421-101 EDAC Inc. 857-033-421-101 210.8388
RFQ
 ECAD 6054 0.00000000 EDAC Inc. 857 Bulk Active -40°C ~ 125°C Through Hole - 857-033 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-857-033-421-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 66 Female Non Specified - Dual Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyphenylene Sulfide (PPS) 1
895-044-556-207 EDAC Inc. 895-044-556-207 80.7948
RFQ
 ECAD 3228 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 895-044 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-044-556-207 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 44 Female Non Specified - Dual Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 2
895-028-544-804 EDAC Inc. 895-028-544-804 55.3428
RFQ
 ECAD 5405 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-028 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-028-544-804 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Dual Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2
746-054-541-106 EDAC Inc. 746-054-541-106 16.6996
RFQ
 ECAD 9866 0.00000000 EDAC Inc. 746 Bulk Active -40°C ~ 105°C Through Hole - 746-054 Black Press-Fit, Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-746-054-541-106 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 54 Female Non Specified - Single Edge 54 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1
895-026-521-603 EDAC Inc. 895-026-521-603 72.5288
RFQ
 ECAD 3731 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-026 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-026-521-603 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Single Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 1
895-055-525-102 EDAC Inc. 895-055-525-102 110.6912
RFQ
 ECAD 5275 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-055 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-055-525-102 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 55 Female Non Specified - Single Edge 55 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1
895-082-544-807 EDAC Inc. 895-082-544-807 104.4224
RFQ
 ECAD 5349 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-082 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-082-544-807 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 2
807-046-424-204 EDAC Inc. 807-046-424-204 77.0176
RFQ
 ECAD 5839 0.00000000 EDAC Inc. 807 Bulk Active -40°C ~ 125°C Through Hole - 807-046 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-046-424-204 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 46 Female Non Specified - Dual Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 2
895-055-525-412 EDAC Inc. 895-055-525-412 120.4876
RFQ
 ECAD 5860 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-055 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-055-525-412 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 55 Female Non Specified - Single Edge 55 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1
857-009-554-102 EDAC Inc. 857-009-554-102 112.6912
RFQ
 ECAD 8253 0.00000000 EDAC Inc. 857 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 857-009 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-857-009-554-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 18 Female Non Specified - Dual Edge 9 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1
807-023-447-104 EDAC Inc. 807-023-447-104 83.9948
RFQ
 ECAD 4529 0.00000000 EDAC Inc. 807 Bulk Active -40°C ~ 125°C Through Hole - 807-023 Green Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-023-447-104 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Tin - Copper Alloy Semi Bellows 23 Female Non Specified - Single Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 1
807-027-425-107 EDAC Inc. 807-027-425-107 109.7616
RFQ
 ECAD 7405 0.00000000 EDAC Inc. 807 Bulk Active -40°C ~ 125°C Through Hole - 807-027 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-027-425-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Tin - Copper Alloy Semi Bellows 27 Female Non Specified - Single Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 1
