Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
845-012-558-258 EDAC Inc. 845-012-558-258 -
RFQ
 ECAD 7003 0.00000000 EDAC Inc. 845 Box Obsolete 845-012 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-012-558-258 EAR99 8536.69.4040 25
345-022-544-203 EDAC Inc. 345-022-544-203 12.2848
RFQ
 ECAD 2826 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-022 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-022-544-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

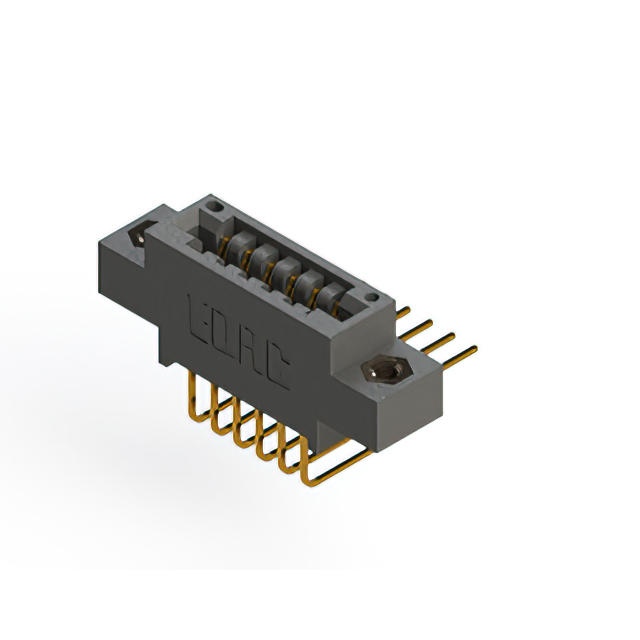

896-012-558-808 EDAC Inc. 896-012-558-808 66.8588
RFQ
 ECAD 2105 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 896-012 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-012-558-808 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 2
807-068-555-207 EDAC Inc. 807-068-555-207 130.5360
RFQ
 ECAD 4506 0.00000000 EDAC Inc. 807 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 807-068 Green Solder download ROHS3 Compliant REACH Unaffected 151-807-068-555-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 68 Female Non Specified - Dual Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2
807-036-540-203 EDAC Inc. 807-036-540-203 68.6384
RFQ
 ECAD 4800 0.00000000 EDAC Inc. 807 Box Active -40°C ~ 125°C Through Hole - 807-036 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-807-036-540-203 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2
395-047-540-688 EDAC Inc. 395-047-540-688 16.5340
RFQ
 ECAD 8145 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-047 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-047-540-688 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 47 Female Non Specified - Single Edge 47 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
892-116-556-203 EDAC Inc. 892-116-556-203 139.8800
RFQ
 ECAD 2105 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 892-116 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-116-556-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 116 Female Non Specified - Dual Edge 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2
846-050-559-612 EDAC Inc. 846-050-559-612 79.5060
RFQ
 ECAD 2533 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole, Right Angle - 846-050 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-050-559-612 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 50 Female Non Specified - Single Edge 50 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
305-016-555-503 EDAC Inc. 305-016-555-503 12.0488
RFQ
 ECAD 2690 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 305-016 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-016-555-503 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
896-060-541-207 EDAC Inc. 896-060-541-207 71.5836
RFQ
 ECAD 8901 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-060 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-060-541-207 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 2
333-026-523-604 EDAC Inc. 333-026-523-604 8.0264
RFQ
 ECAD 6801 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-026 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-026-523-604 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Single Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
342-106-558-204 EDAC Inc. 342-106-558-204 17.8864
RFQ
 ECAD 5977 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole, Right Angle - 342-106 Green Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-342-106-558-204 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 106 Female Non Specified - Dual Edge 53 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
895-020-523-203 EDAC Inc. 895-020-523-203 52.9492
RFQ
 ECAD 4923 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-020 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-020-523-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 20 Female Non Specified - Dual Edge 10 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2

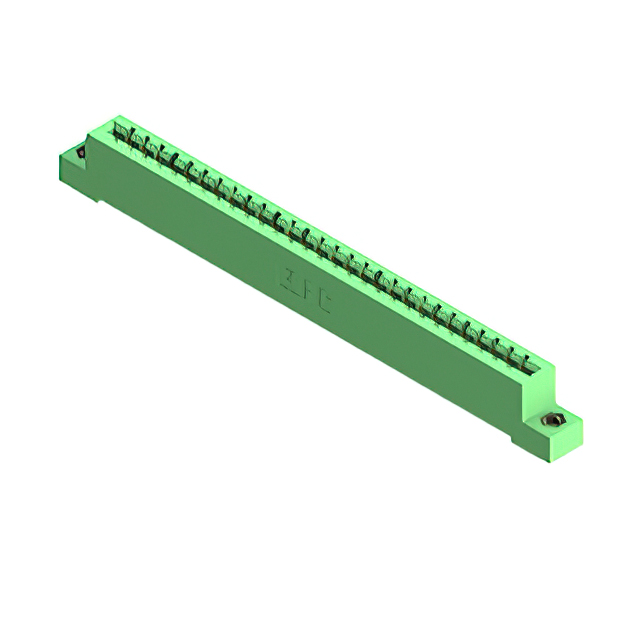

337-028-541-108 EDAC Inc. 337-028-541-108 10.8872
RFQ
 ECAD 9175 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-028 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-028-541-108 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Single Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
837-017-521-668 EDAC Inc. 837-017-521-668 -
RFQ
 ECAD 9955 0.00000000 EDAC Inc. 837 Box Obsolete 837-017 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-837-017-521-668 EAR99 8536.69.4040 25
345-144-525-258 EDAC Inc. 345-144-525-258 20.2788
RFQ
 ECAD 8931 0.00000000 EDAC Inc. 345 Bulk Active -40°C ~ 105°C Through Hole Card Guides 345-144 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-345-144-525-258 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 144 Female Non Specified - Dual Edge 72 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
845-022-520-678 EDAC Inc. 845-022-520-678 -
RFQ
 ECAD 4394 0.00000000 EDAC Inc. 845 Box Obsolete 845-022 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-022-520-678 EAR99 8536.69.4040 25
396-056-540-207 EDAC Inc. 396-056-540-207 12.4232
RFQ
 ECAD 4142 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-056 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-056-540-207 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
307-033-547-107 EDAC Inc. 307-033-547-107 19.4648
RFQ
 ECAD 2005 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-033 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-033-547-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 33 Female Non Specified - Single Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
746-031-520-506 EDAC Inc. 746-031-520-506 9.1580
RFQ
 ECAD 7521 0.00000000 EDAC Inc. 746 Bulk Active -40°C ~ 105°C Through Hole - 746-031 Black Press-Fit download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-746-031-520-506 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 31 Female Non Specified - Single Edge 31 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1

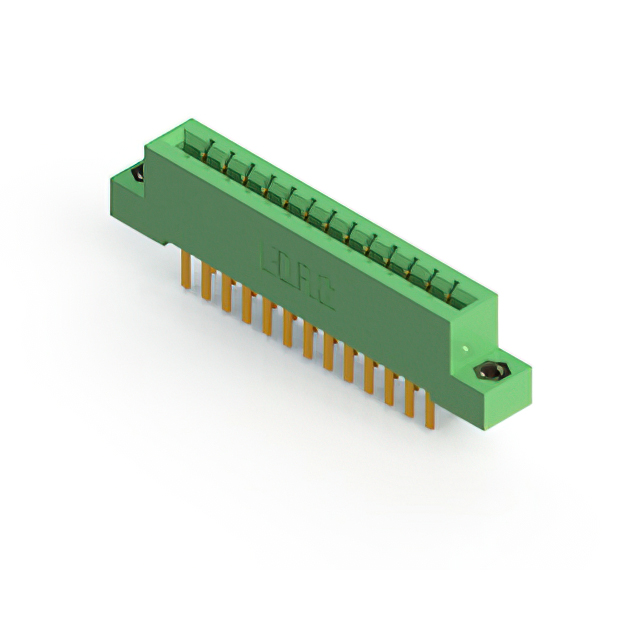

333-026-544-208 EDAC Inc. 333-026-544-208 9.1320
RFQ
 ECAD 9000 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-026 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-026-544-208 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Dual Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
345-102-525-588 EDAC Inc. 345-102-525-588 17.6416
RFQ
 ECAD 3117 0.00000000 EDAC Inc. 345 Bulk Active -40°C ~ 105°C Through Hole Card Guides 345-102 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-345-102-525-588 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 102 Female Non Specified - Dual Edge 51 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
307-039-441-107 EDAC Inc. 307-039-441-107 38.6932
RFQ
 ECAD 3788 0.00000000 EDAC Inc. 307 Bulk Active -40°C ~ 105°C Through Hole - 307-039 Green Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-307-039-441-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 78 Female Non Specified - Dual Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
316-022-520-107 EDAC Inc. 316-022-520-107 16.7540
RFQ
 ECAD 1720 0.00000000 EDAC Inc. 316 Box Active -40°C ~ 105°C Through Hole - 316-022 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-316-022-520-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 44 Female Non Specified - Dual Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1

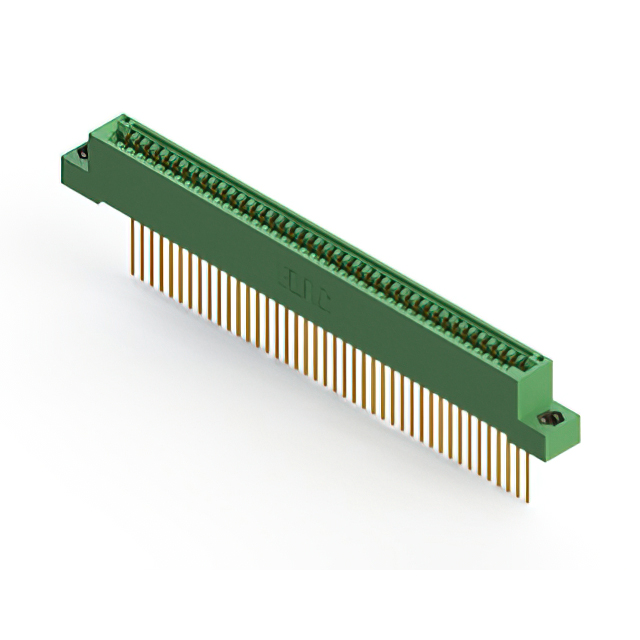

345-042-541-108 EDAC Inc. 345-042-541-108 15.9752
RFQ
 ECAD 7114 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-042 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-042-541-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 42 Female Non Specified - Single Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

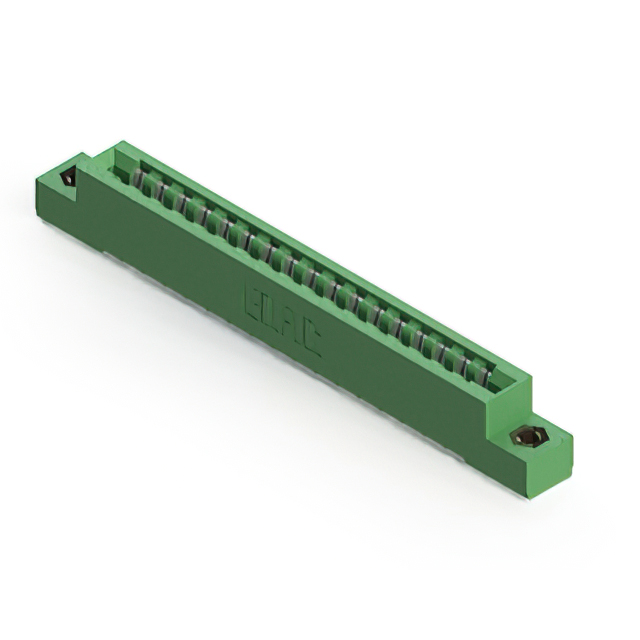

807-017-458-107 EDAC Inc. 807-017-458-107 103.7136
RFQ
 ECAD 6246 0.00000000 EDAC Inc. 807 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 807-017 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-017-458-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Tin - Copper Alloy Semi Bellows 17 Female Non Specified - Single Edge 17 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 1

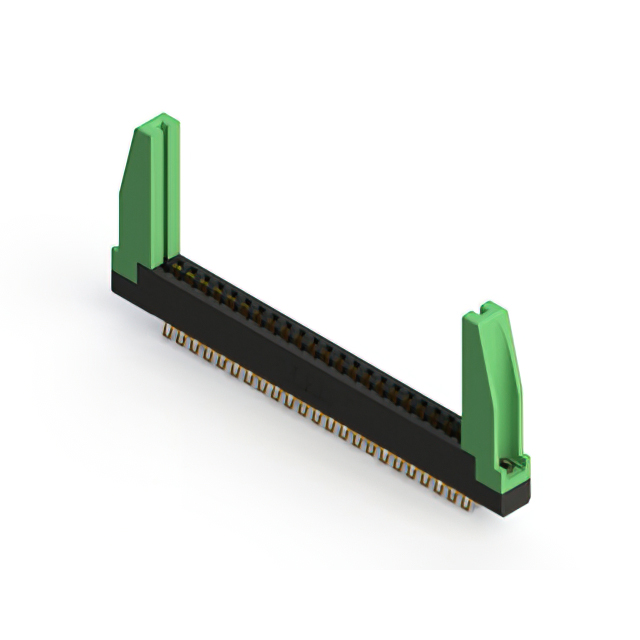

355-046-555-278 EDAC Inc. 355-046-555-278 14.8612
RFQ
 ECAD 3776 0.00000000 EDAC Inc. 355 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender, Card Guides 355-046 Black Solder download ROHS3 Compliant REACH Unaffected 151-355-046-555-278 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 46 Female Non Specified - Dual Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

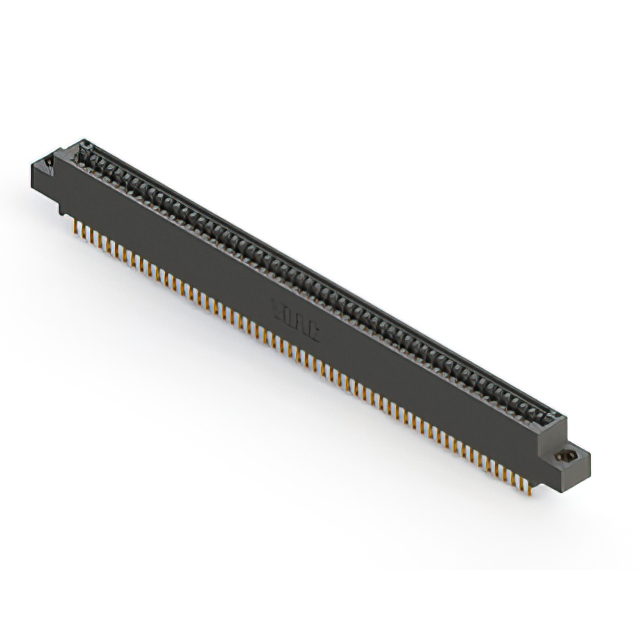

895-056-558-407 EDAC Inc. 895-056-558-407 145.5300
RFQ
 ECAD 3003 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 895-056 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-056-558-407 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Single Edge 56 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 1
846-048-526-804 EDAC Inc. 846-048-526-804 53.5184
RFQ
 ECAD 1479 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-048 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-048-526-804 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Dual Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 2
337-054-555-802 EDAC Inc. 337-054-555-802 14.3996
RFQ
 ECAD 9083 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 337-054 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-054-555-802 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 54 Female Non Specified - Dual Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
