Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows

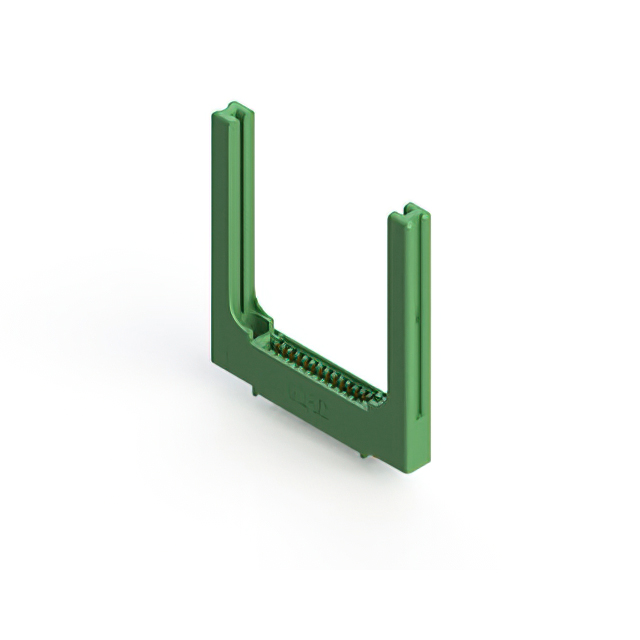

345-014-544-458 EDAC Inc. 345-014-544-458 13.0920
RFQ
 ECAD 8201 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-014 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-014-544-458 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 14 Female Non Specified - Single Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

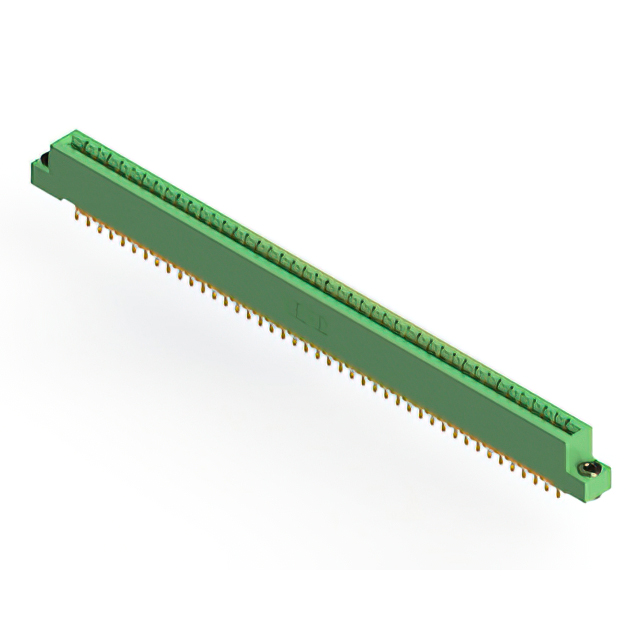

333-086-555-203 EDAC Inc. 333-086-555-203 15.5044
RFQ
 ECAD 5783 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 333-086 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-086-555-203 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

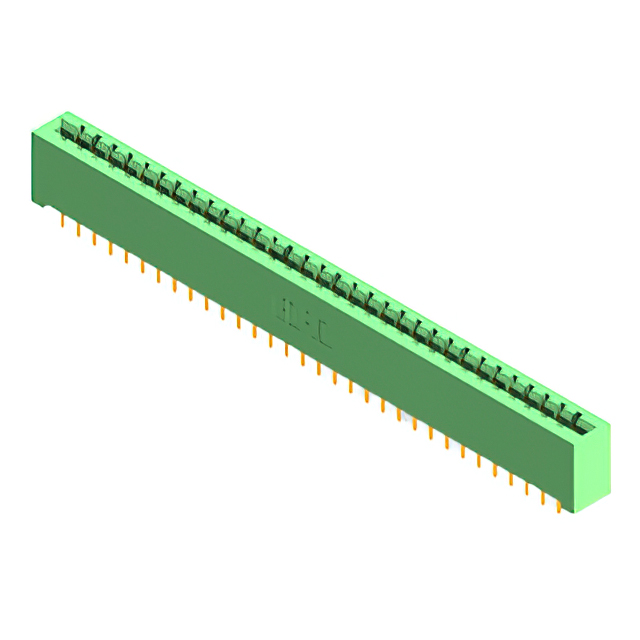

337-064-521-201 EDAC Inc. 337-064-521-201 13.8740
RFQ
 ECAD 2243 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-064 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-064-521-201 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 64 Female Non Specified - Dual Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
345-096-559-512 EDAC Inc. 345-096-559-512 17.6960
RFQ
 ECAD 2277 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle - 345-096 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-096-559-512 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 96 Female Non Specified - Dual Edge 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

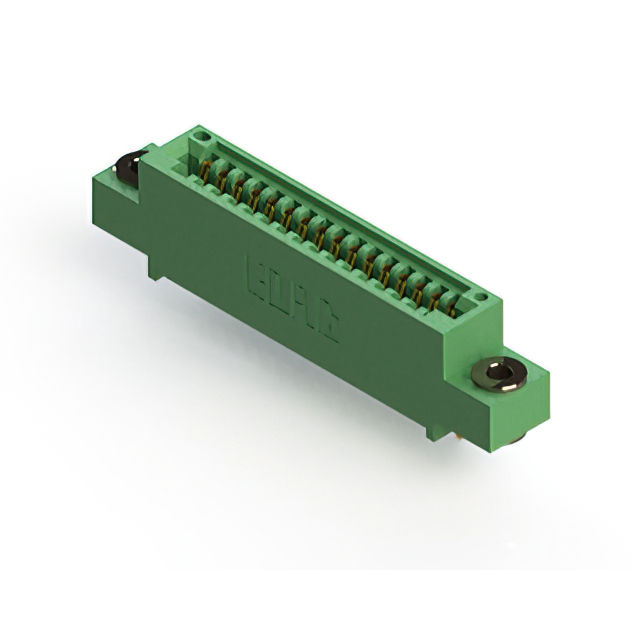

345-016-523-403 EDAC Inc. 345-016-523-403 12.3244
RFQ
 ECAD 2501 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-016 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-016-523-403 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Single Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1

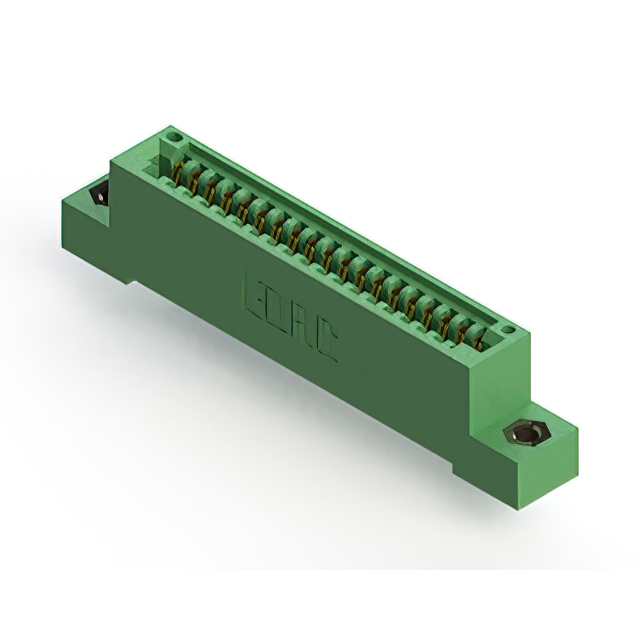

345-019-520-107 EDAC Inc. 345-019-520-107 12.5804
RFQ
 ECAD 6518 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-019 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-019-520-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 19 Female Non Specified - Single Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1

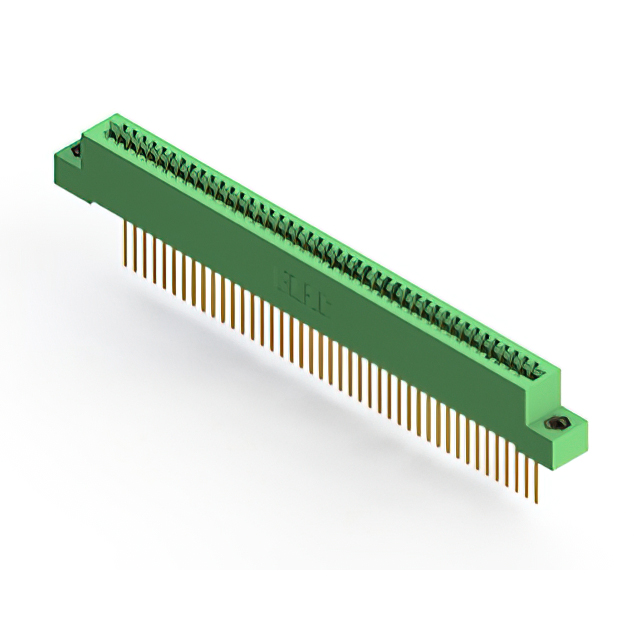

342-043-542-108 EDAC Inc. 342-043-542-108 21.4668
RFQ
 ECAD 5948 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-043 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-342-043-542-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 43 Female Non Specified - Single Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
345-096-558-212 EDAC Inc. 345-096-558-212 17.6960
RFQ
 ECAD 2654 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle - 345-096 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-096-558-212 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 96 Female Non Specified - Dual Edge 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
316-030-500-158 EDAC Inc. 316-030-500-158 19.7092
RFQ
 ECAD 4484 0.00000000 EDAC Inc. 316 Box Active -40°C ~ 105°C Panel Mount Card Guides 316-030 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-316-030-500-158 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
337-058-524-804 EDAC Inc. 337-058-524-804 13.4268
RFQ
 ECAD 4541 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-058 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-058-524-804 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 58 Female Non Specified - Dual Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2

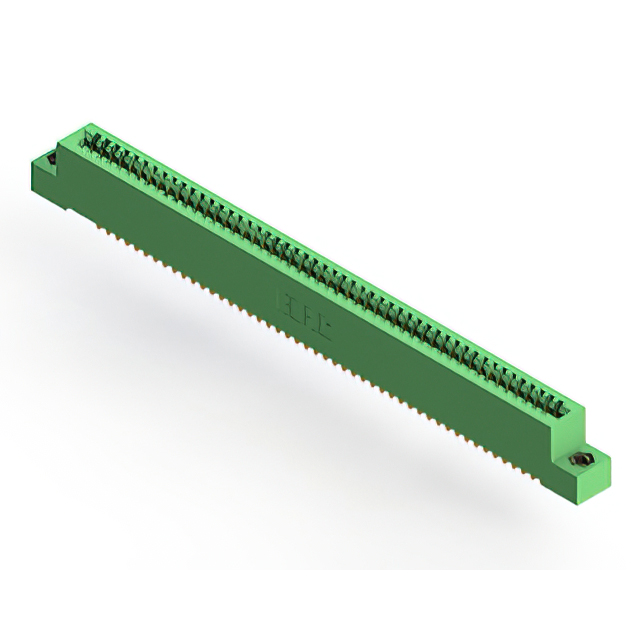

342-050-500-108 EDAC Inc. 342-050-500-108 35.9676
RFQ
 ECAD 3661 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-050 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-342-050-500-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 50 Female Non Specified - Single Edge 50 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

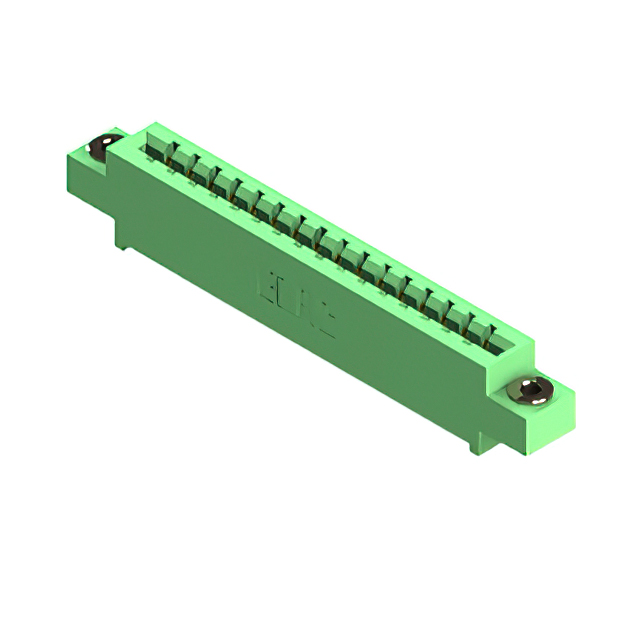

337-016-523-603 EDAC Inc. 337-016-523-603 8.8248
RFQ
 ECAD 3414 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-016 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-016-523-603 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Single Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
345-065-523-403 EDAC Inc. 345-065-523-403 24.1848
RFQ
 ECAD 4027 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-065 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-065-523-403 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 65 Female Non Specified - Single Edge 65 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
345-062-523-504 EDAC Inc. 345-062-523-504 11.3792
RFQ
 ECAD 8727 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-062 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-062-523-504 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 62 Female Non Specified - Dual Edge 31 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2

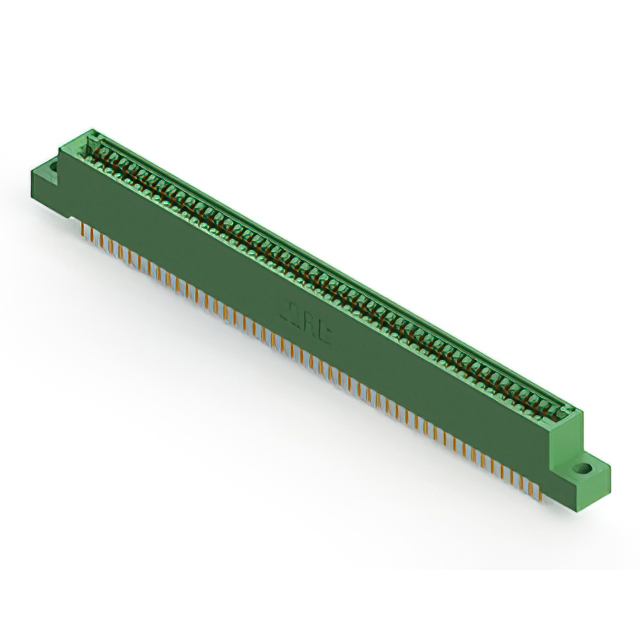

345-098-524-204 EDAC Inc. 345-098-524-204 13.8380
RFQ
 ECAD 6116 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-098 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-098-524-204 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 98 Female Non Specified - Dual Edge 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2

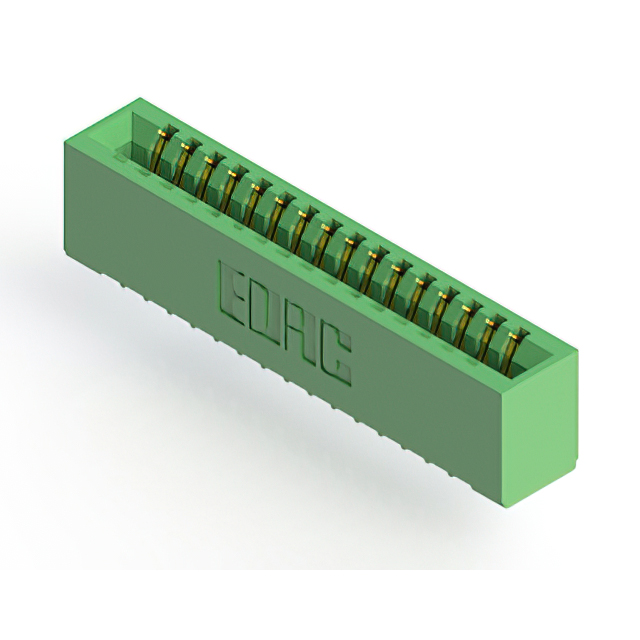

341-016-520-101 EDAC Inc. 341-016-520-101 7.7192
RFQ
 ECAD 9383 0.00000000 EDAC Inc. 341 Box Active -40°C ~ 105°C Through Hole - 341-016 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-341-016-520-101 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 16 Female Non Specified - Single Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1

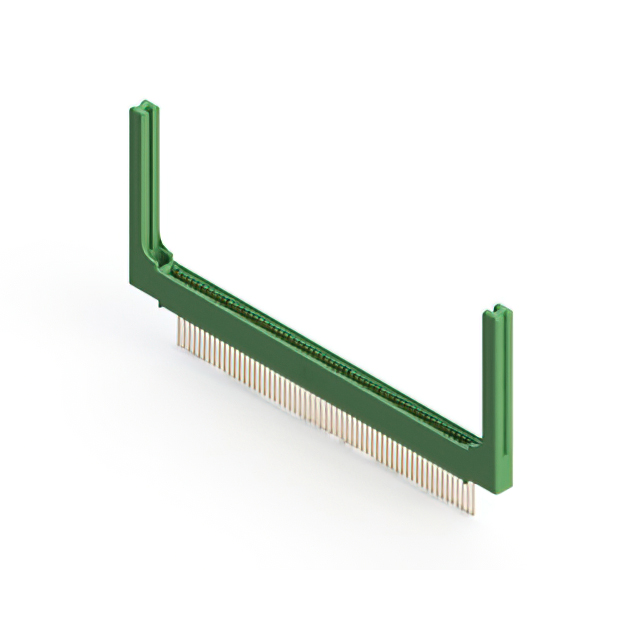

345-059-541-458 EDAC Inc. 345-059-541-458 21.5644
RFQ
 ECAD 5721 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-059 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-059-541-458 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 59 Female Non Specified - Single Edge 59 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

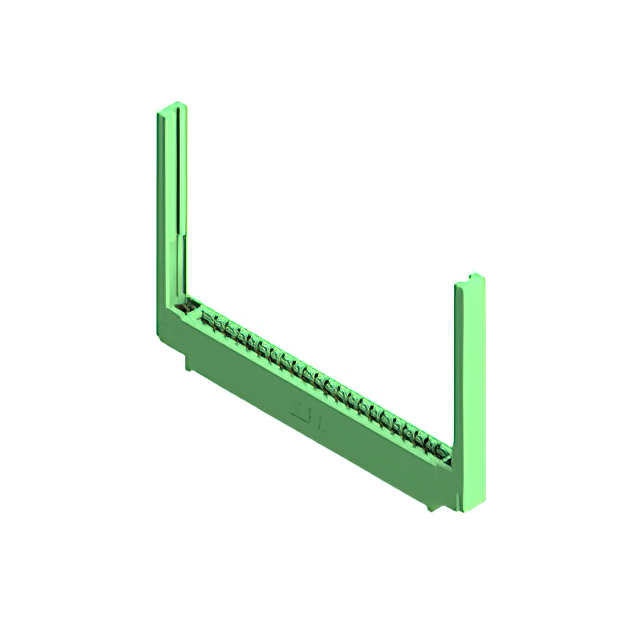

337-021-524-668 EDAC Inc. 337-021-524-668 10.4736
RFQ
 ECAD 3599 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole Card Guides 337-021 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-021-524-668 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 21 Female Non Specified - Single Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
345-059-500-478 EDAC Inc. 345-059-500-478 35.4796
RFQ
 ECAD 3651 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-059 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-345-059-500-478 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 59 Female Non Specified - Single Edge 59 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

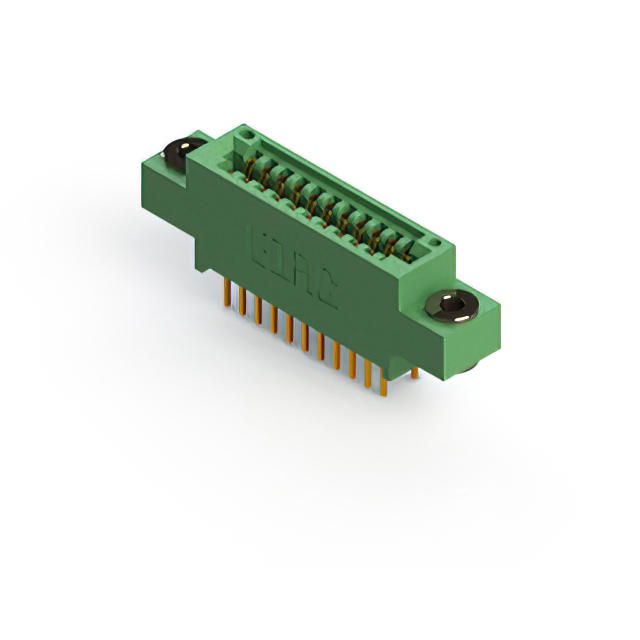

345-022-541-803 EDAC Inc. 345-022-541-803 11.0840
RFQ
 ECAD 8247 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-022 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-022-541-803 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
345-098-521-858 EDAC Inc. 345-098-521-858 17.2976
RFQ
 ECAD 9429 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-098 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-098-521-858 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 98 Female Non Specified - Dual Edge 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

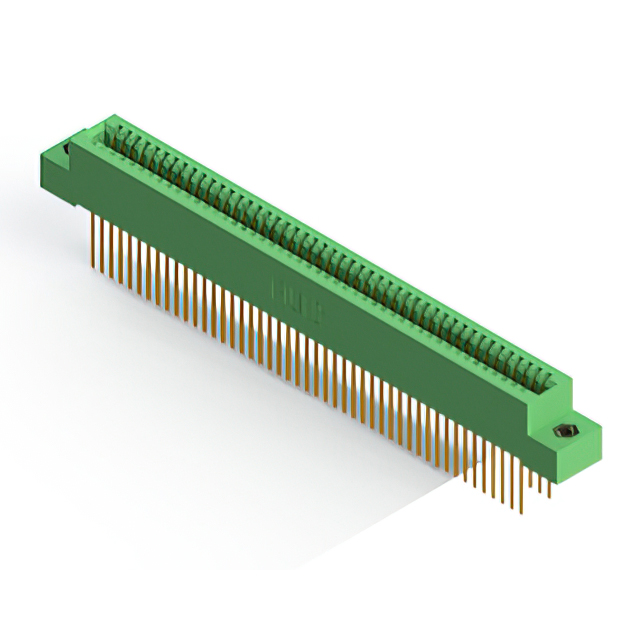

325-094-540-208 EDAC Inc. 325-094-540-208 17.7140
RFQ
 ECAD 1338 0.00000000 EDAC Inc. 325 Box Active -65°C ~ 125°C Through Hole - 325-094 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-325-094-540-208 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 94 Female Non Specified - Dual Edge 47 0.125" (3.18mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2

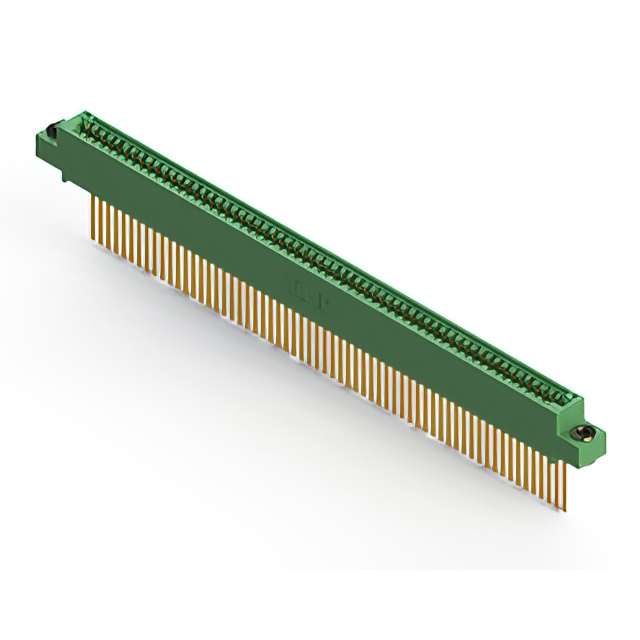

345-062-544-403 EDAC Inc. 345-062-544-403 22.4756
RFQ
 ECAD 8172 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-062 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-062-544-403 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 62 Female Non Specified - Single Edge 62 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1

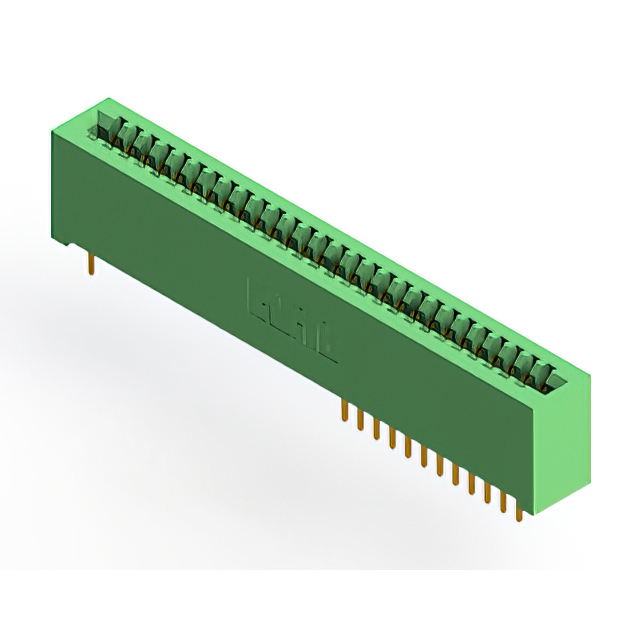

342-056-521-201 EDAC Inc. 342-056-521-201 12.6592
RFQ
 ECAD 4256 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-056 Green Solder download ROHS3 Compliant REACH Unaffected 151-342-056-521-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
333-058-521-808 EDAC Inc. 333-058-521-808 11.6748
RFQ
 ECAD 6373 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-058 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-058-521-808 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 58 Female Non Specified - Dual Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
345-064-521-208 EDAC Inc. 345-064-521-208 14.7264
RFQ
 ECAD 5135 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-064 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-064-521-208 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 64 Female Non Specified - Dual Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

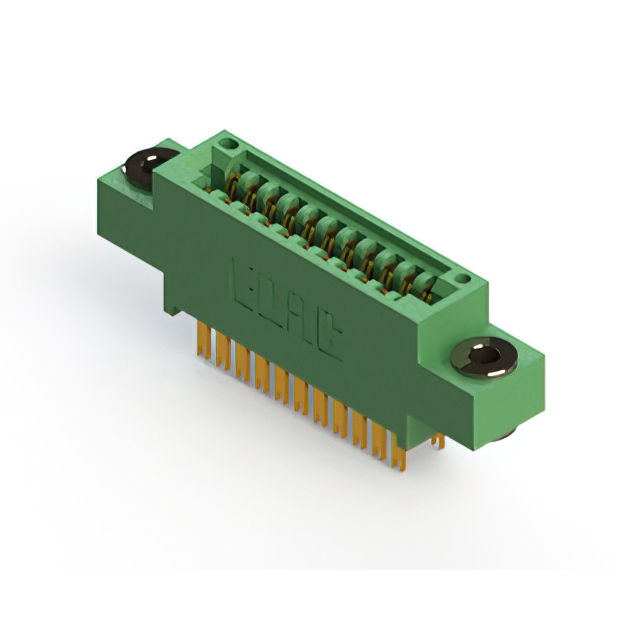

345-022-500-803 EDAC Inc. 345-022-500-803 17.6416
RFQ
 ECAD 8861 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-022 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-345-022-500-803 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
345-096-559-203 EDAC Inc. 345-096-559-203 16.7632
RFQ
 ECAD 6682 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle - 345-096 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-096-559-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 96 Female Non Specified - Dual Edge 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
342-055-523-112 EDAC Inc. 342-055-523-112 24.4288
RFQ
 ECAD 5056 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-055 Green Solder download ROHS3 Compliant REACH Unaffected 151-342-055-523-112 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 55 Female Non Specified - Single Edge 55 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
337-024-556-802 EDAC Inc. 337-024-556-802 12.0684
RFQ
 ECAD 4521 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 337-024 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-024-556-802 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 24 Female Non Specified - Dual Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
