Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
857-040-422-202 EDAC Inc. 857-040-422-202 80.9008
RFQ
 ECAD 1960 0.00000000 EDAC Inc. 857 Bulk Active -40°C ~ 125°C Through Hole - 857-040 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-857-040-422-202 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 40 Female Non Specified - Dual Edge 20 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 2
307-035-505-102 EDAC Inc. 307-035-505-102 18.0488
RFQ
 ECAD 8240 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-035 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-035-505-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 35 Female Non Specified - Single Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
345-019-523-458 EDAC Inc. 345-019-523-458 13.5648
RFQ
 ECAD 8881 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-019 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-019-523-458 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 19 Female Non Specified - Single Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
807-013-545-107 EDAC Inc. 807-013-545-107 73.5996
RFQ
 ECAD 8169 0.00000000 EDAC Inc. 807 Box Active -40°C ~ 125°C Through Hole - 807-013 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-807-013-545-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 13 Female Non Specified - Single Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 1

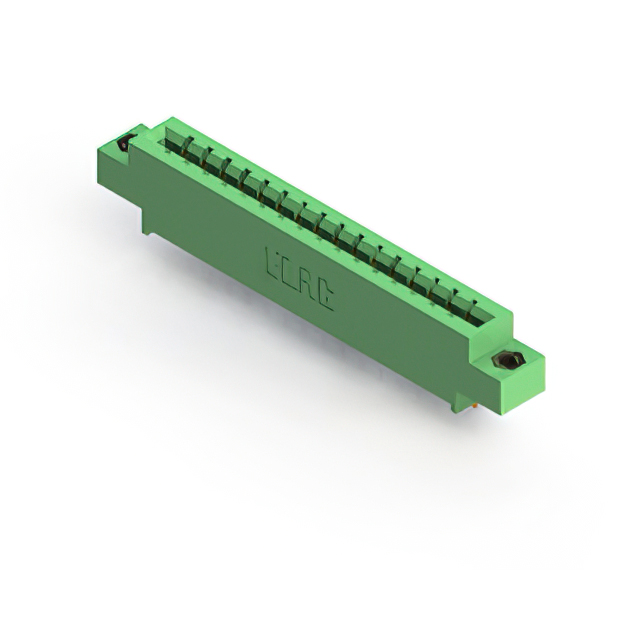

833-016-541-607 EDAC Inc. 833-016-541-607 48.0848
RFQ
 ECAD 4687 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-016 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-833-016-541-607 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Single Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 1
845-021-500-108 EDAC Inc. 845-021-500-108 119.7788
RFQ
 ECAD 2436 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-021 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-845-021-500-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 21 Female Non Specified - Single Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 1
837-078-555-803 EDAC Inc. 837-078-555-803 120.2512
RFQ
 ECAD 8353 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 837-078 Green Solder download ROHS3 Compliant REACH Unaffected 151-837-078-555-803 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 78 Female Non Specified - Dual Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2
845-060-560-508 EDAC Inc. 845-060-560-508 92.2636
RFQ
 ECAD 7344 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 845-060 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-060-560-508 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
845-067-520-488 EDAC Inc. 845-067-520-488 -
RFQ
 ECAD 5233 0.00000000 EDAC Inc. 845 Box Obsolete 845-067 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-067-520-488 EAR99 8536.69.4040 25
895-025-525-602 EDAC Inc. 895-025-525-602 54.4340
RFQ
 ECAD 6520 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-025 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-025-525-602 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 25 Female Non Specified - Single Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1

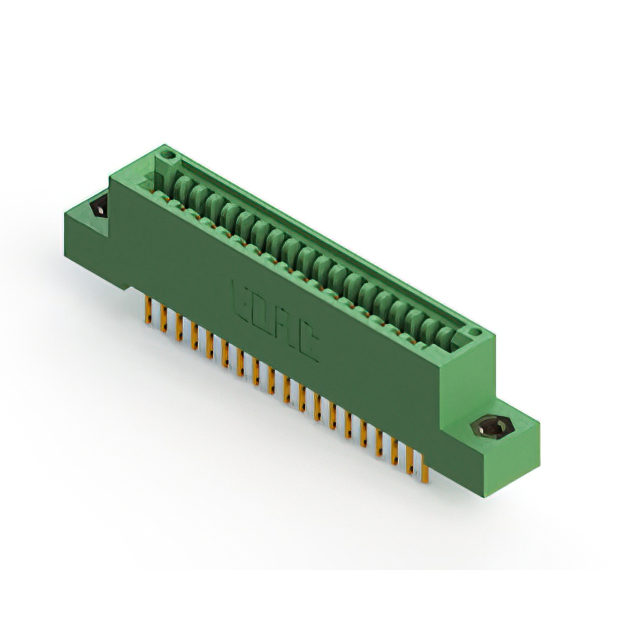

845-019-558-108 EDAC Inc. 845-019-558-108 86.3572
RFQ
 ECAD 8681 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole, Right Angle - 845-019 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-019-558-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 19 Female Non Specified - Single Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 1
392-048-558-107 EDAC Inc. 392-048-558-107 24.3124
RFQ
 ECAD 2527 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole, Right Angle - 392-048 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-392-048-558-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Single Edge 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
396-028-520-608 EDAC Inc. 396-028-520-608 13.1996
RFQ
 ECAD 6586 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-028 Black Solder download ROHS3 Compliant REACH Unaffected 151-396-028-520-608 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Single Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

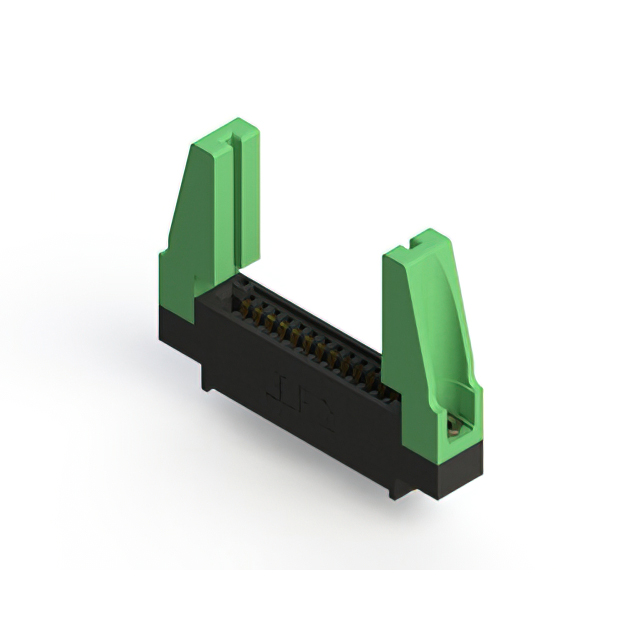

395-014-525-688 EDAC Inc. 395-014-525-688 13.2744
RFQ
 ECAD 4027 0.00000000 EDAC Inc. 395 Bulk Active -40°C ~ 105°C Through Hole Card Guides 395-014 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-395-014-525-688 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 14 Female Non Specified - Single Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
895-044-556-804 EDAC Inc. 895-044-556-804 65.6752
RFQ
 ECAD 3411 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 895-044 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-044-556-804 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 44 Female Non Specified - Dual Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2
391-050-524-108 EDAC Inc. 391-050-524-108 23.2008
RFQ
 ECAD 3782 0.00000000 EDAC Inc. 391 Box Active -40°C ~ 105°C Through Hole - 391-050 Black Solder download ROHS3 Compliant REACH Unaffected 151-391-050-524-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 50 Female Non Specified - Single Edge 50 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
837-072-559-202 EDAC Inc. 837-072-559-202 100.5324
RFQ
 ECAD 2897 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole, Right Angle - 837-072 Green Solder download ROHS3 Compliant REACH Unaffected 151-837-072-559-202 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 72 Female Non Specified - Dual Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2

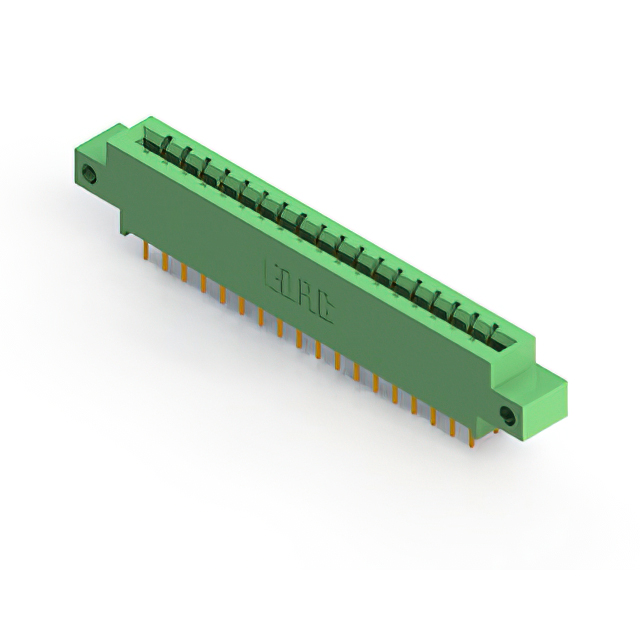

833-036-540-812 EDAC Inc. 833-036-540-812 47.9588
RFQ
 ECAD 7262 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-036 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-833-036-540-812 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2

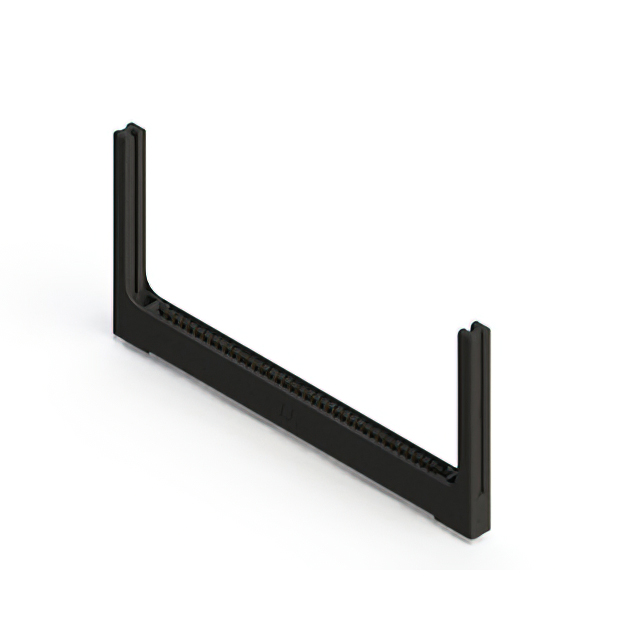

396-039-559-158 EDAC Inc. 396-039-559-158 16.9348
RFQ
 ECAD 1109 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 396-039 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-039-559-158 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 39 Female Non Specified - Single Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
845-046-559-604 EDAC Inc. 845-046-559-604 100.2960
RFQ
 ECAD 4572 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole, Right Angle - 845-046 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-046-559-604 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 46 Female Non Specified - Single Edge 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 1

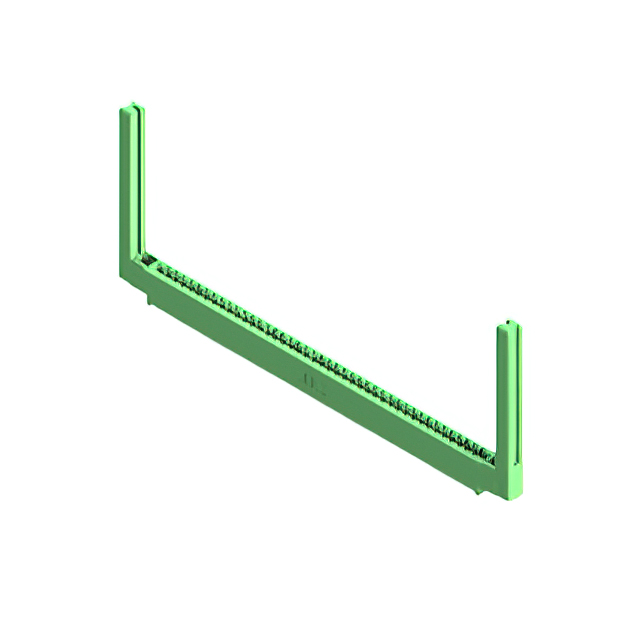

337-042-540-658 EDAC Inc. 337-042-540-658 14.6672
RFQ
 ECAD 5978 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-042 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-042-540-658 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 42 Female Non Specified - Single Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
842-012-524-108 EDAC Inc. 842-012-524-108 79.1436
RFQ
 ECAD 3854 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-012 Green Solder download ROHS3 Compliant REACH Unaffected 151-842-012-524-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Single Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 1
896-098-556-203 EDAC Inc. 896-098-556-203 118.3972
RFQ
 ECAD 1105 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 896-098 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-098-556-203 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 98 Female Non Specified - Dual Edge 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2

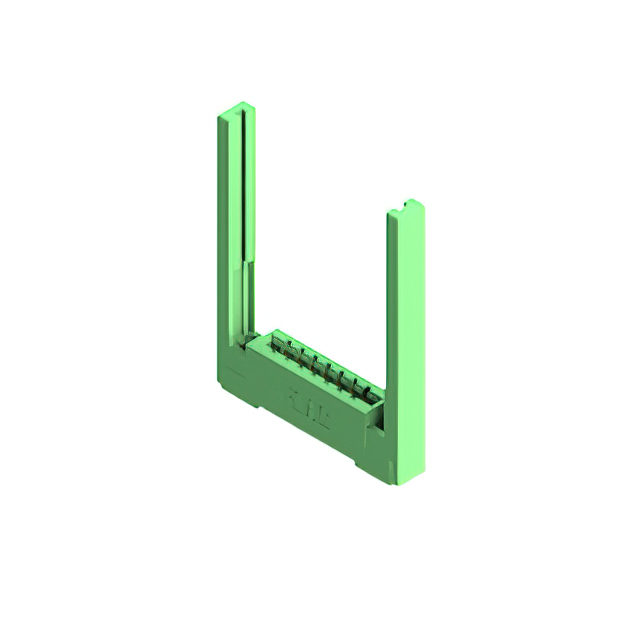

337-007-540-168 EDAC Inc. 337-007-540-168 7.9852
RFQ
 ECAD 5090 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-007 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-007-540-168 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 7 Female Non Specified - Single Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
837-056-540-212 EDAC Inc. 837-056-540-212 84.7036
RFQ
 ECAD 1612 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-056 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-837-056-540-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
892-006-559-101 EDAC Inc. 892-006-559-101 62.9484
RFQ
 ECAD 5990 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 892-006 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-006-559-101 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyphenylene Sulfide (PPS) 1
395-007-559-602 EDAC Inc. 395-007-559-602 10.6428
RFQ
 ECAD 7526 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole, Right Angle - 395-007 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-007-559-602 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 7 Female Non Specified - Single Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
846-035-558-103 EDAC Inc. 846-035-558-103 78.3248
RFQ
 ECAD 9235 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole, Right Angle - 846-035 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-035-558-103 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 35 Female Non Specified - Single Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 1
305-086-500-508 EDAC Inc. 305-086-500-508 17.7140
RFQ
 ECAD 5155 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Panel Mount - 305-086 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-086-500-508 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
807-058-555-207 EDAC Inc. 807-058-555-207 117.5424
RFQ
 ECAD 4421 0.00000000 EDAC Inc. 807 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 807-058 Green Solder download ROHS3 Compliant REACH Unaffected 151-807-058-555-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 58 Female Non Specified - Dual Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2
