Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
845-036-559-458 EDAC Inc. 845-036-559-458 -
RFQ
 ECAD 6813 0.00000000 EDAC Inc. 845 Box Obsolete 845-036 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-036-559-458 EAR99 8536.69.4040 25
895-045-558-404 EDAC Inc. 895-045-558-404 99.6976
RFQ
 ECAD 7562 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 895-045 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-045-558-404 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 45 Female Non Specified - Single Edge 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 1
345-094-558-208 EDAC Inc. 345-094-558-208 16.6004
RFQ
 ECAD 9281 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle - 345-094 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-094-558-208 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 94 Female Non Specified - Dual Edge 47 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
395-013-542-101 EDAC Inc. 395-013-542-101 9.6152
RFQ
 ECAD 5174 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-013 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-013-542-101 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 13 Female Non Specified - Single Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1

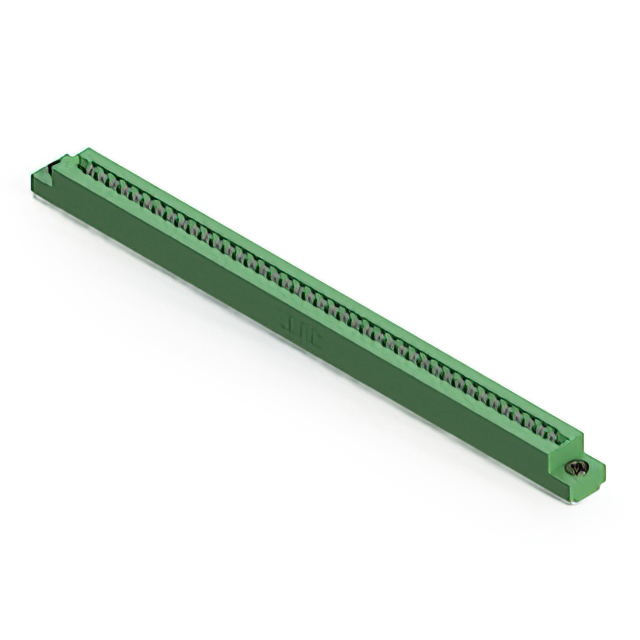

807-041-454-103 EDAC Inc. 807-041-454-103 278.4876
RFQ
 ECAD 3515 0.00000000 EDAC Inc. 807 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 807-041 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-041-454-103 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 1
746-046-520-506 EDAC Inc. 746-046-520-506 11.9116
RFQ
 ECAD 6002 0.00000000 EDAC Inc. 746 Bulk Active -40°C ~ 105°C Through Hole - 746-046 Black Press-Fit download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-746-046-520-506 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 46 Female Non Specified - Single Edge 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1

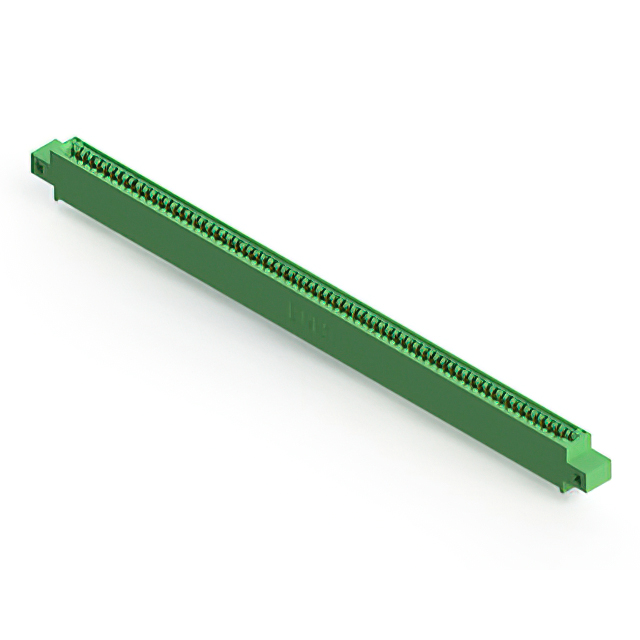

345-072-525-612 EDAC Inc. 345-072-525-612 27.3420
RFQ
 ECAD 1271 0.00000000 EDAC Inc. 345 Bulk Active -40°C ~ 105°C Through Hole - 345-072 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-345-072-525-612 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 72 Female Non Specified - Single Edge 72 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
842-032-521-112 EDAC Inc. 842-032-521-112 116.9436
RFQ
 ECAD 6295 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-032 Green Solder download ROHS3 Compliant REACH Unaffected 151-842-032-521-112 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 32 Female Non Specified - Single Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
737-022-541-201 EDAC Inc. 737-022-541-201 6.9916
RFQ
 ECAD 9782 0.00000000 EDAC Inc. 737 Bulk Active -40°C ~ 105°C Through Hole - 737-022 Black Press-Fit, Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-737-022-541-201 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
345-064-525-504 EDAC Inc. 345-064-525-504 11.9504
RFQ
 ECAD 7383 0.00000000 EDAC Inc. 345 Bulk Active -40°C ~ 105°C Through Hole - 345-064 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-345-064-525-504 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 64 Female Non Specified - Dual Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
846-037-540-678 EDAC Inc. 846-037-540-678 -
RFQ
 ECAD 4564 0.00000000 EDAC Inc. 846 Box Obsolete 846-037 download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-846-037-540-678 EAR99 8536.69.4040 25

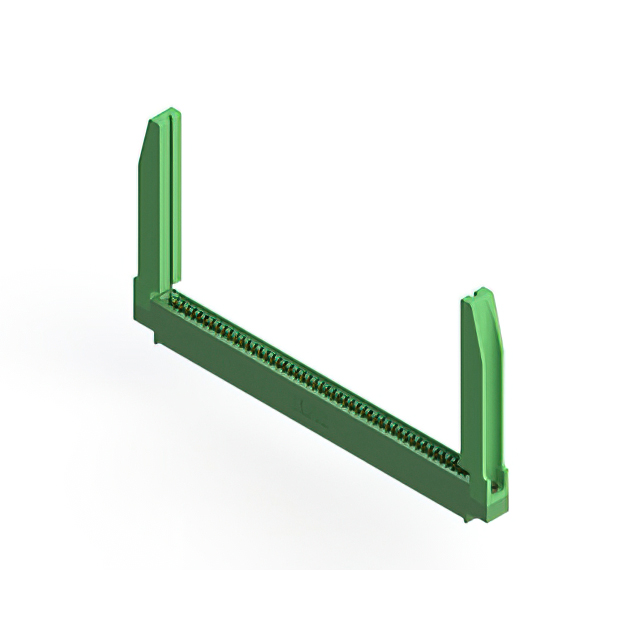

345-050-521-678 EDAC Inc. 345-050-521-678 15.5948
RFQ
 ECAD 8748 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-050 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-050-521-678 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 50 Female Non Specified - Single Edge 50 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
345-040-558-607 EDAC Inc. 345-040-558-607 17.6776
RFQ
 ECAD 2053 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle - 345-040 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-040-558-607 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 40 Female Non Specified - Single Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 1
896-080-540-208 EDAC Inc. 896-080-540-208 88.8300
RFQ
 ECAD 2692 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-080 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-080-540-208 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 80 Female Non Specified - Dual Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 2
395-047-559-403 EDAC Inc. 395-047-559-403 16.2028
RFQ
 ECAD 1647 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole, Right Angle - 395-047 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-047-559-403 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 47 Female Non Specified - Single Edge 47 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
316-015-500-104 EDAC Inc. 316-015-500-104 11.0216
RFQ
 ECAD 8298 0.00000000 EDAC Inc. 316 Bulk Active -40°C ~ 105°C Panel Mount - 316-015 Green Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Dual Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
345-023-544-178 EDAC Inc. 345-023-544-178 13.6828
RFQ
 ECAD 2921 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-023 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-023-544-178 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 23 Female Non Specified - Single Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
837-007-544-107 EDAC Inc. 837-007-544-107 39.1904
RFQ
 ECAD 5607 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-007 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-837-007-544-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 7 Female Non Specified - Single Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 1

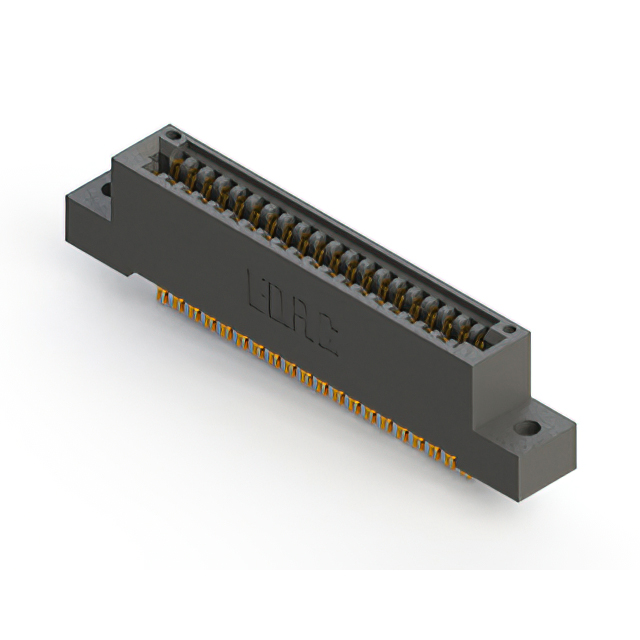

395-040-555-202 EDAC Inc. 395-040-555-202 11.5608
RFQ
 ECAD 2663 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 395-040 Black Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-395-040-555-202 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 40 Female Non Specified - Dual Edge 20 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
845-068-540-603 EDAC Inc. 845-068-540-603 158.4984
RFQ
 ECAD 6245 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-068 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-845-068-540-603 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 68 Female Non Specified - Single Edge 68 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 1
842-110-500-207 EDAC Inc. 842-110-500-207 177.6056
RFQ
 ECAD 1810 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-110 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-842-110-500-207 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 110 Female Non Specified - Dual Edge 55 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2
395-034-520-488 EDAC Inc. 395-034-520-488 14.6524
RFQ
 ECAD 8051 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-034 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-034-520-488 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 34 Female Non Specified - Single Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
845-036-523-507 EDAC Inc. 845-036-523-507 63.5512
RFQ
 ECAD 7566 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-036 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-036-523-507 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2
395-090-559-858 EDAC Inc. 395-090-559-858 17.0488
RFQ
 ECAD 1140 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 395-090 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-090-559-858 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 90 Female Non Specified - Dual Edge 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

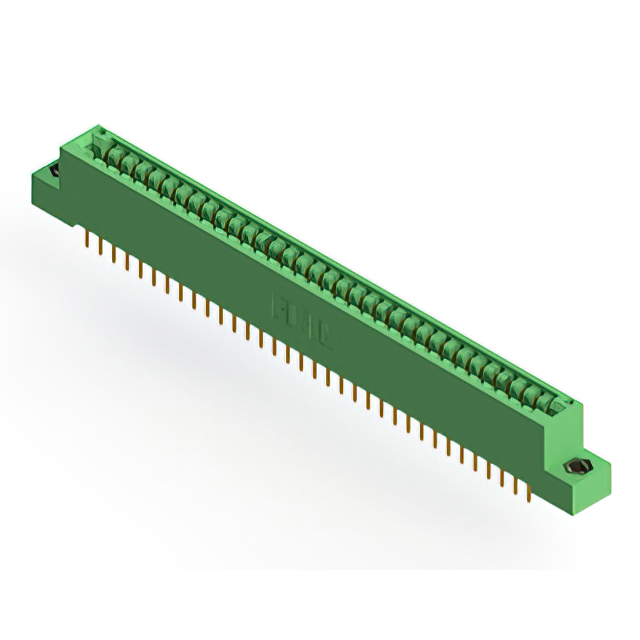

846-068-521-207 EDAC Inc. 846-068-521-207 77.1436
RFQ
 ECAD 6590 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-068 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-068-521-207 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 68 Female Non Specified - Dual Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2
395-132-556-803 EDAC Inc. 395-132-556-803 19.9900
RFQ
 ECAD 5419 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 395-132 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-132-556-803 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 132 Female Non Specified - Dual Edge 66 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

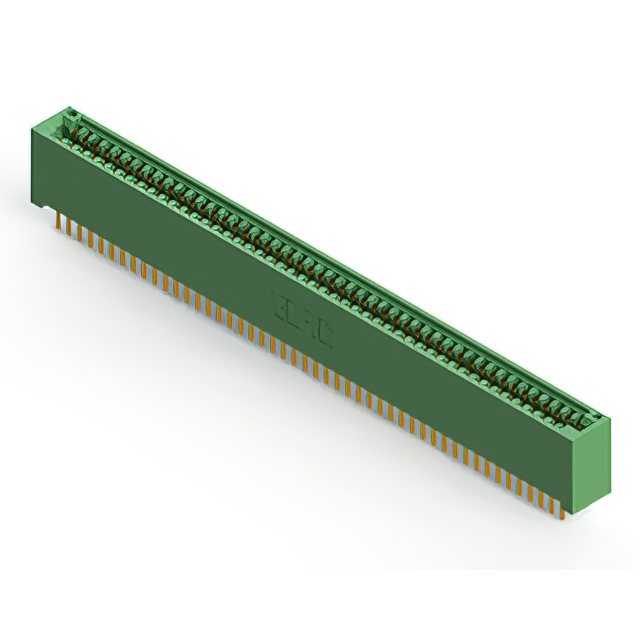

845-096-520-201 EDAC Inc. 845-096-520-201 83.9948
RFQ
 ECAD 8069 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-096 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-096-520-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 96 Female Non Specified - Dual Edge 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Diallyl Phthalate (DAP) 2
387-048-540-202 EDAC Inc. 387-048-540-202 15.6600
RFQ
 ECAD 1483 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-048 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-387-048-540-202 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Dual Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

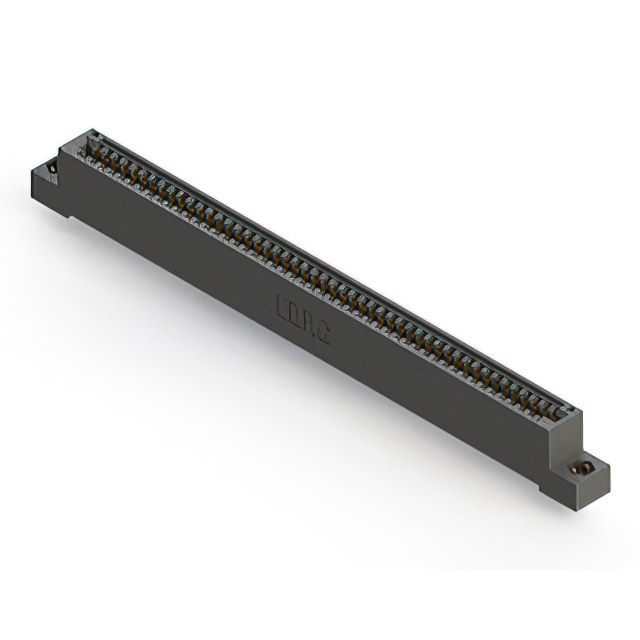

895-049-524-108 EDAC Inc. 895-049-524-108 102.8948
RFQ
 ECAD 4787 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-049 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-049-524-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 49 Female Non Specified - Single Edge 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 1

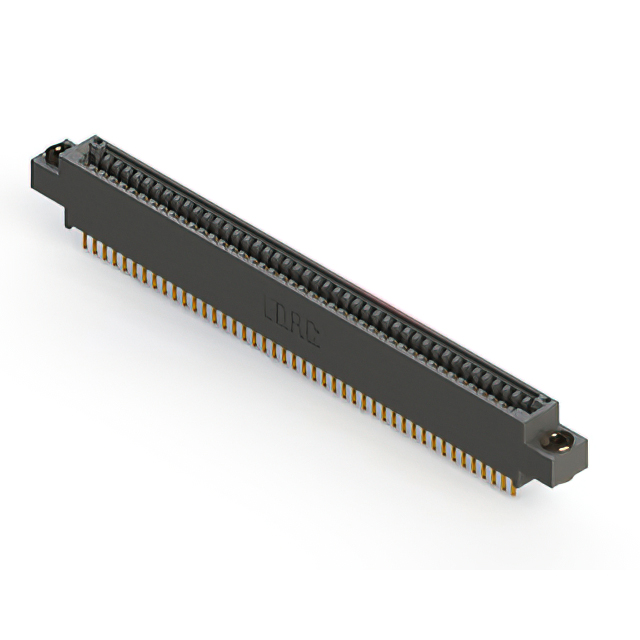

895-044-558-603 EDAC Inc. 895-044-558-603 114.7072
RFQ
 ECAD 6808 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 895-044 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-044-558-603 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 44 Female Non Specified - Single Edge 44 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 1
