Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
846-018-521-158 EDAC Inc. 846-018-521-158 -
RFQ
 ECAD 6195 0.00000000 EDAC Inc. 846 Box Obsolete 846-018 download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-846-018-521-158 EAR99 8536.69.4040 25
892-020-500-101 EDAC Inc. 892-020-500-101 121.3516
RFQ
 ECAD 6481 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Through Hole - 892-020 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-020-500-101 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 20 Female Non Specified - Single Edge 20 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyphenylene Sulfide (PPS) 1
396-084-540-804 EDAC Inc. 396-084-540-804 13.9440
RFQ
 ECAD 1701 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-084 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-084-540-804 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 84 Female Non Specified - Dual Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2

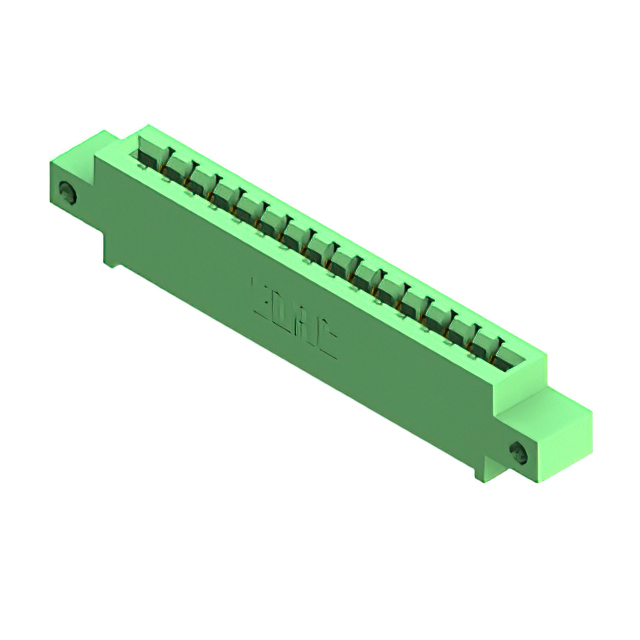

337-015-524-612 EDAC Inc. 337-015-524-612 7.5348
RFQ
 ECAD 4822 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-015 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-015-524-612 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 15 Female Non Specified - Single Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1

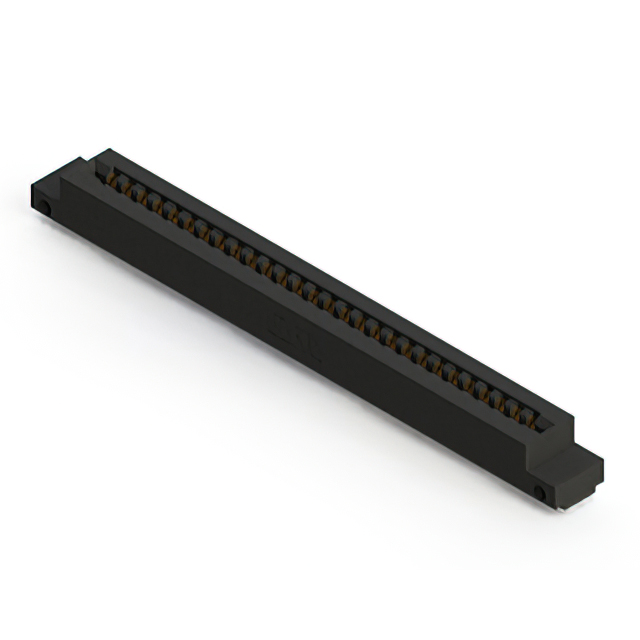

357-028-554-112 EDAC Inc. 357-028-554-112 33.7096
RFQ
 ECAD 2141 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Surface Mount - 357-028 Black Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-357-028-554-112 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
396-024-522-102 EDAC Inc. 396-024-522-102 10.3400
RFQ
 ECAD 6039 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-024 Black Solder download ROHS3 Compliant REACH Unaffected 151-396-024-522-102 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 24 Female Non Specified - Single Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
887-058-559-808 EDAC Inc. 887-058-559-808 102.7168
RFQ
 ECAD 1418 0.00000000 EDAC Inc. 887 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 887-058 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-887-058-559-808 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 58 Female Non Specified - Dual Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 2
387-014-520-602 EDAC Inc. 387-014-520-602 6.1492
RFQ
 ECAD 8381 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-014 Black Solder download ROHS3 Compliant REACH Unaffected 151-387-014-520-602 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 14 Female Non Specified - Single Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
337-046-559-804 EDAC Inc. 337-046-559-804 14.6868
RFQ
 ECAD 4568 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole, Right Angle - 337-046 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-046-559-804 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 46 Female Non Specified - Dual Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2

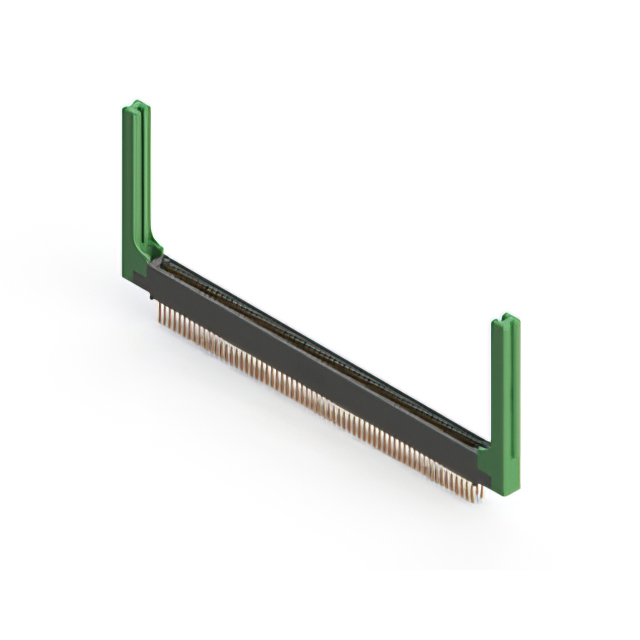

395-130-541-558 EDAC Inc. 395-130-541-558 18.3256
RFQ
 ECAD 5948 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-130 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-130-541-558 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 130 Female Non Specified - Dual Edge 65 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

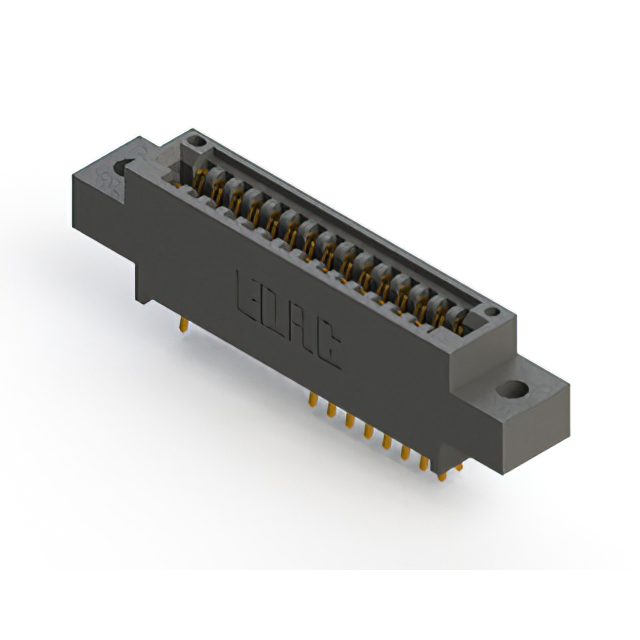

895-030-556-802 EDAC Inc. 895-030-556-802 60.7164
RFQ
 ECAD 1119 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 895-030 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-030-556-802 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Dual Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 2

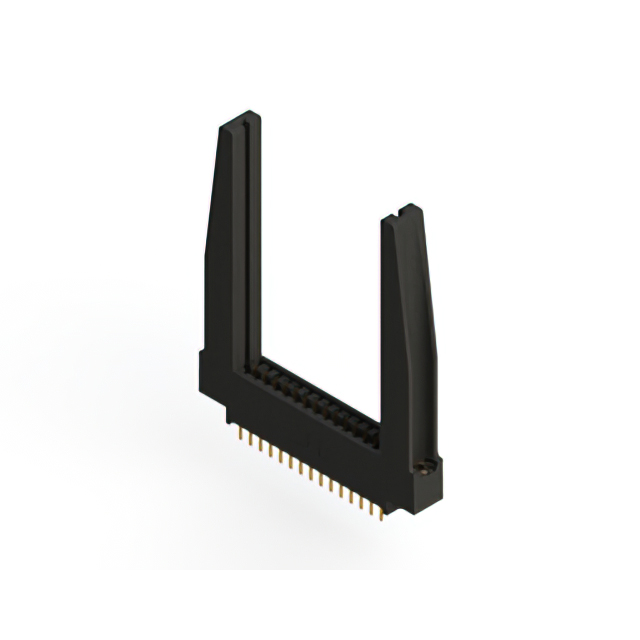

396-030-521-878 EDAC Inc. 396-030-521-878 10.9648
RFQ
 ECAD 4385 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole Card Guides 396-030 Black Solder download ROHS3 Compliant REACH Unaffected 151-396-030-521-878 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Dual Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

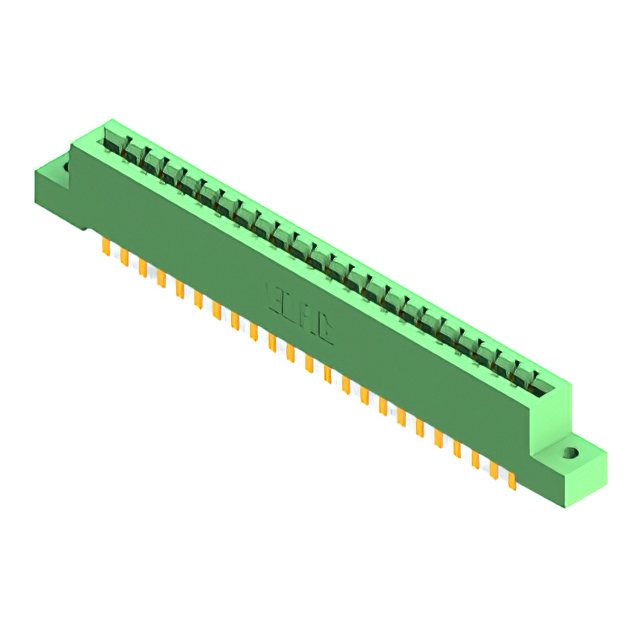

837-046-500-202 EDAC Inc. 837-046-500-202 119.9048
RFQ
 ECAD 7292 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-046 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-837-046-500-202 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 46 Female Non Specified - Dual Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
846-096-541-212 EDAC Inc. 846-096-541-212 100.5324
RFQ
 ECAD 5477 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-096 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-846-096-541-212 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 96 Female Non Specified - Dual Edge 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2

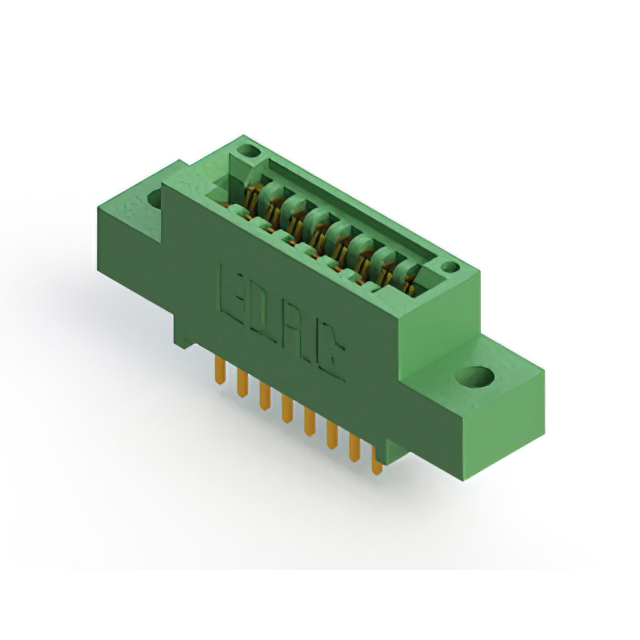

845-016-521-502 EDAC Inc. 845-016-521-502 44.0684
RFQ
 ECAD 6417 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-016 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-016-521-502 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2

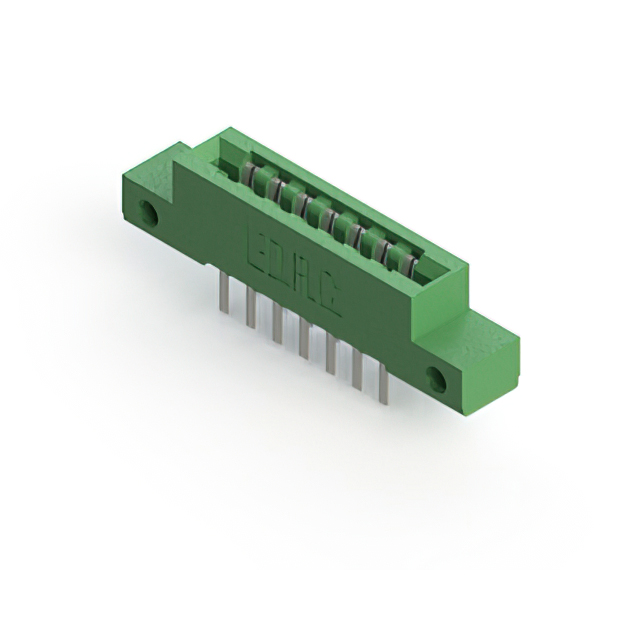

807-014-440-212 EDAC Inc. 807-014-440-212 42.2888
RFQ
 ECAD 7282 0.00000000 EDAC Inc. 807 Bulk Active -40°C ~ 125°C Through Hole - 807-014 Green Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-014-440-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 14 Female Non Specified - Dual Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
392-094-558-203 EDAC Inc. 392-094-558-203 18.0660
RFQ
 ECAD 2371 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole, Right Angle - 392-094 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-392-094-558-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 94 Female Non Specified - Dual Edge 47 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

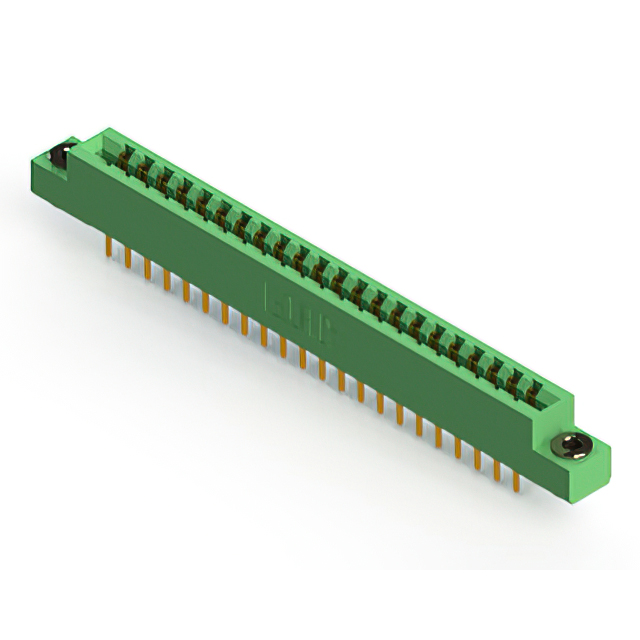

305-044-520-203 EDAC Inc. 305-044-520-203 12.3048
RFQ
 ECAD 8982 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 305-044 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-044-520-203 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 44 Female Non Specified - Dual Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
357-082-440-208 EDAC Inc. 357-082-440-208 19.6344
RFQ
 ECAD 1237 0.00000000 EDAC Inc. 357 Bulk Active -40°C ~ 105°C Through Hole - 357-082 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-357-082-440-208 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
345-072-541-578 EDAC Inc. 345-072-541-578 14.7980
RFQ
 ECAD 2496 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-072 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-072-541-578 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 72 Female Non Specified - Dual Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
325-028-540-208 EDAC Inc. 325-028-540-208 15.5044
RFQ
 ECAD 3961 0.00000000 EDAC Inc. 325 Box Active -65°C ~ 125°C Through Hole - 325-028 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-325-028-540-208 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Dual Edge 14 0.125" (3.18mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
896-092-541-207 EDAC Inc. 896-092-541-207 99.4296
RFQ
 ECAD 9222 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-092 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-092-541-207 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 92 Female Non Specified - Dual Edge 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 2

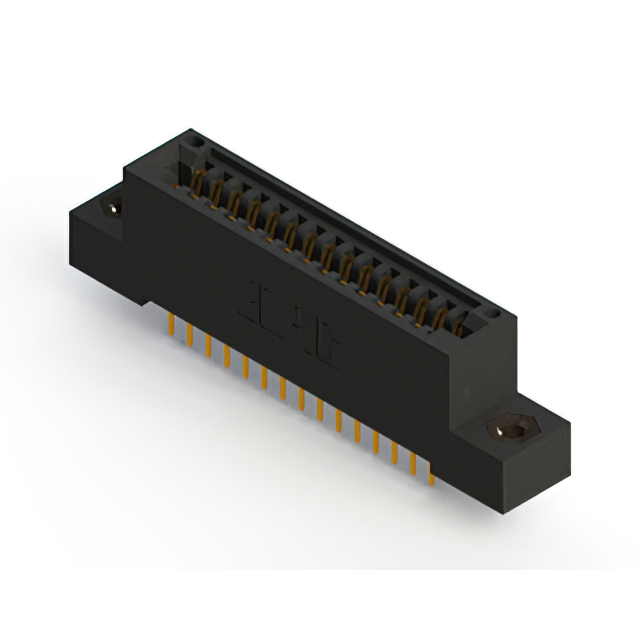

895-030-525-208 EDAC Inc. 895-030-525-208 61.3148
RFQ
 ECAD 8063 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-030 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-030-525-208 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Dual Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 2

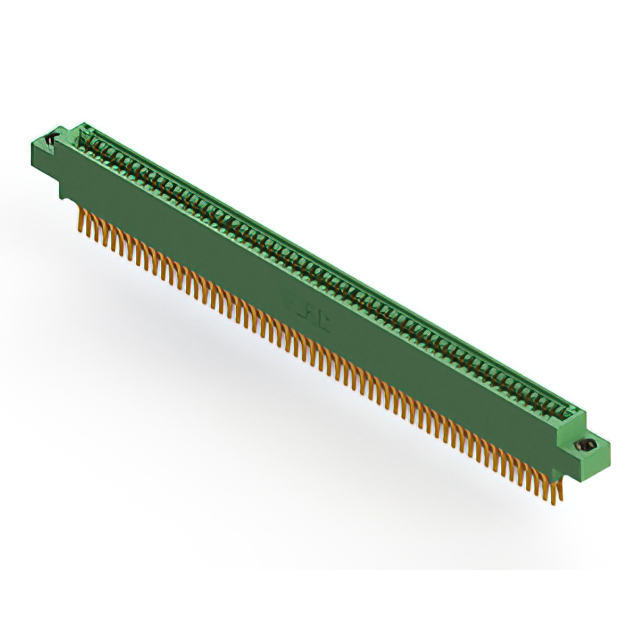

845-116-560-808 EDAC Inc. 845-116-560-808 120.9600
RFQ
 ECAD 7235 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 845-116 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-116-560-808 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 116 Female Non Specified - Dual Edge 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
315-020-520-204 EDAC Inc. 315-020-520-204 7.4324
RFQ
 ECAD 5695 0.00000000 EDAC Inc. 315 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 315-020 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-315-020-520-204 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 20 Female Non Specified - Dual Edge 10 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2

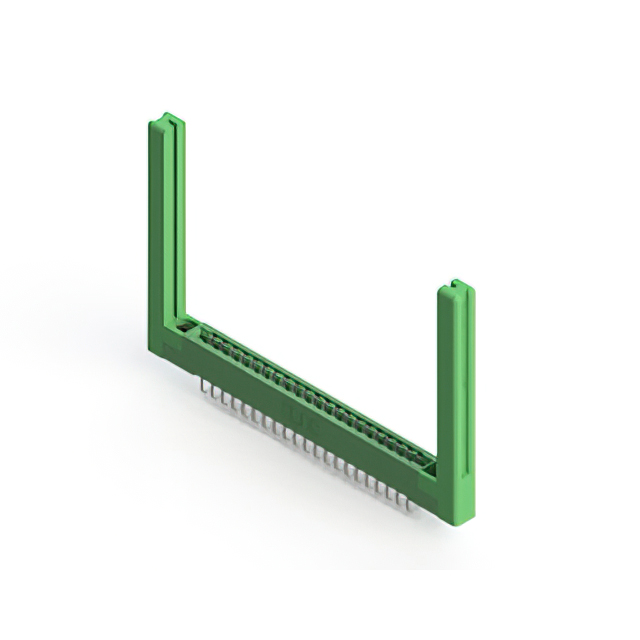

307-021-459-158 EDAC Inc. 307-021-459-158 17.0072
RFQ
 ECAD 2046 0.00000000 EDAC Inc. 307 Bulk Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 307-021 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-307-021-459-158 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Tin - Copper Alloy Semi Bellows 21 Female Non Specified - Single Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
746-068-525-206 EDAC Inc. 746-068-525-206 10.4936
RFQ
 ECAD 4630 0.00000000 EDAC Inc. 746 Box Active -40°C ~ 105°C Through Hole - 746-068 Black Press-Fit download ROHS3 Compliant REACH Unaffected 151-746-068-525-206 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 68 Female Non Specified - Dual Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
345-058-524-507 EDAC Inc. 345-058-524-507 14.2144
RFQ
 ECAD 2948 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-058 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-058-524-507 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 58 Female Non Specified - Dual Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2

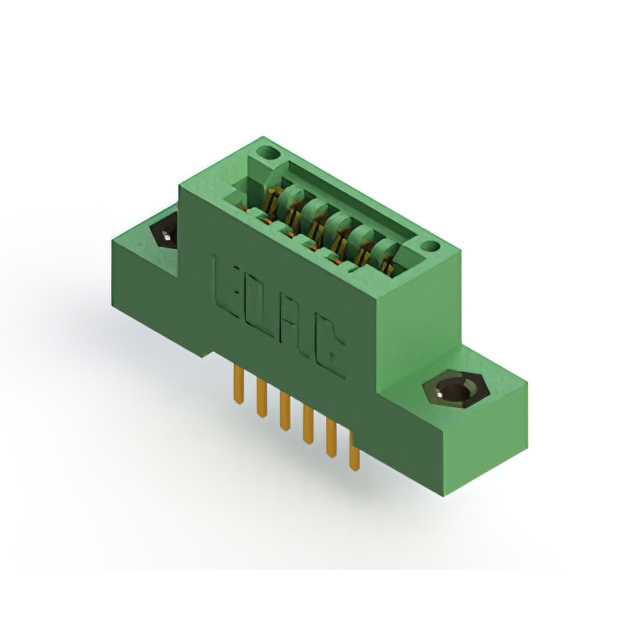

345-012-520-208 EDAC Inc. 345-012-520-208 10.0012
RFQ
 ECAD 4609 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-012 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-012-520-208 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
395-074-556-802 EDAC Inc. 395-074-556-802 13.6980
RFQ
 ECAD 8614 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 395-074 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-074-556-802 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 74 Female Non Specified - Dual Edge 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
