Card Edge Connectors(3365)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | ECCN | HTSUS | Standard Package | Pitch | Number of Rows | Contact Finish | Contact Finish Thickness | Contact Material | Contact Type | Number of Positions | Gender | Card Type | Number of Positions/Bay/Row | Card Thickness | Read Out | Flange Feature | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HSEC8-150-01-S-DV-A | 8.8300 |  |
7 | 0.00000000 | Samtec Inc. | Edge Rate™ HSEC8 | Tray | Active | -55°C ~ 125°C | Surface Mount | Board Guide, Locking Ramp | HSEC8-150 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 56 | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | Beryllium Copper | Cantilever | 100 | Female | Non Specified - Dual Edge | 50 | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | |
 |
HSEC8-160-01-L-DV-A-K-TR | 8.9700 | |
3 | 0.00000000 | Samtec Inc. | Edge Rate™ HSEC8 | Tape & Reel (TR) | Active | -55°C ~ 125°C | Surface Mount | Board Guide, Locking Ramp | HSEC8-160 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 275 | 0.031" (0.80mm) | 2 | Gold | 10.0µin (0.25µm) | Beryllium Copper | Cantilever | 120 | Female | Non Specified - Dual Edge | 60 | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | |
 |
MEC1-108-02-L-D-RA1-SL | 8.9400 | |
135 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount, Right Angle | Board Lock | MEC1-108 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 43 | 0.039" (1.00mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Loop Bellows | 16 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | |
 |
MEC6-120-02-L-DV-A-K | 7.4649 | |
8641 | 0.00000000 | Samtec Inc. | MEC6 - DV | Tray | Active | -55°C ~ 125°C | Surface Mount | Board Guide, Pick and Place | MEC6-120 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 78 | 0.025" (0.64mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | 40 | Female | Non Specified - Dual Edge | 20 | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | |
 |
HSEC8-140-01-S-D-EM2 | 17.0700 | |
633 | 0.00000000 | Samtec Inc. | Edge Rate™ HSEC8 | Tube | Active | -55°C ~ 125°C | Board Edge, Straddle Mount | - | HSEC8-140 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 11 | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | Beryllium Copper | Cantilever | 80 | Female | Non Specified - Dual Edge | 40 | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | |
 |
HSEC8-110-01-S-DV-A-WT-K | 5.7772 | |
1454 | 0.00000000 | Samtec Inc. | Edge Rate™ HSEC8 | Tray | Active | -55°C ~ 125°C | Surface Mount | Board Guide, Solder Retention | HSEC8-110 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 72 | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | Beryllium Copper | - | 20 | Female | Non Specified - Dual Edge | 10 | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | |
 |
HSEC8-170-01-S-DV-A-K | 11.1000 | |
85 | 0.00000000 | Samtec Inc. | Edge Rate™ HSEC8 | Tray | Active | -55°C ~ 125°C | Surface Mount | Board Guide, Locking Ramp | HSEC8-170 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 42 | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | Beryllium Copper | Cantilever | 140 | Female | Non Specified - Dual Edge | 70 | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | |
|
MB1-150-01-S-S-02-SL | 19.6000 | |
4940 | 0.00000000 | Samtec Inc. | MB1 | Tube | Active | -55°C ~ 125°C | Surface Mount, Right Angle | Board Guide, Card Guide | MB1-150 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 9 | 0.039" (1.00mm) | 1 | Gold | 30.0µin (0.76µm) | Beryllium Copper | Loop Bellows | 50 | Female | Non Specified - Single Edge | - | 0.062" (1.57mm) | Single | - | Liquid Crystal Polymer (LCP) | |
 |
MEC1-150-02-F-D | 9.7590 | |
1731 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Board Guide | MEC1-150 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 10 | 0.039" (1.00mm) | 2 | Gold | 3.00µin (0.076µm) | Phosphor Bronze | Loop Bellows | 100 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | |
 |

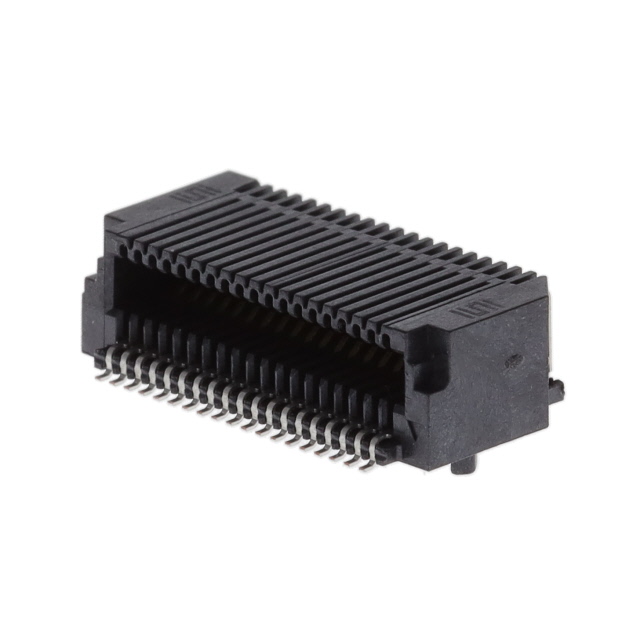

ERI8-019-S-D-RA-TR | 8.2500 | |
499 | 0.00000000 | Samtec Inc. | ER18 | Tape & Reel (TR) | Active | -55°C ~ 125°C | Surface Mount, Right Angle | Board Guide | ERI8-019 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 250 | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | Beryllium Copper | - | 38 | Female | Non Specified - Dual Edge | 19 | - | Dual | - | Liquid Crystal Polymer (LCP) | |
 |
MEC1-160-02-S-D-A | 16.6500 | |
48 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Board Guide | MEC1-160 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 8 | 0.039" (1.00mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | Loop Bellows | 120 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | |
|
MEC1-140-02-S-D-RA1-SL | 17.2900 | |
9979 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount, Right Angle | Board Lock | MEC1-140 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 12 | 0.039" (1.00mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | Loop Bellows | 80 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-150-02-F-D-K | 11.1100 | |
8833 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Pick and Place | MEC1-150 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 10 | 0.039" (1.00mm) | 2 | Gold | 3.00µin (0.076µm) | Beryllium Copper | Loop Bellows | 100 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-150-02-F-D-LC | 11.4200 | |
2752 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Board Lock | MEC1-150 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 10 | 0.039" (1.00mm) | 2 | Gold | 3.00µin (0.076µm) | Beryllium Copper | Loop Bellows | 100 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-150-02-F-D-RA2-SL | 13.4700 | |
7751 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount, Right Angle | Board Lock | MEC1-150 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 10 | 0.039" (1.00mm) | 2 | Gold | 3.00µin (0.076µm) | Phosphor Bronze | Loop Bellows | 100 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-150-02-L-D | 12.2000 | |
2660 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | - | MEC1-150 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 10 | 0.039" (1.00mm) | 2 | Gold | 10.0µin (0.25µm) | Beryllium Copper | Loop Bellows | 100 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-150-02-L-D-RA1-SL | 15.2400 | |
8761 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount, Right Angle | Board Lock | MEC1-150 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 10 | 0.039" (1.00mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Loop Bellows | 100 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-150-02-L-D-RA2-SL | 15.8500 | |
7727 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount, Right Angle | Board Lock | MEC1-150 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 10 | 0.039" (1.00mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Loop Bellows | 100 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-160-02-F-D-K | 11.7100 | |
8240 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Pick and Place | MEC1-160 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 8 | 0.039" (1.00mm) | 2 | Gold | 3.00µin (0.076µm) | Beryllium Copper | Loop Bellows | 120 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-160-02-F-D-LC | 12.0400 | |
3723 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Board Lock | MEC1-160 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 8 | 0.039" (1.00mm) | 2 | Gold | 3.00µin (0.076µm) | Beryllium Copper | Loop Bellows | 120 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-160-02-F-D-LC-K | 12.2900 | |
6845 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Board Lock, Pick and Place | MEC1-160 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 8 | 0.039" (1.00mm) | 2 | Gold | 3.00µin (0.076µm) | Beryllium Copper | Loop Bellows | 120 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-160-02-F-D-RA2-SL | 14.8800 | |
6451 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount, Right Angle | Board Lock | MEC1-160 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 8 | 0.039" (1.00mm) | 2 | Gold | 3.00µin (0.076µm) | Phosphor Bronze | Loop Bellows | 120 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-160-02-L-D | 12.9800 | |
4632 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | - | MEC1-160 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 8 | 0.039" (1.00mm) | 2 | Gold | 10.0µin (0.25µm) | Beryllium Copper | Loop Bellows | 120 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-160-02-L-D-K | 13.7400 | |
1507 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Pick and Place | MEC1-160 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 8 | 0.039" (1.00mm) | 2 | Gold | 10.0µin (0.25µm) | Beryllium Copper | Loop Bellows | 120 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-160-02-L-D-LC | 14.0400 | |
8336 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Board Lock | MEC1-160 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 8 | 0.039" (1.00mm) | 2 | Gold | 10.0µin (0.25µm) | Beryllium Copper | Loop Bellows | 120 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-160-02-S-D-A-K | 17.5500 | |
6529 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Board Guide, Pick and Place | MEC1-160 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 8 | 0.039" (1.00mm) | 2 | Gold | 30.0µin (0.76µm) | Beryllium Copper | Loop Bellows | 120 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-170-02-F-D | 12.7300 | |
2325 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | - | MEC1-170 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 7 | 0.039" (1.00mm) | 2 | Gold | 3.00µin (0.076µm) | Beryllium Copper | Loop Bellows | 140 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-170-02-F-D-A-K | 13.5600 | |
3557 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Board Guide, Pick and Place | MEC1-170 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 7 | 0.039" (1.00mm) | 2 | Gold | 3.00µin (0.076µm) | Beryllium Copper | Loop Bellows | 140 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-170-02-L-D-LC | 15.5500 | |
1207 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Board Lock | MEC1-170 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 7 | 0.039" (1.00mm) | 2 | Gold | 10.0µin (0.25µm) | Beryllium Copper | Loop Bellows | 140 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||
|
MEC1-170-02-L-D-RA2-SL | 18.5900 | |
2316 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount, Right Angle | Board Lock | MEC1-170 | Black | Solder | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 7 | 0.039" (1.00mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Loop Bellows | 140 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) |
