Card Edge Connectors(668078)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination Note DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Material Flammability Rating Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
ASM10DRAI Sullins Connector Solutions ASM10DRAI 10.4640
RFQ
 ECAD 1416 0.00000000 Sullins Connector Solutions - Tray Active -65°C ~ 150°C Through Hole, Right Angle - ASM10 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Beryllium Copper Full Bellows 20 Female Non Specified - Dual Edge 10 0.062" (1.57mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS)
345-056-541-578 EDAC Inc. 345-056-541-578 14.2536
RFQ
 ECAD 6299 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-056 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-056-541-578 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
357-022-431-178 EDAC Inc. 357-022-431-178 16.0808
RFQ
 ECAD 1016 0.00000000 EDAC Inc. 357 Bulk Active -40°C ~ 105°C Through Hole Card Guides 357-022 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-357-022-431-178 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Tin - Copper Alloy Semi Bellows 22 Female Non Specified - Single Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
307-062-520-212 EDAC Inc. 307-062-520-212 16.5368
RFQ
 ECAD 7750 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-062 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-062-520-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 62 Female Non Specified - Dual Edge 31 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
342-057-559-112 EDAC Inc. 342-057-559-112 27.2768
RFQ
 ECAD 9325 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole, Right Angle - 342-057 Green Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-342-057-559-112 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 57 Female Non Specified - Single Edge 57 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
EYM43DTMT-S273 Sullins Connector Solutions EYM43DTMT-S273 -
RFQ
 ECAD 2025 0.00000000 Sullins Connector Solutions - Tray Active -65°C ~ 125°C Through Hole, Right Angle - EYM43 Blue Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 0.156" (3.96mm) 2 Gold 30.0µin (0.76µm) Phosphor Bronze Loop Bellows 86 Female Non Specified - Dual Edge 43 0.093" (2.36mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polybutylene Terephthalate (PBT)
GMM28DTBS Sullins Connector Solutions GMM28DTBS 12.5110
RFQ
 ECAD 2061 0.00000000 Sullins Connector Solutions - Tray Active -65°C ~ 125°C Through Hole, Right Angle - GMM28 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.156" (3.96mm) 2 Gold 30.0µin (0.76µm) Phosphor Bronze Loop Bellows 56 Female Non Specified - Dual Edge 28 0.062" (1.57mm) Dual Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia Polyamide (PA9T), Nylon 9T
845-080-520-508 EDAC Inc. 845-080-520-508 88.8300
RFQ
 ECAD 1937 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-080 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-080-520-508 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 80 Female Non Specified - Dual Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
857-022-554-107 EDAC Inc. 857-022-554-107 179.7720
RFQ
 ECAD 6891 0.00000000 EDAC Inc. 857 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 857-022 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-857-022-554-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 44 Female Non Specified - Dual Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 1
345-086-555-508 EDAC Inc. 345-086-555-508 17.6776
RFQ
 ECAD 9974 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 345-086 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-345-086-555-508 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
307-035-545-107 EDAC Inc. 307-035-545-107 20.3436
RFQ
 ECAD 7771 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-035 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-035-545-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 35 Female Non Specified - Single Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
GBM40DTKN-S288 Sullins Connector Solutions GBM40DTKN-S288 10.9120
RFQ
 ECAD 8511 0.00000000 Sullins Connector Solutions - Tray Active -65°C ~ 125°C Board Edge, Straddle Mount Card Extender GBM40 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Phosphor Bronze Loop Bellows 80 Female Non Specified - Dual Edge 40 0.062" (1.57mm) Dual - Polyamide (PA9T), Nylon 9T
357-030-458-107 EDAC Inc. 357-030-458-107 19.7096
RFQ
 ECAD 3666 0.00000000 EDAC Inc. 357 Bulk Active -40°C ~ 105°C Through Hole, Right Angle - 357-030 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-357-030-458-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Tin - Copper Alloy Semi Bellows 30 Female Non Specified - Single Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
896-032-555-804 EDAC Inc. 896-032-555-804 59.8972
RFQ
 ECAD 5697 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 896-032 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-032-555-804 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 32 Female Non Specified - Dual Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2
346-029-500-102 EDAC Inc. 346-029-500-102 14.0228
RFQ
 ECAD 4350 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-029 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-346-029-500-102 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 29 Female Non Specified - Single Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
316-023-421-112 EDAC Inc. 316-023-421-112 16.6636
RFQ
 ECAD 7384 0.00000000 EDAC Inc. 316 Bulk Active -40°C ~ 105°C Panel Mount, Through Hole - 316-023 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-316-023-421-112 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Cantilever 46 Female Non Specified - Dual Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
892-110-556-212 EDAC Inc. 892-110-556-212 135.1352
RFQ
 ECAD 1272 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 892-110 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-110-556-212 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 110 Female Non Specified - Dual Edge 55 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 2
RCB20DYRQ Sullins Connector Solutions RCB20DYRQ 9.5260
RFQ
 ECAD 8691 0.00000000 Sullins Connector Solutions - Tube Active -65°C ~ 125°C Board Edge, Straddle Mount Card Extender RCB20 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 0.050" (1.27mm) 2 Gold 30.0µin (0.76µm) Phosphor Bronze Cantilever 40 Female Non Specified - Dual Edge 20 0.062" (1.57mm) Dual Straddle Mount Opening, Unthreaded, 0.078" (1.98mm) Polyphenylene Sulfide (PPS)
307-041-545-108 EDAC Inc. 307-041-545-108 23.1756
RFQ
 ECAD 3345 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-041 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-041-545-108 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 41 Female Non Specified - Single Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
396-092-555-207 EDAC Inc. 396-092-555-207 16.5160
RFQ
 ECAD 2535 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 396-092 Black Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-396-092-555-207 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 92 Female Non Specified - Dual Edge 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
345-054-520-207 EDAC Inc. 345-054-520-207 13.2692
RFQ
 ECAD 4059 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-054 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-054-520-207 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 54 Female Non Specified - Dual Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2

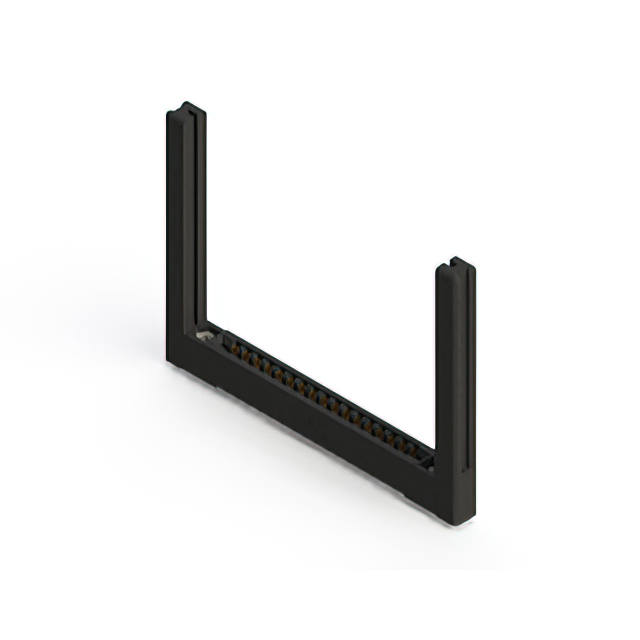

357-017-501-158 EDAC Inc. 357-017-501-158 23.3260
RFQ
 ECAD 6418 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Through Hole Card Guides 357-017 Black Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-357-017-501-158 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 34 Female Non Specified - Dual Edge 17 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
1728790208 Molex 1728790208 -
RFQ
 ECAD 8462 0.00000000 Molex - Bulk Obsolete - Free Hanging (In-Line) - 172879 Black Contacts Not Included download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.8000 1,000 0.156" (3.96mm) - 8 Non Specified - Single Edge 0.062" (1.57mm) - Polyamide (PA6), Nylon 6
EEC08DRTH-S734 Sullins Connector Solutions EEC08DRTH-S734 5.0600
RFQ
 ECAD 2615 0.00000000 Sullins Connector Solutions - Tray Active -65°C ~ 125°C Through Hole - EEC08 Blue Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 Tin 100.0µin (2.54µm) Phosphor Bronze Full Bellows 16 Female Non Specified - Dual Edge 8 0.031" (0.79mm) Dual Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia Polybutylene Terephthalate (PBT)
MEC8-130-02-S-D-RA1-TR Samtec Inc. MEC8-130-02-S-D-RA1-TR 8.9799
RFQ
 ECAD 9315 0.00000000 Samtec Inc. MEC8 - RA Tape & Reel (TR) Active -55°C ~ 125°C Surface Mount Board Guide MEC8-130 Black Solder - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 225 0.031" (0.80mm) 2 Gold 30.0µin (0.76µm) Phosphor Bronze Hairpin Bellows 60 Female Non Specified - Dual Edge - 0.062" (1.57mm) Dual - Liquid Crystal Polymer (LCP)
316-009-500-102 EDAC Inc. 316-009-500-102 8.5380
RFQ
 ECAD 8816 0.00000000 EDAC Inc. 316 Box Active -40°C ~ 105°C Panel Mount - 316-009 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-316-009-500-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 18 Female Non Specified - Dual Edge 9 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
346-036-558-658 EDAC Inc. 346-036-558-658 13.1888
RFQ
 ECAD 6305 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 346-036 Green Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-036-558-658 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Single Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
ECC06DCWI Sullins Connector Solutions ECC06DCWI 3.1490
RFQ
 ECAD 3471 0.00000000 Sullins Connector Solutions - Tray Active -65°C ~ 125°C Through Hole - ECC06 - Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 Gold 30.0µin (0.76µm) Phosphor Bronze Hairpin Bellows 12 Female Non Specified - Dual Edge 6 0.062" (1.57mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polybutylene Terephthalate (PBT)
357-036-525-112 EDAC Inc. 357-036-525-112 19.3184
RFQ
 ECAD 6780 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Through Hole - 357-036 Black Solder download ROHS3 Compliant REACH Unaffected 151-357-036-525-112 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 36 Female Non Specified - Single Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
RBC25DREF-S734 Sullins Connector Solutions RBC25DREF-S734 8.9760
RFQ
 ECAD 6070 0.00000000 Sullins Connector Solutions - Tray Active -65°C ~ 125°C Panel Mount - RBC25 Green Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Phosphor Bronze Full Bellows 50 Female Non Specified - Dual Edge 25 0.031" (0.79mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS)
