Card Edge Connectors(668078)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
15041002001000 HARTING 15041002001000 13.3600
RFQ
 ECAD 6352 0.00000000 HARTING har-flex® Tape & Reel (TR) Active -55°C ~ 125°C Surface Mount Board Guide Black Solder download ROHS3 Compliant 1 (Unlimited) 200 0.031" (0.80mm) 2 Gold - Copper Alloy - 100 Female Non Specified - Dual Edge - 0.063" (1.60mm) Dual - Liquid Crystal Polymer (LCP)
346-016-559-812 EDAC Inc. 346-016-559-812 11.1036
RFQ
 ECAD 8514 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole, Right Angle - 346-016 Green Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-016-559-812 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
GCM08DCBS Sullins Connector Solutions GCM08DCBS 4.6460
RFQ
 ECAD 4229 0.00000000 Sullins Connector Solutions - Tray Active -65°C ~ 125°C Through Hole, Right Angle - GCM08 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.156" (3.96mm) 2 Gold 30.0µin (0.76µm) Phosphor Bronze Hairpin Bellows 16 Female Non Specified - Dual Edge 8 0.062" (1.57mm) Dual Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia Polyamide (PA9T), Nylon 9T
845-049-520-412 EDAC Inc. 845-049-520-412 96.9884
RFQ
 ECAD 1090 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-049 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-049-520-412 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 49 Female Non Specified - Single Edge 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
CR22A-34D-2.54DSA(70) Hirose Electric Co Ltd CR22A-34D-2.54DSA(70) -
RFQ
 ECAD 9892 0.00000000 Hirose Electric Co Ltd * Bulk Obsolete - Not Applicable 5220035370 OBSOLETE 0000.00.0000 1
MEC1-108-02-F-D-A Samtec Inc. MEC1-108-02-F-D-A 6.7100
RFQ
 ECAD 15 0.00000000 Samtec Inc. MEC1 Tube Active -55°C ~ 125°C Surface Mount Board Guide MEC1-108 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected SAM9698 EAR99 8536.69.4040 43 0.039" (1.00mm) 2 Gold Flash Beryllium Copper - 16 Female Non Specified - Dual Edge - 0.062" (1.57mm) Dual - Liquid Crystal Polymer (LCP)

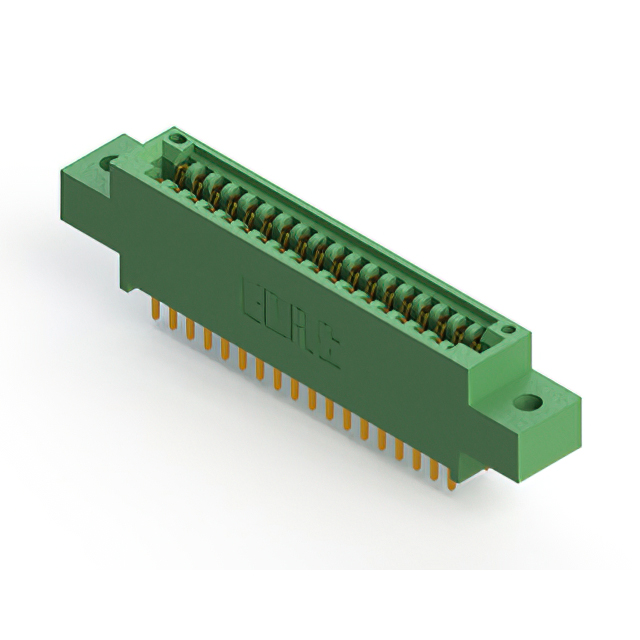

345-036-521-802 EDAC Inc. 345-036-521-802 8.7836
RFQ
 ECAD 6938 0.00000000 EDAC Inc. 345 Bulk Active -40°C ~ 105°C Through Hole - 345-036 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
CR4E-14S-4DSB Hirose Electric Co Ltd CR4E-14S-4DSB -
RFQ
 ECAD 5567 0.00000000 Hirose Electric Co Ltd - Bulk Obsolete - Not Applicable 5040088800 OBSOLETE 0000.00.0000 1
355-072-500-508 EDAC Inc. 355-072-500-508 15.8372
RFQ
 ECAD 4250 0.00000000 EDAC Inc. 355 Box Active -40°C ~ 105°C Panel Mount - 355-072 Black Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-355-072-500-508 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 72 Female Non Specified - Dual Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

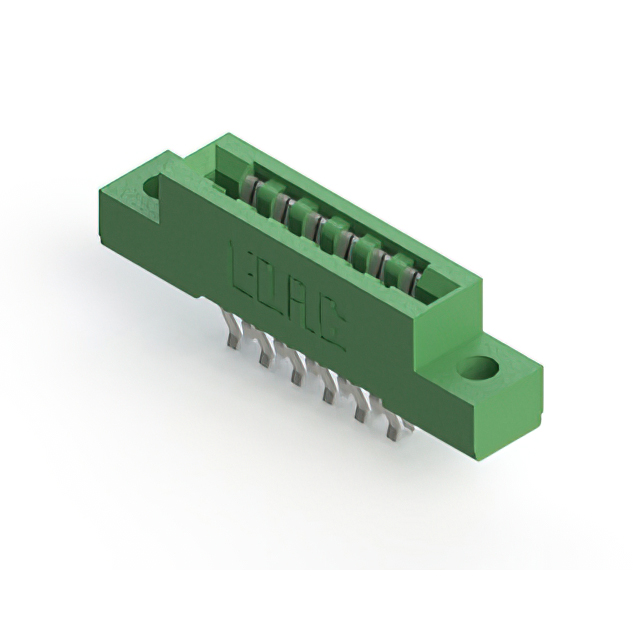

807-012-460-202 EDAC Inc. 807-012-460-202 45.1236
RFQ
 ECAD 9091 0.00000000 EDAC Inc. 807 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 807-012 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-012-460-202 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
887-016-555-803 EDAC Inc. 887-016-555-803 76.8104
RFQ
 ECAD 9423 0.00000000 EDAC Inc. 887 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 887-016 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-887-016-555-803 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2
CR22D-120D-2.54DS(70) Hirose Electric Co Ltd CR22D-120D-2.54DS(70) 13.2000
RFQ
 ECAD 6 0.00000000 Hirose Electric Co Ltd CR22 Tray Active -30°C ~ 85°C Through Hole - CR22 Black Solder download RoHS Compliant 1 (Unlimited) EAR99 8536.69.4040 12 0.100" (2.54mm) 2 Gold - Copper Alloy - 120 Female Non Specified - Dual Edge - 0.063" (1.60mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.30mm) Dia Polybutylene Terephthalate (PBT)
337-014-559-802 EDAC Inc. 337-014-559-802 11.1432
RFQ
 ECAD 7977 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole, Right Angle - 337-014 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-014-559-802 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 14 Female Non Specified - Dual Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
346-044-500-104 EDAC Inc. 346-044-500-104 13.9204
RFQ
 ECAD 6582 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-044 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-346-044-500-104 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 44 Female Non Specified - Single Edge 44 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1

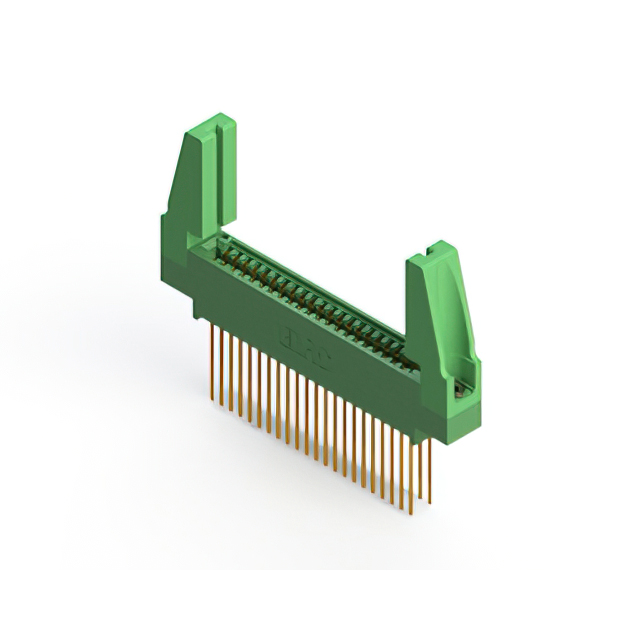

345-044-541-888 EDAC Inc. 345-044-541-888 13.1512
RFQ
 ECAD 7861 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-044 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-044-541-888 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 44 Female Non Specified - Dual Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
CR22-80D-2.54DS(70) Hirose Electric Co Ltd CR22-80D-2.54DS(70) 9.5853
RFQ
 ECAD 1816 0.00000000 Hirose Electric Co Ltd CR22 Bulk Active -30°C ~ 85°C Through Hole - CR22 Black Solder - RoHS Compliant 1 (Unlimited) 522-0049-8-70 EAR99 8536.69.4040 15 0.100" (2.54mm) 2 Gold - Copper Alloy - 80 Female Non Specified - Dual Edge 40 - Dual - Polybutylene Terephthalate (PBT) 2
RBC28DCSD-S288 Sullins Connector Solutions RBC28DCSD-S288 10.0100
RFQ
 ECAD 5899 0.00000000 Sullins Connector Solutions - Tube Active -65°C ~ 125°C Board Edge, Straddle Mount Card Extender RBC28 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Phosphor Bronze Hairpin Bellows 56 Female Non Specified - Dual Edge 28 0.062" (1.57mm) Dual Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia Polyphenylene Sulfide (PPS)
CWR-170-26-0203 CW Industries CWR-170-26-0203 4.4400
RFQ
 ECAD 159 0.00000000 CW Industries 170 Bulk Active -55°C ~ 125°C Free Hanging (In-Line) - CWR-170 Blue IDC download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 100 0.100" (2.54mm) 2 Tin 100.0µin (2.54µm) Phosphor Bronze Cantilever 26 Female Non Specified - Dual Edge 13 0.032" ~ 0.070" (0.81mm ~ 1.78mm) Dual - Thermoplastic
X-INN-12-1306 Advantech Corp X-INN-12-1306 -
RFQ
 ECAD 8815 0.00000000 Advantech Corp * Bulk Active X-INN-12 - RoHS Compliant 1 (Unlimited) REACH Unaffected 1
GCC05DRAN Sullins Connector Solutions GCC05DRAN 4.2430
RFQ
 ECAD 9251 0.00000000 Sullins Connector Solutions - Tube Active -65°C ~ 125°C Through Hole, Right Angle - GCC05 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 Gold 30.0µin (0.76µm) Phosphor Bronze Full Bellows 10 Female Non Specified - Dual Edge 5 0.062" (1.57mm) Dual - Polyamide (PA9T), Nylon 9T
GCC65DRAN Sullins Connector Solutions GCC65DRAN 16.0990
RFQ
 ECAD 4924 0.00000000 Sullins Connector Solutions - Tube Active -65°C ~ 125°C Through Hole, Right Angle - GCC65 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 Gold 30.0µin (0.76µm) Phosphor Bronze Full Bellows 130 Female Non Specified - Dual Edge 65 0.062" (1.57mm) Dual - Polyamide (PA9T), Nylon 9T
333-082-544-808 EDAC Inc. 333-082-544-808 13.8600
RFQ
 ECAD 8464 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-082 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-082-544-808 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
892-086-560-202 EDAC Inc. 892-086-560-202 107.9664
RFQ
 ECAD 3497 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 892-086 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-086-560-202 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 2
ABB27DHNT Sullins Connector Solutions ABB27DHNT -
RFQ
 ECAD 4385 0.00000000 Sullins Connector Solutions - Tube Active -65°C ~ 150°C Through Hole - ABB27 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 0.050" (1.27mm) 2 Gold 10.0µin (0.25µm) Beryllium Copper Hairpin Bellows 54 Female Non Specified - Dual Edge 27 0.062" (1.57mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS)
CR7E-72DA-3.96DS Hirose Electric Co Ltd CR7E-72DA-3.96DS 17.0650
RFQ
 ECAD 1637 0.00000000 Hirose Electric Co Ltd CR7 Bulk Active -55°C ~ 85°C Through Hole - CR7E - Solder - RoHS Compliant Not Applicable 507-0095-2-00 EAR99 8536.69.4040 12 0.156" (3.96mm) 2 Gold - - Full Bellows 72 Female Non Specified - Dual Edge 36 - Dual - - 2
RCB15DHAR Sullins Connector Solutions RCB15DHAR 13.2600
RFQ
 ECAD 6198 0.00000000 Sullins Connector Solutions - Tube Active -65°C ~ 125°C Through Hole, Right Angle Board Lock RCB15 Black Solder, Staggered download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 0.050" (1.27mm) 2 Gold 30.0µin (0.76µm) Phosphor Bronze Hairpin Bellows 30 Female Non Specified - Dual Edge 15 0.062" (1.57mm) Dual - Polyphenylene Sulfide (PPS)
GCC22DREI Sullins Connector Solutions GCC22DREI 8.2900
RFQ
 ECAD 3355 0.00000000 Sullins Connector Solutions - Tube Active -65°C ~ 125°C Panel Mount - GCC22 Black Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 Gold 30.0µin (0.76µm) Phosphor Bronze Full Bellows 44 Female Non Specified - Dual Edge 22 0.062" (1.57mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyamide (PA9T), Nylon 9T
345-060-520-604 EDAC Inc. 345-060-520-604 19.0256
RFQ
 ECAD 4340 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-060 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-060-520-604 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Single Edge 60 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
357-064-456-202 EDAC Inc. 357-064-456-202 16.7980
RFQ
 ECAD 3369 0.00000000 EDAC Inc. 357 Bulk Active -40°C ~ 105°C Board Edge, Straddle Mount - 357-064 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-357-064-456-202 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 64 Female Non Specified - Dual Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
GCC13DRAN Sullins Connector Solutions GCC13DRAN 6.1600
RFQ
 ECAD 5737 0.00000000 Sullins Connector Solutions - Tube Active -65°C ~ 125°C Through Hole, Right Angle - GCC13 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 Gold 30.0µin (0.76µm) Phosphor Bronze Full Bellows 26 Female Non Specified - Dual Edge 13 0.062" (1.57mm) Dual - Polyamide (PA9T), Nylon 9T
