D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
628-037-320-013 | 3.3219 |  |
2421 | 0.00000000 | EDAC Inc. | 628 (Plastic) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 628-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-037-320-013 | EAR99 | 8536.69.4040 | 5,000 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal and Power | 37 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | - | ||
 |
629-3W3-640-2N4 | 13.9420 | |
8797 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-3W3 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-3W3-640-2N4 | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 1 | Gold | 30.0µin (0.76µm) | 20A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3W3 | 0.520" (13.20mm) | |
 |
628-25W3622-7T2 | 31.5161 | |
7518 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 628-25W | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-25W3622-7T2 | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 25 (22 + 3 Coax) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 25W3 | - | |
 |
627-24W7624-3N2 | 32.9432 | |
6418 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-24W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-24W7624-3N2 | EAR99 | 8536.69.4040 | 600 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 24 (17 + 7 Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 24W7 | - | |
|
627-015-010-052 | 1.1666 | |
6565 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-015-010-052 | EAR99 | 8536.69.4040 | 100 | ||||||||||||||||||||||||||
 |
628-M15-222-BN1 | 4.0740 | |
5598 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 628-M15 | Black | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M15-222-BN1 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 15 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 2 (DA, A) | - | ||
 |
B57-136-621I402 | - | |
9784 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-136-621I402 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
B57-124-265I402 | - | |
1313 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-124-265I402 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
630-21W4240-3T1 | 8.6133 | |
5758 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-21W4240-3T1 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (17 + 4 Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 21WA4 | 0.370" (9.40mm) | |
 |
630-M50-640-GT1 | 27.3000 | |
4863 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-M50 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M50-640-GT1 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 5 (DD, D) | 0.370" (9.40mm) | ||
 |
627-5W1-624-7NC | 9.9096 | |
7792 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-5W1 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-5W1-624-7NC | EAR99 | 8536.69.4040 | 400 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 5 (4 + 1 Coax) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 5W1 | - | |
 |
627-13W6224-7T1 | 13.0290 | |
6623 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-13W6224-7T1 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 13 (7 + 6 Coax) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 13W6 | - | |
 |
622-M37-360-LN5 | 15.3200 | |
5289 | 0.00000000 | EDAC Inc. | 622-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 622-M37 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-M37-360-LN5 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 4 (DC, C) | 0.283" (7.20mm) | ||
|
627-17W5624-2N4 | 26.9468 | |
8474 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-17W5624-2N4 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (12 + 5 Power) | 125V | Board Side (4-40); Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 17W5 | - | |
 |
629-43W2240-5N6 | 22.0407 | |
7709 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents | 629-43W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-43W2240-5N6 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 43 (41 + 2 Coax) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | 0.370" (9.40mm) | |
 |
B57-124-221I003 | - | |
7858 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-124-221I003 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
661-025-264-035 | 7.8420 | |
3716 | 0.00000000 | EDAC Inc. | 661 | Tray | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 661-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-661-025-264-035 | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins | 2, 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 25, 25 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 3 (DB, B); 3 (DB, B) | 0.318" (8.08mm) | ||
 |
627-47W1624-2T5 | 36.5243 | |
5795 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-47W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-47W1624-2T5 | EAR99 | 8536.69.4040 | 400 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 47 (46 + 1 Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 47W1 | - | |
 |
627-5W1-624-4NC | 8.5946 | |
6372 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-5W1 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-5W1-624-4NC | EAR99 | 8536.69.4040 | 400 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 5 (4 + 1 Power) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 5W1 | - | |
 |
627-13W6624-1TC | 28.0901 | |
5743 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-13W6624-1TC | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (7 + 6 Power) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 13W6 | - | |
 |
630-8W8-640-3T1 | 23.7259 | |
7242 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-8W8 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-8W8-640-3T1 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 1 | Gold | 30.0µin (0.76µm) | 30A | Copper Alloy | UL94 V-0 | Power | 8 (Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | 0.520" (13.20mm) | |
 |
628-3WK3624-4TD | 11.8322 | |
9655 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-3WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-3WK3624-4TD | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets and Male Pins | 1 | Gold | 30.0µin (0.76µm) | 40A | Copper Alloy | UL94 V-0 | Signal and Power | 3 (Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3WK3 | - | |
 |
637-078-230-041 | 8.5588 | |
7832 | 0.00000000 | EDAC Inc. | 637 | - | Active | -55°C ~ 85°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 637-078 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins | 4 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 78 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 5 (DD, D) High Density | - | ||
 |
626-037-662-542 | 13.5136 | |
8627 | 0.00000000 | EDAC Inc. | 626 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 626-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-626-037-662-542 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | 0.584" (14.84mm) | ||
 |
630-7W2-650-2T6 | 11.2393 | |
9786 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock | 630-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-7W2-650-2T6 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | 0.370" (9.40mm) | |
 |
629-27W2240-1TC | 7.7204 | |
3270 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-27W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-27W2240-1TC | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 27 (25 + 2 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 27W2 | 0.370" (9.40mm) | |
 |

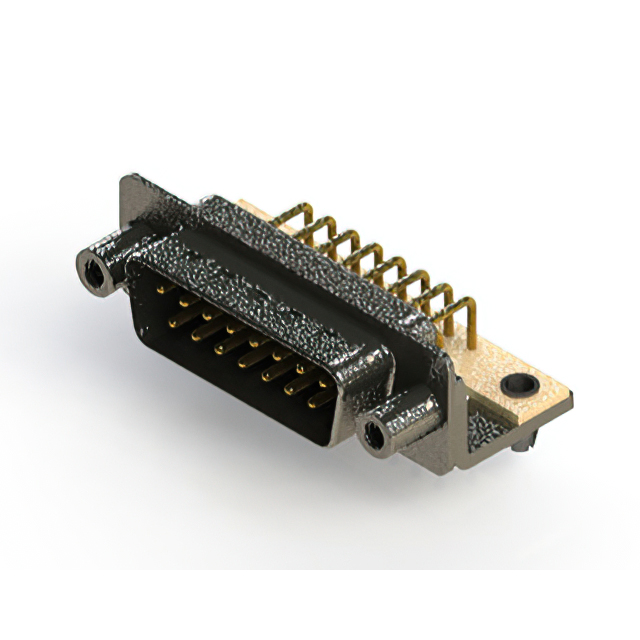

629-M15-640-BT5 | 8.9828 | |
8299 | 0.00000000 | EDAC Inc. | 629-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 629-M15 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-M15-640-BT5 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub, Combo | - | Machined | 2 (DA, A) | 0.370" (9.40mm) | ||
 |
629-2WK2650-1TE | 8.6527 | |
9820 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-2WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-2WK2650-1TE | EAR99 | 8536.69.4040 | 2,000 | Plug, Female Sockets and Male Pins | 2 | Gold | 30.0µin (0.76µm) | 10A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |
 |
628-M37-623-BT5 | 40.7239 | |
5429 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-M37 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-M37-623-BT5 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 37 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 4 (DC, C) | - | |
 |
630-M50-240-BT6 | 12.3008 | |
4426 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets, Shielded | 630-M50 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M50-240-BT6 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 5 (DD, D) | 0.370" (9.40mm) |
