D-Sub, D-Shaped Connectors(167078)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Type | Features | Base Product Number | Includes | Color | Termination | Ingress Protection | Note | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Shielding | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Mating Cycles | Flange Feature | Dielectric Material | Housing Color | Convert From (Adapter End) | Convert To (Adapter End) | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing | Shell Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DD26S2S50V5X/AA | 1.0000 |  |
8803 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | - | DD26S | Blue | Solder Cup | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | ROHS3 Compliant | Vendor Undefined | 2403-DD26S2S50V5X/AA | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 26 | 300V | Board Side (4-40) | Polyester, Glass Filled | Steel, Tin Plated | D-Sub, High Density | 22-30 AWG | Machined | 2 (DA, A) High Density | - | |||||||||||
 |
D5W5P36A6GV08LF | 8.9400 | |
209 | 0.00000000 | Amphenol ICC (FCI) | Delta D | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | D5W5P36 | Black | Solder | - | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | 609-2834 | EAR99 | 8536.69.4040 | 20 | Plug, Male Pins | 1 | Gold | 30.0µin (0.76µm) | 30A | Brass | UL94 V-0 | Power | 5 (Power) | 300V | Mating Side, Female Screwlock (4-40) | Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | 0.374" (9.50mm) | ||||||||||
 |
DM53742-5004-SPR | 86.5226 | |
9786 | 0.00000000 | JAE Electronics | - | Bulk | Active | - | 670-DM53742-5004-SPR | EAR99 | 8536.90.4000 | 1 | ||||||||||||||||||||||||||||||||||||||
|
HDB-26PMMS-SL8001 | 13.0580 | |
3156 | 0.00000000 | Amphenol LTW | - | Bulk | Active | -40°C ~ 105°C | Panel Mount | Board Lock, Grounding Indents, Shielded | HDB-26PMMS | Black | Solder Cup | IP68 - Dust Tight, Waterproof | - | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4030 | 10 | Plug, Male Pins | 3 | Gold | - | 2A | Copper Alloy | - | Signal | 26 | - | Mating Side, Female Screwlock (4-40) | Polybutylene Terephthalate (PBT) | Steel, Nickel Plated | D-Sub, High Density | 24-28 AWG | - | 2 (DA, A) High Density | - | |||||||||||
|
212560-1 | - | |
3621 | 0.00000000 | TE Connectivity Aerospace, Defense and Marine | AMPLIMITE 109 | Bulk | Active | - | Free Hanging (In-Line) | - | 212560 | - | - | download | RoHS non-compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.8000 | 25 | 2 | Gold | 50.0µin (1.27µm) | - | - | Black | D-Sub, 15 Pin Male | D-Sub, 15 Pin Female | Steel, Cadmium Plated | Connector Saver | ||||||||||||||||||||
|
MDM97294-375 | 407.5520 | |
7061 | 0.00000000 | ITT Cannon, LLC | * | Bulk | Active | MDM97 | - | RoHS non-compliant | 1 (Unlimited) | 0000.00.0000 | 1 | |||||||||||||||||||||||||||||||||||||
|
DD15M00ANT2S/AA | 113.9100 | |
11 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | Blue | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Contacts Not Included | download | ROHS3 Compliant | Vendor Undefined | 2403-DD15M00ANT2S/AA | EAR99 | 8536.69.5050 | 1 | Plug for Male Contacts | 3 | Signal | 15 | 1000 | Mating Side, Female Screwlock (4-40) | Polyester, Glass Filled | Stainless Steel, Passivated | D-Sub, High Density | 1 (DE, E) High Density | - | |||||||||||||||||||
|
CBC13W3S00GES/AA | 1.0000 | |
2536 | 0.00000000 | Positronic | CBC | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware, Shielded | CBC13W | Blue | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Contacts Not Included | download | ROHS3 Compliant | 2403-CBC13W3S00GES/AA | EAR99 | 8536.69.5050 | 1 | Receptacle for Female Contacts | 2 | Signal and Coax or Power | 13 (10 + 3 Coax or Power) | 1000 | Cable Side, Male Jackscrew (4-40) | Polyester, Glass Filled | Stainless Steel, Passivated | D-Sub, Combo | 3 (DB, B) - 13C3, 13W3 | - | |||||||||||||||||||
|
747845-6 | 4.6605 | |
1292 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Tray | Active | -55°C ~ 105°C | Through Hole, Right Angle | Board Lock, Ground Strap | 747845 | Black | Solder | - | download | RoHS Compliant | 1 (Unlimited) | REACH Affected | 2266-747845-6 | EAR99 | 8536.69.4040 | 520 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 6A | Phosphor Bronze | UL94 V-0 | Signal | 15 | 125V | Mating Side, Female Screwlock (4-40) | Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 2 (DA, A) | 0.318" (8.08mm) | ||||||||||
|
1731090097 | - | |
8946 | 0.00000000 | Molex | F, FCT 173109 | Bulk | Obsolete | -55°C ~ 125°C | Free Hanging (In-Line) | - | 173109 | White | Solder Cup | - | - | Not applicable | 1 (Unlimited) | EAR99 | 8536.69.8000 | 50 | Receptacle, Female Sockets | 2 | Gold | - | 5A | Copper Alloy | - | Signal | 37 | - | Cable Side (4-40) | Polybutylene Terephthalate (PBT) | Steel, Tin Plated | D-Sub | - | Machined | 4 (DC, C) | - | ||||||||||||
 |
627-7W2-624-1TC | 12.5291 | |
2076 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-7W2-624-1TC | EAR99 | 8536.69.4040 | 200 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | - | ||||||||||
 |
630-3W3-240-3N5 | 8.9456 | |
2565 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-3W3 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-3W3-240-3N5 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 1 | Gold | Flash | 30A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3W3 | 0.520" (13.20mm) | ||||||||||
 |
663-037-364-049 | 14.2713 | |
6875 | 0.00000000 | EDAC Inc. | 663 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 663-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-663-037-364-049 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins; Receptacle, Female Sockets | 2, 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass, Phosphor Bronze | UL94 V-0 | Signal | 37, 37 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 4 (DC, C); 4 (DC, C) | 0.318" (8.08mm) | |||||||||||
 |

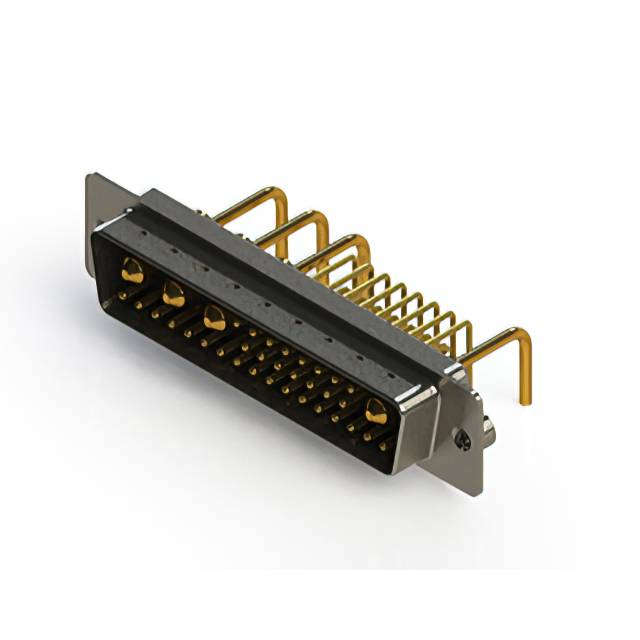

629-36W4650-1N2 | 34.9527 | |
7569 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 629-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-36W4650-1N2 | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 36 (32 + 4 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | 0.370" (9.40mm) | ||||||||||
|
60110265732710 | - | |
6687 | 0.00000000 | HARTING | * | Bulk | Obsolete | - | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | OBSOLETE | 300 | |||||||||||||||||||||||||||||||||||||
 |
638-026-230-242 | 4.0724 | |
8980 | 0.00000000 | EDAC Inc. | 638 | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 638-026 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-638-026-230-242 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | - | ||||||||||
 |
630-13W3640-5ND | 21.3905 | |
3120 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-13W3640-5ND | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 13 (10 + 3 Coax) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | 0.370" (9.40mm) | ||||||||||
|
CBC21WA4M10HEZ | 1.0000 | |
6508 | 0.00000000 | Positronic | CBC | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | CBC21W | Blue | Crimp | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | RoHS non-compliant | 2403-CBC21WA4M10HEZ | EAR99 | 8536.69.5050 | 1 | Plug, Male Pins | 2 | Gold | Flash | 7.5A | Copper Alloy | UL94 V-0 | Signal and Coax or Power (Not Included) | 21 (17 + 4 Coax or Power) | 300V | Cable Side, Male Jackscrew (4-40) | Polyester, Glass Filled | Steel, Tin Plated | D-Sub, Combo | 20-24 AWG | Machined | 4 (DC, C) - 21WA4 | - | ||||||||||||
 |
1-5175473-1 | 17.0969 | |
2088 | 0.00000000 | TE Connectivity AMP Connectors | CHAMP .050 I | Tray | Active | Through Hole | Board to Board, High Density | Board Lock | 5175473 | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 50 | Plug | 2 | Gold | 8.00µin (0.203µm) | 120 | - | Center Strip Contacts | ||||||||||||||||||||||||
|
DBV25S364GTLF | 4.0801 | |
3740 | 0.00000000 | Amphenol ICC (FCI) | D | Bulk | Active | -55°C ~ 125°C | Through Hole | Board Lock | DBV25S3 | - | Solder | - | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 180 | Receptacle, Female Sockets | 2 | Gold or Gold, GXT™ | - | 7.5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Mating Side, Female Screwlock (4-40) | Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 3 (DB, B) | - | ||||||||||||
 |
638-044-332-067 | 11.0534 | |
8894 | 0.00000000 | EDAC Inc. | 638 | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Board Lock, Shielded | 638-044 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-638-044-332-067 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 44 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 3 (DB, B) High Density | - | ||||||||||
 |
628-17W5624-5TC | 31.5160 | |
7509 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-17W5624-5TC | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 17 (12 + 5 Coax) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 17W5 | - | ||||||||||
|
SDS103-PRW2-F09-SN10-131 | - | |
4208 | 0.00000000 | Sullins Connector Solutions | 103 | Tray | Obsolete | -55°C ~ 105°C | Free Hanging (In-Line) | Feed Through | SDS103 | Black | IDC, Ribbon Cable | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 96 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A | Brass | UL94 V-0 | Signal | 9 | 250V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Tin Plated | D-Sub | 28 AWG | Stamped | 1 (DE, E) | - | |||||||||||
|
MDM-9PH016M5-F222 | - | |
7742 | 0.00000000 | ITT Cannon, LLC | 83513-Style Micro D Metal Shell (MDM) | Bulk | Active | -55°C ~ 200°C | Panel Mount | Shielded | MDM-9 | - | Wire Leads | - | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8544.42.9090 | 1 | Plug, Male Pins | 2 | Gold | - | 3A | Copper Alloy | - | Signal | 9 | - | Cable Side, Male Jackscrew (2-56) | Liquid Crystal Polymer (LCP) | Aluminum, Yellow Chromate Plated Cadmium | D-Type, Micro-D | - | - | 0.050 Pitch x 0.043 Row to Row | - | ||||||||||||
 |
628-13W3624-7N1 | 20.4152 | |
1179 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-13W3624-7N1 | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 13 (10 + 3 Coax) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | - | ||||||||||
 |
638-026-230-041 | 3.2240 | |
4223 | 0.00000000 | EDAC Inc. | 638 | Tube | Active | -55°C ~ 85°C | Through Hole | Shielded | 638-026 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Sockets | 3 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | - | |||||||||||
|
DAL3W3S300G30LF | - | |
7536 | 0.00000000 | Amphenol ICC (FCI) | DW | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock | DAL3W3S300 | - | Solder | - | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 1 | Gold | - | 30A | Brass | UL94 V-0 | Power | 3 (Power) | 300V | Board Side (M3) | Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3W3 | - | |||||||||||
|
D37P24A6GL00LF | 5.1667 | |
8767 | 0.00000000 | Amphenol ICC (FCI) | Delta D | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents | D37P24 | Black | Solder | - | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 15 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A per Contact | Phosphor Bronze | UL94 V-0 | Signal | 37 | 300V | Housing/Shell (M3) | Polybutylene Terephthalate (PBT) | Steel, Tin-Nickel Plated | D-Sub | - | - | 4 (DC, C) | - | |||||||||||
|
550T100M1R6E | 683.5200 | |
19 | 0.00000000 | Glenair | * | Bulk | Active | - | 1 (Unlimited) | REACH Unaffected | 3937-550T100M1R6E | EAR99 | 8536.69.4020 | 1 | ||||||||||||||||||||||||||||||||||||
 |
628-24W7224-1T2 | 13.0290 | |
1894 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-24W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-24W7224-1T2 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 24 (17 + 7 Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 24W7 | - |
