D-Sub, D-Shaped Connectors(167078)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | Note | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Mating Cycles | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing | Shell Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
628-13W3224-5T3 | 9.8710 |  |
3171 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-13W3224-5T3 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 13 (10 + 3 Coax) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | - | ||||
 |
172-050-281L021 | - | |
9018 | 0.00000000 | NorComp Inc. | 172, M Series | Tray | Obsolete | -50°C ~ 125°C | Panel Mount, Through Hole | - | 172-050 | Black | Solder | - | download | RoHS non-compliant | Not Applicable | REACH Unaffected | 10650FE | EAR99 | 8536.69.4040 | 40 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A | Brass | UL94 V-0 | Signal | 50 | - | Board Side (4-40) | Polybutylene Terephthalate (PBT) | Steel, Yellow Chromate Plated | D-Sub | - | - | 5 (DD, D) | - | ||||
 |
021000-2286 | 937.1900 | |
10 | 0.00000000 | ITT Cannon, LLC | * | Bulk | Active | - | 2266-021000-2286 | 1 | ||||||||||||||||||||||||||||||||||
 |
629-5W1-640-5T5 | 8.0487 | |
3978 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-5W1 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-5W1-640-5T5 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 5 (4 + 1 Coax) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 5W1 | 0.370" (9.40mm) | ||||
 |
664-009-664-038 | 7.1564 | |
8581 | 0.00000000 | EDAC Inc. | 664 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 664-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-664-009-664-038 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Socket ; Plug, Male Pins | 2, 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass, Phosphor Bronze | UL94 V-0 | Signal | 9, 9 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 1 (DE, E); 1 (DE, E) | 0.318" (8.08mm) | |||||
|
CBC21WA4S10HT20/AA | 1.0000 | |
6972 | 0.00000000 | Positronic | CBC | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | CBC21W | Blue | Crimp | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | ROHS3 Compliant | 2403-CBC21WA4S10HT20/AA | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 2 | Gold | Flash | 7.5A | Copper Alloy | UL94 V-0 | Signal and Coax or Power (Not Included) | 21 (17 + 4 Coax or Power) | 300V | Mating Side, Female Screwlock (4-40) | Polyester, Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub, Combo | 20-24 AWG | Machined | 4 (DC, C) - 21WA4 | - | ||||||
|
MDM-25SH020K | 165.2950 | |
9887 | 0.00000000 | ITT Cannon, LLC | 83513-Style Micro D Metal Shell (MDM) | Bulk | Active | -55°C ~ 125°C | Panel Mount | Shielded | MDM-2 | - | Wire Leads | - | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 1 | Receptacle, Female Sockets | 2 | Gold | - | 3A | Copper Alloy | - | Signal | 25 | - | Cable Side, Male Jackscrew (2-56) | Liquid Crystal Polymer (LCP) | Aluminum, Yellow Chromate Plated Cadmium | D-Type, Micro-D | - | - | 0.050 Pitch x 0.043 Row to Row | - | ||||||
 |
629-43W2650-1N6 | 35.9333 | |
9207 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents | 629-43W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-43W2650-1N6 | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 43 (41 + 2 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | 0.370" (9.40mm) | ||||
 |
180-044-273L030 | 6.1600 | |
6492 | 0.00000000 | NorComp Inc. | 180 | Tray | Active | -50°C ~ 100°C | Free Hanging (In-Line) | - | 180-044 | - | - | Contacts Not Included | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | 3844FE | EAR99 | 8538.90.8180 | 50 | Receptacle for Female Contacts | 3 | Signal | 44 | - | Mating Side (4-40) | - | Steel, Nickel Plated | D-Sub, High Density | 3 (DB, B) High Density | - | |||||||||||
 |
5787908-1 | 16.4600 | |
2913 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDP-20 | Bulk | Active | - | Free Hanging (In-Line) | Backshell, Shielded | 5787908 | Black | - | Contacts Not Included | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8538.90.8180 | 1 | Receptacle for Female Contacts | 2 | Signal | 15 | - | Cable Side (4-40) | Polyamide (PA), Nylon, Glass Filled | Steel, Tin Plated | D-Sub | 2 (DA, A) | 200µin (5.08µm) | ||||||||||||
 |
RD9S00GE0 | 1.0000 | |
9645 | 0.00000000 | Positronic | RD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware, Shielded | RD9S | Green | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Contacts Not Included | download | RoHS non-compliant | 2403-RD9S00GE0 | EAR99 | 8536.69.5050 | 1 | Receptacle for Female Contacts | 2 | Signal | 9 | 1000 | Cable Side, Male Jackscrew (4-40) | Diallyl Phthalate (DAP), Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub | 1 (DE, E) | - | |||||||||||||
 |
628-17W5622-3N2 | 28.4406 | |
3515 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 628-17W | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-17W5622-3N2 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (12 + 5 Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 17W5 | - | ||||
|
L17TF1511114 | 2.6665 | |
7077 | 0.00000000 | Amphenol ICC (Commercial Products) | TF | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents | L17TF15 | - | Press-Fit | - | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 70 | Plug, Male Pins | 2 | Gold | 16.0µin (0.41µm) | 3A | Brass | UL94 V-0 | Signal | 15 | 300V | Housing/Shell (M3) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | - | Stamped | 2 (DA, A) | - | ||||||
|
RD25S10L0C | 44.0000 | |
28 | 0.00000000 | Positronic | RD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | RD25S | Green | Crimp | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | RoHS non-compliant | 2403-RD25S10L0C | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 2 | Gold | Flash | 7.5A | Copper Alloy | UL94 V-0 | Signal | 25 | 300V | Housing/Shell (Unthreaded) | Diallyl Phthalate (DAP), Glass Filled | Steel, Cadmium Plated | D-Sub | 20-24 AWG | Machined | 3 (DB, B) | - | ||||||
|
RD9S00AN00 | 105.6000 | |
11 | 0.00000000 | Positronic | RD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | Green | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Contacts Not Included | download | RoHS non-compliant | 2403-RD9S00AN00 | EAR99 | 8536.69.5050 | 1 | Receptacle for Female Contacts | 2 | Signal | 9 | 1000 | Housing/Shell (Unthreaded) | Diallyl Phthalate (DAP), Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub | 1 (DE, E) | - | ||||||||||||||
 |
629-21W4640-5N1 | 27.5080 | |
1318 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Shielded | 629-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-21W4640-5N1 | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 21 (17 + 4 Coax) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 21WA4 | 0.370" (9.40mm) | ||||
 |

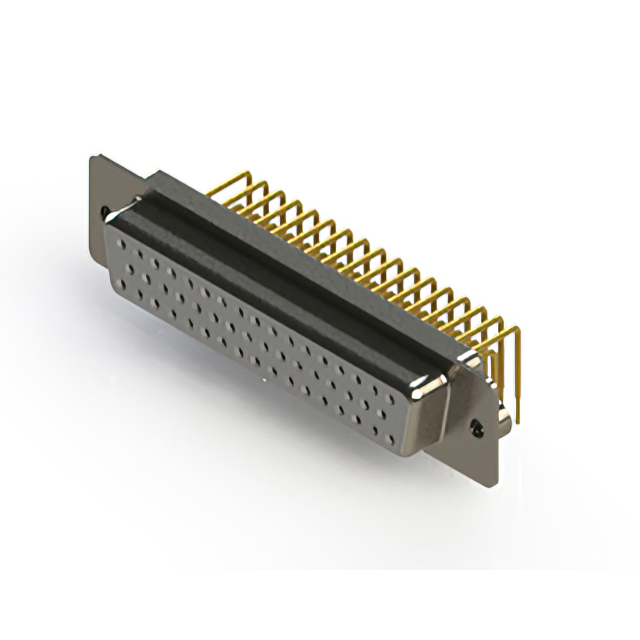

630-M50-340-WT2 | 20.3548 | |
1218 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-M50 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M50-340-WT2 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 3 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 5 (DD, D) | 0.370" (9.40mm) | |||||
 |
627-8W8-222-1NA | 12.4414 | |
8830 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-8W8 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-8W8-222-1NA | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | Flash | 10A | Copper Alloy | UL94 V-0 | Power | 8 (Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | - | ||||
|
L77DB25S1ATN | 10.0797 | |
4767 | 0.00000000 | Amphenol ICC (Commercial Products) | D | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | L77DB25 | Black | Solder | - | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 8.00µin (0.203µm) | 7.5A | Brass | UL94 V-0 | Signal | 25 | 300V | Housing/Shell (Unthreaded) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | - | Machined | 3 (DB, B) | 0.406" (10.30mm) | ||||||
 |
629-M50-240-GT4 | 12.6021 | |
6583 | 0.00000000 | EDAC Inc. | 629-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 629-M50 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-M50-240-GT4 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 50 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub, Combo | - | Machined | 5 (DD, D) | 0.370" (9.40mm) | |||||
|
DEM9P1AWNA191K87 | - | |
9481 | 0.00000000 | ITT Cannon, LLC | D*M | Bulk | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Mounting Brackets | DEM9 | Black | Solder | - | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 7.5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Polycyclohexylenedimethylene Terephthalate (PCT) | Steel, Tin-Nickel Plated | D-Sub | - | Machined | 1 (DE, E) | - | ||||||
 |
627-9W4-224-4NC | 8.8567 | |
9364 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-9W4 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-9W4-224-4NC | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 9 (5 + 4 Power) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 9W4 | - | ||||
 |
DD26M000E20/AA | 16.3000 | |
42 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | - | DD26M | Blue | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Contacts Not Included | download | ROHS3 Compliant | 2403-DD26M000E20/AA | EAR99 | 8536.69.5050 | 1 | Plug for Male Contacts | 3 | Signal | 26 | 1000 | Cable Side, Male Jackscrew (4-40) | Polyester, Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub, High Density | 2 (DA, A) High Density | - | |||||||||||||
|
FCC17C37SB40B | - | |
3143 | 0.00000000 | Amphenol ICC (Commercial Products) | FCC17 | Bulk | Obsolete | -40°C ~ 85°C | Through Hole, Right Angle | Filter, Mounting Brackets | FCC17C37 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 60 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A | Phosphor Bronze | UL94 V-0 | Signal | 37 | 200V | Board Side (4-40) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | - | Machined | 4 (DC, C) | 0.405" (10.29mm) | ||||||
|
DBM17W2PA | 1.0000 | |
8525 | 0.00000000 | ITT Cannon, LLC | Combo D®, D*M | Bulk | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Shielded | DBM1 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | IDBM17W2PA | EAR99 | 8536.69.4030 | 1 | Plug, Male Pins | 2 | Gold | Flash | 7.5A | Copper Alloy | UL94 V-0 | Signal and Coax or Power (Not Included) | 17 (15 + 2 Coax or Power) | - | Housing/Shell (Unthreaded) | Polycyclohexylenedimethylene Terephthalate (PCT) | Steel, Yellow Chromate Plated Zinc | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | - | |||||
|
172-050-211-911 | - | |
6540 | 0.00000000 | NorComp Inc. | 172 | - | Obsolete | -50°C ~ 125°C | Panel Mount, Through Hole | Board Lock | 172-050 | Beige | Solder | - | download | RoHS non-compliant | Not Applicable | REACH Unaffected | 1950F | EAR99 | 8536.69.4040 | 64 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A | - | UL94 V-0 | Signal | 50 | - | Board Side (4-40); Mating Side, Female Screwlock (4-40) | Polybutylene Terephthalate (PBT) | Steel, Yellow Chromate Plated | D-Sub | - | Machined | 5 (DD, D) | - | ||||
|
CBC5W1S000E30 | 1.0000 | |
5117 | 0.00000000 | Positronic | CBC | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | - | CBC5W1 | Blue | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Contacts Not Included | download | RoHS non-compliant | 2403-CBC5W1S000E30 | EAR99 | 8536.69.5050 | 1 | Receptacle for Female Contacts | 2 | Signal and Coax or Power | 5 (4 + 1 Coax or Power) | 1000 | Cable Side, Male Jackscrew (4-40) | Polyester, Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub, Combo | 1 (DE, E) - 5W1 | - | |||||||||||||
|
1731070554 | 13.9782 | |
5297 | 0.00000000 | Molex | FU, FCT | Bulk | Active | -55°C ~ 130°C | Free Hanging (In-Line) | Grounding Indents | 173107 | Green | - | Contacts Not Included | - | Not Applicable | EAR99 | 8538.90.8180 | 50 | Plug for Male Contacts | 2 | Signal and Coax or Power | 11 (10 + 1 Coax or Power) | - | Housing/Shell (Unthreaded) | Polyetherimide (PEI) | Steel, Tin Plated | D-Sub, Combo | 2 (DA, A) - 11C1, 11W1 | - | ||||||||||||||
|
170-025-171-000 | - | |
5886 | 0.00000000 | NorComp Inc. | 170 | Bulk | Obsolete | -50°C ~ 100°C | Free Hanging (In-Line) | - | Black | - | Contacts Not Included | download | RoHS non-compliant | Not Applicable | REACH Unaffected | 1725M | EAR99 | 8538.90.8180 | 50 | Plug for Male Contacts | 2 | Signal | 25 | - | Housing/Shell (Unthreaded) | - | Steel, Yellow Chromate Plated | D-Sub | 3 (DB, B) | - | ||||||||||||
|
RD15S00LV30 | 23.5500 | |
113 | 0.00000000 | Positronic | RD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | RD15S | Green | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Contacts Not Included | download | RoHS non-compliant | 2403-RD15S00LV30 | EAR99 | 8536.69.5050 | 1 | Receptacle for Female Contacts | 2 | Signal | 15 | 1000 | Housing/Shell (Unthreaded) | Diallyl Phthalate (DAP), Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub | 2 (DA, A) | - |
