Rectangular Connectors(2412)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Applications Mounting Type Features Base Product Number Termination Ingress Protection Style DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Connector Type Number of Rows Current Rating (Amps) Contact Material Material Flammability Rating Contact Type Pitch - Mating Number of Positions Row Spacing - Mating Number of Positions Loaded Shrouding Fastening Type Contact Length - Mating Contact Length - Post Overall Contact Length Insulation Height Contact Shape Contact Finish - Mating Contact Finish Thickness - Mating Contact Finish - Post Insulation Material Insulation Color Voltage Rating Mated Stacking Heights Contact Finish Thickness - Post
BG050-12A-0-0450-0737-0350-L-D GCT BG050-12A-0-0450-0737-0350-L-D 0.2828
RFQ
 ECAD 7418 0.00000000 GCT BG050 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG050-12A-0-0450-0737-0350-L-D EAR99 8536.69.4040 100 Header 2 3A per Contact Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 12 0.100" (2.54mm) All Unshrouded Push-Pull 0.177" (4.50mm) - - 0.100" (2.54mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BF040-09A-B2-0600-0260-0500-LD GCT BF040-09A-B2-0600-0260-0500-LD 0.4863
RFQ
 ECAD 2601 0.00000000 GCT BF040 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BF040-09A-B2-0600-0260-0500-LD EAR99 8536.69.4040 100 Header 1 2A per Contact Copper Alloy UL94 V-0 Male Pin 0.079" (2.00mm) 9 - All Unshrouded Push-Pull 0.236" (6.00mm) - - 0.079" (2.00mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BD030-58-A-A-0200-0300-L-G GCT BD030-58-A-A-0200-0300-L-G 1.7223
RFQ
 ECAD 7600 0.00000000 GCT BD030 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD030-58-A-A-0200-0300-L-G EAR99 8536.69.4040 100 Header 2 1A per Contact Copper Alloy UL94 V-0 Male Pin 0.050" (1.27mm) 58 0.050" (1.27mm) All Unshrouded Push-Pull 0.079" (2.00mm) 0.118" (3.00mm) 0.256" (6.50mm) 0.059" (1.50mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash
BF040-05A-B2-0600-0260-0500-LD GCT BF040-05A-B2-0600-0260-0500-LD 0.2893
RFQ
 ECAD 6762 0.00000000 GCT BF040 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BF040-05A-B2-0600-0260-0500-LD EAR99 8536.69.4040 100 Header 1 2A per Contact Copper Alloy UL94 V-0 Male Pin 0.079" (2.00mm) 5 - All Unshrouded Push-Pull 0.236" (6.00mm) - - 0.079" (2.00mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BD075-34-A-1-L-D GCT BD075-34-A-1-L-D 2.1535
RFQ
 ECAD 8731 0.00000000 GCT BD075 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD075-34-A-1-L-D EAR99 8536.69.4040 100 Receptacle, Bottom or Top Entry 1 1A per Contact Copper Alloy UL94 V-0 Female Socket 0.050" (1.27mm) 34 - All Push-Pull - 0.181" (4.60mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash
BC020-05-A-0200-0300-L-G GCT BC020-05-A-0200-0300-L-G 1.0000
RFQ
 ECAD 3 0.00000000 GCT BC020 Box Active -40°C ~ 105°C - Through Hole - BC020 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BC020-05-A-0200-0300-L-G EAR99 8536.69.4040 100 Header 1 1A per Contact Copper Alloy UL94 V-0 Male Pin 0.039" (1.00mm) 5 - All Unshrouded Push-Pull 0.079" (2.00mm) 0.118" (3.00mm) 0.236" (6.00mm) 0.039" (1.00mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BD020-30-A-J-0350-0300-L-G GCT BD020-30-A-J-0350-0300-L-G 0.9388
RFQ
 ECAD 9099 0.00000000 GCT BD020 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD020-30-A-J-0350-0300-L-G EAR99 8536.69.4040 100 Header 1 1A per Contact Copper Alloy UL94 V-0 Male Pin 0.050" (1.27mm) 30 - All Unshrouded Push-Pull 0.138" (3.50mm) 0.118" (3.00mm) 0.311" (7.90mm) 0.055" (1.40mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash
BC035-20-A-0380-0300-L-G GCT BC035-20-A-0380-0300-L-G 1.6100
RFQ
 ECAD 3 0.00000000 GCT BC035 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BC035-20-A-0380-0300-L-G EAR99 8536.69.4040 700 Header 2 1A per Contact Copper Alloy UL94 V-0 Male Pin 0.039" (1.00mm) 20 0.039" (1.00mm) All Unshrouded Push-Pull 0.150" (3.81mm) 0.118" (3.00mm) 0.315" (8.00mm) 0.047" (1.20mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BD064-96-A-0-L-D GCT BD064-96-A-0-L-D 3.4676
RFQ
 ECAD 7165 0.00000000 GCT BD064 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD064-96-A-0-L-D EAR99 8536.69.4040 100 Receptacle 2 1A per Contact Copper Alloy UL94 V-0 Female Socket 0.050" (1.27mm) 96 0.050" (1.27mm) All Push-Pull - 0.181" (4.60mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash
BG304-02-A-0500-L-G GCT BG304-02-A-0500-L-G 0.1415
RFQ
 ECAD 9280 0.00000000 GCT BG304 Box Active -40°C ~ 105°C - Through Hole - BG304 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG304-02-A-0500-L-G EAR99 8536.69.4040 1,000 Header 1 3A per Contact Brass UL94 V-0 Male Pin 0.100" (2.54mm) 2 - All Unshrouded Push-Pull 0.475" (12.07mm) 0.081" (2.06mm) - 0.098" (2.50mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP), Glass Filled Natural - - Flash
BC084-14-A-0390-L-C GCT BC084-14-A-0390-L-C 1.4400
RFQ
 ECAD 3 0.00000000 GCT BC084 Tape & Reel (TR) Active -40°C ~ 105°C - Surface Mount Board Guide BC084 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 2,000 Receptacle, Bottom or Top Entry 2 1A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.039" (1.00mm) 14 0.039" (1.00mm) All Push-Pull - 0.089" (2.26mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BG040-44-A-0450-0300-N-G GCT BG040-44-A-0450-0300-N-G 0.7791
RFQ
 ECAD 5611 0.00000000 GCT BG040 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG040-44-A-0450-0300-N-G EAR99 8536.69.4040 100 Header 2 3A per Contact Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 44 0.100" (2.54mm) All Unshrouded Push-Pull 0.177" (4.50mm) 0.118" (3.00mm) 0.395" (10.03mm) 0.100" (2.54mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BB080-36-A-0-0270-0150-L-D GCT BB080-36-A-0-0270-0150-L-D 3.0458
RFQ
 ECAD 3900 0.00000000 GCT BB080 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BB080-36-A-0-0270-0150-L-D EAR99 8536.69.4040 100 Header 2 500mA Phosphor Bronze UL94 V-0 Male Pin 0.031" (0.80mm) 36 0.047" (1.20mm) All Unshrouded Push-Pull 0.106" (2.70mm) - - 0.039" (1.00mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BG190-44-A-3-N-D GCT BG190-44-A-3-N-D 2.0107
RFQ
 ECAD 5038 0.00000000 GCT BG190 Tube Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG190-44-A-3-N-D EAR99 8536.69.4040 100 Receptacle, Bottom or Top Entry 2 3A per Contact Copper Alloy UL94 V-0 Female Socket 0.100" (2.54mm) 44 0.100" (2.54mm) All Push-Pull 0.118" (3.00mm) 0.197" (5.00mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BF020-23-A-B-0600-0300-N-G GCT BF020-23-A-B-0600-0300-N-G 0.9139
RFQ
 ECAD 6721 0.00000000 GCT BF020 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BF020-23-A-B-0600-0300-N-G EAR99 8536.69.4040 100 Header 1 2A per Contact Copper Alloy UL94 V-0 Male Pin 0.079" (2.00mm) 23 - All Unshrouded Push-Pull 0.236" (6.00mm) 0.118" (3.00mm) 0.433" (11.00mm) 0.079" (2.00mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BF040-17A-B2-0600-0260-0500-LD GCT BF040-17A-B2-0600-0260-0500-LD 0.8890
RFQ
 ECAD 1332 0.00000000 GCT BF040 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BF040-17A-B2-0600-0260-0500-LD EAR99 8536.69.4040 100 Header 1 2A per Contact Copper Alloy UL94 V-0 Male Pin 0.079" (2.00mm) 17 - All Unshrouded Push-Pull 0.236" (6.00mm) - - 0.079" (2.00mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BG050-24A-0-0450-0737-0350-L-D GCT BG050-24A-0-0450-0737-0350-L-D 0.5303
RFQ
 ECAD 2149 0.00000000 GCT BG050 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG050-24A-0-0450-0737-0350-L-D EAR99 8536.69.4040 100 Header 2 3A per Contact Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 24 0.100" (2.54mm) All Unshrouded Push-Pull 0.177" (4.50mm) - - 0.100" (2.54mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BG120-30-A-0-N-D GCT BG120-30-A-0-N-D 1.6714
RFQ
 ECAD 9790 0.00000000 GCT BG120 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG120-30-A-0-N-D EAR99 8536.69.4040 100 Receptacle, Bottom or Top Entry 2 3A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.100" (2.54mm) 30 0.100" (2.54mm) All Push-Pull - 0.197" (5.00mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BG030-12-A-0650-0300-N-G GCT BG030-12-A-0650-0300-N-G 0.2029
RFQ
 ECAD 3418 0.00000000 GCT BG030 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG030-12-A-0650-0300-N-G EAR99 8536.69.4040 100 Header 1 3A per Contact Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 12 - All Unshrouded Push-Pull 0.256" (6.50mm) 0.118" (3.00mm) 0.474" (12.04mm) 0.100" (2.54mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BG304-04-A-0500-L-G GCT BG304-04-A-0500-L-G 0.2168
RFQ
 ECAD 5821 0.00000000 GCT BG304 Box Active -40°C ~ 105°C - Through Hole - BG304 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG304-04-A-0500-L-G EAR99 8536.69.4040 1,000 Header 1 3A per Contact Brass UL94 V-0 Male Pin 0.100" (2.54mm) 4 - All Unshrouded Push-Pull 0.475" (12.07mm) 0.081" (2.06mm) - 0.098" (2.50mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP), Glass Filled Natural - - Flash
BH010-02-C-0850-0840-0573-G GCT BH010-02-C-0850-0840-0573-G 0.6600
RFQ
 ECAD 1 0.00000000 GCT BH010 Box Active -40°C ~ 105°C - Surface Mount Pick and Place BH010 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BH010-02-C-0850-0840-0573-G EAR99 8536.69.4040 150 Header 1 7.9A per Contact Brass UL94 V-0 Male Pin 0.156" (3.96mm) 2 - All Unshrouded Push-Pull 0.335" (8.51mm) - - 0.125" (3.18mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -

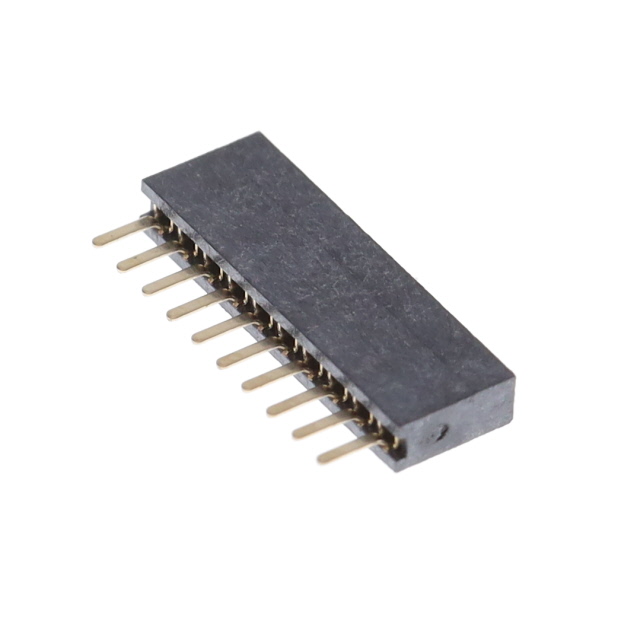

BD080-10-A-0230-L-D GCT BD080-10-A-0230-L-D 0.7800
RFQ
 ECAD 3 0.00000000 GCT BD080 Tube Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD080-10-A-0230-L-D EAR99 8536.69.4040 92 Receptacle 1 1A per Contact Copper Alloy UL94 V-0 Female Socket 0.050" (1.27mm) 10 - All Push-Pull 0.091" (2.30mm) 0.169" (4.30mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black - - Flash

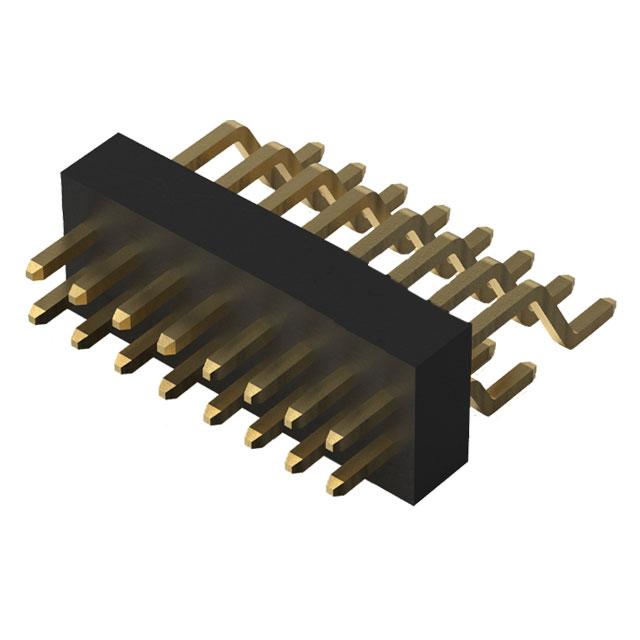

BC057-16-A-A-0150-L-C GCT BC057-16-A-A-0150-L-C 2.4100
RFQ
 ECAD 2 0.00000000 GCT BC057 Tape & Reel (TR) Active -40°C ~ 105°C - Surface Mount, Right Angle - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1,500 Header 2 1A per Contact Copper Alloy UL94 V-0 Male Pin 0.039" (1.00mm) 16 0.039" (1.00mm) All Unshrouded Push-Pull 0.059" (1.50mm) - - 0.122" (3.10mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BD064-62-A-0-L-D GCT BD064-62-A-0-L-D 2.2893
RFQ
 ECAD 5281 0.00000000 GCT BD064 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD064-62-A-0-L-D EAR99 8536.69.4040 100 Receptacle 2 1A per Contact Copper Alloy UL94 V-0 Female Socket 0.050" (1.27mm) 62 0.050" (1.27mm) All Push-Pull - 0.181" (4.60mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash
BG300-06-A-L-A GCT BG300-06-A-L-A 0.9300
RFQ
 ECAD 6478 0.00000000 GCT BG300 Tape & Reel (TR) Active -40°C ~ 105°C General Purpose Surface Mount, Right Angle - BG300 Solder - Board to Board download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1,400 Receptacle 1 3A per Contact Copper Alloy UL94 V-0 Forked 0.100" (2.54mm) 6 - All Push-Pull - 0.098" (2.50mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP), Glass Filled Natural - - Flash
BB080-06-A-0-0270-0150-L-G GCT BB080-06-A-0-0270-0150-L-G 0.5439
RFQ
 ECAD 9028 0.00000000 GCT BB080 Box Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BB080-06-A-0-0270-0150-L-G EAR99 8536.69.4040 100 Header 2 500mA Phosphor Bronze UL94 V-0 Male Pin 0.031" (0.80mm) 6 0.047" (1.20mm) All Unshrouded Push-Pull 0.106" (2.70mm) - - 0.039" (1.00mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BF100-08-A-D-1-0640-L-C GCT BF100-08-A-D-1-0640-L-C 0.5800
RFQ
 ECAD 3 0.00000000 GCT BF100 Tape & Reel (TR) Active -40°C ~ 105°C - Surface Mount Board Guide, Pick and Place Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 850 Receptacle, Bottom or Top Entry 2 2A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.079" (2.00mm) 8 0.079" (2.00mm) All Push-Pull - 0.181" (4.60mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BF020-05-A-B-0400-0300-N-G GCT BF020-05-A-B-0400-0300-N-G 0.2182
RFQ
 ECAD 7776 0.00000000 GCT BF020 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BF020-05-A-B-0400-0300-N-G EAR99 8536.69.4040 100 Header 1 2A per Contact Copper Alloy UL94 V-0 Male Pin 0.079" (2.00mm) 5 - All Unshrouded Push-Pull 0.157" (4.00mm) 0.118" (3.00mm) 0.354" (9.00mm) 0.079" (2.00mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BD095-66A-A0-0350-0070-0570-LD GCT BD095-66A-A0-0350-0070-0570-LD 2.1238
RFQ
 ECAD 1753 0.00000000 GCT BD095 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD095-66A-A0-0350-0070-0570-LD EAR99 8536.69.4040 100 Header 2 1A per Contact Copper Alloy UL94 V-0 Male Pin 0.050" (1.27mm) 66 0.050" (1.27mm) All Unshrouded Push-Pull 0.138" (3.50mm) - - 0.059" (1.50mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash
BD080-20-A-0230-L-D GCT BD080-20-A-0230-L-D 0.7302
RFQ
 ECAD 9941 0.00000000 GCT BD080 Tube Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD080-20-A-0230-L-D EAR99 8536.69.4040 100 Receptacle 1 1A per Contact Copper Alloy UL94 V-0 Female Socket 0.050" (1.27mm) 20 - All Push-Pull 0.091" (2.30mm) 0.169" (4.30mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash
