Rectangular Connectors(2412)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Applications Mounting Type Features Base Product Number Termination Ingress Protection Style DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Connector Type Number of Rows Current Rating (Amps) Contact Material Material Flammability Rating Contact Type Pitch - Mating Number of Positions Row Spacing - Mating Number of Positions Loaded Shrouding Fastening Type Contact Length - Mating Contact Length - Post Overall Contact Length Insulation Height Contact Shape Contact Finish - Mating Contact Finish Thickness - Mating Contact Finish - Post Insulation Material Insulation Color Voltage Rating Mated Stacking Heights Contact Finish Thickness - Post
BB060-68-A-L-D GCT BB060-68-A-L-D 4.7226
RFQ
 ECAD 9205 0.00000000 GCT BB060 Tube Active -40°C ~ 105°C - Surface Mount Board Guide Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BB060-68-A-L-D EAR99 8536.69.4040 100 Receptacle, Bottom or Top Entry 2 500mA Phosphor Bronze UL94 V-0 Female Socket 0.031" (0.80mm) 68 0.047" (1.20mm) All Push-Pull - 0.128" (3.25mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BD060-16-A-N-0230-L-D GCT BD060-16-A-N-0230-L-D 0.5833
RFQ
 ECAD 3820 0.00000000 GCT BD060 Tube Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD060-16-A-N-0230-L-D EAR99 8536.69.4040 100 Receptacle 2 1A per Contact Copper Alloy UL94 V-0 Female Socket 0.050" (1.27mm) 16 0.050" (1.27mm) All Push-Pull 0.091" (2.30mm) 0.134" (3.40mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash
BF030-06A-B1-0600-0277-0600-LB GCT BF030-06A-B1-0600-0277-0600-LB 0.4800
RFQ
 ECAD 3 0.00000000 GCT BF030 Tape & Reel (TR) Active -40°C ~ 105°C - Surface Mount Board Guide, Pick and Place Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 450 Header 2 2A per Contact Copper Alloy UL94 V-0 Male Pin 0.079" (2.00mm) 6 0.079" (2.00mm) All Unshrouded Push-Pull 0.236" (6.00mm) - - 0.079" (2.00mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BD050-66-A-0-0500-L-D GCT BD050-66-A-0-0500-L-D 2.9369
RFQ
 ECAD 5826 0.00000000 GCT BD050 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD050-66-A-0-0500-L-D EAR99 8536.69.4040 100 Receptacle, Bottom or Top Entry 2 1A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.050" (1.27mm) 66 0.050" (1.27mm) All Push-Pull - 0.085" (2.15mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash
BF090-22-A-1-N-D GCT BF090-22-A-1-N-D 1.2331
RFQ
 ECAD 6704 0.00000000 GCT BF090 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BF090-22-A-1-N-D EAR99 8536.69.4040 100 Receptacle, Bottom or Top Entry 1 2A Copper Alloy UL94 V-0 Female Socket 0.079" (2.00mm) 22 - All Push-Pull - 0.169" (4.30mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash

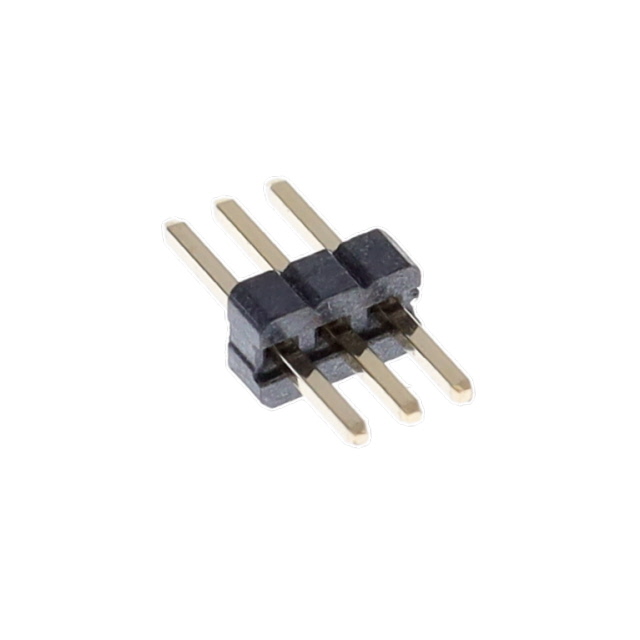

BD020-03-A-J-0350-0300-L-G GCT BD020-03-A-J-0350-0300-L-G 0.5700
RFQ
 ECAD 1 0.00000000 GCT BD020 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD020-03-A-J-0350-0300-L-G EAR99 8536.69.4040 100 Header 1 1A per Contact Copper Alloy UL94 V-0 Male Pin 0.050" (1.27mm) 3 - All Unshrouded Push-Pull 0.138" (3.50mm) 0.118" (3.00mm) 0.311" (7.90mm) 0.055" (1.40mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black - - Flash
BG040-28-A-0650-0300-N-G GCT BG040-28-A-0650-0300-N-G 0.5136
RFQ
 ECAD 9567 0.00000000 GCT BG040 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG040-28-A-0650-0300-N-G EAR99 8536.69.4040 100 Header 2 3A per Contact Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 28 0.100" (2.54mm) All Unshrouded Push-Pull 0.256" (6.50mm) 0.118" (3.00mm) 0.474" (12.04mm) 0.100" (2.54mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BB080-28-A-0-0270-0150-L-D GCT BB080-28-A-0-0270-0150-L-D 2.3685
RFQ
 ECAD 6781 0.00000000 GCT BB080 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BB080-28-A-0-0270-0150-L-D EAR99 8536.69.4040 100 Header 2 500mA Phosphor Bronze UL94 V-0 Male Pin 0.031" (0.80mm) 28 0.047" (1.20mm) All Unshrouded Push-Pull 0.106" (2.70mm) - - 0.039" (1.00mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BG306-04-A-1-0400-L-B GCT BG306-04-A-1-0400-L-B 0.9800
RFQ
 ECAD 6 0.00000000 GCT BG306 Tape & Reel (TR) Active -40°C ~ 105°C General Purpose Surface Mount - BG306 Solder - Board to Board download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1,200 Receptacle 1 3A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.100" (2.54mm) 4 - All Push-Pull - 0.197" (5.00mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP), Glass Filled Natural - - Flash
BG040-22-A-0450-0300-N-G GCT BG040-22-A-0450-0300-N-G 0.4045
RFQ
 ECAD 1283 0.00000000 GCT BG040 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG040-22-A-0450-0300-N-G EAR99 8536.69.4040 100 Header 2 3A per Contact Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 22 0.100" (2.54mm) All Unshrouded Push-Pull 0.177" (4.50mm) 0.118" (3.00mm) 0.395" (10.03mm) 0.100" (2.54mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BG050-60A-0-0450-0737-0350-L-D GCT BG050-60A-0-0450-0737-0350-L-D 1.2814
RFQ
 ECAD 5075 0.00000000 GCT BG050 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG050-60A-0-0450-0737-0350-L-D EAR99 8536.69.4040 100 Header 2 3A per Contact Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 60 0.100" (2.54mm) All Unshrouded Push-Pull 0.177" (4.50mm) - - 0.100" (2.54mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BF100-12-A-C-1-0625-L-C GCT BF100-12-A-C-1-0625-L-C 0.9800
RFQ
 ECAD 3 0.00000000 GCT BF100 Tape & Reel (TR) Active -40°C ~ 105°C - Surface Mount Board Guide, Pick and Place Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 900 Receptacle, Bottom or Top Entry 2 2A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.079" (2.00mm) 12 0.079" (2.00mm) All Push-Pull - 0.169" (4.30mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BG125-17-A-1-1-0440-N-D GCT BG125-17-A-1-1-0440-N-D 0.7557
RFQ
 ECAD 9927 0.00000000 GCT BG125 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG125-17-A-1-1-0440-N-D EAR99 8536.69.4040 100 Receptacle, Bottom or Top Entry 1 3A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.100" (2.54mm) 17 - All Push-Pull - 0.197" (5.00mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BD030-64-A-A-0350-0300-L-G GCT BD030-64-A-A-0350-0300-L-G 1.9004
RFQ
 ECAD 5657 0.00000000 GCT BD030 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD030-64-A-A-0350-0300-L-G EAR99 8536.69.4040 100 Header 2 1A per Contact Copper Alloy UL94 V-0 Male Pin 0.050" (1.27mm) 64 0.050" (1.27mm) All Unshrouded Push-Pull 0.138" (3.50mm) 0.118" (3.00mm) 0.315" (8.00mm) 0.059" (1.50mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash

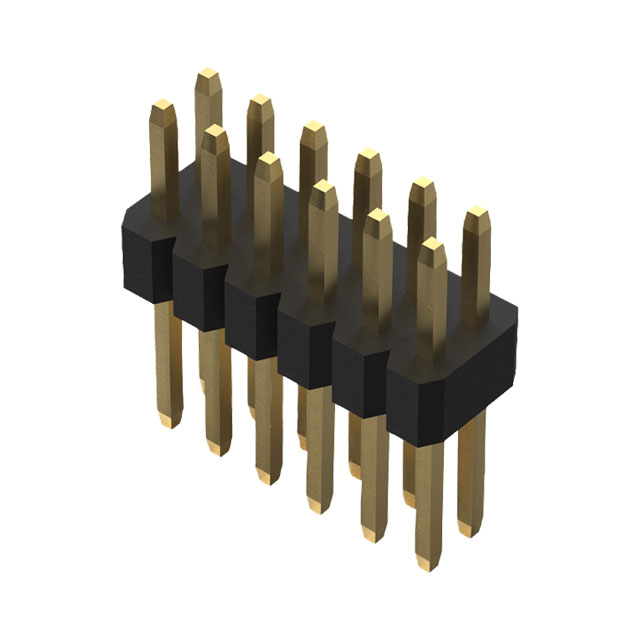

BC035-12-A-0380-0300-L-G GCT BC035-12-A-0380-0300-L-G 0.7000
RFQ
 ECAD 3 0.00000000 GCT BC035 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BC035-12-A-0380-0300-L-G EAR99 8536.69.4040 1,200 Header 2 1A per Contact Copper Alloy UL94 V-0 Male Pin 0.039" (1.00mm) 12 0.039" (1.00mm) All Unshrouded Push-Pull 0.150" (3.81mm) 0.118" (3.00mm) 0.315" (8.00mm) 0.047" (1.20mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BD095-58A-A0-0200-0070-0570-LD GCT BD095-58A-A0-0200-0070-0570-LD 1.8665
RFQ
 ECAD 6845 0.00000000 GCT BD095 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD095-58A-A0-0200-0070-0570-LD EAR99 8536.69.4040 100 Header 2 1A per Contact Copper Alloy UL94 V-0 Male Pin 0.050" (1.27mm) 58 0.050" (1.27mm) All Unshrouded Push-Pull 0.079" (2.00mm) - - 0.059" (1.50mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash
BG050-52A-0-0450-0737-0350-L-D GCT BG050-52A-0-0450-0737-0350-L-D 1.1101
RFQ
 ECAD 6768 0.00000000 GCT BG050 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG050-52A-0-0450-0737-0350-L-D EAR99 8536.69.4040 100 Header 2 3A per Contact Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 52 0.100" (2.54mm) All Unshrouded Push-Pull 0.177" (4.50mm) - - 0.100" (2.54mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BG055-17A-1-0650-0530-0350-L-D GCT BG055-17A-1-0650-0530-0350-L-D 0.4318
RFQ
 ECAD 5216 0.00000000 GCT BG055 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG055-17A-1-0650-0530-0350-L-D EAR99 8536.69.4040 100 Header 1 3A per Contact Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 17 - All Unshrouded Push-Pull 0.256" (6.50mm) - - 0.100" (2.54mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BF040-16A-B2-0400-0260-0483-LD GCT BF040-16A-B2-0400-0260-0483-LD 0.8362
RFQ
 ECAD 5073 0.00000000 GCT BF040 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BF040-16A-B2-0400-0260-0483-LD EAR99 8536.69.4040 100 Header 1 2A per Contact Copper Alloy UL94 V-0 Male Pin 0.079" (2.00mm) 16 - All Unshrouded Push-Pull 0.157" (4.00mm) - - 0.079" (2.00mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BG306-03-A-1-0400-L-B GCT BG306-03-A-1-0400-L-B 0.7900
RFQ
 ECAD 1 0.00000000 GCT BG306 Tape & Reel (TR) Active -40°C ~ 105°C General Purpose Surface Mount - BG306 Solder - Board to Board download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1,200 Receptacle 1 3A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.100" (2.54mm) 3 - All Push-Pull - 0.197" (5.00mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP), Glass Filled Natural - - Flash
BF050-38-A-B-0600-0300-N-D GCT BF050-38-A-B-0600-0300-N-D 1.2858
RFQ
 ECAD 5024 0.00000000 GCT BF050 Tube Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BF050-38-A-B-0600-0300-N-D EAR99 8536.69.4040 100 Header 2 2A per Contact Copper Alloy UL94 V-0 Male Pin 0.079" (2.00mm) 38 0.079" (2.00mm) All Unshrouded Push-Pull 0.236" (6.00mm) 0.118" (3.00mm) 0.433" (11.00mm) 0.079" (2.00mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BF020-25-A-B-0400-0300-N-G GCT BF020-25-A-B-0400-0300-N-G 0.9915
RFQ
 ECAD 2914 0.00000000 GCT BF020 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BF020-25-A-B-0400-0300-N-G EAR99 8536.69.4040 100 Header 1 2A per Contact Copper Alloy UL94 V-0 Male Pin 0.079" (2.00mm) 25 - All Unshrouded Push-Pull 0.157" (4.00mm) 0.118" (3.00mm) 0.354" (9.00mm) 0.079" (2.00mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BF070-37-A-1-N-D GCT BF070-37-A-1-N-D 2.2794
RFQ
 ECAD 7975 0.00000000 GCT BF070 Tube Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BF070-37-A-1-N-D EAR99 8536.69.4040 100 Receptacle, Bottom or Top Entry 1 2A per Contact Copper Alloy UL94 V-0 Female Socket 0.079" (2.00mm) 37 - All Push-Pull 0.118" (3.00mm) 0.169" (4.30mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BB060-40-A-L-D GCT BB060-40-A-L-D 2.8393
RFQ
 ECAD 8776 0.00000000 GCT BB060 Tube Active -40°C ~ 105°C - Surface Mount Board Guide Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BB060-40-A-L-D EAR99 8536.69.4040 100 Receptacle, Bottom or Top Entry 2 500mA Phosphor Bronze UL94 V-0 Female Socket 0.031" (0.80mm) 40 0.047" (1.20mm) All Push-Pull - 0.128" (3.25mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BD095-22A-A0-0350-0070-0570-LD GCT BD095-22A-A0-0350-0070-0570-LD 0.7337
RFQ
 ECAD 3907 0.00000000 GCT BD095 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD095-22A-A0-0350-0070-0570-LD EAR99 8536.69.4040 100 Header 2 1A per Contact Copper Alloy UL94 V-0 Male Pin 0.050" (1.27mm) 22 0.050" (1.27mm) All Unshrouded Push-Pull 0.138" (3.50mm) - - 0.059" (1.50mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash
BG050-14A-0-0450-0737-0350-L-D GCT BG050-14A-0-0450-0737-0350-L-D 0.3297
RFQ
 ECAD 6973 0.00000000 GCT BG050 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG050-14A-0-0450-0737-0350-L-D EAR99 8536.69.4040 100 Header 2 3A per Contact Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 14 0.100" (2.54mm) All Unshrouded Push-Pull 0.177" (4.50mm) - - 0.100" (2.54mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 250VAC/DC - Flash
BG095-11-A-N-D GCT BG095-11-A-N-D 0.4197
RFQ
 ECAD 5318 0.00000000 GCT BG095 Tube Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG095-11-A-N-D EAR99 8536.69.4040 100 Receptacle, Bottom or Top Entry 1 3A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.100" (2.54mm) 11 - All Push-Pull 0.118" (3.00mm) 0.197" (5.00mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BG040-22-A-0650-0300-N-G GCT BG040-22-A-0650-0300-N-G 0.4045
RFQ
 ECAD 5196 0.00000000 GCT BG040 Box Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG040-22-A-0650-0300-N-G EAR99 8536.69.4040 100 Header 2 3A per Contact Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 22 0.100" (2.54mm) All Unshrouded Push-Pull 0.256" (6.50mm) 0.118" (3.00mm) 0.474" (12.04mm) 0.100" (2.54mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BG095-29-A-N-D GCT BG095-29-A-N-D 1.0691
RFQ
 ECAD 2396 0.00000000 GCT BG095 Tube Active -40°C ~ 105°C - Through Hole - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BG095-29-A-N-D EAR99 8536.69.4040 100 Receptacle, Bottom or Top Entry 1 3A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.100" (2.54mm) 29 - All Push-Pull 0.118" (3.00mm) 0.197" (5.00mm) Square Gold Flash Gold Polyamide (PA6T), Nylon 6T Black 250VAC/DC - Flash
BD050-18-A-0-0500-L-D GCT BD050-18-A-0-0500-L-D 0.8304
RFQ
 ECAD 2560 0.00000000 GCT BD050 Tube Active -40°C ~ 105°C - Surface Mount - Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 2073-BD050-18-A-0-0500-L-D EAR99 8536.69.4040 100 Receptacle, Bottom or Top Entry 2 1A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.050" (1.27mm) 18 0.050" (1.27mm) All Push-Pull - 0.085" (2.15mm) Square Gold Flash Gold Liquid Crystal Polymer (LCP) Black 30VAC/DC - Flash
