Rectangular Connectors(26850)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Applications Mounting Type Features Base Product Number Termination Ingress Protection Style DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status ECCN HTSUS Standard Package Connector Type Number of Rows Current Rating (Amps) Contact Material Material Flammability Rating Contact Type Pitch - Mating Number of Positions Row Spacing - Mating Number of Positions Loaded Shrouding Fastening Type Contact Length - Mating Contact Length - Post Overall Contact Length Insulation Height Contact Shape Contact Finish - Mating Contact Finish Thickness - Mating Contact Finish - Post Insulation Material Insulation Color Voltage Rating Mated Stacking Heights Contact Finish Thickness - Post
802-10-062-66-001101 Preci-Dip 802-10-062-66-001101 12.1459
RFQ
 ECAD 9779 0.00000000 Preci-Dip 802 Bulk Active -55°C ~ 125°C - Through Hole - 802-10 Press-Fit, Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 50 Header 2 3A Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 62 0.100" (2.54mm) All Unshrouded Push-Pull 0.191" (4.85mm) 0.150" (3.81mm) 0.467" (11.85mm) 0.110" (2.79mm) Circular Gold 10.0µin (0.25µm) Gold Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black 150VDC - 10.0µin (0.25µm)
802-10-072-30-001101 Preci-Dip 802-10-072-30-001101 13.6800
RFQ
 ECAD 5617 0.00000000 Preci-Dip 802 Bulk Active -55°C ~ 125°C - Surface Mount - 802-10 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 124 Header 2 3A Brass UL94 V-0 Male Pin 0.100" (2.54mm) 72 0.100" (2.54mm) All Unshrouded Push-Pull 0.191" (4.85mm) - - 0.110" (2.79mm) Circular Gold 10.0µin (0.25µm) Gold Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black 150VDC - 10.0µin (0.25µm)
802-80-016-20-001101 Preci-Dip 802-80-016-20-001101 1.5473
RFQ
 ECAD 6217 0.00000000 Preci-Dip 802 Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - 802-80 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 600 Header 2 3A Brass UL94 V-0 Male Pin 0.100" (2.54mm) 16 0.100" (2.54mm) All Unshrouded Push-Pull 0.195" (4.95mm) 0.126" (3.20mm) - 0.200" (5.08mm) Circular Tin - Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black 150VDC - -
802-80-066-10-002101 Preci-Dip 802-80-066-10-002101 6.2695
RFQ
 ECAD 3399 0.00000000 Preci-Dip 802 Bulk Active -55°C ~ 125°C - Through Hole - 802-80 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 175 Header 2 3A Brass UL94 V-0 Male Pin 0.100" (2.54mm) 66 0.100" (2.54mm) All Unshrouded Push-Pull 0.141" (3.60mm) 0.118" (3.00mm) 0.385" (9.77mm) 0.110" (2.79mm) Circular Tin - Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black 150VDC - -
802-80-066-30-001101 Preci-Dip 802-80-066-30-001101 6.7743
RFQ
 ECAD 6632 0.00000000 Preci-Dip 802 Bulk Active -55°C ~ 125°C - Surface Mount - 802-80 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 124 Header 2 3A Brass UL94 V-0 Male Pin 0.100" (2.54mm) 66 0.100" (2.54mm) All Unshrouded Push-Pull 0.191" (4.85mm) - - 0.110" (2.79mm) Circular Tin - Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black 150VDC - -
802-80-066-30-480101 Preci-Dip 802-80-066-30-480101 5.7553
RFQ
 ECAD 7125 0.00000000 Preci-Dip 802 Bulk Active -55°C ~ 125°C - Surface Mount - 802-80 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 130 Header 2 3A Brass UL94 V-0 Male Pin 0.100" (2.54mm) 66 0.100" (2.54mm) All Unshrouded Push-Pull 0.141" (3.60mm) - - 0.110" (2.79mm) Circular Tin - Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black 150VDC - -
802-V3-004-10-193101 Preci-Dip 802-V3-004-10-193101 1.9136
RFQ
 ECAD 5523 0.00000000 Preci-Dip 802 Bulk Active -55°C ~ 125°C - Through Hole - 802-V3 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 400 Header 2 3A Brass UL94 V-0 Male Pin 0.100" (2.54mm) 4 0.100" (2.54mm) All Unshrouded Push-Pull 0.118" (3.00mm) 0.140" (3.56mm) 1.093" (27.75mm) 0.835" (21.21mm) Circular Gold 29.5µin (0.75µm) Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black 150VDC - -

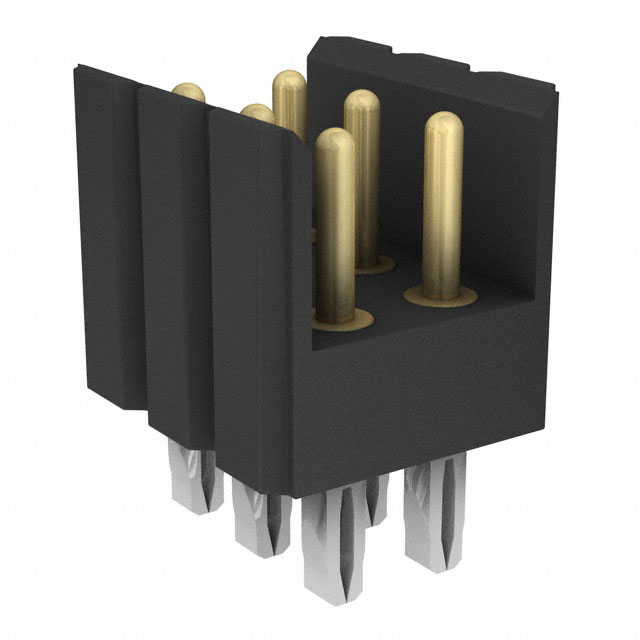

802-V3-006-6B-002101 Preci-Dip 802-V3-006-6B-002101 2.0717
RFQ
 ECAD 7126 0.00000000 Preci-Dip 802 Bulk Active -55°C ~ 125°C - Through Hole - 802-V3 Press-Fit, Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 340 Header 2 3A Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 6 0.100" (2.54mm) All Unshrouded Push-Pull 0.141" (3.60mm) 0.110" (2.79mm) 0.378" (9.60mm) 0.272" (6.91mm) Circular Gold 29.5µin (0.75µm) Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black 150VDC - -
802-V3-008-30-001191 Preci-Dip 802-V3-008-30-001191 1.5044
RFQ
 ECAD 8400 0.00000000 Preci-Dip 802 Tube Active -55°C ~ 125°C - Surface Mount Pick and Place 802-V3 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 550 Header 2 3A Brass UL94 V-0 Male Pin 0.100" (2.54mm) 8 0.100" (2.54mm) All Unshrouded Push-Pull 0.191" (4.85mm) - - 0.110" (2.79mm) Circular Gold 29.5µin (0.75µm) Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black 150VDC - -
802-V3-008-32-002191 Preci-Dip 802-V3-008-32-002191 2.4392
RFQ
 ECAD 5643 0.00000000 Preci-Dip 802 Bulk Active -55°C ~ 125°C - Surface Mount Pick and Place 802-V3 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 550 Header 2 3A Brass UL94 V-0 Male Pin 0.100" (2.54mm) 8 0.100" (2.54mm) All Unshrouded Push-Pull 0.141" (3.60mm) - - 0.272" (6.91mm) Circular Gold 29.5µin (0.75µm) Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black 150VDC - -
802-V3-010-10-193101 Preci-Dip 802-V3-010-10-193101 3.9949
RFQ
 ECAD 4096 0.00000000 Preci-Dip 802 Bulk Active -55°C ~ 125°C - Through Hole - 802-V3 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 300 Header 2 3A Brass UL94 V-0 Male Pin 0.100" (2.54mm) 10 0.100" (2.54mm) All Unshrouded Push-Pull 0.118" (3.00mm) 0.140" (3.56mm) 1.093" (27.75mm) 0.835" (21.21mm) Circular Gold 29.5µin (0.75µm) Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black 150VDC - -
802-V3-010-6B-002101 Preci-Dip 802-V3-010-6B-002101 3.8697
RFQ
 ECAD 5237 0.00000000 Preci-Dip 802 Bulk Active -55°C ~ 125°C - Through Hole - 802-V3 Press-Fit, Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 210 Header 2 3A Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 10 0.100" (2.54mm) All Unshrouded Push-Pull 0.141" (3.60mm) 0.110" (2.79mm) 0.378" (9.60mm) 0.272" (6.91mm) Circular Gold 29.5µin (0.75µm) Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black 150VDC - -
803-87-004-10-216101 Preci-Dip 803-87-004-10-216101 1.8518
RFQ
 ECAD 6991 0.00000000 Preci-Dip 803 Bulk Active -55°C ~ 125°C - Through Hole - 803-87 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 360 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.100" (2.54mm) 4 0.100" (2.54mm) All Push-Pull 0.118" (3.00mm) 1.476" (37.50mm) Circular Gold Flash Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black - - -
803-87-014-20-001101 Preci-Dip 803-87-014-20-001101 1.8371
RFQ
 ECAD 2014 0.00000000 Preci-Dip 803 Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - 803-87 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 350 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.100" (2.54mm) 14 0.100" (2.54mm) All Push-Pull 0.126" (3.20mm) 0.200" (5.08mm) Circular Gold Flash Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black - - -
803-87-014-30-002191 Preci-Dip 803-87-014-30-002191 1.4591
RFQ
 ECAD 6472 0.00000000 Preci-Dip 803 Bulk Active -55°C ~ 125°C - Surface Mount Pick and Place 803-87 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 350 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.100" (2.54mm) 14 0.100" (2.54mm) All Push-Pull - 0.220" (5.60mm) Circular Gold Flash Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black - - -
803-87-020-10-132101 Preci-Dip 803-87-020-10-132101 2.1682
RFQ
 ECAD 3508 0.00000000 Preci-Dip 803 Bulk Active -55°C ~ 125°C - Through Hole - 803-87 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 300 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.100" (2.54mm) 20 0.100" (2.54mm) All Push-Pull 0.118" (3.00mm) 0.276" (7.00mm) Circular Gold Flash Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black - - -
803-87-020-20-001101 Preci-Dip 803-87-020-20-001101 2.6240
RFQ
 ECAD 3682 0.00000000 Preci-Dip 803 Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - 803-87 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 420 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.100" (2.54mm) 20 0.100" (2.54mm) All Push-Pull 0.126" (3.20mm) 0.200" (5.08mm) Circular Gold Flash Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black - - -
803-83-026-10-132101 Preci-Dip 803-83-026-10-132101 4.6664
RFQ
 ECAD 4791 0.00000000 Preci-Dip 803 Bulk Active -55°C ~ 125°C - Through Hole - 803-83 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 200 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.100" (2.54mm) 26 0.100" (2.54mm) All Push-Pull 0.118" (3.00mm) 0.276" (7.00mm) Circular Gold 29.5µin (0.75µm) Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black - - -
803-83-032-20-001101 Preci-Dip 803-83-032-20-001101 6.0999
RFQ
 ECAD 1571 0.00000000 Preci-Dip 803 Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - 803-83 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 132 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.100" (2.54mm) 32 0.100" (2.54mm) All Push-Pull 0.126" (3.20mm) 0.200" (5.08mm) Circular Gold 29.5µin (0.75µm) Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black - - -
803-83-034-10-268101 Preci-Dip 803-83-034-10-268101 5.9683
RFQ
 ECAD 4000 0.00000000 Preci-Dip 803 Bulk Active -55°C ~ 125°C - Through Hole - 803-83 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 130 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.100" (2.54mm) 34 0.100" (2.54mm) All Push-Pull 0.108" (2.75mm) 0.116" (2.95mm) Circular Gold 29.5µin (0.75µm) Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black - - -
803-83-034-30-002101 Preci-Dip 803-83-034-30-002101 3.8109
RFQ
 ECAD 2180 0.00000000 Preci-Dip 803 Bulk Active -55°C ~ 125°C - Surface Mount - 803-83 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 150 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.100" (2.54mm) 34 0.100" (2.54mm) All Push-Pull - 0.220" (5.60mm) Circular Gold 29.5µin (0.75µm) Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black - - -
803-83-034-65-410101 Preci-Dip 803-83-034-65-410101 8.2883
RFQ
 ECAD 7337 0.00000000 Preci-Dip 803 Bulk Active -55°C ~ 125°C - Through Hole - 803-83 Press-Fit, Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 150 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.100" (2.54mm) 34 0.100" (2.54mm) All Push-Pull 0.110" (2.79mm) 0.276" (7.00mm) Circular Gold 29.5µin (0.75µm) Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Black - - -
833-83-026-10-457101 Preci-Dip 833-83-026-10-457101 6.6352
RFQ
 ECAD 9605 0.00000000 Preci-Dip 833 Bulk Active -55°C ~ 125°C - Through Hole - 833-83 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 120 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.079" (2.00mm) 26 0.079" (2.00mm) All Push-Pull 0.118" (3.00mm) 0.409" (10.40mm) Circular Gold 29.5µin (0.75µm) Tin Liquid Crystal Polymer (LCP), Glass Filled Black - - -
833-83-028-20-001101 Preci-Dip 833-83-028-20-001101 5.1673
RFQ
 ECAD 6269 0.00000000 Preci-Dip 833 Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - 833-83 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 130 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.079" (2.00mm) 28 0.079" (2.00mm) All Push-Pull 0.126" (3.20mm) 0.165" (4.20mm) Circular Gold 29.5µin (0.75µm) Tin Liquid Crystal Polymer (LCP), Glass Filled Black - - -
833-83-030-10-001101 Preci-Dip 833-83-030-10-001101 3.5661
RFQ
 ECAD 7264 0.00000000 Preci-Dip 833 Bulk Active -55°C ~ 125°C - Through Hole - 833-83 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 300 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.079" (2.00mm) 30 0.079" (2.00mm) All Push-Pull 0.125" (3.18mm) 0.165" (4.20mm) Circular Gold 29.5µin (0.75µm) Tin Liquid Crystal Polymer (LCP), Glass Filled Black - - -
833-83-034-30-001101 Preci-Dip 833-83-034-30-001101 5.7511
RFQ
 ECAD 4170 0.00000000 Preci-Dip 833 Bulk Active -55°C ~ 125°C - Surface Mount - 833-83 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 100 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.079" (2.00mm) 34 0.079" (2.00mm) All Push-Pull - 0.228" (5.80mm) Circular Gold 29.5µin (0.75µm) Tin Liquid Crystal Polymer (LCP), Glass Filled Black - - -
833-83-036-10-001101 Preci-Dip 833-83-036-10-001101 4.8902
RFQ
 ECAD 5258 0.00000000 Preci-Dip 833 Bulk Active -55°C ~ 125°C - Through Hole - 833-83 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 160 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.079" (2.00mm) 36 0.079" (2.00mm) All Push-Pull 0.125" (3.18mm) 0.165" (4.20mm) Circular Gold 29.5µin (0.75µm) Tin Liquid Crystal Polymer (LCP), Glass Filled Black - - -
833-83-036-10-457101 Preci-Dip 833-83-036-10-457101 8.9443
RFQ
 ECAD 9177 0.00000000 Preci-Dip 833 Bulk Active -55°C ~ 125°C - Through Hole - 833-83 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 90 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.079" (2.00mm) 36 0.079" (2.00mm) All Push-Pull 0.118" (3.00mm) 0.409" (10.40mm) Circular Gold 29.5µin (0.75µm) Tin Liquid Crystal Polymer (LCP), Glass Filled Black - - -
833-83-038-10-457101 Preci-Dip 833-83-038-10-457101 8.6764
RFQ
 ECAD 2046 0.00000000 Preci-Dip 833 Bulk Active -55°C ~ 125°C - Through Hole - 833-83 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 80 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.079" (2.00mm) 38 0.079" (2.00mm) All Push-Pull 0.118" (3.00mm) 0.409" (10.40mm) Circular Gold 29.5µin (0.75µm) Tin Liquid Crystal Polymer (LCP), Glass Filled Black - - -
833-83-044-10-453101 Preci-Dip 833-83-044-10-453101 9.9834
RFQ
 ECAD 2654 0.00000000 Preci-Dip 833 Bulk Active -55°C ~ 125°C - Through Hole - 833-83 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 70 Socket 2 3A Beryllium Copper UL94 V-0 Female Socket 0.079" (2.00mm) 44 0.079" (2.00mm) All Push-Pull 0.126" (3.20mm) 0.315" (8.00mm) Circular Gold 29.5µin (0.75µm) Tin Liquid Crystal Polymer (LCP), Glass Filled Black - - -
