Rectangular Connectors(819835)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Applications Mounting Type Features Base Product Number Color Termination Ingress Protection Style DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Connector Type Pitch Number of Rows Row Spacing Current Rating (Amps) Contact Material Material Flammability Rating Contact Type Pitch - Mating Number of Positions Row Spacing - Mating Number of Positions Loaded Shrouding Fastening Type Contact Length - Mating Contact Length - Post Overall Contact Length Insulation Height Contact Shape Contact Finish - Mating Contact Finish Thickness - Mating Contact Finish - Post Insulation Material Insulation Color Voltage Rating Mated Stacking Heights Contact Finish Thickness - Post Length - Overall Pin Length - Post (Mating) Length - Stack Height Length - Tail Contact Finish - Post (Mating) Contact Finish Thickness - Post (Mating)
HLE-127-02-L-DV Samtec Inc. HLE-127-02-L-DV 11.6650
RFQ
 ECAD 5180 0.00000000 Samtec Inc. HLE Bulk Active -55°C ~ 125°C - Surface Mount - HLE-127 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Receptacle 2 4.1A per Contact Beryllium Copper - Female Socket 0.100" (2.54mm) 54 0.100" (2.54mm) All Push-Pull - 0.144" (3.66mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black 400VAC - -
TFM-107-02-S-D-SN-K-TR Samtec Inc. TFM-107-02-S-D-SN-K-TR -
RFQ
 ECAD 8850 0.00000000 Samtec Inc. Tiger Eye™ TFM Tape & Reel (TR) Active -55°C ~ 125°C - Surface Mount Pick and Place, Solder Retention TFM-107 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 500 Header 2 2.9A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 14 0.050" (1.27mm) All Shrouded - 4 Wall Push-Pull 0.131" (3.33mm) - - 0.220" (5.60mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black 275VAC - -
DW-07-11-S-D-665 Samtec Inc. DW-07-11-S-D-665 4.2400
RFQ
 ECAD 2008 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-07-11 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 0.100" (2.54mm) 14 0.930" (23.622mm) 0.155" (3.937mm) 0.665" (16.891mm) 0.110" (2.794mm) Gold 30.0µin (0.76µm)
TW-02-03-T-D-170-SM-TR Samtec Inc. TW-02-03-T-D-170-SM-TR 1.0000
RFQ
 ECAD 5271 0.00000000 Samtec Inc. Flex Stack, TW Tape & Reel (TR) Active Surface Mount Black Solder download ROHS3 Compliant 612-TW-02-03-T-D-170-SM-TR 200 0.079" (2.00mm) 2 0.079" (2.00mm) 4 0.467" (11.862mm) 0.297" (7.544mm) 0.170" (4.318mm) - Tin -
ESQT-115-02-L-D-561 Samtec Inc. ESQT-115-02-L-D-561 10.2900
RFQ
 ECAD 9766 0.00000000 Samtec Inc. ESQT Bulk Active -55°C ~ 125°C - Through Hole - ESQT-115 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Elevated Socket 2 4.5A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 30 0.079" (2.00mm) All Push-Pull 0.289" (7.34mm) 0.561" (14.25mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
FTSH-126-02-F-DV-ES-A-P-TR Samtec Inc. FTSH-126-02-F-DV-ES-A-P-TR -
RFQ
 ECAD 8077 0.00000000 Samtec Inc. FTSH Tape & Reel (TR) Active -55°C ~ 125°C - Surface Mount Board Guide, End Shrouds, Pick and Place FTSH-126 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 125 Header, Cuttable 2 3.4A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 52 0.050" (1.27mm) All Shrouded Push-Pull 0.075" (1.90mm) - - 0.099" (2.51mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
TSW-210-07-T-S Samtec Inc. TSW-210-07-T-S 1.7500
RFQ
 ECAD 9975 0.00000000 Samtec Inc. TSW Bulk Active -55°C ~ 105°C - Through Hole - TSW-210 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 1 - Phosphor Bronze UL94 V-0 Male Pin 0.200" (5.08mm) 10 - All Unshrouded Push-Pull 0.230" (5.84mm) 0.100" (2.54mm) 0.430" (10.92mm) 0.100" (2.54mm) Square Tin - Tin Polybutylene Terephthalate (PBT) Black - - -
SQT-122-01-F-D-020 Samtec Inc. SQT-122-01-F-D-020 9.2700
RFQ
 ECAD 9127 0.00000000 Samtec Inc. SQT Tube Active -55°C ~ 125°C - Through Hole - SQT-122 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Receptacle 2 5.1A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 44 0.079" (2.00mm) 43 Push-Pull 0.090" (2.29mm) 0.250" (6.35mm) Square Gold Flash Tin Liquid Crystal Polymer (LCP) Black - - -
TMMH-122-01-L-DV-M Samtec Inc. TMMH-122-01-L-DV-M -
RFQ
 ECAD 6621 0.00000000 Samtec Inc. TMMH Tube Active -55°C ~ 125°C - Surface Mount Pick and Place TMMH-122 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 - Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 44 0.079" (2.00mm) All Unshrouded Push-Pull 0.126" (3.20mm) - - 0.079" (2.00mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
FTSH-108-01-LM-D-RA Samtec Inc. FTSH-108-01-LM-D-RA 3.6056
RFQ
 ECAD 5568 0.00000000 Samtec Inc. FTSH Tube Active -55°C ~ 125°C - Through Hole, Right Angle - FTSH-108 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 57 Header, Cuttable 2 3.4A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 16 0.050" (1.27mm) All Unshrouded Push-Pull 0.120" (3.05mm) 0.090" (2.29mm) - 0.135" (3.43mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
FW-10-01-G-D-669-075 Samtec Inc. FW-10-01-G-D-669-075 -
RFQ
 ECAD 9655 0.00000000 Samtec Inc. Flex Stack, FW Bulk Active Through Hole FW-10-01 Black Solder download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 0.050" (1.27mm) 2 0.050" (1.27mm) 20 0.789" (20.041mm) 0.075" (1.905mm) 0.669" (16.993mm) 0.045" (1.143mm) Gold 10.0µin (0.25µm)
FTSH-105-02-L-D Samtec Inc. FTSH-105-02-L-D 2.6500
RFQ
 ECAD 843 0.00000000 Samtec Inc. FTSH Tube Active -55°C ~ 125°C - Through Hole - FTSH-105 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 92 Header, Cuttable 2 3.4A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 10 0.050" (1.27mm) All Unshrouded Push-Pull 0.075" (1.90mm) 0.090" (2.29mm) 0.265" (6.73mm) 0.099" (2.51mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
DW-01-12-F-S-720 Samtec Inc. DW-01-12-F-S-720 -
RFQ
 ECAD 9532 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-01-12 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 - 1 - 1 1.030" (26.162mm) 0.200" (5.080mm) 0.720" (18.288mm) 0.110" (2.794mm) Gold 3.00µin (0.076µm)
DW-42-13-G-Q-200 Samtec Inc. DW-42-13-G-Q-200 -
RFQ
 ECAD 5959 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-42-13 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 3 0.100" (2.54mm) 84 1.230" (31.242mm) 0.920" (23.368mm) 0.200" (5.080mm) 0.110" (2.794mm) Gold 10.0µin (0.25µm)
FTSH-130-03-F-D-RA-ES Samtec Inc. FTSH-130-03-F-D-RA-ES 10.2443
RFQ
 ECAD 4276 0.00000000 Samtec Inc. FTSH Tube Active -55°C ~ 125°C - Through Hole, Right Angle End Shrouds FTSH-130 Solder - Board to Board or Cable download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 14 Header, Cuttable 2 3.4A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 60 0.050" (1.27mm) All Shrouded Push-Pull 0.065" (1.65mm) 0.120" (3.05mm) - 0.135" (3.43mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
FW-05-03-L-D-273-100 Samtec Inc. FW-05-03-L-D-273-100 -
RFQ
 ECAD 9963 0.00000000 Samtec Inc. Flex Stack, FW Bulk Active Surface Mount FW-05-03 Black Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 0.050" (1.27mm) 2 0.050" (1.27mm) 10 0.373" (9.474mm) 0.100" (2.540mm) 0.273" (6.934mm) - Gold 10.0µin (0.25µm)

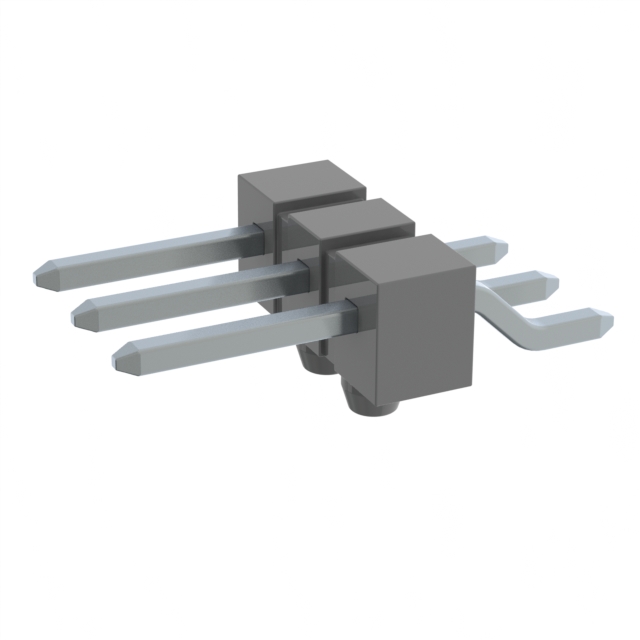

TSM-103-01-T-SH-A Samtec Inc. TSM-103-01-T-SH-A 1.3100
RFQ
 ECAD 5957 0.00000000 Samtec Inc. TSM Tube Active -55°C ~ 105°C - Surface Mount, Right Angle Board Guide TSM-103 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 76 Header 1 - Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 3 - All Unshrouded Push-Pull 0.230" (5.84mm) - - 0.120" (3.05mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -
HW-05-19-S-D-730-126-LL Samtec Inc. HW-05-19-S-D-730-126-LL -
RFQ
 ECAD 5859 0.00000000 Samtec Inc. Flex Stack, HW Bulk Active Through Hole HW-05-19 Black Kinked Pin, Solder download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 0.100" (2.54mm) 2 0.100" (2.54mm) 10 1.330" (33.782mm) 0.474" (12.040mm) 0.730" (18.542mm) 0.126" (3.200mm) Gold 30.0µin (0.76µm)
HTSW-220-08-S-S-LA Samtec Inc. HTSW-220-08-S-S-LA -
RFQ
 ECAD 8879 0.00000000 Samtec Inc. HTSW Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - HTSW-220 Kinked Pin, Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header 1 Varies by Wire Gauge Phosphor Bronze UL94 V-0 Male Pin 0.200" (5.08mm) 20 - All Unshrouded Push-Pull 0.230" (5.84mm) 0.090" (2.29mm) - 0.122" (3.10mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Natural - - -
ESQ-120-48-S-D-LL Samtec Inc. ESQ-120-48-S-D-LL 13.3727
RFQ
 ECAD 9372 0.00000000 Samtec Inc. ESQ Tube Active -55°C ~ 125°C - Through Hole - ESQ-120 Kinked Pin, Solder - Board to Board download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 Elevated Socket 2 5.7A per Contact Phosphor Bronze UL94 V-0 Forked 0.100" (2.54mm) 40 0.100" (2.54mm) All Push-Pull 0.190" (4.83mm) 0.535" (13.60mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black 550VAC - -
SFM-108-02-L-D-A-K Samtec Inc. SFM-108-02-L-D-A-K 6.7000
RFQ
 ECAD 2221 0.00000000 Samtec Inc. Tiger Eye™ SFM Bulk Active -55°C ~ 125°C - Surface Mount Board Guide, Pick and Place SFM-108 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 41 Receptacle 2 3.2A per Contact Beryllium Copper UL94 V-0 Female Socket 0.050" (1.27mm) 16 0.050" (1.27mm) All Push-Pull - 0.185" (4.70mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black 250VAC 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm -
ESQT-135-03-L-6-400 Samtec Inc. ESQT-135-03-L-6-400 -
RFQ
 ECAD 5125 0.00000000 Samtec Inc. ESQT Bulk Active -55°C ~ 125°C - Through Hole - ESQT-135 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Elevated Socket 6 4.5A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 210 0.079" (2.00mm) All Push-Pull 0.058" (1.47mm) 0.400" (10.16mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -

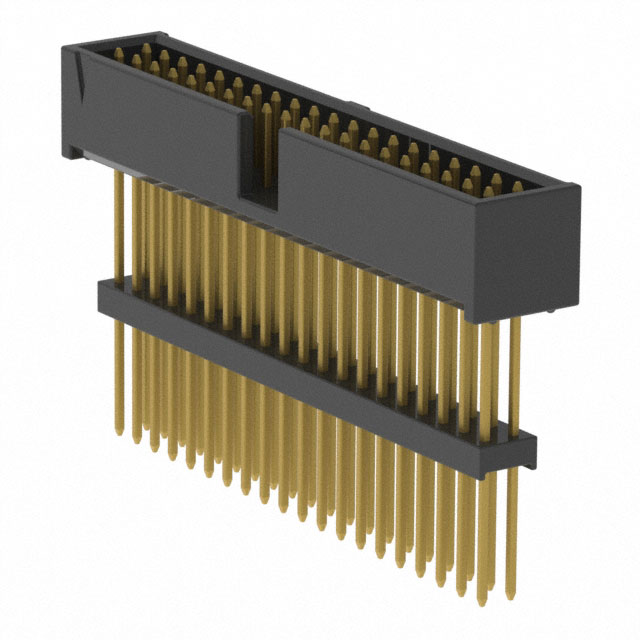

ZSS-120-07-G-D-895 Samtec Inc. ZSS-120-07-G-D-895 11.0600
RFQ
 ECAD 1064 0.00000000 Samtec Inc. Flex Stack, ZSS Bulk Active -55°C ~ 125°C - Through Hole Keying Slot ZSS-120 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Elevated 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 40 0.100" (2.54mm) All Shrouded - 4 Wall Push-Pull 0.250" (6.35mm) 0.335" (8.51mm) 1.230" (31.24mm) 0.895" (22.73mm) Square Gold 10.0µin (0.25µm) Gold Polyester, Glass Filled Black - - 3.00µin (0.076µm)
IPT1-110-01-L-D-VS-PL-K Samtec Inc. IPT1-110-01-L-D-VS-PL-K 5.4791
RFQ
 ECAD 3077 0.00000000 Samtec Inc. * Tube Active download ROHS3 Compliant 612-IPT1-110-01-L-D-VS-PL-K EAR99 8536.69.4040 21
FW-40-03-F-D-230-130-A Samtec Inc. FW-40-03-F-D-230-130-A 12.2500
RFQ
 ECAD 1758 0.00000000 Samtec Inc. Flex Stack, FW Tube Active Surface Mount FW-40-03 Black Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 11 0.050" (1.27mm) 2 0.050" (1.27mm) 80 0.360" (9.144mm) 0.130" (3.302mm) 0.230" (5.842mm) - Gold 3.00µin (0.076µm)
TML-125-02-G-D-SM-P Samtec Inc. TML-125-02-G-D-SM-P 19.1269
RFQ
 ECAD 5174 0.00000000 Samtec Inc. * Tube Active download ROHS3 Compliant 612-TML-125-02-G-D-SM-P EAR99 8536.69.4040 16
MTMM-125-04-G-D-170 Samtec Inc. MTMM-125-04-G-D-170 11.5300
RFQ
 ECAD 9275 0.00000000 Samtec Inc. MTMM Bulk Active -55°C ~ 125°C - Through Hole - MTMM-125 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 50 0.079" (2.00mm) All Unshrouded Push-Pull 0.170" (4.32mm) 0.323" (8.20mm) 0.059" (1.50mm) Square Gold 20.0µin (0.51µm) Gold Liquid Crystal Polymer (LCP) Black - - 3.00µin (0.076µm)
MTLW-105-08-T-D-100 Samtec Inc. MTLW-105-08-T-D-100 1.4400
RFQ
 ECAD 4910 0.00000000 Samtec Inc. Flex Stack, MTLW Bulk Active -55°C ~ 105°C - Through Hole - MTLW-105 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 2 5.2A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 10 0.100" (2.54mm) All Unshrouded Push-Pull 0.100" (2.54mm) 0.370" (9.40mm) 0.530" (13.46mm) 0.060" (1.52mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -
TW-08-07-L-D-375-200 Samtec Inc. TW-08-07-L-D-375-200 4.2400
RFQ
 ECAD 2471 0.00000000 Samtec Inc. TW Bulk Active Through Hole Black Solder download ROHS3 Compliant 612-TW-08-07-L-D-375-200 1 0.079" (2.00mm) 2 0.079" (2.00mm) 16 0.752" (19.101mm) 0.177" (4.496mm) 0.375" (9.525mm) 0.200" (5.080mm) Gold 10.0µin (0.25µm)
HW-15-12-T-S-250-SM Samtec Inc. HW-15-12-T-S-250-SM -
RFQ
 ECAD 6961 0.00000000 Samtec Inc. Flex Stack, HW Bulk Active Surface Mount HW-15-12 Black Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 0.100" (2.54mm) 1 - 15 0.965" (24.511mm) 0.715" (18.161mm) 0.250" (6.350mm) - Tin -
