Rectangular Connectors(819835)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Applications | Mounting Type | Features | Base Product Number | Termination | Ingress Protection | Style | Height Above Board | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | ECCN | HTSUS | Standard Package | Connector Type | Pitch | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Pitch - Mating | Number of Positions | Row Spacing - Mating | Number of Positions Loaded | Shrouding | Fastening Type | Contact Length - Mating | Contact Length - Post | Overall Contact Length | Insulation Height | Contact Shape | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Material | Insulation Color | Voltage Rating | Mated Stacking Heights | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TSM-136-01-L-DH-LC | 13.3550 |  |
4329 | 0.00000000 | Samtec Inc. | TSM | Tube | Active | -55°C ~ 125°C | - | Surface Mount, Right Angle | Board Lock | TSM-136 | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 6 | Header | 2 | - | Phosphor Bronze | UL94 V-0 | Male Pin | 0.100" (2.54mm) | 72 | 0.100" (2.54mm) | All | Unshrouded | Push-Pull | 0.230" (5.84mm) | - | - | 0.240" (6.10mm) | Square | Gold | 10.0µin (0.25µm) | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | ||||||
 |
TSM-136-01-SS-DV | 13.8650 | |
8487 | 0.00000000 | Samtec Inc. | TSM | Tube | Active | -55°C ~ 125°C | - | Surface Mount | - | TSM-136 | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 6 | Header | 2 | - | Phosphor Bronze | UL94 V-0 | Male Pin | 0.100" (2.54mm) | 72 | 0.100" (2.54mm) | All | Unshrouded | Push-Pull | 0.230" (5.84mm) | - | - | 0.100" (2.54mm) | Square | Gold | 30.0µin (0.76µm) | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | ||||||
 |
TSM-136-02-L-SH-A-P | 8.6417 | |
8291 | 0.00000000 | Samtec Inc. | TSM | Tube | Active | -55°C ~ 125°C | - | Surface Mount, Right Angle | Board Guide, Pick and Place | TSM-136 | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 6 | Header | 1 | - | Phosphor Bronze | UL94 V-0 | Male Pin | 0.100" (2.54mm) | 36 | - | All | Unshrouded | Push-Pull | 0.320" (8.13mm) | - | - | 0.120" (3.05mm) | Square | Gold | 10.0µin (0.25µm) | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | ||||||
 |

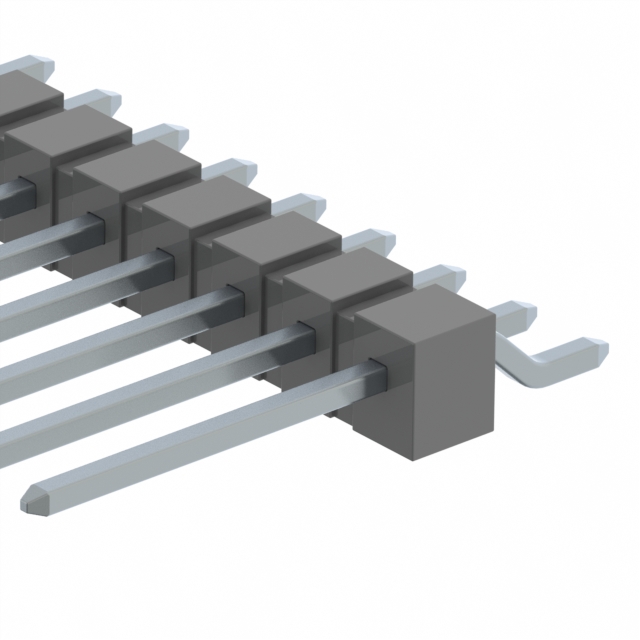

TSM-136-03-T-SH | 5.7817 | |
1681 | 0.00000000 | Samtec Inc. | TSM | Tube | Active | -55°C ~ 105°C | - | Surface Mount, Right Angle | - | TSM-136 | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 6 | Header | 1 | - | Phosphor Bronze | UL94 V-0 | Male Pin | 0.100" (2.54mm) | 36 | - | All | Unshrouded | Push-Pull | 0.420" (10.67mm) | - | - | 0.120" (3.05mm) | Square | Tin | - | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | ||||||
 |
TSM-137-02-S-DV-A | 16.9900 | |
7235 | 0.00000000 | Samtec Inc. | TSM | Tube | Active | -55°C ~ 125°C | - | Surface Mount | Board Guide | TSM-137 | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1 | Header | 2 | - | Phosphor Bronze | UL94 V-0 | Male Pin | 0.100" (2.54mm) | 74 | 0.100" (2.54mm) | All | Unshrouded | Push-Pull | 0.320" (8.13mm) | - | - | 0.100" (2.54mm) | Square | Gold | 30.0µin (0.76µm) | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | ||||||
 |
TSM-137-02-T-DV-A | 8.3150 | |
8766 | 0.00000000 | Samtec Inc. | TSM | Tube | Active | -55°C ~ 105°C | - | Surface Mount | Board Guide | TSM-137 | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1 | Header | 2 | - | Phosphor Bronze | UL94 V-0 | Male Pin | 0.100" (2.54mm) | 74 | 0.100" (2.54mm) | All | Unshrouded | Push-Pull | 0.320" (8.13mm) | - | - | 0.100" (2.54mm) | Square | Tin | - | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | ||||||
 |
SEAM-50-02.0-S-10-2-A-EP-K-TR | - | |
6281 | 0.00000000 | Samtec Inc. | SEARAY™ SEAM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Mating Flange, Pick and Place | SEAM-50 | 0.181" (4.60mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 75 | High Density Array, Male | 0.050" (1.27mm) | 10 | Gold | 30.0µin (0.76µm) | 500 | 7mm, 8mm, 8.5mm, 9.5mm, 10mm | ||||||||||||||||||||||||||||
 |
SEAM-50-03.0-L-04-1-A-K-TR | 15.2337 | |
8502 | 0.00000000 | Samtec Inc. | SEARAY™ SEAM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | SEAM-50 | 0.220" (5.59mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 325 | High Density Array, Male | 0.050" (1.27mm) | 4 | Gold | 10.0µin (0.25µm) | 200 | 8mm, 9mm, 9.5mm, 10.5mm, 11mm | ||||||||||||||||||||||||||||
|
SEAM-50-03.0-L-04-2-A-K-TR | 15.2337 | |
6469 | 0.00000000 | Samtec Inc. | SEARAY™ SEAM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | SEAM-50 | 0.220" (5.59mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 325 | High Density Array, Male | 0.050" (1.27mm) | 4 | Gold | 10.0µin (0.25µm) | 200 | 8mm, 9mm, 9.5mm, 10.5mm, 11mm | ||||||||||||||||||||||||||||
 |
SEAM-50-03.0-L-10-1-A-K-TR | 29.2777 | |
9303 | 0.00000000 | Samtec Inc. | SEARAY™ SEAM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | SEAM-50 | 0.220" (5.59mm) | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 200 | High Density Array, Male | 0.050" (1.27mm) | 10 | Gold | 10.0µin (0.25µm) | 500 | 8mm, 9mm, 9.5mm, 10.5mm, 11mm | ||||||||||||||||||||||||||||
|
SEAM-50-03.0-S-10-1-A-K-TR | 32.2466 | |
9335 | 0.00000000 | Samtec Inc. | SEARAY™ SEAM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | SEAM-50 | 0.220" (5.59mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 200 | High Density Array, Male | 0.050" (1.27mm) | 10 | Gold | 30.0µin (0.76µm) | 500 | 8mm, 9mm, 9.5mm, 10.5mm, 11mm | ||||||||||||||||||||||||||||
|
SEAM-50-03.5-S-04-1-A-K-TR | 16.7873 | |
8769 | 0.00000000 | Samtec Inc. | SEARAY™ SEAM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | SEAM-50 | 0.240" (6.10mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 300 | High Density Array, Male | 0.050" (1.27mm) | 4 | Gold | 30.0µin (0.76µm) | 200 | 8.5mm, 9.5mm, 10mm, 11mm, 11.5mm | ||||||||||||||||||||||||||||
|
SEAM-50-07.0-L-04-2-A-K-TR | 22.3960 | |
5430 | 0.00000000 | Samtec Inc. | SEARAY™ SEAM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | SEAM-50 | 0.417" (10.60mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 150 | High Density Array, Male | 0.050" (1.27mm) | 4 | Gold | 10.0µin (0.25µm) | 200 | 12mm, 13mm, 13.5mm, 14.5mm, 15mm | ||||||||||||||||||||||||||||
 |
SEAM-50-07.0-L-06-1-A-K-TR | 26.6437 | |
1156 | 0.00000000 | Samtec Inc. | SEARAY™ SEAM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | SEAM-50 | 0.417" (10.60mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 150 | High Density Array, Male | 0.050" (1.27mm) | 6 | Gold | 10.0µin (0.25µm) | 300 | 12mm, 13mm, 13.5mm, 14.5mm, 15mm | ||||||||||||||||||||||||||||
 |
SEAM-50-07.0-L-08-1-A-K-TR | 33.9822 | |
6001 | 0.00000000 | Samtec Inc. | SEARAY™ SEAM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | SEAM-50 | 0.417" (10.60mm) | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | High Density Array, Male | 0.050" (1.27mm) | 8 | Gold | 10.0µin (0.25µm) | 400 | 12mm, 13mm, 13.5mm, 14.5mm, 15mm | ||||||||||||||||||||||||||||
|
SEAM-50-07.0-S-04-2-A-K-TR | 24.6341 | |
9855 | 0.00000000 | Samtec Inc. | SEARAY™ SEAM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | SEAM-50 | 0.417" (10.60mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 150 | High Density Array, Male | 0.050" (1.27mm) | 4 | Gold | 30.0µin (0.76µm) | 200 | 12mm, 13mm, 13.5mm, 14.5mm, 15mm | ||||||||||||||||||||||||||||
|
SEAM-50-09.0-S-10-1-A-K-TR | 57.1699 | |
1200 | 0.00000000 | Samtec Inc. | SEARAY™ SEAM | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Pick and Place | SEAM-50 | 0.457" (11.60mm) | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 75 | High Density Array, Male | 0.050" (1.27mm) | 10 | Gold | 30.0µin (0.76µm) | 500 | 14mm, 15mm, 15.5mm, 16.5mm | ||||||||||||||||||||||||||||
 |
TFM-115-23-L-D-LC | 9.1000 | |
8290 | 0.00000000 | Samtec Inc. | Tiger Eye™ TFM | Bulk | Active | -55°C ~ 125°C | - | Through Hole | Board Lock | TFM-115 | Solder | - | Board to Board or Cable | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 25 | Header | 2 | 2.9A per Contact | Phosphor Bronze | UL94 V-0 | Male Pin | 0.050" (1.27mm) | 30 | 0.050" (1.27mm) | All | Shrouded - 4 Wall | Push-Pull | 0.139" (3.53mm) | 0.111" (2.82mm) | - | 0.360" (9.14mm) | Square | Gold | 15.0µin (0.38µm) | Tin | Liquid Crystal Polymer (LCP) | Black | 275VAC | - | - | ||||||
|
TFM-116-02-L-D-A | - | |
9401 | 0.00000000 | Samtec Inc. | Tiger Eye™ TFM | Tube | Active | -55°C ~ 125°C | - | Surface Mount | Board Guide | TFM-116 | Solder | - | Board to Board or Cable | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Header | 2 | 2.9A per Contact | Phosphor Bronze | UL94 V-0 | Male Pin | 0.050" (1.27mm) | 32 | 0.050" (1.27mm) | All | Shrouded - 4 Wall | Push-Pull | 0.131" (3.33mm) | - | - | 0.220" (5.60mm) | Square | Gold | 15.0µin (0.38µm) | Tin | Liquid Crystal Polymer (LCP) | Black | 275VAC | - | - | ||||||
|
TFM-111-02-L-D-WT-K | - | |
5491 | 0.00000000 | Samtec Inc. | Tiger Eye™ TFM | Tube | Active | -55°C ~ 125°C | - | Surface Mount | Pick and Place, Solder Retention | TFM-111 | Solder | - | Board to Board or Cable | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Header | 2 | 2.9A per Contact | Phosphor Bronze | UL94 V-0 | Male Pin | 0.050" (1.27mm) | 22 | 0.050" (1.27mm) | All | Shrouded - 4 Wall | Push-Pull | 0.131" (3.33mm) | - | - | 0.220" (5.60mm) | Square | Gold | 15.0µin (0.38µm) | Tin | Liquid Crystal Polymer (LCP) | Black | 275VAC | - | - | ||||||
|
TFM-113-31-LM-D | - | |
8871 | 0.00000000 | Samtec Inc. | Tiger Eye™ TFM | Tube | Active | -55°C ~ 125°C | - | Through Hole | - | TFM-113 | Solder | - | Board to Board or Cable | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Header | 2 | 2.9A per Contact | Phosphor Bronze | UL94 V-0 | Male Pin | 0.050" (1.27mm) | 26 | 0.050" (1.27mm) | All | Shrouded - 4 Wall | Push-Pull | 0.139" (3.53mm) | 0.080" (2.03mm) | - | 0.435" (11.05mm) | Square | Gold | 15.0µin (0.38µm) | Tin | Liquid Crystal Polymer (LCP) | Black | 275VAC | - | - | ||||||
|
TFM-124-01-S-S-RA | - | |
1404 | 0.00000000 | Samtec Inc. | Tiger Eye™ TFM | Tube | Active | -55°C ~ 125°C | - | Through Hole, Right Angle | - | TFM-124 | Solder | - | Board to Board or Cable | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Header | 1 | 2.9A per Contact | Phosphor Bronze | UL94 V-0 | Male Pin | 0.050" (1.27mm) | 24 | - | All | Shrouded - 4 Wall | Push-Pull | 0.137" (3.48mm) | 0.084" (2.13mm) | - | 0.175" (4.45mm) | Square | Gold | 30.0µin (0.76µm) | Tin | Liquid Crystal Polymer (LCP) | Black | 275VAC | - | - | ||||||
 |
MMS-128-02-F-DV-K-TR | - | |
3299 | 0.00000000 | Samtec Inc. | MMS | Tape & Reel (TR) | Active | -55°C ~ 125°C | - | Surface Mount | Pick and Place | MMS-128 | Solder | - | Board to Board or Cable | - | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | Receptacle | 2 | 3.9A per Contact | Phosphor Bronze | - | Female Socket | 0.079" (2.00mm) | 56 | 0.079" (2.00mm) | All | Push-Pull | - | 0.177" (4.50mm) | Square | Gold | 3.00µin (0.076µm) | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | ||||||||||
 |
MMS-128-02-F-SH-TR | - | |
5351 | 0.00000000 | Samtec Inc. | MMS | Tape & Reel (TR) | Active | -55°C ~ 125°C | - | Surface Mount, Right Angle | - | MMS-128 | Solder | - | Board to Board or Cable | - | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | Receptacle | 1 | 3.9A per Contact | Phosphor Bronze | - | Female Socket | 0.079" (2.00mm) | 28 | - | All | Push-Pull | - | 0.085" (2.15mm) | Square | Gold | 3.00µin (0.076µm) | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | ||||||||||
 |
MMS-128-02-L-DV-A-TR | - | |
5313 | 0.00000000 | Samtec Inc. | MMS | Tape & Reel (TR) | Active | -55°C ~ 125°C | - | Surface Mount | Board Guide | MMS-128 | Solder | - | Board to Board or Cable | - | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Receptacle | 2 | 3.9A per Contact | Phosphor Bronze | - | Female Socket | 0.079" (2.00mm) | 56 | 0.079" (2.00mm) | All | Push-Pull | - | 0.177" (4.50mm) | Square | Gold | 10.0µin (0.25µm) | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | ||||||||||
 |

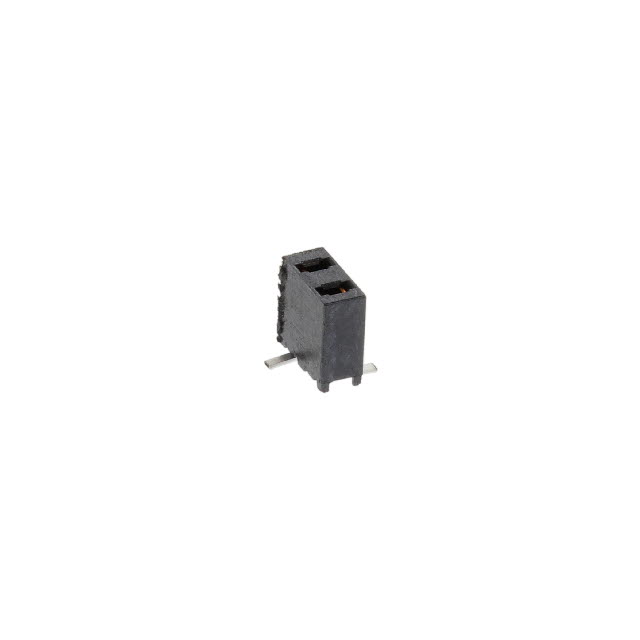

MMS-102-02-F-SV | 1.7200 | |
112 | 0.00000000 | Samtec Inc. | MMS | Tube | Active | -55°C ~ 125°C | - | Surface Mount | - | MMS-102 | Solder | - | Board to Board or Cable | - | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 132 | Receptacle | 1 | 3.9A per Contact | Phosphor Bronze | - | Female Socket | 0.079" (2.00mm) | 2 | - | All | Push-Pull | - | 0.177" (4.50mm) | Square | Gold | 3.00µin (0.076µm) | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | ||||||||
 |
MMS-103-02-L-SH-LC | 3.7000 | |
8018 | 0.00000000 | Samtec Inc. | MMS | Tube | Active | -55°C ~ 125°C | - | Surface Mount, Right Angle | Board Lock | MMS-103 | Solder | - | Board to Board or Cable | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 89 | Receptacle | 1 | 3.9A per Contact | Phosphor Bronze | - | Female Socket | 0.079" (2.00mm) | 3 | - | All | Push-Pull | - | 0.085" (2.15mm) | Square | Gold | 10.0µin (0.25µm) | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | |||||||||
 |

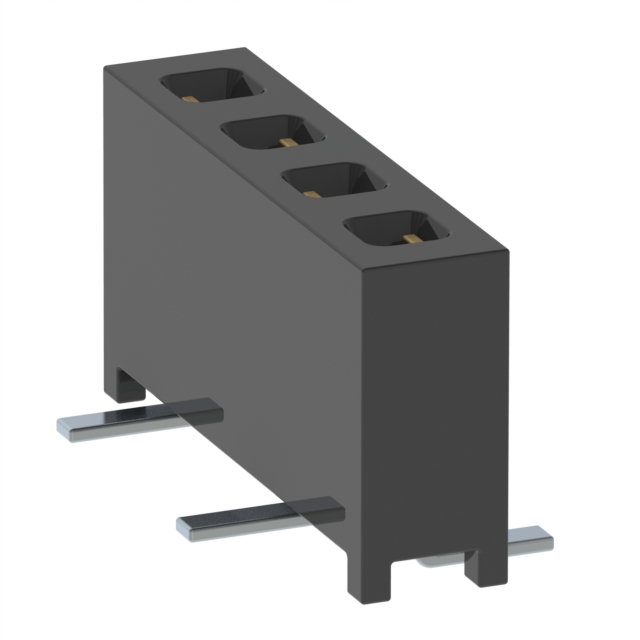

MMS-104-02-LM-SV-K-TR | - | |
8773 | 0.00000000 | Samtec Inc. | MMS | Tape & Reel (TR) | Active | -55°C ~ 125°C | - | Surface Mount | Pick and Place | MMS-104 | Solder | - | Board to Board or Cable | - | 1 (Unlimited) | EAR99 | 8536.69.4040 | 125 | Receptacle | 1 | 3.9A per Contact | Phosphor Bronze | - | Female Socket | 0.079" (2.00mm) | 4 | - | All | Push-Pull | - | 0.177" (4.50mm) | Square | Gold | 10.0µin (0.25µm) | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | ||||||||||
 |

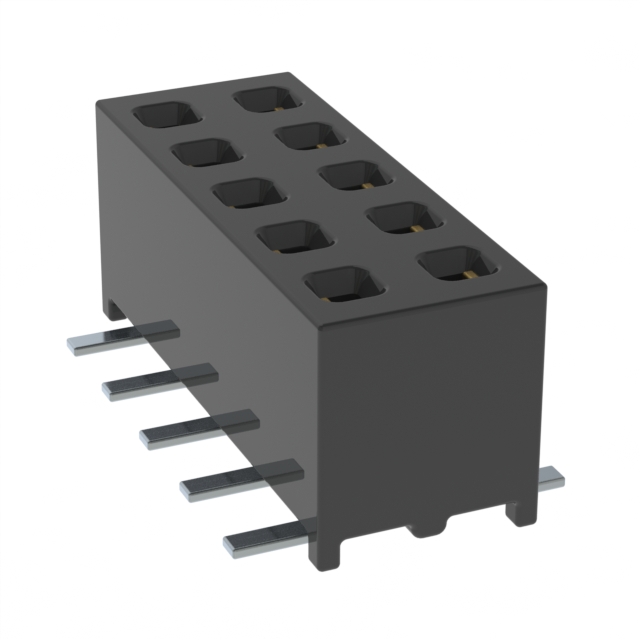

MMS-105-02-L-DV-A-TR | 3.4512 | |
1014 | 0.00000000 | Samtec Inc. | MMS | Tape & Reel (TR) | Active | -55°C ~ 125°C | - | Surface Mount | Board Guide | MMS-105 | Solder | - | Board to Board or Cable | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 525 | Receptacle | 2 | 3.9A per Contact | Phosphor Bronze | - | Female Socket | 0.079" (2.00mm) | 10 | 0.079" (2.00mm) | All | Push-Pull | - | 0.177" (4.50mm) | Square | Gold | 10.0µin (0.25µm) | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - | |||||||||
 |
MMS-105-02-L-DV-P-TR | 4.8000 | |
575 | 0.00000000 | Samtec Inc. | MMS | Tape & Reel (TR) | Active | -55°C ~ 125°C | - | Surface Mount | Pick and Place | MMS-105 | Solder | - | Board to Board or Cable | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 575 | Receptacle | 2 | 3.9A per Contact | Phosphor Bronze | - | Female Socket | 0.079" (2.00mm) | 10 | 0.079" (2.00mm) | All | Push-Pull | - | 0.177" (4.50mm) | Square | Gold | 10.0µin (0.25µm) | Tin | Liquid Crystal Polymer (LCP) | Black | - | - | - |
