Rectangular Connectors(2759)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Applications | Mounting Type | Features | Base Product Number | Accessory Type | Color | For Use With/Related Products | Termination | Ingress Protection | Note | Style | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Pitch | Number of Rows | Row Spacing | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Pitch - Mating | Number of Positions | Row Spacing - Mating | Number of Positions Loaded | Shrouding | Fastening Type | Contact Length - Mating | Contact Length - Post | Overall Contact Length | Insulation Height | Contact Shape | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Material | Insulation Color | Voltage Rating | Mated Stacking Heights | Contact Finish Thickness - Post | Wire Gauge | Contact Termination | Cable Termination | Wire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PUDP-22V-S | 0.4700 |  |
29 | 0.00000000 | JST Sales America Inc. | PUD | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | PUDP-22V | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.079" (2.00mm) | 2 | 0.079" (2.00mm) | Female Socket | 22 | Latch Lock | Polybutylene Terephthalate (PBT) | Crimp | |||||||||||||||||||||||||||||||||
 |
B07B-XASK-1(LF)(SN) | 0.4700 | |
28 | 0.00000000 | JST Sales America Inc. | XA | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B07B-XAS | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 7 | - | All | Shrouded - 4 Wall | Locking Ramp | - | 0.134" (3.40mm) | - | 0.346" (8.80mm) | Circular | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250V | 11.3mm | - | |||||||||||||||
 |
03R-WPJV-3-EMM(N) | - | |
8308 | 0.00000000 | JST Sales America Inc. | WPJ | Bulk | Obsolete | Free Hanging (In-Line) | JIS C 0920 Grade Level 7 | Blue | Contacts Not Included | download | 1 (Unlimited) | EAR99 | 8538.90.6000 | 192 | Receptacle | 0.197" (5.00mm) | 1 | - | Female Socket | 3 | Latch Lock | Crimp | |||||||||||||||||||||||||||||||||||||
 |
B05B-XASK-1(LF)(SN) | 0.4000 | |
17 | 0.00000000 | JST Sales America Inc. | XA | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B05B-XAS | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 400 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 5 | - | All | Shrouded - 4 Wall | Locking Ramp | - | 0.134" (3.40mm) | - | 0.346" (8.80mm) | Circular | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250V | 11.3mm | - | ||||||||||||||
 |
BM20B-GHDS-G-TF(LF)(SN) | 1.4600 | |
45 | 0.00000000 | JST Sales America Inc. | GHD | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | BM20B-GH | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,250 | Header | 2 | 1A | Phosphor Bronze | UL94 V-0 | Outer Shroud Contact | 0.049" (1.25mm) | 20 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.197" (5.00mm) | - | Gold | - | - | Polybutylene Terephthalate (PBT) | Natural | 50V | 8.5mm | - | |||||||||||||||
 |
H7P-SHF-AA | 0.1463 | |
6325 | 0.00000000 | JST Sales America Inc. | NH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | H7P-SHF | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 500 | Receptacle | 0.098" (2.50mm) | 1 | - | Female Socket | 7 | Latch Lock | Crimp | ||||||||||||||||||||||||||||||||||
 |

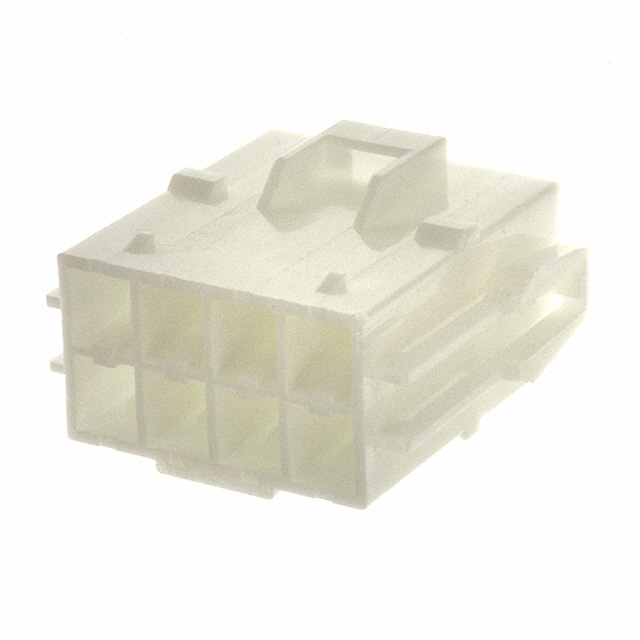

VLR-08V | 0.7500 | |
8 | 0.00000000 | JST Sales America Inc. | VL | Bulk | Active | -25°C ~ 90°C | Free Hanging (In-Line) | - | VLR | White | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 100 | Receptacle | 0.244" (6.20mm) | 2 | - | Male Pin | 8 | Latch Holder | Crimp | ||||||||||||||||||||||||||||||||||
 |
S14B-PASK-2(LF)(SN) | 0.6794 | |
9788 | 0.00000000 | JST Sales America Inc. | PA | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | Board Guide | S14B-PAS | Kinked Pin, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | 455-1859 | EAR99 | 8536.69.4040 | 200 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 14 | - | All | Shrouded - 4 Wall | Locking Ramp | 0.126" (3.20mm) | 0.134" (3.40mm) | - | 0.256" (6.50mm) | Square | Tin | - | Tin | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 250V | - | - | ||||||||||||||
 |
BM08B-NSHSS-TBT(LF)(SN) | 1.0000 | |
19 | 0.00000000 | JST Sales America Inc. | NSH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Pick and Place, Solder Retention | BM08B-NS | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 1A | Copper Alloy | UL94 V-0 | Male Pin | 0.039" (1.00mm) | 8 | - | All | Shrouded - 4 Wall | Latch Holder | - | - | - | 0.236" (6.00mm) | - | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 50V | 7.8mm | - | |||||||||||||||
 |
S10B-XADSS-N (LF)(SN) | 1.6900 | |
408 | 0.00000000 | JST Sales America Inc. | XAD | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S10B-XAD | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 234 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 10 | 0.098" (2.50mm) | All | Shrouded - 4 Wall | Locking Ramp | - | 0.134" (3.40mm) | - | 0.476" (12.10mm) | Circular | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250V | - | - | |||||||||||||||
 |
S10B-PUDSS-1(LF)(SN) | 0.6100 | |
20 | 0.00000000 | JST Sales America Inc. | PUD | Tray | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | Board Guide | S10B-PUD | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 2,750 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 10 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Latch Holder | - | 0.118" (3.00mm) | - | 0.335" (8.51mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250V | - | - | |||||||||||||||
 |
BM11B-ZESS-TBT(LF)(SN) | 0.7963 | |
5274 | 0.00000000 | JST Sales America Inc. | ZE | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Pick and Place, Solder Retention | BM11B-ZE | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 800 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Outer Shroud Contact | 0.059" (1.50mm) | 11 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.295" (7.50mm) | Rectangular | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 100V | 9.4mm | - | |||||||||||||||
|
BH4B-XH-2(LF)(SN) | 0.4600 | |
497 | 0.00000000 | JST Sales America Inc. | XH | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | BH4B-XH | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 300 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 4 | - | All | Shrouded - 4 Wall | Detent Lock | - | 0.134" (3.40mm) | - | 0.276" (7.00mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | 9.8mm | - | |||||||||||||||
 |
SM08B-SHLS-TF(LF)(SN) | 0.8600 | |
5 | 0.00000000 | JST Sales America Inc. | SHL | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | SM08B-SH | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 4,500 | Header | 1 | 1A | Phosphor Bronze | UL94 V-0 | Outer Shroud Contact | 0.039" (1.00mm) | 8 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.069" (1.75mm) | Rectangular | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 50V | - | - | |||||||||||||||
 |
BM07B-GVHS-TB(LF)(SN) | 0.2870 | |
2679 | 0.00000000 | JST Sales America Inc. | GVH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | BM07B-GV | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 2,500 | Header | 1 | 1A | Phosphor Bronze | UL94 V-0 | Outer Shroud Contact | 0.049" (1.25mm) | 7 | - | All | Shrouded - 4 Wall | Latch Holder | - | - | - | 0.159" (4.05mm) | Rectangular | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 50V | 8.8mm | - | |||||||||||||||
 |
B28B-PHDSS | - | |
2514 | 0.00000000 | JST Sales America Inc. | PHD | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole | - | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1364 | EAR99 | 8536.69.4040 | 250 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 28 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Detent Lock | 0.114" (2.90mm) | 0.118" (3.00mm) | 0.291" (7.40mm) | 0.256" (6.50mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA), Nylon, Glass Filled | Natural | 250V | 8.8mm | - | |||||||||||||||
 |
S24B-PHDSS | - | |
5937 | 0.00000000 | JST Sales America Inc. | PHD | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole, Right Angle | - | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1353 | EAR99 | 8536.69.4040 | 200 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 24 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Detent Lock | 0.114" (2.90mm) | 0.118" (3.00mm) | - | 0.197" (5.00mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA), Nylon, Glass Filled | Natural | 250V | - | - | |||||||||||||||
 |
PNDP-16V-Z | 0.2800 | |
679 | 0.00000000 | JST Sales America Inc. | PND | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | PNDP-16V | Ivory | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 300 | Receptacle | 0.079" (2.00mm) | 2 | 0.197" (5.00mm) | Female Socket | 16 | Latch Lock | Crimp | ||||||||||||||||||||||||||||||||||
 |
06T-JWPF-VSLE-D | 3.5800 | |
7 | 0.00000000 | JST Sales America Inc. | JWPF | Bulk | Active | -55°C ~ 85°C | Free Hanging (In-Line) | JIS C 0920 Grade Level 7 | 06T-JWPF | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Plug | 0.079" (2.00mm) | 2 | - | Male Pin | 6 | Latch Holder | Crimp | ||||||||||||||||||||||||||||||||||
 |
S10B-XH-A(LF)(SN) | 0.5600 | |
10 | 0.00000000 | JST Sales America Inc. | XH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S10B-XH | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 10 | - | All | Shrouded - 4 Wall | Detent Lock | - | 0.134" (3.40mm) | - | 0.240" (6.10mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | |||||||||||||||
 |
BS5P-SHF-1AA(LF)(SN) | 0.5000 | |
1 | 0.00000000 | JST Sales America Inc. | NH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | BS5P-SHF | Solder | - | Board to Cable/Wire | download | 1 (Unlimited) | 455-4200 | EAR99 | 8536.69.4040 | 500 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 5 | - | All | Unshrouded | Friction Lock | 0.217" (5.50mm) | 0.118" (3.00mm) | - | 0.220" (5.60mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | |||||||||||||||
|
04CZ-6H | 0.1286 | |
8093 | 0.00000000 | JST Sales America Inc. | CZ | Bulk | Active | Free Hanging (In-Line) | Closed End | 04CZ | Gray | download | RoHS Compliant | 1 (Unlimited) | Q1700344 | EAR99 | 8536.69.8000 | 2,000 | Receptacle | 0.059" (1.50mm) | 1 | - | Tin | - | Female Socket | 4 | - | 26-28 AWG | IDC | Discrete | |||||||||||||||||||||||||||||||
|
BS22P-SHF-1AA(LF)(SN) | 1.1827 | |
9337 | 0.00000000 | JST Sales America Inc. | NH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | BS22P-SH | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | BS22P-SHF-1AA (LF)(SN) | EAR99 | 8536.69.4040 | 150 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 22 | - | All | Unshrouded | Friction Lock | 0.217" (5.50mm) | 0.118" (3.00mm) | - | 0.220" (5.60mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | ||||||||||||||
 |
S9B-ZR | - | |
9616 | 0.00000000 | JST Sales America Inc. | ZH | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole, Right Angle | - | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1250 | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 1A | Brass | UL94 V-0 | Male Pin | 0.059" (1.50mm) | 9 | - | All | Shrouded - 4 Wall | Detent Lock | 0.094" (2.40mm) | 0.106" (2.69mm) | - | 0.146" (3.70mm) | Circular | Tin-Lead | - | Tin-Lead | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 50V | - | - | |||||||||||||||
 |
S5B-EH | - | |
2098 | 0.00000000 | JST Sales America Inc. | EH | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole, Right Angle | - | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1031 | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 5 | - | All | Shrouded - 3 Wall | Latch Lock | 0.157" (4.00mm) | 0.126" (3.20mm) | - | 0.165" (4.20mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | |||||||||||||||
 |
09ZR-8M-P | 0.6700 | |
1 | 0.00000000 | JST Sales America Inc. | ZR | Bulk | Active | Free Hanging (In-Line) | Closed End | 09ZR | Green | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 2,000 | Receptacle | 0.059" (1.50mm) | 1 | - | Tin | - | Female Socket | 9 | - | 28 AWG | IDC | Discrete | ||||||||||||||||||||||||||||||||
 |
XARP-05V | 0.1800 | |
991 | 0.00000000 | JST Sales America Inc. | XA | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | XARP | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.098" (2.50mm) | 1 | - | Female Socket | 5 | Latch Lock | Crimp | ||||||||||||||||||||||||||||||||||
|
RA-H161TD(LF)(SN) | - | |
3768 | 0.00000000 | JST Sales America Inc. | RA | Bulk | Active | -55°C ~ 125°C | - | Through Hole | Keying Slot | RA-H161T | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | Header | 2 | 1A | Brass | UL94 V-0 | Male Pin | 0.100" (2.54mm) | 16 | 0.100" (2.54mm) | All | Shrouded - 4 Wall | Latch Lock/Eject Hooks, Long | - | 0.118" (3.00mm) | - | 0.689" (17.50mm) | Square | Gold | Flash | - | Polybutylene Terephthalate (PBT), Glass Filled | Black | 300V | - | - | |||||||||||||||
|
XMS-08V(N) | 0.0747 | |
2615 | 0.00000000 | JST Sales America Inc. | XMA | Bulk | Active | - | XMS | Retainer | XMA Series | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | 8 | |||||||||||||||||||||||||||||||||||||||||||
 |
ZHR-6 | 0.1700 | |
31 | 0.00000000 | JST Sales America Inc. | ZH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | ZHR | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.059" (1.50mm) | 1 | - | Female Socket | 6 | - | Crimp |
