Single Diodes(58709)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Mounting Type | Package / Case | Base Product Number | Technology | Supplier Device Package | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Speed | Voltage - DC Reverse (Vr) (Max) | Voltage - Forward (Vf) (Max) @ If | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Current - Average Rectified (Io) | Capacitance @ Vr, F |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1N6677/TR | 4.5000 |  |
1771 | 0.00000000 | Microchip Technology | - | Tape & Reel (TR) | Active | Through Hole | DO-204AH, DO-35, Axial | Schottky | DO-35 (DO-204AH) | download | ROHS3 Compliant | REACH Unaffected | 150-1N6677/TR | EAR99 | 8541.10.0070 | 1 | Small Signal =< 200mA (Io), Any Speed | 40 V | 500 mV @ 200 mA | 5 µA @ 40 V | -65°C ~ 125°C | 200mA | 50pF @ 0V, 1MHz | ||||
 |
1N4590 | 35.5695 | |
3928 | 0.00000000 | GeneSiC Semiconductor | - | Bulk | Active | Chassis, Stud Mount | DO-205AA, DO-8, Stud | 1N4590 | Standard | DO-205AA (DO-8) | download | RoHS Compliant | 1 (Unlimited) | 1N4590GN | EAR99 | 8541.10.0080 | 10 | Standard Recovery >500ns, > 200mA (Io) | 400 V | 1.5 V @ 150 A | 9 mA @ 400 V | -60°C ~ 200°C | 150A | - | |||
 |
STPS640CSFY | 0.7300 | |
5 | 0.00000000 | STMicroelectronics | Automotive, AEC-Q101 | Tape & Reel (TR) | Active | Surface Mount | TO-277, 3-PowerDFN | STPS640 | Schottky | TO-277A (SMPC) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 497-STPS640CSFYTR | EAR99 | 8541.10.0080 | 6,000 | Fast Recovery =< 500ns, > 200mA (Io) | 40 V | 490 mV @ 3 A | 75 µA @ 40 V | -40°C ~ 150°C | 3A | - | ||
 |
DSEP30-12CR | 11.9800 | |
30 | 0.00000000 | IXYS | HiPerDynFRED™ | Tube | Active | Through Hole | ISOPLUS247™ | DSEP30 | Standard | ISOPLUS247™ (BR) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | DSEP3012CR | EAR99 | 8541.10.0080 | 30 | Fast Recovery =< 500ns, > 200mA (Io) | 1200 V | 4.98 V @ 30 A | 15 ns | 250 µA @ 1200 V | -55°C ~ 175°C | 30A | - | |
|
1N4593 | 102.2400 | |
7988 | 0.00000000 | Microchip Technology | - | Bulk | Active | Stud Mount | DO-205AA, DO-8, Stud | Standard | DO-205AA (DO-8) | download | REACH Unaffected | 150-1N4593 | EAR99 | 8541.10.0080 | 1 | Standard Recovery >500ns, > 200mA (Io) | 800 V | 1.1 V @ 200 A | 50 µA @ 800 V | -65°C ~ 200°C | 150A | - | |||||
 |
JANTX1N6630/TR | 15.2850 | |
9130 | 0.00000000 | Microchip Technology | Military, MIL-PRF-19500/590 | Tape & Reel (TR) | Active | Through Hole | E, Axial | Standard | E, Axial | - | ROHS3 Compliant | REACH Unaffected | 150-JANTX1N6630/TR | EAR99 | 8541.10.0080 | 1 | Fast Recovery =< 500ns, > 200mA (Io) | 900 V | 1.7 V @ 3 A | 50 ns | 2 µA @ 990 V | -65°C ~ 175°C | 3A | 40pF @ 10V, 1MHz | |||
 |
SE10DTGHM3/I | 1.2700 | |
297 | 0.00000000 | Vishay General Semiconductor - Diodes Division | Automotive, AEC-Q101 | Tape & Reel (TR) | Active | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab) Variant | Standard | SMPD | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 2,000 | Standard Recovery >500ns, > 200mA (Io) | 400 V | 1.15 V @ 10 A | 3 µs | 15 µA @ 400 V | -55°C ~ 175°C | 2.9A | 67pF @ 4V, 1MHz | |||
 |
S8M | 0.2965 | |
3 | 0.00000000 | Diotec Semiconductor | - | Tape & Reel (TR) | Active | Surface Mount | DO-214AB, SMC | Standard | SMC (DO-214AB) | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | 2796-S8MTR | 8541.10.0000 | 3,000 | Standard Recovery >500ns, > 200mA (Io) | 1000 V | 980 mV @ 8 A | 1.5 µs | 10 µA @ 1 V | -50°C ~ 150°C | 8A | - | |||
 |
SR009HB0G | - | |
8680 | 0.00000000 | Taiwan Semiconductor Corporation | Automotive, AEC-Q101 | Bulk | Active | Through Hole | DO-204AL, DO-41, Axial | SR009 | Schottky | DO-204AL (DO-41) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0070 | 1,000 | Fast Recovery =< 500ns, > 200mA (Io) | 90 V | 850 mV @ 500 mA | 100 µA @ 90 V | -55°C ~ 150°C | 500mA | 65pF @ 4V, 1MHz | |||
 |
STTH1R02RL | 0.4800 | |
3 | 0.00000000 | STMicroelectronics | - | Tape & Reel (TR) | Obsolete | Through Hole | DO-204AL, DO-41, Axial | STTH1 | Standard | DO-41 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 5,000 | Fast Recovery =< 500ns, > 200mA (Io) | 200 V | 1 V @ 1.5 A | 30 ns | 3 µA @ 200 V | 175°C (Max) | 1.5A | - | ||
 |
NSR0520V2T1G | 0.4400 | |
48 | 0.00000000 | onsemi | - | Tape & Reel (TR) | Active | Surface Mount | SC-79, SOD-523 | NSR0520 | Schottky | SOD-523 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0070 | 3,000 | Fast Recovery =< 500ns, > 200mA (Io) | 20 V | 480 mV @ 500 mA | 12 ns | 75 µA @ 20 V | -55°C ~ 125°C | 500mA | 35pF @ 1V, 1MHz | ||
|
1N485B | 3.5850 | |
1978 | 0.00000000 | Microchip Technology | - | Bulk | Active | Through Hole | DO-204AH, DO-35, Axial | 1N485 | Standard | DO-35 (DO-204AH) | download | RoHS non-compliant | REACH Unaffected | 1N485BMS | EAR99 | 8541.10.0070 | 1 | Small Signal =< 200mA (Io), Any Speed | 200 V | 1 V @ 100 mA | 1 µA @ 200 V | -65°C ~ 175°C | 200mA | - | |||
 |
S8JS-E3/I | 0.5700 | |
8726 | 0.00000000 | Vishay General Semiconductor - Diodes Division | - | Tape & Reel (TR) | Active | Surface Mount | DO-214AB, SMC | S8J | Standard | DO-214AB (SMC) | download | ROHS3 Compliant | 1 (Unlimited) | 3,500 | Standard Recovery > 500ns, > 2A (Io) | 600 V | 985 mV @ 8 A | 3.4 µs | 10 µA @ 600 V | -55°C ~ 150°C | 1.6A | 63pF @ 4V, 1MHz | |||||
 |
1N3261R | 21.0000 | |
50 | 0.00000000 | Solid State Inc. | - | Box | Active | Stud Mount | DO-205AB, DO-9, Stud | Standard, Reverse Polarity | DO-9 | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | 2383-1N3261R | EAR99 | 8541.10.0080 | 10 | Standard Recovery >500ns, > 200mA (Io) | 100 V | 1.3 V @ 300 A | 75 µA @ 100 V | -65°C ~ 190°C | 275A | - | |||
 |
JANTXV1N6761UR-1/TR | - | |
9329 | 0.00000000 | Microchip Technology | Military, MIL-PRF-19500/586 | Tape & Reel (TR) | Active | Surface Mount | DO-213AB, MELF (Glass) | Schottky | DO-213AB (MELF, LL41) | - | ROHS3 Compliant | REACH Unaffected | 150-JANTXV1N6761UR-1/TR | EAR99 | 8541.10.0080 | 1 | Fast Recovery =< 500ns, > 200mA (Io) | 100 V | 380 mV @ 100 mA | 100 µA @ 100 V | -65°C ~ 150°C | 1A | 70pF @ 5V, 1MHz | ||||
|
EGL34FHE3_A/H | - | |
2686 | 0.00000000 | Vishay General Semiconductor - Diodes Division | Automotive, AEC-Q101, Superectifier® | Tape & Reel (TR) | Active | Surface Mount | DO-213AA (Glass) | EGL34 | Standard | DO-213AA (GL34) | download | REACH Unaffected | EGL34FHE3_B/H | EAR99 | 8541.10.0070 | 2,500 | Fast Recovery =< 500ns, > 200mA (Io) | 300 V | 1.35 V @ 500 mA | 50 ns | 5 µA @ 300 V | -65°C ~ 175°C | 500mA | 7pF @ 4V, 1MHz | |||
 |

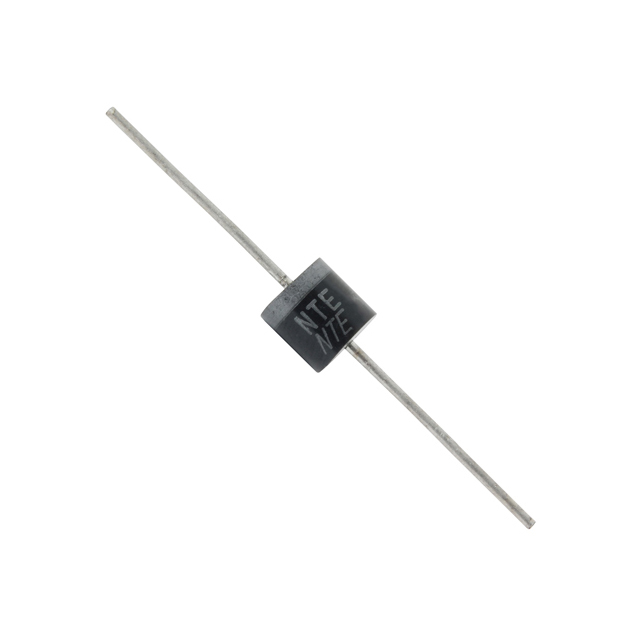

GI756 | 1.0000 | |
9 | 0.00000000 | NTE Electronics, Inc | - | Bag | Active | Through Hole | Axial | Standard | Axial | download | ROHS3 Compliant | 2368-GI756 | EAR99 | 8541.10.0080 | 1 | Standard Recovery >500ns, > 200mA (Io) | 600 V | 900 mV @ 6 A | 2.5 µs | 5 µA @ 600 V | -65°C ~ 175°C | 6A | 150pF @ 4V, 1MHz | ||||
 |
SS110 | 0.2100 | |
69 | 0.00000000 | SMC Diode Solutions | * | Tape & Reel (TR) | Active | Surface Mount | DO-214AC, SMA | Schottky | SMA (DO-214AC) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 5,000 | Fast Recovery =< 500ns, > 200mA (Io) | 100 V | 850 mV @ 1 A | 500 µA @ 100 V | -55°C ~ 150°C | 1A | 35pF @ 4V, 1MHz | ||||
 |
VS-70HFR10 | 8.0500 | |
5167 | 0.00000000 | Vishay General Semiconductor - Diodes Division | - | Bulk | Active | Chassis, Stud Mount | DO-203AB, DO-5, Stud | 70HFR10 | Standard, Reverse Polarity | DO-203AB (DO-5) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 100 | Standard Recovery >500ns, > 200mA (Io) | 100 V | 1.35 V @ 220 A | 15 mA @ 100 V | -65°C ~ 180°C | 70A | - | |||
 |
VS-8TQ060PBF | - | |
3906 | 0.00000000 | Vishay General Semiconductor - Diodes Division | - | Tube | Discontinued at SIC | Through Hole | TO-220-2 | 8TQ060 | Schottky | TO-220AC | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 60 V | 720 mV @ 8 A | 550 µA @ 60 V | -55°C ~ 175°C | 8A | - | |||
|
UFR7020 | 92.8050 | |
3276 | 0.00000000 | Microchip Technology | - | Bulk | Active | Stud Mount | DO-203AB, DO-5, Stud | UFR7020 | Standard | DO-5 | download | RoHS non-compliant | REACH Unaffected | EAR99 | 8541.10.0080 | 1 | Fast Recovery =< 500ns, > 200mA (Io) | 200 V | 975 mV @ 70 A | 50 ns | 25 µA @ 200 V | -65°C ~ 175°C | 70A | 300pF @ 10V, 1MHz | |||
 |
UF1M_R1_00001 | 0.4200 | |
1 | 0.00000000 | Panjit International Inc. | - | Tape & Reel (TR) | Active | Surface Mount | DO-214AA, SMB | UF1M | Standard | SMB (DO-214AA) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 800 | Fast Recovery =< 500ns, > 200mA (Io) | 1000 V | 1.7 V @ 1 A | 100 ns | 1 µA @ 1000 V | -55°C ~ 150°C | 1A | 17pF @ 4V, 1MHz | ||
 |
LL5818 L0G | - | |
6697 | 0.00000000 | Taiwan Semiconductor Corporation | - | Tape & Reel (TR) | Active | Surface Mount | DO-213AB, MELF | LL5818 | Schottky | MELF | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 5,000 | Fast Recovery =< 500ns, > 200mA (Io) | 30 V | 875 mV @ 3 A | 500 µA @ 30 V | -65°C ~ 125°C | 1A | 110pF @ 4V, 1MHz | |||
 |
UG2B-E3/54 | 0.4300 | |
3 | 0.00000000 | Vishay General Semiconductor - Diodes Division | - | Tape & Reel (TR) | Active | Through Hole | DO-204AC, DO-15, Axial | UG2 | Standard | DO-204AC (DO-15) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 4,000 | Fast Recovery =< 500ns, > 200mA (Io) | 100 V | 950 mV @ 2 A | 25 ns | 5 µA @ 100 V | -55°C ~ 150°C | 2A | - | ||
 |
PR1002L-T | - | |
9912 | 0.00000000 | Diodes Incorporated | - | Tape & Reel (TR) | Obsolete | Through Hole | DO-204AL, DO-41, Axial | PR1002 | Standard | DO-41 | - | 1 (Unlimited) | REACH Affected | EAR99 | 8541.10.0080 | 5,000 | Fast Recovery =< 500ns, > 200mA (Io) | 100 V | 1.2 V @ 1 A | 150 ns | 5 µA @ 100 V | -65°C ~ 150°C | 1A | 15pF @ 4V, 1MHz | |||
 |
BY229B-800-E3/81 | - | |
5867 | 0.00000000 | Vishay General Semiconductor - Diodes Division | - | Tape & Reel (TR) | Obsolete | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | BY229 | Standard | TO-263AB (D²PAK) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 800 | Fast Recovery =< 500ns, > 200mA (Io) | 800 V | 1.85 V @ 20 A | 145 ns | 10 µA @ 800 V | -40°C ~ 150°C | 8A | - | ||
 |
SMS540-3G | 0.1634 | |
7399 | 0.00000000 | Diotec Semiconductor | - | Tape & Reel (TR) | Active | Surface Mount | DO-213AB, MELF | Schottky | MELF DO-213AB | download | ROHS3 Compliant | 1 (Unlimited) | 2796-SMS540-3GTR | 8541.10.0000 | 5,000 | Fast Recovery =< 500ns, > 200mA (Io) | 40 V | 500 mV @ 5 A | 90 µA @ 40 V | -50°C ~ 150°C | 5A | - | |||||
 |
SBR5E60P5-13D | 0.1740 | |
8846 | 0.00000000 | Diodes Incorporated | - | Tape & Reel (TR) | Active | Surface Mount | PowerDI™ 5 | SBR5E60 | Super Barrier | PowerDI™ 5 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8541.10.0080 | 5,000 | Standard Recovery >500ns, > 200mA (Io) | 60 V | 520 mV @ 5 A | 220 µA @ 60 V | -55°C ~ 150°C | 5A | - | |||
 |
SS320A | 0.0500 | |
500 | 0.00000000 | Yangjie Technology | - | Tape & Reel (TR) | Active | - | RoHS Compliant | REACH Unaffected | 4617-SS320ATR | EAR99 | 5,000 |
