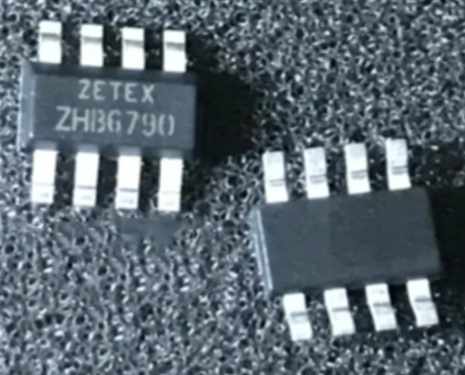

Diodes Incorporated ZHB6790TA's Features
Compact package
Low on - state losses
Low drive requirements
Operates up to 40 V supply
2 Amp continuous rating
Absolute maximum ratings of ZHB6790TA Diodes Incorporated
| Parameter | Symbol | NPNs | PNPs | Unit |
|---|---|---|---|---|
Collector - Base Voltage | V_CBO | 50 | -50 | V |
Collector - Emitter Voltage | V_CEO | 40 | -40 | V |
Emitter - Base Voltage | V_EBO | 5 | -5 | V |
Peak Pulse Current | I_CM | 6 | -6 | A |
Continuous Collector Current | I_C | 2 | -2 | A |
Operating and Storage Temperature Range | T_j;T_stg | -55 to +150 | °C |
Diodes Incorporated ZHB6790TA's Attribute
| Type | Description |
|---|---|
| Category | Discrete Semiconductor Products Transistors Bipolar (BJT) Bipolar Transistor Arrays |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) Cut Tape (CT) |
| Part Status | Active |
| Transistor Type | 2 NPN, 2 PNP (H-Bridge) |
| Current - Collector (Ic) (Max) | 2A |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 750mV @ 50mA, 2A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 1A, 2V |
| Power - Max | 1.25W |
| Frequency - Transition | 100MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-8 |
| Supplier Device Package | SM8 |
| Base Product Number | ZHB6790 |
Diodes Incorporated ZHB6790TA's Datasheet
Diodes Incorporated ZHB6790TA's Category - Transistor
A triode, also known as a transistor, is an electronic component made of semiconductor materials. Because it can convert weak electrical signals into signals with a certain strength, it is widely used in circuits as an electronic switch or amplifier. It has three pins, which are called the base, the collector, and the emitter respectively. There are mainly two types of triodes: the bipolar junction transistor (BJT) and the field - effect transistor (FET).
ZHB6790TA's Manufacturer - Diodes Incorporated
Diodes Incorporated delivers high-quality semiconductor products to the world’s leading companies in the automotive, industrial, computing, consumer electronics, and communications. They leverage their expanded product portfolio of discrete, analog, and mixed-signal products and leading-edge packaging technology to meet customers’ needs. Their broad range of application-specific solutions and solutions-focused sales, coupled with worldwide operations of 25 sites, including engineering, testing, manufacturing, and customer service, enables us to be a premier provider for high-volume, high-growth markets.
