Microchip Technology PIC16F15344-I/SS +BOM

The PIC16F15344 - I/SS is a microcontroller by Microchip Technology. It features a C - compiler - optimized RISC architecture, with 7KB flash memory, 512 - byte SRAM. It has multiple low - power modes and various peripherals like ADC, DAC, PWM, etc., suitable for industrial control, smart home, and communication applications.

Microchip Technology PIC16F15344-I/SS's Features

Powerful Core Performance: It adopts a RISC architecture optimized for the C compiler, enabling fast operation. The shortest instruction cycle can reach 125ns. It has a 16-level hardware stack and multiple addressing modes, allowing for efficient processing of various tasks. It supports interrupts, which can respond promptly when specific events occur, and automatically saves the context to ensure the continuity of program execution.
Abundant Memory Resources: It includes 7KB of flash program memory and 512 bytes of data SRAM. With a Memory Access Partition (MAP), it can achieve write protection and custom partitioning, enhancing data security and being suitable for data protection and bootloader applications. The Device Information Area (DIA) stores factory-calibrated values, which helps improve the accuracy of temperature sensors.
Low-Power Advantage: It has multiple low-power modes, such as DOZE, IDLE, and SLEEP modes, which can effectively reduce power consumption. In the SLEEP mode, the typical current is only 50nA (at 1.8V), making it suitable for applications with strict power consumption requirements.
Diverse Peripherals: It integrates a variety of analog and digital peripherals. For example, it has a 10-bit ADC that supports up to 43 external channels. Analog peripherals also include two comparators, a 5-bit DAC, etc. Digital peripherals include multiple PWMs, two EUSARTs, Configurable Logic Cells (CLC), etc., meeting the diverse needs of different applications.

Microchip Technology  PIC16F15344-I/SS's Applications

Industrial Control Field: By utilizing its multiple PWM outputs, it can precisely control the speed of motors, the opening degree of valves, etc. For example, in an automated production line, it controls the movement of robotic arms. By adjusting the motor through PWM signals, it can achieve precise positioning and operation. The zero-crossing detection module it possesses can simplify the control of TRIACs, making it suitable for industrial power control scenarios such as the speed regulation of AC motors.
Smart Home Devices: Thanks to its low-power consumption characteristics, it can be used in battery-powered devices such as smart door locks and smoke alarms, extending the device's battery life. The abundant I/O ports and the configurable logic cell (CLC) can conveniently connect various sensors and actuators, enabling intelligent control of devices. For instance, in a smart door lock, it can control the opening and closing of the lock and detect the status of the door.
Communication Field: The two EUSART interfaces support communication protocols such as RS-232, RS-485, and LIN, making it suitable for communication between devices in industrial communication and smart home systems, thus achieving reliable data transmission. For example, it enables the information interaction between smart home appliances and the central controller.



Microchip Technology  PIC16F15344-I/SS's Attributes

Program Memory Size (KB)7RAM (bytes)512
Data EEPROM (bytes)0Pin Count20
Operation Voltage Max.(V)5.5Operation Voltage Min.(V)1.8
Timers1 x 8-bit - 2 x 16-bitMax ADC Resolution (bits)10
ADC Channels17Zero Cross DetectYes
Number of Comparators2SPI1 -SPI
I2C1 -I2CStand alone PWM4
Low PowerYesNumerically Controlled Oscillator (NCO)1
Data Signal Modulator (DSM)0

Microchip Technology PIC16F15344-I/SS's Datasheet

Microchip Technology  PIC16F15344-ISS's Datasheet.png

Microchip Technology  PIC16F15344-I/SS's Category- Microcontrollers

Microcontrollers are the unsung heroes of the embedded world, serving as the brain of countless electronic devices. These compact integrated circuits combine a CPU, memory, peripherals, and I/O interfaces into a single chip, enabling efficient control over diverse systems. Ranging from simple 8-bit devices to high-performance 32-bit variants, microcontrollers cater to applications spanning from low-power sensors to complex industrial machinery. Their versatility lies in programmability, allowing developers to tailor functionality through software while leveraging built-in features like timers, ADCs, UART, and SPI to reduce external component dependencies.
Key advantages of microcontrollers include cost-effectiveness, energy efficiency, and rapid development cycles. For example, 8-bit microcontrollers excel in cost-sensitive applications like household appliances and automotive sensors, where simplicity and low power consumption are paramount. Meanwhile, 32-bit models, often based on ARM or RISC-V cores, handle more demanding tasks in IoT gateways, medical devices, and robotics, requiring higher processing power and advanced peripherals. The ecosystem around microcontrollers, including standardized development tools, libraries, and community support, further accelerates innovation, making them accessible to hobbyists and enterprises alike.
A prime example of this versatility is Microchip Technology’s PIC16F15344-I/SS, an 8-bit microcontroller from the PIC16F153xx family. Designed for low-power and cost-effective applications, it features 16 KB of Flash memory, 1.25 KB of SRAM, and a wide operating voltage range (1.8V–5.5V), making it suitable for battery-powered devices. The chip integrates advanced peripherals like a 12-bit ADC, USB 2.0 Full-Speed controller, and multiple communication interfaces (UART, SPI, I²C), enabling seamless connectivity in smart sensors or portable electronics. With its Energy Efficient XLP (eXtreme Low Power) technology, the PIC16F15344-I/SS achieves standby currents as low as 20 nA, extending battery life in IoT endpoints or wearable devices. Its compact SOIC-28 package and robust feature set exemplify how microcontrollers like this one continue to drive innovation in compact, power-efficient embedded systems, balancing performance with affordability for a wide range of applications.

PIC16F15344-I/SS's Manufactruer-Microchip Technology

Microchip Technology has been a trailblazer in the Microcontrollers domain. Since its establishment in 1989, it has continuously introduced innovative products. The company's PIC microcontroller series is particularly renowned. For example, the PIC16 series, with its decent performance and programmability, has found wide use in industrial control, medical devices, and automotive electronics. The PIC18 series, featuring compact structure, low power consumption, and easy development, is also popular across various sectors. These 8 - bit microcontrollers, along with the 16 - bit PIC24 series that offers higher computing performance and larger memory capacity, have catered to different application needs.Moreover, Microchip Technology's AVR - based microcontrollers, like the ATXMEGA series with its high - performance and low - power features, have also made a mark. In recent times, the company has ventured into 32 - bit microcontrollers such as the PIC32 series, which provides a wide range of product portfolios from entry - level to high - performance devices. These offer multiple connectivity options like CAN, USB, and Ethernet, enabling their use in more complex applications.One notable example is the PIC16F15344 - I/SS. It's designed for low - power and cost - effective applications, integrating advanced peripherals. This showcases Microchip Technology's ability to develop microcontrollers that balance performance, power consumption, and cost, driving the progress of the microcontroller field.

PIC16F15344-I/SS VS. PIC16F15344T-E/SO

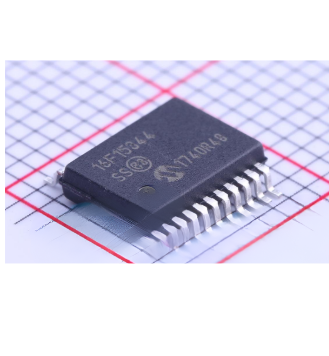

PicturePIC16F15344-I SS.png                   1742281867804526.png
Manufacturer Part NumberPIC16F15344-I/SS+BOMPIC16F15344T-E/SO +BOM
ManufacturerMicrochip Technology IncMicrochip Technology Inc
Pbfree CodeYes
Rohs CodeYes
Part Life Cycle CodeActiveActive
Ihs ManufacturerMICROCHIP TECHNOLOGY INCMICROCHIP TECHNOLOGY INC
Reach Compliance Codecompliantcompliant
ECCN CodeEAR993A991.A.2
HTS Code8542.31.00.018542.31.00.01
Samacsys ManufacturerMicrochip
Has ADCYESYES
Additional FeatureOPERATES AT 2.3 V
MINIMUM SUPPLY AT 16 MHz
OPERATES AT 2.3 V
MINIMUM SUPPLY AT 16 MHz
Bit Size88
Boundary ScanNONO
CPU FamilyPIC16PIC16
Clock Frequency-Max32 MHz32 MHz
DAC ChannelsYESYES
DMA ChannelsNONO
FormatFIXED POINTFIXED POINT
Integrated CacheNONO
JESD-30 CodeR-PDSO-G20R-PDSO-G20
JESD-609 Codee3
Length7.2 mm12.8 mm
Low Power ModeYESYES
Number of External Interrupts11
Number of I/O Lines1818
Number of Serial I/Os22
Number of Terminals2020
Number of Timers55
On Chip Data RAM Width88
On Chip Program ROM Width88
Operating Temperature-Max85 °C125 °C
Operating Temperature-Min-40 °C-40 °C
PWM ChannelsYESYES
Package Body MaterialPLASTIC/EPOXYPLASTIC/EPOXY
Package CodeSSOPSOP
Package Equivalence CodeSSOP20,.3SOP20,.4
Package ShapeRECTANGULARRECTANGULAR
Package StyleSMALL OUTLINE,
SHRINK PITCH
SMALL OUTLINE
RAM (bytes)512512
ROM (words)71687168
ROM ProgrammabilityFLASHFLASH
Seated Height-Max2 mm2.65 mm
Speed32 MHz32 MHz
Supply Current-Max3.6 mA3.6 mA
Supply Voltage-Max5.5 V5.5 V
Supply Voltage-Min3 V2.5 V
Supply Voltage-Nom3 V3 V
Surface MountYESYES
TechnologyCMOSCMOS
Temperature GradeINDUSTRIALAUTOMOTIVE
Terminal FinishMatte Tin (Sn)
Terminal FormGULL WINGGULL WING
Terminal Pitch0.65 mm1.27 mm
Terminal PositionDUALDUAL
Width5.3 mm7.5 mm
uPs/uCs/Peripheral ICs TypeMICROCONTROLLER, RISCMICROCONTROLLER, RISC
Base Number Matches11
