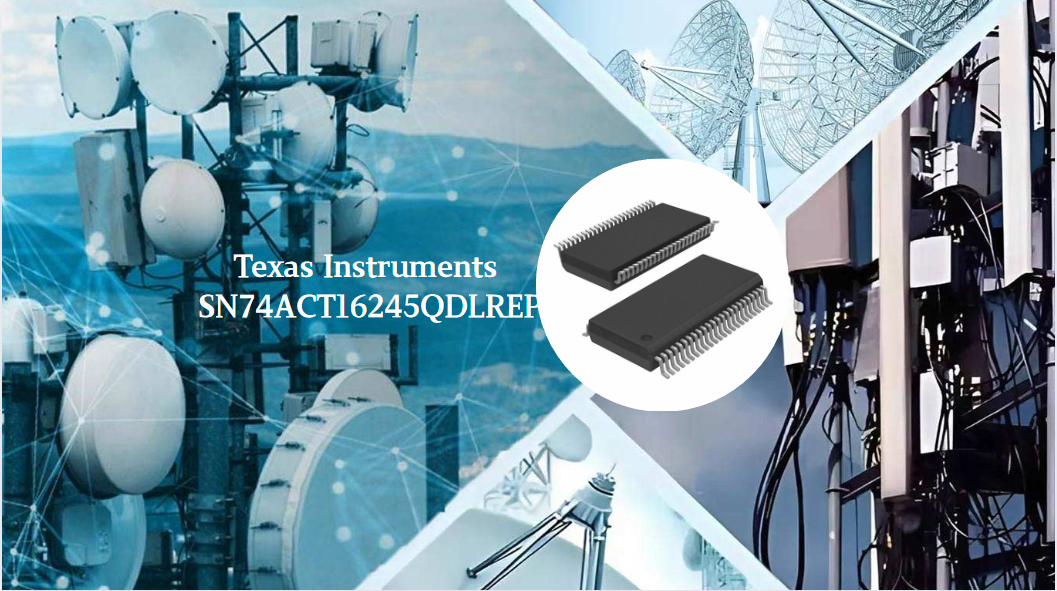

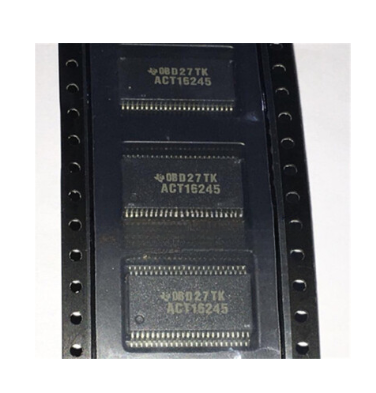

Texas Instruments SN74ACT16245QDLREP +BOM
The Texas Instruments SN74ACT16245QDLREP is a high-performance 16-bit bus transceiver. Designed for harsh industrial and automotive environments, it operates reliably from -40°C to +125°C. With its dual 8-bit non-inverting 3-state architecture, it enables efficient bidirectional data transfer. It offers TTL compatibility, low noise operation, and excellent bus driving capabilities, making it ideal for high-speed data communication in demanding applications.
Texas Instruments SN74ACT16245QDLREP's Features
The SN74ACT16245QDLREP from Texas Instruments is a high-performance 16-bit bus transceiver, specifically designed for industrial and automotive applications in harsh environments. The following is a summary of its core features:
Reliability in a Wide Temperature Range
Operating temperature range: -40°C to +125°C, suitable for both high and low-temperature environments.
It has component certification in line with JEDEC industry standards and has passed accelerated life tests such as HAST (Highly Accelerated Stress Test) and temperature cycling, ensuring long-term stability.
Bidirectional Data Transmission
It features a dual 8-bit non-inverting three-state transceiver architecture, supporting asynchronous bidirectional bus communication.
The data flow direction (A→B or B→A) is controlled by the DIR pin, and the G pin can completely isolate the bus.
TTL Compatibility and Bus Driving Capability
The input is compatible with TTL voltage, and the output has a three-state design, allowing it to directly drive bus lines.
It supports bidirectional data transmission and has a through-hole architecture that optimizes PCB layout.
Low Noise Design
The distributed VCC and GND pin configuration reduces noise interference during high-speed switching.
It is suitable for high-frequency data transmission scenarios.
Enhanced Manufacturing Support
It provides enhanced support for DMS (Decrease Manufacturing Source) issues to ensure long-term supply stability.
It has a well-established product change notification mechanism, which is convenient for customers to manage supply chain risks.
Packaging and Compatibility
It is packaged in SSOP (DL) and comes in tape and reel packaging, compliant with the RoHS standard.
It is a member of the Texas Instruments Widebus family and is pin-compatible with other devices in the same series.
Technical Specifications
Power supply voltage: 4.5V to 5.5V (VCC)
Input voltage range: -0.5V to VCC + 0.5V
Output current: ±24mA (continuous)
Operating temperature: -40°C to +125°C
Texas Instruments SN74ACT16245QDLREP's Applications
Computer Systems: In computer architectures, it can be used for data communication between different components such as the CPU, memory, and peripheral devices. For example, it can transmit data between the memory bus and the I/O bus, ensuring proper data flow and isolation when needed. It helps in optimizing the PCB layout with its flow - through architecture, which is beneficial in complex computer motherboard designs.
Industrial Automation: In industrial control systems, this transceiver can be used to connect different control units, sensors, and actuators. It allows for reliable data transmission between various devices in harsh industrial environments, with its extended temperature performance from - 40°C to 125°C enabling operation in extreme conditions. It can also handle the asynchronous two - way communication required between different parts of the automation system.
Telecommunications Equipment: In telecom devices like routers, switches, and base stations, the SN74ACT16245QDLREP can be used for data transmission between different modules or boards. It helps in ensuring the integrity of data signals and provides the necessary isolation and bus - driving capabilities. The 3 - state outputs are useful for managing the bus lines efficiently in a multi - device communication scenario.
Test and Measurement Equipment: When designing test instruments such as oscilloscopes, logic analyzers, and signal generators, this transceiver can be used to interface different sub - systems. It allows for accurate data transfer between the measurement circuitry and the display or control units. The enhanced Diminishing Manufacturing Sources (DMS) support ensures the long - term availability and reliability of the component in these types of equipment.
Texas Instruments SN74ACT16245QDLREP's Datasheet

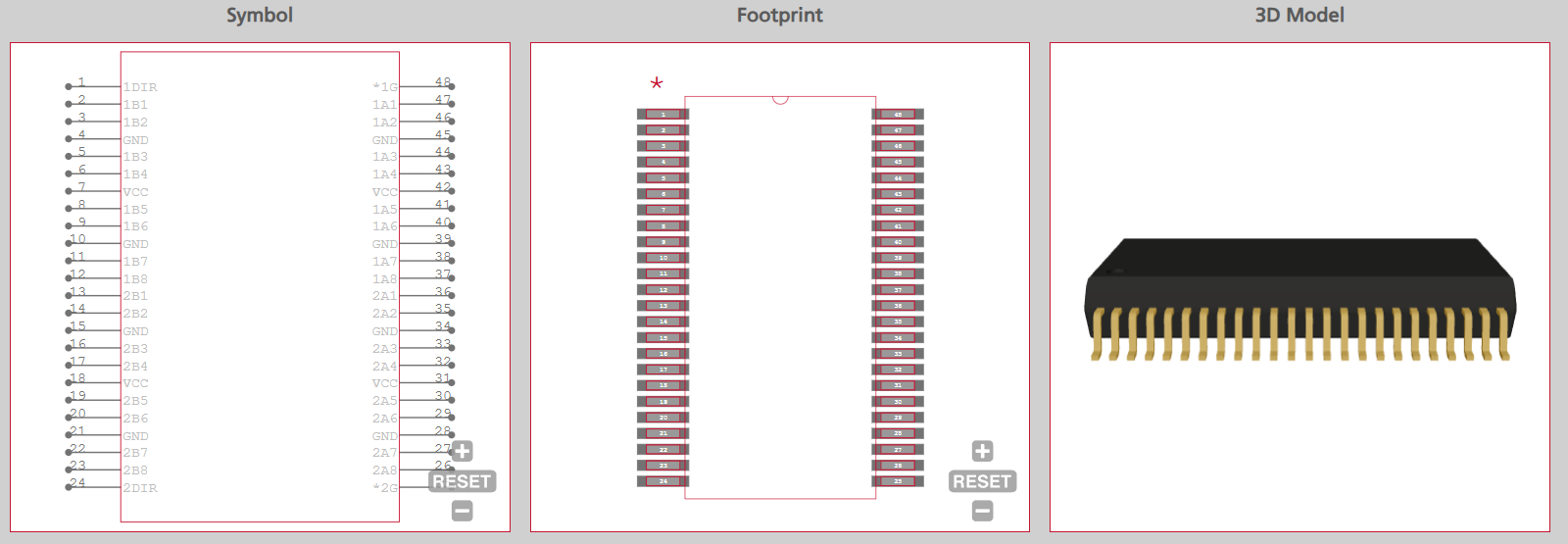

Texas Instruments SN74ACT16245QDLREP's Pinouts
Power and Ground Pins:
VCC: This pin is connected to the power supply, which typically operates in the range of 4.5V to 5.5V. It provides the necessary electrical power for the device to function.
GND: The ground pin serves as the electrical reference point for the chip. It is connected to the ground plane of the circuit board to complete the electrical circuit.
- Data Pins:
A0 - A7: These are the input/output pins for data bus A. They can be used to transmit or receive data depending on the direction control.
B0 - B7: These are the input/output pins for data bus B, similar to A0 - A7, but for the other data bus.
Control Pins:
DIR: The direction control pin. When this pin is high, data is transferred from bus A to bus B (A→B). When it is low, data is transferred from bus B to bus A (B→A).
G: The output enable/disable pin. When this pin is low, the outputs are enabled, allowing data to be transferred between the buses. When it is high, the outputs are in a high - impedance state, effectively isolating the buses from each other.
Why Choose Texas Instruments SN74ACT16245QDLREP？
There are several compelling reasons to choose the Texas Instruments SN74ACT16245QDLREP 16-bit bus transceiver:
- Reliability in Harsh Environments: With an operating temperature range of -40°C to +125°C, it can function reliably in extreme cold or hot conditions, making it suitable for industrial and automotive applications where temperature variations are common. Its compliance with JEDEC industry standards and successful passing of accelerated life tests like HAST and temperature cycling further ensure long-term stability and durability.
- Efficient Bidirectional Data Transmission: The dual 8-bit non-inverting three-state transceiver architecture enables seamless asynchronous bidirectional bus communication. The ability to control data flow direction via the DIR pin and completely isolate the bus using the G pin provides flexibility and precision in managing data transfer, which is crucial for complex system operations.
- TTL Compatibility and Strong Driving Capability: Being TTL voltage-compatible at the input and having a three-state output design allows it to directly interface with and drive bus lines without additional complex circuitry. This simplifies the design process and reduces component count, saving both space and cost on the printed circuit board (PCB). The support for bidirectional data transfer and the optimized through-hole architecture for PCB layout further enhance its usability.
- Low Noise Performance: The distributed VCC and GND pin configuration helps in minimizing noise interference during high-speed switching operations. This is particularly important in applications that involve high-frequency data transmission, as it ensures signal integrity and reduces the risk of errors, leading to more stable and reliable system performance.
- Enhanced Manufacturing and Supply Chain Support: Texas Instruments' enhanced support for DMS (Decrease Manufacturing Source) issues means a more stable long-term supply. The comprehensive product change notification mechanism also allows customers to better manage supply chain risks, ensuring that their projects are not disrupted due to unexpected component changes.
- Packaging and Compatibility: The SSOP (DL) package with tape and reel packaging is convenient for automated manufacturing processes. Additionally, being compliant with the RoHS standard makes it an environmentally friendly choice. Its membership in the Texas Instruments Widebus family and pin compatibility with other devices in the series offer design flexibility and the potential for easy upgrades or replacements in the future.
- Appropriate Technical Specifications: With a power supply voltage range of 4.5V to 5.5V (VCC), a suitable input voltage range, and an output current of ±24mA (continuous), it can meet the electrical requirements of many typical applications. The defined operating temperature range also aligns well with its intended use cases in industrial and automotive sectors.
Texas Instruments SN74ACT16245QDLREP's Category-16-Bit Bus Transceiver
A 16-bit bus transceiver plays a crucial role in modern digital systems by enabling efficient data transfer between different components. These transceivers are designed to manage the flow of data on a 16-bit bus, ensuring seamless communication in complex electronic devices.
One of the key functions of a 16-bit bus transceiver is its ability to support bidirectional data transmission. This allows for flexible data movement between various parts of a system, such as between a microcontroller and memory modules or peripheral devices. Additionally, many 16-bit bus transceivers feature three-state outputs, which can be placed in a high-impedance state. This enables multiple devices to share the same bus without interference, enhancing system scalability and design flexibility.
Another important aspect is compatibility. Most 16-bit bus transceivers are designed to be compatible with standard logic levels like TTL or CMOS, making them easy to integrate into existing systems. They also often offer features to reduce noise and improve signal integrity, especially in high-speed data transfer scenarios.
The Texas Instruments SN74ACT16245QDLREP stands out among 16-bit bus transceivers. With its wide operating temperature range, excellent TTL compatibility, and robust control features like the DIR and G pins, it is well-suited for industrial and automotive applications. Its low noise design and enhanced manufacturing support further add to its appeal, making it a reliable choice for engineers looking to build high-performance digital systems.
SN74ACT16245QDLREP's Manufacturer-Texas Instruments
Texas Instruments (TI) has achieved remarkable feats in the Bus Transceiver domain. It offers a broad range of transceivers tailored for diverse applications.
In the industrial and automotive sectors, TI's CAN (Controller Area Network) transceivers like the ISO 1042 and ISO 1042 - Q1 are standouts. They combine bus fault protection with high common - mode transient immunity, boasting ±70 VDC bus fault protection and a ±30 V common - mode voltage range. Their reinforced isolation options and ability to operate in noisy environments make them ideal for systems such as grid infrastructure, motor drives, and hybrid/electric vehicles.
For data communication, TI introduced the world's first extended common - mode RS - 485 transceivers in the SN65HVD2x family. These devices have a common - mode voltage range more than double the TIA/EIA - 485 requirements, suitable for long - cable applications in harsh industrial settings like factory automation and security networks. They support high signaling rates, with the SN65HVD20 reaching up to 25 Mbps, and offer features like high ESD protection and failsafe operation.
The SN74ACT16245QDLREP, designed for harsh conditions, is part of TI's wide - ranging portfolio. Its contributions, along with the rest of TI's products, have made the company a dominant force in the bus transceiver market, providing reliable, high - performance solutions for engineers globally.
Alternate Parts for SN74ACT16245QDLREP
| Part Number | Manufacturer | Description |
|---|---|---|
| 74ACT16245DLRG4 | Texas Instruments | 16-Bit Bus Transceivers With 3-State Outputs, 48-SSOP, -40 to 85 |
| 74ACTQ16245SSCX | Texas Instruments | ACT SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, 0.300 INCH, SSOP-48 |
| 74ACT16245SSC | Fairchild Semiconductor Corporation | Bus Transceiver, ACT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, MO-118, SSOP-48 |
| SN74ACT16245QDL | Texas Instruments | ACT SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, 0.300 INCH, SSOP-48 |
| 74ACTQ16245SSC | Texas Instruments | ACT SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, 0.300 INCH, SSOP-48 |
SN74ACT16245QDLREP VS. 74ACT16245DL
| Pictures |  |  |
| Parts | SN74ACT16245QDLREP +BOM | 74ACT16245DL +BOM |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | Obsolete |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | NXP SEMICONDUCTORS |
| Part Package Code | SSOP | |
| Package Description | GREEN, PLASTIC, SSOP-48 | |
| Pin Count | 48 | |
| Reach Compliance Code | compliant | unknown |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | 8542.39.00.01 |
| Samacsys Manufacturer | Texas Instruments | |
| Control Type | COMMON CONTROL | |
| Count Direction | BIDIRECTIONAL | |
| Family | ACT | ACT |
| JESD-30 Code | R-PDSO-G48 | R-PDSO-G48 |
| JESD-609 Code | e4 | |
| Length | 15.875 mm | 15.875 mm |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS TRANSCEIVER | BUS TRANSCEIVER |
| Max I(ol) | 0.008 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 16 | 2 |
| Number of Ports | 2 | 2 |
| Number of Terminals | 48 | 48 |
| Operating Temperature-Max | 125 °C | 85 °C |
| Operating Temperature-Min | -40 °C | -40 °C |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package Code | SSOP | SSOP |
| Package Equivalence Code | SSOP48,.4 | |
| Package Shape | RECTANGULAR | RECTANGULAR |
| Package Style | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.016 mA | |
| Prop. Delay@Nom-Sup | 11.5 ns | |
| Propagation Delay (tpd) | 11.5 ns | 9 ns |
| Qualification Status | Not Qualified | Not Qualified |
| Schmitt Trigger | YES | |
| Seated Height-Max | 2.79 mm | 2.8 mm |
| Supply Voltage-Max (Vsup) | 5.5 V | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V | 5 V&l
