In the vast and intricate realm of digital electronics, integrated circuits (ICs) serve as the building blocks that enable the creation of complex and powerful systems. Among these, the IC 7408 holds a special place as a fundamental component in digital logic design. This article aims to provide a comprehensive understanding of the IC 7408, covering its basic concept, pin diagram, truth table, working principle, features, applications, and more. Whether you are a novice in the field of electronics or a seasoned engineer, this guide will equip you with the knowledge to effectively utilize the IC 7408 in your projects.
Basic Concept of IC 7408
This simple yet powerful logic operation forms the basis for many digital circuits. For example, in a security system, an AND gate can be used to ensure that an alarm is triggered only when both a motion sensor and a door - open sensor are activated simultaneously. The 7408 IC, with its four such AND gates, provides a convenient and compact way to implement multiple AND - logic operations in a single circuit.

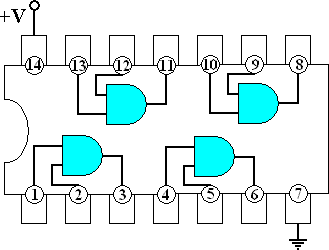

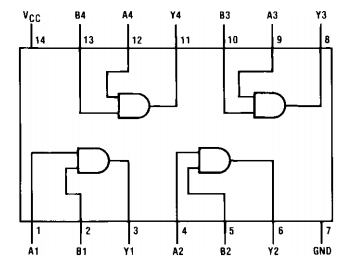

Pin Diagram of IC 7408
The IC 7408 is typically packaged in a 14 - pin Dual Inline Package (DIP). Each pin has a specific function, which is crucial to understand for proper circuit connection.
| Pin No. | Pin Name | Description |
| 1 | A Input Gate 1 | The first input for the first AND gate |
| 2 | B Input Gate 1 | The second input for the first AND gate |
| 3 | Y Output Gate 1 | The output for the first AND gate |
| 4 | A Input Gate 2 | The first input for the second AND gate |
| 5 | B Input Gate 2 | The second input for the second AND gate |
| 6 | Y Output Gate 2 | The output for the second AND gate |
| 7 | Ground | Connected to the ground or the negative side of the power supply |
| 8 | Y Output Gate 3 | The output for the third AND gate |
| 9 | B Input Gate 3 | The second input for the third AND gate |
| 10 | A Input Gate 3 | The first input for the third AND gate |
| 11 | Y Output Gate 4 | The output for the fourth AND gate |
| 12 | B Input Gate 4 | The second input for the fourth AND gate |
| 13 | A Input Gate 4 | The first input for the fourth AND gate |
| 14 | Vcc - Positive Supply | Connected to the positive side of the power supply |
This 14-pin configuration allows the 7408 IC to house four independent AND gates, making it a compact and efficient component for performing logical operations in various digital circuits. The dual in-line package (DIP) of the IC is designed for easy insertion into breadboards or soldering onto printed circuit boards (PCBs). The clear separation of each gate's input and output pins on the IC makes it convenient for circuit designers to utilize the 7408 in complex designs without interference between gates.
Truth Table of IC 7408
| Input A | Input B | Output Y |
|---|---|---|
| 0 (Low) | 0 (Low) | 0 (Low) |
| 0 (Low) | 1 (High) | 0 (Low) |
| 1 (High) | 0 (Low) | 0 (Low) |
| 1 (High) | 1 (High) | 1 (High) |
The truth table is a fundamental tool for understanding and designing digital circuits. It allows engineers to predict the output of a circuit based on the input values, which is essential for troubleshooting and optimizing circuit performance.
Working Principle of IC 7408
Input Stage: Each AND gate has a multi - emitter transistor at the input stage. The emitters of this transistor are connected to the input pins (e.g., for Gate 1, the emitters are connected to A1 and B1). When both inputs are high (logic level 1), the base - emitter junctions of the multi - emitter transistor are forward - biased. This causes current to flow through the transistor.
Output Stage: The output stage of the AND gate consists of a totem - pole output configuration. It has an upper pull - up transistor and a lower pull - down transistor. When current flows through the multi - emitter transistor in the input stage (i.e., when both inputs are high), the lower pull - down transistor in the output stage is turned on. This pulls the output voltage close to the ground level (logic level 0). When either one or both of the inputs are low, the multi - emitter transistor in the input stage does not conduct, and the upper pull - up transistor in the output stage turns on. This pulls the output voltage close to the VCC level (logic level 1).
In essence, the 7408 IC uses the electrical properties of transistors to implement the logical AND operation. The use of TTL technology provides advantages such as relatively high - speed operation and good noise immunity, making the 7408 suitable for a wide range of digital applications.
Features And Specifications of IC 7408
IC 7408 Features
Multiple AND Gates: As a quad 2 - input AND gate, the 7408 provides four independent AND gates in a single package. This reduces the component count in a circuit, simplifies the PCB layout, and can also reduce the overall cost of the circuit.
Compatibility: The 7408 is compatible with other logic families such as CMOS (Complementary Metal - Oxide - Semiconductor) and NMOS (N - Channel Metal - Oxide - Semiconductor). This allows for easy integration into a wide variety of digital systems. However, when interfacing with CMOS circuits, some additional considerations may be required, such as level shifting, to ensure proper operation.
High Noise Immunity: TTL - based devices like the 7408 are known for their high noise immunity. They can tolerate a certain amount of electrical noise on the input lines without affecting the output logic. This makes them suitable for use in environments where there may be electromagnetic interference, such as industrial settings.
High - Speed Switching: The 7408 has a relatively fast switching speed. The propagation delay, which is the time it takes for a change in the input to be reflected in the output, is typically in the range of 10 - 15 nanoseconds. This makes it suitable for applications where quick response times are required, such as in digital data processing and communication systems.
Fan - out Capability: The 7408 has a fan - out of 10 TTL loads. Fan - out refers to the number of standard TTL inputs that the output of the IC can drive. This means that the output of each AND gate in the 7408 can be connected to up to 10 other TTL - compatible inputs without the need for additional buffering or amplification.
Wide Operating Temperature Range: The IC 7408 can operate over a relatively wide temperature range, typically from 0°C to 70°C. This makes it suitable for use in a variety of applications, from consumer electronics to industrial control systems. There are also extended - temperature versions available that can operate in even more extreme conditions.
IC 7408 Specifications
7408 Integrated Circuit Specification | Description |
Type | Quad 2-Input AND Gate |
Number of Gates | 4 independent AND gates |
Number of Pins | 14 |
Supply Voltage (Vcc) | Typically 4.75V to 5.25V (TTL level) |
Input Voltage (High) | Minimum 2V (for a high-level input) |
Input Voltage (Low) | Maximum 0.8V (for a low-level input) |
Output Voltage (High) | Close to Vcc (when output is high) |
Output Voltage (Low) | Close to 0V (when output is low) |
Operating Temperature | Usually 0°C to 70°C |
Fan-out | 10 TTL loads |
Propagation Delay | Approximately 10-15 ns |
Power Dissipation | About 10-20 mW per gate |
Package Type | Dual In-line Package (DIP) |
Applications of IC 7408
Digital Logic Gates: The 7408 is, at its core, used for implementing AND logic gates. These gates are fundamental in digital circuit design and are used to build more complex logic functions. For example, in a digital comparator circuit, AND gates can be used to compare two binary numbers bit - by - bit.
Binary Counters: In a binary counter circuit, AND gates can be used in combination with flip - flops to control the counting sequence. The 7408 can be used to implement the logic that determines when the counter should increment or reset.
Multiplexers: Multiplexers are circuits that select one of several input signals and forward it to the output. AND gates are used in the control logic of multiplexers to determine which input should be selected based on the control signals. The 7408 can be used to implement these AND - based control functions.
Flip - flops: Flip - flops are basic memory elements in digital circuits. AND gates are used in the construction of flip - flops to control the set, reset, and clock inputs. The 7408 can be used to implement the necessary AND logic for flip - flop operation.
Bus Driver/Receiver: In a digital system with a common bus, bus drivers and receivers are used to interface different components to the bus. AND gates can be used in the control logic of these drivers and receivers to ensure proper data transfer. The 7408 can be used to implement such control functions.
Address Decoders: Address decoders are used in memory systems to select a specific memory location based on the address inputs. AND gates are used in the decoder logic to decode the address bits. The 7408 can be used to build these address decoder circuits.
Data Latches: Data latches are used to store data temporarily. AND gates are used in the control logic of data latches to control when the data is loaded into the latch. The 7408 can be used to implement this control logic.
Educational and Experimental Projects: Due to its simplicity and fundamental nature, the 7408 is widely used in educational settings to teach digital logic concepts. Students can use it to build basic digital circuits and learn about the operation of AND gates, as well as more complex digital systems.
Absolute Maximum Ratings of IC 7408
The IC 7408's absolute maximum ratings define the critical operational limits to prevent permanent damage or performance degradation. These ratings include:
| Supply Voltage | 7V |
| Input Voltage | 5.5V |
| Operating Free Air Temperature | 0°C to +70°C |
| Storage Temperature Range | -65°C to +150°C |
| Maximum Propagation Delay | 10 ns |
| High speed operation | up to 10 MHz |
Supply Voltage (Vcc): The maximum allowable supply voltage is 7V, exceeding the recommended 5V by 40%. Exceeding this may cause thermal runaway or transistor breakdown.
Input Voltage: Inputs must not exceed 5.5V, as voltages beyond this can forward-bias the input protection diodes, leading to excessive current flow and potential burnout.
Operating Temperature: The commercial-grade 7408 functions between 0°C and 70°C. Prolonged operation beyond 70°C increases transistor leakage, risking logic errors, while below 0°C, reduced carrier mobility may slow switching speeds.
Storage Temperature: The IC withstands -65°C to 150°C during storage, but extreme temperatures can degrade package materials or alter internal component characteristics.
Propagation Delay: While not a stress rating, the maximum propagation delay of 10ns at high speeds ensures timing integrity; exceeding recommended frequencies (up to 10MHz) may cause setup/hold time violations.
Output Current: Each output can sink up to 16mA (LOW state) or source 400μA (HIGH state). Exceeding these limits strains the totem-pole output stage, potentially damaging transistors.
Adhering to these ratings is crucial. For example, applying 7V to Vcc for extended periods may melt internal solder joints, while input voltages above 5.5V can short the protection diodes. Always ensure operating conditions stay within these bounds to maintain reliability and longevity.
Operation of the 7408 Integrated Circuit
The IC 7408 operates via Transistor-Transistor Logic (TTL), housing four 2-input AND gates. Each gate uses a multi-emitter transistor at the input stage: when both inputs are high (≥2V), the transistor’s emitters are reverse-biased, allowing current to flow to the output stage. The output stage features a totem-pole configuration: a pull-down transistor conducts, pulling the output low (≤0.4V). If either input is low (≤0.8V), the input transistor’s emitter forward-biases, cutting off the pull-down transistor and activating the pull-up transistor, driving the output high (≥2.4V). With a propagation delay of 10–15ns, it drives 10 TTL loads, consuming 40–80mW. Its TTL design offers noise immunity but restricts operation to 4.75–5.25V, making it suitable for classic digital systems where reliability outweighs modern low-power needs.
IC 7408 Equivalent
Equivalent alternatives to the IC 7408 include the ICs 74LS08, HEF4081, SN7408, 74HC08, 74HCT08, CD4081, MC14008 and SN54LS08. Either of the two chips can be reconfigured to function as an AND gate. To transform them into an AND gate, the two gate inputs are detached from their original bases. Subsequently, the inputs are linked to buttons, allowing for the alteration of input logic. The output of the AND gate manifests as the voltage across the resistor. This output is then linked to an LED, serving as an indicator to discern the state of the output.
| Model | Technology Type | Voltage Range | Power Consumption | Delay | Core Advantages |
|---|---|---|---|---|---|
| 7408 | Standard TTL | 4.75-5.25V | 40-80mW | 10-15ns | Classic design with strong compatibility. |
| 74LS08 | Low-power Schottky TTL | 4.75-5.25V | 8-16mW | 8ns | Low power consumption and high speed. |
| 74HC08 | High-speed CMOS | 2-6V | Microwatt-level (static) | 5-15ns | Wide voltage range and low power consumption. |
| 74HCT08 | TTL-compatible CMOS | 2-6V | Microwatt-level (static) | 5-15ns | TTL input compatibility with CMOS low power consumption. |
| CD4081 | Wide-voltage CMOS | 3-18V | Microwatt-level (static) | 40-70ns | Ultra-wide voltage range, directly drives small loads. |
| HEF4081 | Industrial-grade CMOS | 3-18V | Microwatt-level (static) | 40-70ns | Wide temperature range, suitable for industrial environments. |
| SN54LS08 | Military-grade low-power TTL | 4.75-5.25V | 8-16mW | 8ns | Wide temperature range (-55°C to 125°C). |
Design Considerations when Using IC 7408
Power Supply: As mentioned earlier, the 7408 operates on a 5V power supply with a tolerance range. It is crucial to ensure that the power supply voltage is within this range to prevent damage to the IC and ensure proper operation. Additionally, proper power decoupling should be implemented. A 0.1μF ceramic capacitor should be connected between the VCC and GND pins of the 7408 to filter out high - frequency noise. This helps to stabilize the power supply and prevent any electrical noise from affecting the logic operation of the IC.
Input and Output Loading: The 7408 has a limited fan - out capability of 10 TTL loads. When connecting the outputs of the 7408 to other components, it is important not to exceed this fan - out limit. If more loads need to be driven, buffer circuits or additional gates may be required. Similarly, the input pins of the 7408 should not be over - loaded with excessive capacitance or resistance, as this can affect the input signal levels and the overall performance of the IC.
Unused Inputs: Unused input pins of the AND gates in the 7408 should not be left floating. Floating inputs can pick up electrical noise, which may cause the output to toggle unpredictably. Unused inputs should be connected to either VCC (through a pull - up resistor, typically 10kΩ) or GND (through a pull - down resistor) to ensure a defined logic level.
Timing Considerations: The propagation delay of the 7408 should be taken into account in high - speed digital circuits. In circuits where precise timing is critical, such as in synchronous digital systems, the propagation delay can affect the overall system timing and synchronization. Designers may need to adjust the clock frequency or add additional delay elements to compensate for the propagation delay of the 7408.
What Should the Inputs be like in 7408 for the Output to be High?
To achieve a high output in the 7408 integrated circuit, both inputs of the respective AND gate must be in the high logic state. The 7408 employs Transistor-Transistor Logic (TTL), defining a high input as a voltage of at least 2.0V (within its 4.75–5.25V supply range). When both inputs of a 2-input AND gate are high, the multi-emitter input transistor is reverse-biased, enabling current flow to the output stage. This activates the pull-up transistor in the totem-pole configuration, driving the output to a high level (≥2.4V).
If either input is low (≤0.8V), the input transistor forward-biases, cutting off the pull-up transistor and engaging the pull-down transistor, which sinks current and pulls the output low. The 7408’s TTL design requires careful input biasing: floating inputs may inadvertently register as high due to noise, but for reliable operation, unused inputs should be tied to Vcc (high) through a 1kΩ resistor. This ensures consistent logic levels and prevents unexpected output states, maintaining the AND gate’s fundamental behavior: high outputs only when all inputs are high.
IC 7408 Package
The IC 7408 is commonly packaged in a 14-pin Dual In-line Package (DIP), a classic through-hole format with two parallel rows of seven pins each. The DIP package features a notch or dimple at one end for pin orientation, with pin 1 located adjacent to the notch. This design ensures easy insertion into breadboards or soldering onto PCBs, making it ideal for prototyping and educational projects. The package dimensions typically measure around 19mm in length and 6.5mm in width, with a pin pitch of 2.54mm (0.1 inch), conforming to standard industry spacing.
For surface-mount applications, the 7408 is also available in Small Outline Integrated Circuit (SOIC) packages, which reduce board space while maintaining functional compatibility. Both DIP and SOIC packages are constructed from epoxy or plastic materials, providing mechanical protection and thermal stability within the IC’s operating range (0–70°C). The package design ensures proper heat dissipation for the 40–80mW power consumption, while pin configurations strictly follow the 7400 series standard, allowing seamless integration with other TTL components.
IC 7408 Manufacturer
IC 7408 is manufactured by multiple semiconductor companies. The main manufacturers are as follows:
Texas Instruments (TI): As a leading global designer and manufacturer of semiconductor and computer technology products, TI offers a wide range of products, including the 74xx series integrated circuits, and the 7408 is among them.
Fairchild Semiconductor: It is one of the pioneers in the semiconductor industry, with a history of producing 74xx series logic integrated circuits. After being acquired by On Semiconductor, the products and technologies originally of Fairchild Semiconductor continue to be developed and marketed under the On Semiconductor brand, so On Semiconductor also produces 7408.
NXP Semiconductors: Originated from Philips Semiconductors, NXP is also a well - known manufacturer of logic integrated circuits, which produces 7408 integrated circuits that meet standard specifications.
STMicroelectronics: A global semiconductor company, STMicroelectronics manufactures a variety of integrated circuits, covering the 74xx series, and its product line includes 7408.
In addition, there are other companies such as Diodes Incorporated that may also produce 7408 or its equivalent products.
Advantages of IC 7408
The IC 7408, a quintessential TTL (Transistor-Transistor Logic) component, offers enduring advantages that solidify its role in digital electronics. Its simplicity and fundamental logic architecture stand out: as a quad 2-input AND gate, it executes the core Boolean function \(Y = A \cdot B\) with clarity, where the output is high only when both inputs are high. This straightforward operation makes it ideal for educational purposes, hobbyist projects, and legacy systems, requiring minimal design expertise to implement.
Robust compatibility with TTL ecosystems is another key strength. Operating at 5V with standardized input/output levels (VIH ≥2V, VOL ≤0.4V), the 7408 seamlessly integrates with other 74xx series components like flip-flops and decoders. Its industry-standard 14-pin DIP package (and surface-mount variants) ensures easy prototyping on breadboards or PCB integration, maintaining compatibility across decades of digital design.
The 7408 delivers reliable performance in medium-speed applications with a propagation delay of 10–15ns, suitable for clock frequencies up to 10MHz. Its strong drive capability (sinking 16mA/ sourcing 400μA) allows direct connection to LEDs, relays, or up to 10 TTL loads, eliminating the need for additional buffers.
Cost-effectiveness and wide availability further enhance its appeal. Manufactured by Texas Instruments, NXP, and STMicroelectronics, the 7408 remains affordable and accessible, making it a go-to choice for budget-sensitive projects. While modern CMOS alternatives offer lower power consumption, the 7408’s durability, noise immunity, and ease of use continue to justify its relevance in industrial control systems, ed
