Inductors, Coils, Chokes(11963)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Tolerance Operating Temperature Ratings Size / Dimension Height - Seated (Max) Mounting Type Package / Case Type Base Product Number Frequency - Self Resonant Supplier Device Package DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Current Rating (Amps) Shielding Material - Core Inductance Current - Saturation (Isat) DC Resistance (DCR) Q @ Freq Inductance Frequency - Test
RLB0608-181KL Bourns Inc. RLB0608-181KL 0.1811
RFQ
 ECAD 9402 0.00000000 Bourns Inc. RLB Bulk Active ±10% -40°C ~ 105°C - 0.197" Dia (5.00mm) 0.295" (7.50mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound RLB0608 4.2MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.4000 800 235 mA Unshielded Ferrite 180 µH - 2.3Ohm Max 50 @ 796kHz 796 kHz
RLB0608-330KL Bourns Inc. RLB0608-330KL 0.1811
RFQ
 ECAD 1084 0.00000000 Bourns Inc. RLB Bulk Active ±10% -40°C ~ 105°C - 0.197" Dia (5.00mm) 0.295" (7.50mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound RLB0608 8MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.4000 800 410 mA Unshielded Ferrite 33 µH - 850mOhm Max 50 @ 2.52MHz 2.52 MHz
RLB0608-390KL Bourns Inc. RLB0608-390KL 0.1811
RFQ
 ECAD 9547 0.00000000 Bourns Inc. RLB Bulk Active ±10% -40°C ~ 105°C - 0.197" Dia (5.00mm) 0.295" (7.50mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound RLB0608 7.5MHz - download ROHS3 Compliant Not Applicable REACH Unaffected -RLB0608-390KL EAR99 8504.50.4000 800 390 mA Unshielded Ferrite 39 µH - 900mOhm Max 50 @ 2.52MHz 2.52 MHz
RLB0712-270KL Bourns Inc. RLB0712-270KL 0.1656
RFQ
 ECAD 6716 0.00000000 Bourns Inc. RLB Bulk Active ±10% -40°C ~ 105°C - 0.264" Dia (6.70mm) 0.433" (11.00mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound RLB0712 8MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.4000 400 650 mA Unshielded Ferrite 27 µH - 130mOhm Max 20 @ 2.52MHz 1 kHz
RLB0712-330KL Bourns Inc. RLB0712-330KL 0.4100
RFQ
 ECAD 3 0.00000000 Bourns Inc. RLB Bulk Active ±10% -40°C ~ 105°C - 0.264" Dia (6.70mm) 0.433" (11.00mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound RLB0712 7MHz - download ROHS3 Compliant Not Applicable REACH Unaffected RLB0712330KL EAR99 8504.50.4000 400 600 mA Unshielded Ferrite 33 µH - 150mOhm Max 20 @ 2.52MHz 1 kHz
RLB0712-471KL Bourns Inc. RLB0712-471KL 0.4100
RFQ
 ECAD 1 0.00000000 Bourns Inc. RLB Bulk Active ±10% -40°C ~ 105°C - 0.264" Dia (6.70mm) 0.433" (11.00mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound RLB0712 2MHz - download ROHS3 Compliant Not Applicable REACH Unaffected RLB0712471KL EAR99 8504.50.4000 400 160 mA Unshielded Ferrite 470 µH - 1.5Ohm Max 20 @ 796kHz 1 kHz
RLB0812-103KL Bourns Inc. RLB0812-103KL 0.4500
RFQ
 ECAD 45 0.00000000 Bourns Inc. RLB Bulk Active ±10% -40°C ~ 105°C - 0.264" Dia (6.70mm) 0.433" (11.00mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound RLB0812 360kHz - download ROHS3 Compliant Not Applicable REACH Unaffected RLB0812103KL EAR99 8504.50.4000 400 34 mA Unshielded Ferrite 10 mH - 39Ohm Max 60 @ 79.6kHz 79.6 kHz
RLB0812-271KL Bourns Inc. RLB0812-271KL 0.1811
RFQ
 ECAD 5967 0.00000000 Bourns Inc. RLB Bulk Active ±10% -40°C ~ 105°C - 0.264" Dia (6.70mm) 0.433" (11.00mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound RLB0812 2.8MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.4000 400 220 mA Unshielded Ferrite 270 µH - 1.4Ohm Max 45 @ 796kHz 796 kHz
RLB0912-1R0ML Bourns Inc. RLB0912-1R0ML 0.4800
RFQ
 ECAD 710 0.00000000 Bourns Inc. RLB Bulk Active ±20% -40°C ~ 105°C - 0.343" Dia (8.70mm) 0.433" (11.00mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound RLB0912 88MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.4000 200 6 A Unshielded Ferrite 1 µH 8.1A 10mOhm Max 30 @ 7.96MHz 1 kHz
RLB1314-472KL Bourns Inc. RLB1314-472KL 0.6200
RFQ
 ECAD 660 0.00000000 Bourns Inc. RLB Bulk Active ±10% -40°C ~ 105°C - 0.461" Dia (11.70mm) 0.512" (13.00mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound RLB1314 760kHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.4000 130 140 mA Unshielded Ferrite 4.7 mH - 5.6Ohm Max 50 @ 252kHz 1 kHz
CW100505-12NJ Bourns Inc. CW100505-12NJ 0.3500
RFQ
 ECAD 58 0.00000000 Bourns Inc. CW100505 Tape & Reel (TR) Active ±5% -55°C ~ 125°C - 0.039" L x 0.022" W (1.00mm x 0.55mm) 0.024" (0.60mm) Surface Mount 0402 (1005 Metric) Drum Core, Wirewound CW100505 3.6GHz 0402 (1005 Metric) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 10,000 640 mA Unshielded Ceramic 12 nH - 120mOhm 26 @ 250MHz 250 MHz
CW100505-22NJ Bourns Inc. CW100505-22NJ 0.3500
RFQ
 ECAD 9 0.00000000 Bourns Inc. CW100505 Tape & Reel (TR) Active ±5% -55°C ~ 125°C - 0.039" L x 0.022" W (1.00mm x 0.55mm) 0.024" (0.60mm) Surface Mount 0402 (1005 Metric) Drum Core, Wirewound CW100505 2.8GHz 0402 (1005 Metric) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 10,000 400 mA Unshielded Ceramic 22 nH - 300mOhm 25 @ 250MHz 250 MHz
5300-37-RC Bourns Inc. 5300-37-RC 1.4100
RFQ
 ECAD 4836 0.00000000 Bourns Inc. 5300 Bulk Active ±10% -55°C ~ 105°C - 0.160" Dia x 0.500" L (4.06mm x 12.70mm) - Through Hole Axial Drum Core, Wirewound 5300 1MHz - download ROHS3 Compliant Not Applicable REACH Unaffected 530037RC EAR99 8504.50.4000 500 160 mA Unshielded Ferrite 1 mH 95mA 7.9Ohm Max - 1 kHz
PM127SH-100M-RC Bourns Inc. PM127SH-100M-RC 1.2800
RFQ
 ECAD 1 0.00000000 Bourns Inc. PM127SH Tape & Reel (TR) Active ±20% -40°C ~ 125°C - 0.492" L x 0.492" W (12.50mm x 12.50mm) 0.315" (8.00mm) Surface Mount Nonstandard Drum Core, Wirewound PM127SH 17MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 400 6 A Shielded Ferrite 10 µH 6.3A 19.5mOhm Max 24 @ 2.52MHz 100 kHz
4624-RC Bourns Inc. 4624-RC -
RFQ
 ECAD 5539 0.00000000 Bourns Inc. 4600 Bulk Obsolete ±5% -55°C ~ 105°C - 0.290" Dia x 0.875" L (7.37mm x 22.22mm) - Through Hole Axial Drum Core, Wirewound 4624 33MHz - download ROHS3 Compliant Not Applicable REACH Unaffected 4624RC EAR99 8504.50.4000 100 1 A Unshielded Iron 15 µH - 170mOhm Max 62 @ 2.52MHz 2.52 MHz
4628-RC Bourns Inc. 4628-RC -
RFQ
 ECAD 2268 0.00000000 Bourns Inc. 4600 Bulk Obsolete ±5% -55°C ~ 105°C - 0.290" Dia x 0.875" L (7.37mm x 22.22mm) - Through Hole Axial Drum Core, Wirewound 4628 20MHz - download ROHS3 Compliant Not Applicable REACH Unaffected 4628RC EAR99 8504.50.4000 100 600 mA Unshielded Iron 39 µH - 650mOhm Max 70 @ 2.52MHz 2.52 MHz
70F685AI-RC Bourns Inc. 70F685AI-RC -
RFQ
 ECAD 8820 0.00000000 Bourns Inc. 70F Bulk Obsolete ±5% -55°C ~ 105°C - 0.180" Dia x 0.250" L (4.57mm x 6.35mm) - Through Hole Axial Drum Core, Wirewound 70F 8.1MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 50 169 mA Unshielded Iron 68 µH - 4.2Ohm Max 42 @ 2.5MHz 2.5 MHz
70F121AF-RC Bourns Inc. 70F121AF-RC -
RFQ
 ECAD 2537 0.00000000 Bourns Inc. 70F Bulk Obsolete ±5% -55°C ~ 105°C - 0.480" Dia x 0.880" L (12.20mm x 22.35mm) - Through Hole Axial Drum Core, Wirewound 70F 84kHz - download ROHS3 Compliant Not Applicable REACH Unaffected 70F121AFRC EAR99 8504.50.8000 132 48 mA Unshielded Ferrite 120 mH - 288Ohm Max 46 @ 25kHz 25 kHz
70F124AI-RC Bourns Inc. 70F124AI-RC -
RFQ
 ECAD 9639 0.00000000 Bourns Inc. 70F Bulk Obsolete ±5% -55°C ~ 105°C - 0.160" Dia x 0.250" L (4.06mm x 6.35mm) - Through Hole Axial Drum Core, Wirewound 70F 3.2MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 50 135 mA Unshielded Iron 120 µH - 8.16Ohm Max 40 @ 790kHz 790 kHz

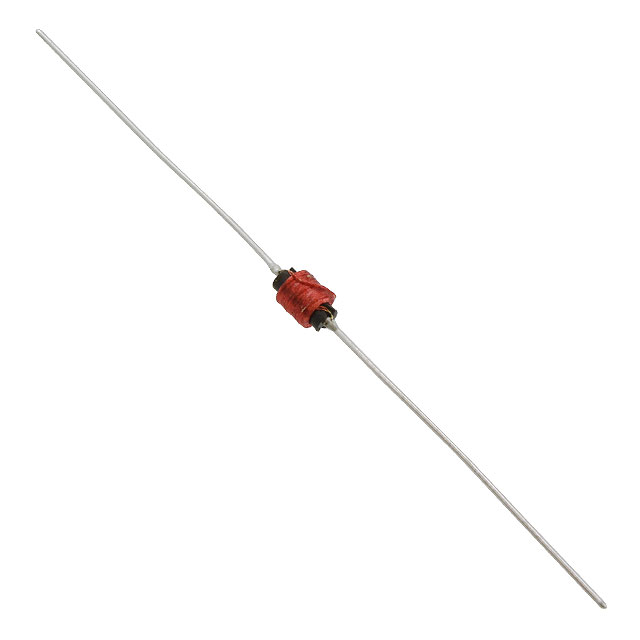

70F504AI-RC Bourns Inc. 70F504AI-RC -
RFQ
 ECAD 7340 0.00000000 Bourns Inc. 70F Bulk Obsolete ±5% -55°C ~ 105°C - 0.190" Dia x 0.250" L (4.83mm x 6.35mm) - Through Hole Axial Drum Core, Wirewound 70F 1.8MHz - download ROHS3 Compliant Not Applicable REACH Unaffected 70F504AIRC EAR99 8504.50.8000 50 91 mA Unshielded Iron 500 µH - 18Ohm Max 49 @ 790kHz 790 kHz
70F825AI-RC Bourns Inc. 70F825AI-RC -
RFQ
 ECAD 2874 0.00000000 Bourns Inc. 70F Bulk Obsolete ±5% -55°C ~ 105°C - 0.180" Dia x 0.250" L (4.57mm x 6.35mm) - Through Hole Axial Drum Core, Wirewound 70F 6.7MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 50 158 mA Unshielded Iron 82 µH - 4.8Ohm Max 41 @ 2.5MHz 2.5 MHz
70F182AI-RC Bourns Inc. 70F182AI-RC -
RFQ
 ECAD 9742 0.00000000 Bourns Inc. 70F Bulk Obsolete ±5% -55°C ~ 105°C - 0.320" Dia x 0.500" L (8.13mm x 12.70mm) - Through Hole Axial Drum Core, Wirewound 70F 290kHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 144 44 mA Unshielded Iron 18 mH - 128Ohm Max 49 @ 79kHz 79 kHz
70F565AI-RC Bourns Inc. 70F565AI-RC -
RFQ
 ECAD 4747 0.00000000 Bourns Inc. 70F Bulk Obsolete ±5% -55°C ~ 105°C - 0.180" Dia x 0.250" L (4.57mm x 6.35mm) - Through Hole Axial Drum Core, Wirewound 70F 8.6MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 50 176 mA Unshielded Iron 56 µH - 3.84Ohm Max 45 @ 2.5MHz 2.5 MHz
70F255AI-RC Bourns Inc. 70F255AI-RC -
RFQ
 ECAD 9612 0.00000000 Bourns Inc. 70F Bulk Obsolete ±5% -55°C ~ 105°C - 0.170" Dia x 0.250" L (4.32mm x 6.35mm) - Through Hole Axial Drum Core, Wirewound 70F 13MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 50 213 mA Unshielded Iron 25 µH - 2.64Ohm Max 48 @ 2.5MHz 2.5 MHz
70F273AI-RC Bourns Inc. 70F273AI-RC -
RFQ
 ECAD 9552 0.00000000 Bourns Inc. 70F Bulk Obsolete ±5% -55°C ~ 105°C - 0.260" Dia x 0.380" L (6.60mm x 9.65mm) - Through Hole Axial Drum Core, Wirewound 70F 880kHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 144 57 mA Unshielded Iron 2.7 mH - 45.6Ohm Max 50 @ 250kHz 250 kHz
70F756AI-RC Bourns Inc. 70F756AI-RC -
RFQ
 ECAD 5442 0.00000000 Bourns Inc. 70F Bulk Obsolete ±10% -55°C ~ 105°C - 0.150" Dia x 0.250" L (3.81mm x 6.35mm) - Through Hole Axial Drum Core, Wirewound 70F 44MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 250 566 mA Unshielded Iron 7.5 µH - 624mOhm Max 32 @ 7.9MHz 7.9 MHz

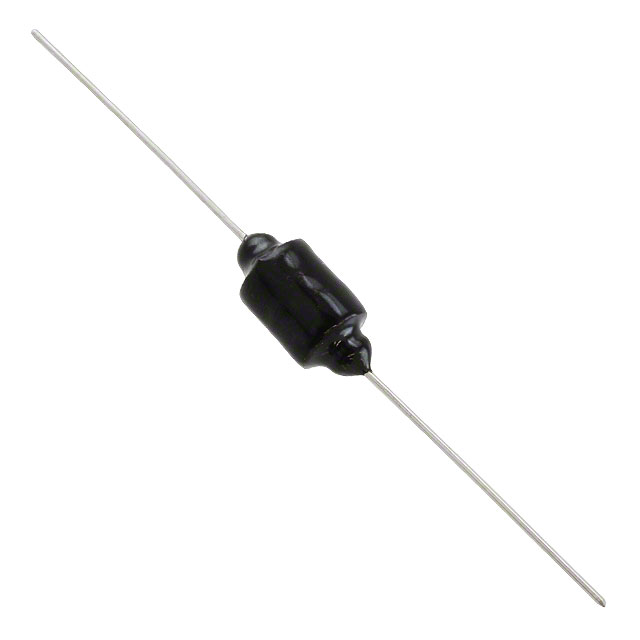

70F502AF-RC Bourns Inc. 70F502AF-RC 6.7700
RFQ
 ECAD 142 0.00000000 Bourns Inc. 70F Bulk Active ±5% -55°C ~ 105°C - 0.400" Dia x 0.630" L (10.16mm x 16.00mm) - Through Hole Axial Drum Core, Wirewound 70F 196kHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 600 37 mA Unshielded Ferrite 50 mH - 175Ohm Max 57 @ 79kHz 79 kHz
SRN6045-330M Bourns Inc. SRN6045-330M 0.5700
RFQ
 ECAD 62 0.00000000 Bourns Inc. SRN6045 Tape & Reel (TR) Active ±20% -40°C ~ 125°C - 0.236" L x 0.236" W (6.00mm x 6.00mm) 0.177" (4.50mm) Surface Mount Nonstandard Drum Core, Wirewound SRN6045 9MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 1,000 1.4 A Semi-Shielded Ferrite 33 µH 1.5A 188mOhm Max 17 @ 2.52MHz 100 kHz
SRN6045-680M Bourns Inc. SRN6045-680M 0.5700
RFQ
 ECAD 84 0.00000000 Bourns Inc. SRN6045 Tape & Reel (TR) Active ±20% -40°C ~ 125°C - 0.236" L x 0.236" W (6.00mm x 6.00mm) 0.177" (4.50mm) Surface Mount Nonstandard Drum Core, Wirewound SRN6045 6MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 1,000 900 mA Semi-Shielded Ferrite 68 µH 1A 351mOhm Max 13 @ 2.52MHz 100 kHz
SRN8040-100M Bourns Inc. SRN8040-100M 0.7500
RFQ
 ECAD 12 0.00000000 Bourns Inc. SRN8040 Tape & Reel (TR) Active ±20% -40°C ~ 125°C - 0.315" L x 0.315" W (8.00mm x 8.00mm) 0.157" (4.00mm) Surface Mount Nonstandard Drum Core, Wirewound SRN8040 18MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 1,000 3.1 A Semi-Shielded Ferrite 10 µH 3.4A 50mOhm Max 20 @ 2.52MHz 100 kHz
