Inductors, Coils, Chokes(11963)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Tolerance Operating Temperature Ratings Size / Dimension Height - Seated (Max) Mounting Type Package / Case Type Features Base Product Number Frequency - Self Resonant Supplier Device Package DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Current Rating (Amps) Shielding Height Material - Core Inductance Current - Saturation (Isat) DC Resistance (DCR) Q @ Freq Inductance Frequency - Test Number of Coils DC Resistance (DCR) - Parallel DC Resistance (DCR) - Series Inductance - Connected In Parallel Inductance - Connected In Series Current Rating - Parallel Current Rating - Series Current Saturation - Parallel Current Saturation - Series
6000-470K Bourns Inc. 6000-470K -
RFQ
 ECAD 4684 0.00000000 Bourns Inc. 6000 Bulk Obsolete ±10% -55°C ~ 105°C - 0.354" Dia (9.00mm) 0.480" (12.20mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound 6000 6.5MHz - download RoHS non-compliant Not Applicable REACH Unaffected M6015 EAR99 8504.50.8000 100 1.77 A Unshielded Ferrite 47 µH - 160mOhm Max 30 @ 2.52MHz 2.52 MHz
5800-181-TR-RC Bourns Inc. 5800-181-TR-RC -
RFQ
 ECAD 6207 0.00000000 Bourns Inc. 5800 Tray Obsolete ±10% -55°C ~ 105°C - 0.275" Dia x 0.700" L (6.99mm x 17.78mm) - Through Hole Axial Drum Core, Wirewound 5800 - - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 500 500 mA Unshielded Ferrite 180 µH 900mA 520mOhm Max - 1 kHz
PM125SH-331M Bourns Inc. PM125SH-331M -
RFQ
 ECAD 2146 0.00000000 Bourns Inc. PM125SH Tape & Reel (TR) Obsolete ±20% -30°C ~ 100°C - 0.492" L x 0.492" W (12.50mm x 12.50mm) 0.256" (6.50mm) Surface Mount Nonstandard Drum Core, Wirewound PM125SH - - download RoHS non-compliant 1 (Unlimited) REACH Unaffected PM125SH331M EAR99 8504.50.4000 500 680 mA Shielded Ferrite 330 µH - 510mOhm Max - 1 kHz
5724 Bourns Inc. 5724 -
RFQ
 ECAD 3627 0.00000000 Bourns Inc. 5700 Bulk Obsolete ±15% -55°C ~ 105°C - 0.875" Dia x 0.437" W (22.22mm x 11.10mm) - Through Hole Radial, Vertical (Open) Toroidal 5700 - - download RoHS non-compliant Not Applicable REACH Unaffected M5724 EAR99 8504.50.8000 12 1.75 A Unshielded Iron Powder 4 mH - 1.16Ohm Max - 1 kHz
CI160808-68NJ Bourns Inc. CI160808-68NJ 0.1000
RFQ
 ECAD 624 0.00000000 Bourns Inc. CI160808 Tape & Reel (TR) Not For New Designs ±5% -55°C ~ 125°C - 0.063" L x 0.031" W (1.60mm x 0.80mm) 0.037" (0.95mm) Surface Mount 0603 (1608 Metric) Multilayer CI160808 700MHz 0603 (1608 Metric) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 4,000 300 mA Unshielded Ceramic 68 nH - 1.2Ohm Max 10 @ 100MHz 100 MHz
1130-3R9M Bourns Inc. 1130-3R9M -
RFQ
 ECAD 5738 0.00000000 Bourns Inc. 1130 Bulk Obsolete ±20% -55°C ~ 105°C - 1.100" Dia (27.94mm) 0.840" (21.34mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound 1130 - - download RoHS non-compliant Not Applicable REACH Unaffected M6290 EAR99 8504.50.8000 42 21 A Unshielded Ferrite 3.9 µH - 3mOhm Max - 1 kHz

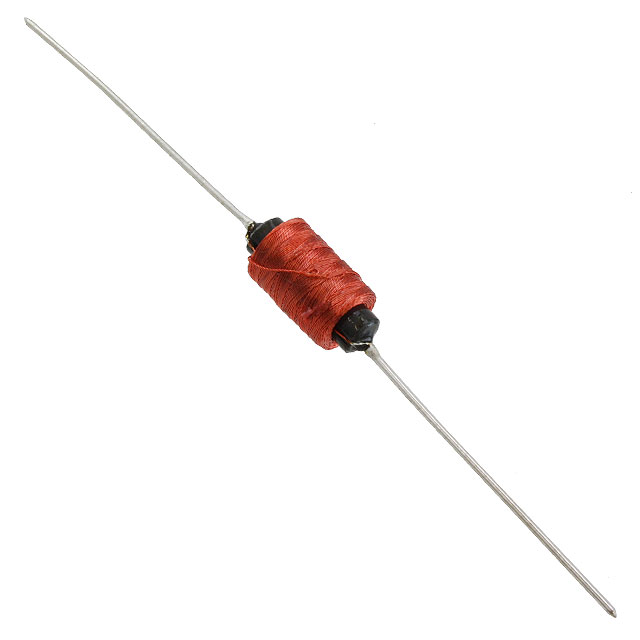

70F272AF-RC Bourns Inc. 70F272AF-RC -
RFQ
 ECAD 8440 0.00000000 Bourns Inc. 70F Bulk Obsolete ±5% -55°C ~ 105°C - 0.350" Dia x 0.630" L (8.89mm x 16.00mm) - Through Hole Axial Drum Core, Wirewound 70F 244kHz - download ROHS3 Compliant Not Applicable REACH Unaffected 70F272AFRC EAR99 8504.50.8000 204 45 mA Unshielded Ferrite 27 mH - 120Ohm Max 61 @ 79kHz 79 kHz
PM3604-50-B Bourns Inc. PM3604-50-B -
RFQ
 ECAD 5396 0.00000000 Bourns Inc. PM3600 Bulk Obsolete ±20% -55°C ~ 125°C - 0.550" L x 0.452" W (13.97mm x 11.48mm) Surface Mount Nonstandard PM3604 download RoHS non-compliant 1 (Unlimited) REACH Unaffected M1230 EAR99 8504.50.8000 700 Unshielded 0.265" (6.73mm) 2 120mOhm Max 480mOhm Max 50 µH 200 µH 1.28 A 640 mA
SRP1250-1R5M Bourns Inc. SRP1250-1R5M 0.9383
RFQ
 ECAD 8005 0.00000000 Bourns Inc. SRP1250 Tape & Reel (TR) Active ±20% -55°C ~ 150°C - 0.547" L x 0.531" W (13.90mm x 13.50mm) 0.232" (5.90mm) Surface Mount Nonstandard Drum Core, Wirewound SRP1250 - - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 500 23 A Shielded Iron 1.5 µH 48A 4.1mOhm Max - 100 kHz
SDR7030-221K Bourns Inc. SDR7030-221K 0.3989
RFQ
 ECAD 8717 0.00000000 Bourns Inc. SDR7030 Tape & Reel (TR) Active ±10% -40°C ~ 125°C - 0.276" L x 0.276" W (7.00mm x 7.00mm) 0.130" (3.30mm) Surface Mount Nonstandard Drum Core, Wirewound SDR7030 9MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 1,500 320 mA Unshielded Ferrite 220 µH 340mA 1.6Ohm Max 23 @ 796kHz 100 kHz
CW252016-33NK Bourns Inc. CW252016-33NK 0.3500
RFQ
 ECAD 7 0.00000000 Bourns Inc. CW252016 Tape & Reel (TR) Active ±10% -40°C ~ 125°C - 0.098" L x 0.079" W (2.50mm x 2.00mm) 0.071" (1.80mm) Surface Mount 1008 (2520 Metric) Drum Core, Wirewound CW252016 1.6GHz 1008 (2520 Metric) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 2,000 600 mA Unshielded Ceramic 33 nH - 160mOhm Max 60 @ 350MHz 100 MHz
PM32-390M-RC Bourns Inc. PM32-390M-RC 0.2070
RFQ
 ECAD 7209 0.00000000 Bourns Inc. PM32 Tape & Reel (TR) Active ±20% -40°C ~ 125°C - 0.118" L x 0.110" W (3.00mm x 2.80mm) 0.110" (2.80mm) Surface Mount Nonstandard Drum Core, Wirewound PM32 18MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 3,000 380 mA Unshielded Ferrite 39 µH 450mA 1.1Ohm Max 24 @ 2.52MHz 1 kHz
1140-153K-RC Bourns Inc. 1140-153K-RC 11.9000
RFQ
 ECAD 5226 0.00000000 Bourns Inc. 1140 Bulk Active ±10% -55°C ~ 105°C - 1.500" Dia (38.10mm) 1.030" (26.16mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound 1140 - - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 70 900 mA Unshielded Ferrite 15 mH 1.7A 3.39Ohm Max - 1 kHz
78F331J-TR-RC Bourns Inc. 78F331J-TR-RC 0.3000
RFQ
 ECAD 8 0.00000000 Bourns Inc. 78F Cut Tape (CT) Active ±5% -55°C ~ 105°C - 0.110" Dia x 0.280" L (2.79mm x 7.11mm) - Through Hole Axial Drum Core, Wirewound 78F 3.4MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.4000 5,000 100 mA Unshielded Ferrite 330 µH - 11.1Ohm Max 60 @ 790kHz 790 kHz
RLB9012-273KL Bourns Inc. RLB9012-273KL 0.8300
RFQ
 ECAD 930 0.00000000 Bourns Inc. RLB9012 Tray Active ±10% -55°C ~ 125°C - 0.354" Dia (9.00mm) 0.480" (12.20mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound RLB9012 190kHz - download ROHS3 Compliant Not Applicable REACH Unaffected RLB9012273KL EAR99 8504.50.4000 200 100 mA Unshielded Ferrite 27 mH - 82.7Ohm Max 15 @ 79kHz 1 kHz
1130-151K Bourns Inc. 1130-151K -
RFQ
 ECAD 1276 0.00000000 Bourns Inc. 1130 Bulk Obsolete ±10% -55°C ~ 105°C - 1.100" Dia (27.94mm) 0.840" (21.34mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound 1130 - - download RoHS non-compliant Not Applicable REACH Unaffected M6309 EAR99 8504.50.8000 42 5.5 A Unshielded Ferrite 150 µH - 64mOhm Max - 1 kHz
CW160808-R39J Bourns Inc. CW160808-R39J 0.1355
RFQ
 ECAD 8593 0.00000000 Bourns Inc. CW160808 Tape & Reel (TR) Active ±5% -40°C ~ 125°C - 0.065" L x 0.041" W (1.65mm x 1.05mm) 0.047" (1.20mm) Surface Mount 0603 (1608 Metric) Drum Core, Wirewound CW160808 - 0603 (1608 Metric) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 3,000 Unshielded Alumina 390 nH - - -
2100LL-331-H-RC Bourns Inc. 2100LL-331-H-RC 3.7000
RFQ
 ECAD 822 0.00000000 Bourns Inc. 2100LL Bulk Active ±15% -55°C ~ 125°C - 0.860" Dia (21.84mm) 0.450" (11.43mm) Through Hole Radial, Horizontal (Open) Toroidal 2100LL - - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.4000 144 2.5 A Shielded Sendust 330 µH - 103mOhm Max - 1 kHz
SRF1280-221M Bourns Inc. SRF1280-221M 1.9100
RFQ
 ECAD 779 0.00000000 Bourns Inc. SRF1280 Tape & Reel (TR) Active ±20% -40°C ~ 125°C - 0.492" L x 0.492" W (12.50mm x 12.50mm) Surface Mount Nonstandard SRF1280 download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 400 Shielded 0.315" (8.00mm) 2 343mOhm Max 1.38Ohm Max 220 µH 880 µH 1.29 A 645 mA 2.43 A 1.22 A
6000-331K-RC Bourns Inc. 6000-331K-RC 0.9400
RFQ
 ECAD 1 0.00000000 Bourns Inc. 6000 Bulk Not For New Designs ±10% -55°C ~ 105°C - 0.354" Dia (9.00mm) 0.480" (12.20mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound 6000 2.3MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 100 780 mA Unshielded Ferrite 330 µH - 850mOhm Max 20 @ 796kHz 796 kHz
RL110S-121L Bourns Inc. RL110S-121L -
RFQ
 ECAD 2533 0.00000000 Bourns Inc. RL110S Bulk Obsolete ±15% -30°C ~ 100°C - 0.394" Dia (10.00mm) 0.413" (10.50mm) Through Hole Radial, Vertical Cylinder, 4 Leads Drum Core, Wirewound RL110S 4.2MHz - download RoHS non-compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 100 1.1 A Shielded Ferrite 120 µH - 210mOhm Max - 1 kHz
PM1008-4R7K-RC Bourns Inc. PM1008-4R7K-RC 0.1505
RFQ
 ECAD 6468 0.00000000 Bourns Inc. PM1008 Tape & Reel (TR) Active ±10% -40°C ~ 125°C - 0.098" L x 0.079" W (2.50mm x 2.00mm) 0.071" (1.80mm) Surface Mount 1008 (2520 Metric) Drum Core, Wirewound PM1008 43MHz 1008 (2520 Metric) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 2,000 175 mA Unshielded Ferrite 4.7 µH - 2.3Ohm 18 @ 7.9MHz 7.9 MHz
PM0603G-R082J Bourns Inc. PM0603G-R082J -
RFQ
 ECAD 6945 0.00000000 Bourns Inc. PM0603G Tape & Reel (TR) Obsolete ±5% -25°C ~ 105°C - 0.065" L x 0.041" W (1.65mm x 1.05mm) 0.047" (1.20mm) Surface Mount 0603 (1608 Metric) Multilayer PM0603G 245MHz 0603 (1608 Metric) download RoHS non-compliant 1 (Unlimited) REACH Unaffected PM0603GR082J EAR99 8504.50.8000 4,000 50 mA Shielded Ferrite 82 nH - 300mOhm Max 10 @ 50MHz 50 MHz
78F1R2K Bourns Inc. 78F1R2K -
RFQ
 ECAD 8526 0.00000000 Bourns Inc. 78F Bulk Obsolete ±10% -55°C ~ 105°C - 0.110" Dia x 0.280" L (2.79mm x 7.11mm) - Through Hole Axial Drum Core, Wirewound 78F 165MHz - download RoHS non-compliant Not Applicable REACH Unaffected EAR99 8504.50.4000 5,000 590 mA Unshielded Ferrite 1.2 µH - 180mOhm Max 40 @ 7.9MHz 7.9 MHz
RL875-220K Bourns Inc. RL875-220K -
RFQ
 ECAD 6483 0.00000000 Bourns Inc. RL875 Bulk Obsolete ±10% -30°C ~ 100°C - 0.307" Dia (7.80mm) 0.217" (5.50mm) Through Hole Radial, Vertical Cylinder (Open) Drum Core, Wirewound RL875 - - download RoHS non-compliant Not Applicable REACH Unaffected RL875220K EAR99 8504.50.4000 100 1.8 A Unshielded Ferrite 22 µH - 90mOhm Max - 2.52 MHz
SRN3012TA-6R8M Bourns Inc. SRN3012TA-6R8M 0.4100
RFQ
 ECAD 1 0.00000000 Bourns Inc. SRN3012TA Tape & Reel (TR) Active ±20% -40°C ~ 125°C AEC-Q200 0.118" L x 0.118" W (3.00mm x 3.00mm) 0.047" (1.20mm) Surface Mount 1212 (3030 Metric) Drum Core, Wirewound SRN3012TA 45MHz download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 2,000 1.05 A Semi-Shielded Ferrite 6.8 µH 900mA 180mOhm 20 @ 1MHz 1 MHz
3500-120K Bourns Inc. 3500-120K -
RFQ
 ECAD 1039 0.00000000 Bourns Inc. 3500 Bulk Obsolete ±10% -55°C ~ 105°C - 0.385" L x 0.150" W (9.78mm x 3.81mm) 0.300" (7.62mm) Through Hole Radial - 3500 - - download RoHS non-compliant Not Applicable REACH Unaffected 3500120K EAR99 8504.50.8000 1,000 960 mA Unshielded Ferrite 12 µH 2A 140mOhm Max 55 @ 2.52MHz 2.52 MHz
SRP0612-2R2K Bourns Inc. SRP0612-2R2K 1.1700
RFQ
 ECAD 1 0.00000000 Bourns Inc. SRP0612 Tape & Reel (TR) Active ±10% -40°C ~ 125°C - 0.280" L x 0.264" W (7.10mm x 6.70mm) 0.047" (1.20mm) Surface Mount Nonstandard - - 32MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 2,500 5.5 A Shielded Metal 2.2 µH 7A 38.8mOhm Max 22 @ 7.96MHz 100 kHz
PM74S-270N Bourns Inc. PM74S-270N -
RFQ
 ECAD 2586 0.00000000 Bourns Inc. PM74S Tape & Reel (TR) Obsolete -15%, +25% -30°C ~ 100°C - 0.307" L x 0.276" W (7.80mm x 7.00mm) 0.193" (4.90mm) Surface Mount Nonstandard Drum Core, Wirewound PM74S 16MHz - download RoHS non-compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 1,000 1.06 A Shielded Ferrite 27 µH - 160mOhm Max - 2.52 MHz
5300-23-RC Bourns Inc. 5300-23-RC 0.6453
RFQ
 ECAD 8337 0.00000000 Bourns Inc. 5300 Bulk Active ±10% -55°C ~ 105°C - 0.160" Dia x 0.500" L (4.06mm x 12.70mm) - Through Hole Axial Drum Core, Wirewound 5300 4.3MHz - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 500 610 mA Unshielded Ferrite 68 µH 370mA 530mOhm Max - 1 kHz
