Isolators - Gate Drivers(3190)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Package / Case | Base Product Number | Technology | Approval Agency | Number of Channels | Supplier Device Package | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Current - Output High, Low | Current - Peak Output | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Voltage - Output Supply | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UCC23514EDWVR | 2.0700 |  |
1 | 0.00000000 | Texas Instruments | - | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | UCC23514 | Capacitive Coupling | CQC, UL, VDE | 1 | 8-SOIC | - | Not applicable | 2 (1 Year) | EAR99 | 8542.39.0001 | 1,000 | 3A, 3.5A | 4.5A | 28ns, 25ns (Max) | 2.1V | 16 mA | 5000Vrms | 150kV/µs | 70ns, 70ns | 35ns | 14V ~ 33V | |||||
 |
1ED3121MC12HXUMA1 | 3.8600 | |
1797 | 0.00000000 | Infineon Technologies | EiceDriver™ | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 1ED3121 | Capacitive Coupling | UL, VDE | 1 | PG-DSO-8 | download | ROHS3 Compliant | 3 (168 Hours) | REACH Unaffected | EAR99 | 8542.39.0001 | 1,000 | 5.5A, 5.5A | 5.5A | 30ns, 30ns (Max) | - | 8000Vpk | 200kV/µs | 280ns, 280ns | - | 10V ~ 35V | |||||
 |
ADUM4146ARWZ | 6.6700 | |
7061 | 0.00000000 | Analog Devices Inc. | - | Tube | Active | -40°C ~ 125°C | Surface Mount | 16-SOIC (0.295", 7.50mm Width) | Magnetic Coupling | CSA, UL, VDE | 1 | 16-SOIC | download | ROHS3 Compliant | 3 (168 Hours) | REACH Unaffected | EAR99 | 8542.39.0001 | 47 | 11A, 9A | 4.61A | 16ns, 16ns | - | 5000Vrms | 100kV/µs | 100ns, 100ns | - | 2.5V ~ 6V, 12V ~ 30V | ||||||
 |
SI82396AD-IS3R | 3.6300 | |
7027 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100 | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 14-SOIC (0.295", 7.50mm Width) | SI82396 | Capacitive Coupling | CQC, CSA, UR, VDE | 2 | 14-SOIC | download | RoHS Compliant | 336-SI82396AD-IS3RTR | EAR99 | 8542.39.0001 | 1,250 | 2A, 4A | 4A | 12ns, 12ns (Max) | - | 3250Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 6.5V ~ 24V | ||||||
 |
SI8233BB-C-IS1R | - | |
3228 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100 | Tape & Reel (TR) | Obsolete | -40°C ~ 125°C | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | Capacitive Coupling | CQC, CSA, UR, VDE | 2 | 16-SOIC | download | 2A (4 Weeks) | EAR99 | 8542.39.0001 | 2,500 | 2A, 4A | 4A | 12ns, 12ns (Max) | - | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 9.4V ~ 24V | ||||||||
|
SI823H6CD-IS3R | 4.2750 | |
9394 | 0.00000000 | Skyworks Solutions Inc. | Si823Hx | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 14-SOIC (0.295", 7.50mm Width) | SI823 | Capacitive Coupling | CQC, CSA, UL, VDE | 2 | 14-SOIC | download | 3 (168 Hours) | EAR99 | 8542.39.0001 | 1,250 | 4A, 4A | 6A | 12ns, 12ns (Max) | - | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 5.5V ~ 30V | |||||||
|
SI8237BC-D-IS1 | 3.9300 | |
47 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100 | Tube | Active | -40°C ~ 125°C | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | SI8237 | Capacitive Coupling | CQC, CSA, UR, VDE | 2 | 16-SOIC | download | 2A (4 Weeks) | 336-SI8237BC-D-IS1 | EAR99 | 8542.39.0001 | 48 | 250mA, 500mA | 500mA | 20ns, 20ns (Max) | - | 3750Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 6.5V ~ 24V | ||||||
 |
TLP351H(F) | 1.6300 | |
11 | 0.00000000 | Toshiba Semiconductor and Storage | - | Tube | Active | -40°C ~ 125°C | Through Hole | 8-DIP (0.300", 7.62mm) | TLP351 | Optical Coupling | CQC, cUR, UR, VDE | 1 | 8-DIP | download | RoHS Compliant | Not Applicable | EAR99 | 8541.49.8000 | 50 | 400mA, 400mA | 600mA | 50ns, 50ns | 1.55V | 20 mA | 3750Vrms | 20kV/µs | 700ns, 700ns | 500ns | 10V ~ 30V | |||||
 |
UCC5310MCDWVR | 2.0900 | |
198 | 0.00000000 | Texas Instruments | - | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 8-SOIC (0.295", 7.50mm Width) | UCC5310 | Capacitive Coupling | CQC, UR, VDE | 1 | 8-SOIC | download | ROHS3 Compliant | 2 (1 Year) | REACH Unaffected | EAR99 | 8542.39.0001 | 1,000 | 2.4A, 1.1A | 4.3A | 12ns, 10ns | - | 3000Vrms | 100kV/µs | 75ns, 75ns | 20ns | 13.2V ~ 33V | |||||
 |
SI823H1CB-IS1R | 3.9000 | |
8109 | 0.00000000 | Skyworks Solutions Inc. | - | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | SI823 | Capacitive Coupling | CQC, CSA, UL, VDE | 2 | 16-SOIC | download | 3 (168 Hours) | EAR99 | 8542.39.0001 | 2,500 | 4A, 4A | 6A | 12ns, 12ns | - | 2500Vrms | 125kV/µs | 30ns, 58ns | 5ns | 5.5V ~ 30V | |||||||
|
SI82396CB-IS1R | 2.9550 | |
4970 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100 | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | SI82396 | Capacitive Coupling | CQC, CSA, UR, VDE | 2 | 16-SOIC | download | 2A (4 Weeks) | EAR99 | 8542.39.0001 | 2,500 | 2A, 4A | 4A | 12ns, 12ns (Max) | - | 2500Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12.8V ~ 24V | |||||||
 |
SI8261AAD-C-ISR | 2.1112 | |
1 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100 | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 6-SOIC (0.295", 7.50mm Width) | SI8261 | Capacitive Coupling | CQC, CSA, UR, VDE | 1 | 6-SDIP Gull Wing | download | 3 (168 Hours) | EAR99 | 8542.39.0001 | 1,000 | 400mA, 600mA | 600mA | 5.5ns, 8.5ns | 2.8V (Max) | 30 mA | 5000Vrms | 35kV/µs | 60ns, 50ns | 28ns | 6.5V ~ 30V | ||||||
 |
HCPL-3150#360 | - | |
2248 | 0.00000000 | Broadcom Limited | - | Tube | Discontinued at SIC | -40°C ~ 100°C | Surface Mount | 8-SMD, Gull Wing | Optical Coupling | CSA, IEC/EN/DIN, UR | 1 | 8-DIP Gull Wing | download | RoHS non-compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 50 | 500mA, 500mA | 600mA | 100ns, 100ns | 1.5V | 25 mA | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 15V ~ 30V | |||||
 |
SI8283DD-ISR | 5.0586 | |
4320 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100 | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 24-SOIC (0.295", 7.50mm Width) | Capacitive Coupling | CQC, CSA, UL, VDE | 1 | 24-SOIC | download | 3 (168 Hours) | 863-SI8283DD-ISRTR | 1,250 | 2A, 4.1A | 4A | 5.5ns, 8.5ns | - | 5000Vrms | 125kV/µs | 50ns, 50ns | 5ns | 14V ~ 30V | |||||||||
|
SI8271BBD-ASR | 2.3508 | |
1004 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100, Si827x | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | Capacitive Coupling | CQC, CSA, UL, VDE | 1 | 8-SOIC | download | ROHS3 Compliant | 2A (4 Weeks) | 863-SI8271BBD-ASRTR | 2,500 | 1.8A, 4A | 4A | 10.5ns, 13.3ns | - | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 4.2V ~ 30V | ||||||||
 |
TLP5214(E | 8.1000 | |
5491 | 0.00000000 | Toshiba Semiconductor and Storage | - | Tube | Active | -40°C ~ 110°C | Surface Mount | 16-SOIC (0.295", 7.50mm Width) | TLP5214 | Optical Coupling | CQC, cUR, UR, VDE | 1 | 16-SO | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8541.49.8000 | 50 | 3A, 3A | 4A | 32ns, 18ns | 1.7V (Max) | 25 mA | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15V ~ 30V | |||||
 |

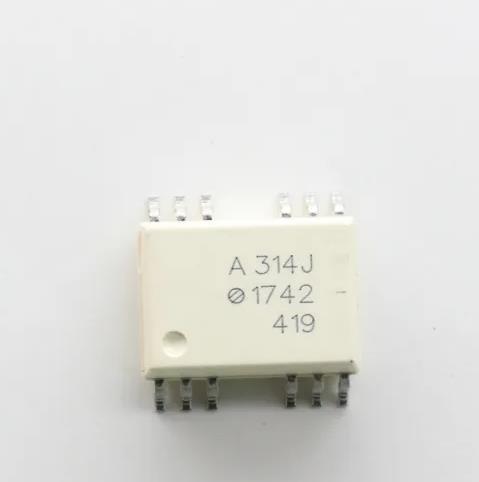

HCPL-314J-500E | 5.3100 | |
9969 | 0.00000000 | Broadcom Limited | - | Tape & Reel (TR) | Active | -40°C ~ 100°C | Surface Mount | 16-SOIC (0.295", 7.50mm Width) | HCPL-314 | Optical Coupling | CSA, IEC/EN/DIN, UR | 2 | 16-SO | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 850 | 500mA, - | 600mA | 50ns, 50ns | 1.5V | 25 mA | 5000Vrms | 25kV/µs | 700ns, 700ns | - | 10V ~ 30V | ||||
|
SI823H8AB-IS1 | 5.6498 | |
9341 | 0.00000000 | Skyworks Solutions Inc. | - | Tube | Active | -40°C ~ 125°C | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | SI823 | Capacitive Coupling | CQC, CSA, UL, VDE | 2 | 16-SOIC | download | 3 (168 Hours) | EAR99 | 8542.39.0001 | 48 | 4A, 4A | 6A | 12ns, 12ns | - | 2500Vrms | 125kV/µs | 30ns, 58ns | 5ns | 5.5V ~ 30V | |||||||
|
HCPL-3120#500 | 2.2104 | |
5715 | 0.00000000 | Broadcom Limited | - | Tape & Reel (TR) | Active | -40°C ~ 100°C | Surface Mount | 8-SMD, Gull Wing | HCPL-3120 | Optical Coupling | CSA, UR | 1 | 8-DIP Gull Wing | download | RoHS non-compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 1,000 | 2A, 2A | 2.5A | 100ns, 100ns | 1.5V | 25 mA | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 15V ~ 30V | ||||
|
ACNW3410-500E | 2.7591 | |
3083 | 0.00000000 | Broadcom Limited | - | Tape & Reel (TR) | Active | -40°C ~ 105°C | Surface Mount | 8-SMD, Gull Wing | ACNW3410 | Optical Coupling | CSA, IEC/EN/DIN, UR | 1 | 8-SMD Gull Wing | download | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 750 | 2.5A, 2.5A | 3A | 20ns, 10ns | 1.45V | 25 mA | 5000Vrms | 100kV/µs | 150ns, 150ns | 80ns | 15V ~ 30V | |||||
|
TLP523-2(F) | - | |
2397 | 0.00000000 | Toshiba Semiconductor and Storage | * | Tube | Obsolete | TLP523 | - | 1 (Unlimited) | 264-TLP523-2(F) | EAR99 | 8541.49.8000 | 50 | ||||||||||||||||||||||
 |
TLP2451A(F) | - | |
4826 | 0.00000000 | Toshiba Semiconductor and Storage | - | Tube | Active | -40°C ~ 125°C | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | TLP2451 | Optical Coupling | CSA, cUL, UL | 1 | 8-SO | download | RoHS Compliant | 1 (Unlimited) | TLP2451AF | EAR99 | 8541.49.8000 | 100 | 400mA, 400mA | 600mA | 50ns, 50ns | 1.55V | 25 mA | 3750Vrms | 20kV/µs | 500ns, 500ns | 350ns | 10V ~ 30V | ||||
|
SI82392BB-AS1 | 5.8671 | |
6737 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100 | Tube | Active | -40°C ~ 125°C | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | Capacitive Coupling | CQC, CSA, UL, VDE | 2 | 16-SOIC | download | 2A (4 Weeks) | 863-SI82392BB-AS1 | EAR99 | 8542.39.0001 | 48 | 2A, 4A | 4A | 12ns, 12ns (Max) | - | 2500Vrms | 35kV/µs | - | 5.6ns | 6.5V ~ 24V | |||||||
 |
SI8284BC-ISR | 8.7800 | |
1 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100 | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 24-SOIC (0.295", 7.50mm Width) | SI8284 | Capacitive Coupling | CQC, CSA, UL, VDE | 1 | 24-SOIC | download | 6 (Time on Label) | EAR99 | 8542.39.0001 | 1,250 | 2.5A, 3A | 4A | 5.5ns, 8.5ns | - | 5000Vrms | 35kV/µs | 50ns, 50ns | 5ns | 2.8V ~ 5.5V | |||||||
|
SI82520BD-AS3R | 4.4996 | |
6765 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100, Si8252x | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 14-SOIC (0.295", 7.50mm Width) | Capacitive Coupling | CQC, CSA, UL, VDE | 1 | 14-SOIC | download | ROHS3 Compliant | 3 (168 Hours) | 863-SI82520BD-AS3RTR | 1,250 | 4A, 4A | 4A, 6A | 12ns, 12ns (Max) | - | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 5.5V ~ 30V | ||||||||
|
SI8261ACD-C-ISR | 2.1750 | |
5432 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100 | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 6-SOIC (0.295", 7.50mm Width) | SI8261 | Capacitive Coupling | CQC, CSA, UR, VDE | 1 | 6-SDIP Gull Wing | download | 3 (168 Hours) | EAR99 | 8542.39.0001 | 1,000 | 400mA, 600mA | 600mA | 5.5ns, 8.5ns | 2.8V (Max) | 30 mA | 5000Vrms | 35kV/µs | 60ns, 50ns | 28ns | 13.5V ~ 30V | ||||||
 |
SI8236BB-D-IM | - | |
4222 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100 | Tape & Reel (TR) | Obsolete | -40°C ~ 125°C | Surface Mount | 14-VFLGA | Capacitive Coupling | CQC, CSA, UR, VDE | 2 | 14-LGA (5x5) | download | 3 (168 Hours) | EAR99 | 8542.39.0001 | 2,500 | 4A | - | 6.5V ~ 24V | ||||||||||||||
|
PS9552L2-E3-AX | 3.7600 | |
13 | 0.00000000 | Renesas | NEPOC | Bulk | Obsolete | -40°C ~ 100°C | Surface Mount | 8-SMD, Gull Wing | Optical Coupling | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL | 1 | 8-SMD | - | RoHS non-compliant | Vendor Undefined | 2156-PS9552L2-E3-AX | EAR99 | 8541.49.8000 | 80 | 2A, 2A | 2.5A | 100ns, 100ns | 1.65V | 25 mA | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 15V ~ 30V | |||||
 |
SI8220BD-D-IS | 4.3400 | |
1 | 0.00000000 | Skyworks Solutions Inc. | - | Tube | Active | -40°C ~ 125°C | Surface Mount | 16-SOIC (0.295", 7.50mm Width) | SI8220 | Capacitive Coupling | CQC, CSA, UR, VDE | 1 | 16-SOIC | download | 2A (4 Weeks) | EAR99 | 8542.39.0001 | 46 | 1.5A, 2.5A | 2.5A | 20ns, 20ns (Max) | 2.5V (Max) | 30 mA | 5000Vrms | 30kV/µs (Typ) | 60ns, 40ns | - | 9.4V ~ 24V | Automotive | AEC-Q100 | ||||
 |
SI8275ABD-AM1 | 4.2582 | |
5315 | 0.00000000 | Skyworks Solutions Inc. | Automotive, AEC-Q100, SI827x | Tray | Active | -40°C ~ 125°C | Surface Mount | 14-VDFN | SI8275 | RF Coupling | CQC, CSA, UL, VDE | 2 | 14-DFN (5x5) | download | 2 (1 Year) | 863-SI8275ABD-AM1 | 490 | 1.8A, 4A | 4A | 10.5ns, 13.3ns | - | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 4.2V ~ 30V |
