Optoisolators(15749)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Package / Case | Base Product Number | Input Type | Number of Channels | Output Type | Voltage - Supply | Supplier Device Package | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Current - Output / Channel | Data Rate | Rise / Fall Time (Typ) | Voltage - Output (Max) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Isolation | Inputs - Side 1/Side 2 | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Vce Saturation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CNY117-1X016 | 0.2798 |  |
4148 | 0.00000000 | Vishay Semiconductor Opto Division | - | Tube | Active | -55°C ~ 110°C | Through Hole | 6-DIP (0.400", 10.16mm) | CNY117 | DC | 1 | Transistor with Base | 6-DIP | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 2,000 | 50mA | 2µs, 2µs | 70V | 1.39V | 60 mA | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 400mV | |||||||
 |
OPIA408CTUE | - | |
5735 | 0.00000000 | TT Electronics/Optek Technology | - | Tube | Obsolete | -30°C ~ 100°C | Surface Mount | 4-SOIC (0.173", 4.40mm Width) | AC, DC | 1 | Darlington | 4-SSOP | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 6,000 | 90mA | 200µs, 200µs | 40V | 1.1V | 50 mA | 2500Vrms | 20% @ 1mA | - | - | 1V | ||||||||
 |
OLS449 | 100.3000 | |
100 | 0.00000000 | Isolink, Inc. | - | Tube | Active | -55°C ~ 125°C | Surface Mount | 6-CLCC | DC | 1 | Transistor with Base | 6-CLCC (6.22x4.32) | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8541.49.8000 | 25 | 50mA | 25µs, 25µs (Max) | 65V | 1.7V (Max) | 40 mA | 1000VDC | - | - | - | - | |||||||||
 |
CNY171SM | 0.8600 | |
540 | 0.00000000 | onsemi | - | Tube | Active | -40°C ~ 100°C | Surface Mount | 6-SMD, Gull Wing | CNY171 | DC | 1 | Transistor with Base | 6-SMD | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | CNY171SM-NDR | EAR99 | 8541.49.8000 | 50 | 50mA | 4µs, 3.5µs (Max) | 70V | 1.35V | 60 mA | 4170Vrms | 40% @ 10mA | 80% @ 10mA | 2µs, 3µs | 400mV | ||||||
 |
MCT5210 | - | |
1201 | 0.00000000 | onsemi | - | Tube | Obsolete | -55°C ~ 100°C | Through Hole | 6-DIP (0.300", 7.62mm) | MCT5 | DC | 1 | Transistor with Base | 6-DIP | download | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 1,000 | 150mA | - | 30V | 1.25V | 50 mA | 5300Vrms | 70% @ 3mA | - | 10µs, 400ns | 400mV | ||||||||
 |
TLP293-4(V4-LA,E | 1.6300 | |
9037 | 0.00000000 | Toshiba Semiconductor and Storage | - | Tube | Active | -55°C ~ 125°C | Surface Mount | 16-SOIC (0.179", 4.55mm Width) | TLP293 | DC | 4 | Transistor | 16-SO | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8541.49.8000 | 50 | 50mA | 2µs, 3µs | 80V | 1.25V | 50 mA | 3750Vrms | 50% @ 500µA | 600% @ 500µA | 3µs, 3µs | 300mV | ||||||||
|
H11D3M | 1.5200 | |
194 | 0.00000000 | onsemi | - | Tube | Active | -40°C ~ 100°C | Through Hole | 6-DIP (0.300", 7.62mm) | H11D3 | DC | 1 | Transistor with Base | 6-DIP | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | EAR99 | 8541.49.8000 | 50 | 100mA | - | 200V | 1.15V | 80 mA | 4170Vrms | 20% @ 10mA | - | 5µs, 5µs | 400mV | |||||||
 |
CNY17F-2M-V | 1.0700 | |
185 | 0.00000000 | Everlight Electronics Co Ltd | - | Tube | Active | -55°C ~ 110°C | Through Hole | 6-DIP (0.400", 10.16mm) | CNY17F | DC | 1 | Transistor | 6-DIP | download | ROHS3 Compliant | 1 (Unlimited) | 3907171779 | EAR99 | 8541.49.8000 | 65 | - | 6µs, 8µs | 80V | 1.65V (Max) | 60 mA | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 10µs, 9µs | 300mV | |||||||
 |
CNY17F-3S-TA | - | |
2167 | 0.00000000 | Lite-On Inc. | CNY17F | Tape & Reel (TR) | Active | -55°C ~ 100°C | Surface Mount | 6-SMD, Gull Wing | CNY17 | DC | 1 | Transistor | 6-SMD | download | ROHS3 Compliant | 1 (Unlimited) | CNY17F3STA | EAR99 | 8541.49.8000 | 1,000 | 150mA | 5µs, 5µs | 70V | 1.45V | 60 mA | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | 300mV | |||||||
 |

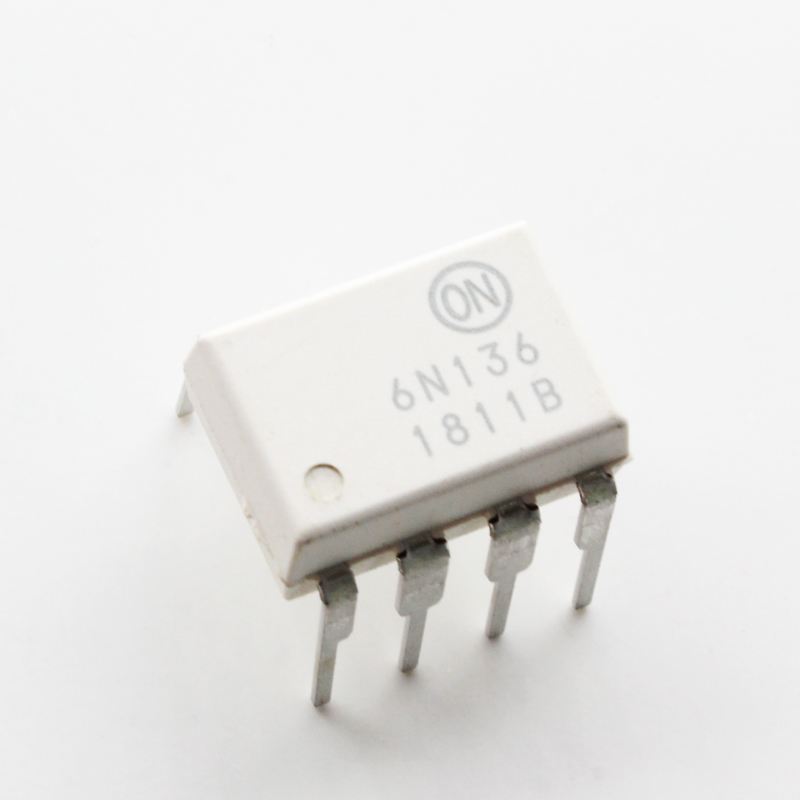

6N136M | 1.3400 | |
32 | 0.00000000 | onsemi | - | Tube | Active | -40°C ~ 100°C | Through Hole | 8-DIP (0.300", 7.62mm) | 6N136 | DC | 1 | Transistor with Base | 8-DIP | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | EAR99 | 8541.49.8000 | 50 | 8mA | - | 20V | 1.45V | 25 mA | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 250ns, 260ns | - | |||||||
 |
H11B1SM | 0.6900 | |
1 | 0.00000000 | Isocom Components 2004 LTD | - | Tube | Active | -55°C ~ 100°C | Surface Mount | 6-SMD, Gull Wing | H11B1 | DC | 1 | Darlington with Base | 6-SMD | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | H11B1SMIS | EAR99 | 8541.49.8000 | 1,300 | - | - | 30V | 1.2V | 80 mA | 5300Vrms | 500% @ 1mA | - | 125µs, 100µs | 1V | ||||||
 |
TLP385(BLL-TPL,E | 0.5600 | |
3441 | 0.00000000 | Toshiba Semiconductor and Storage | - | Tape & Reel (TR) | Active | -55°C ~ 110°C | Surface Mount | 6-SOIC (0.173", 4.40mm Width), 4 Leads | TLP385 | DC | 1 | Transistor | 6-SO, 4 Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8541.49.8000 | 3,000 | 50mA | 2µs, 3µs | 80V | 1.25V | 50 mA | 5000Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 300mV | ||||||||
|
MCT2ESD | - | |
3467 | 0.00000000 | onsemi | - | Tape & Reel (TR) | Obsolete | -55°C ~ 100°C | Surface Mount | 6-SMD, Gull Wing | MCT2 | DC | 1 | Transistor with Base | 6-SMD | download | 1 (Unlimited) | REACH Unaffected | MCT2ESD-NDR | EAR99 | 8541.49.8000 | 1,000 | 50mA | - | 30V | 1.25V | 100 mA | 5300Vrms | 20% @ 10mA | - | 1.1µs, 50µs | 400mV | |||||||
 |
5962-0822702KPA | 730.5983 | |
2867 | 0.00000000 | Broadcom Limited | - | Tube | Active | -55°C ~ 125°C | Through Hole | 8-DIP (0.300", 7.62mm) | 5962-0822702 | DC | 2 | Darlington | 8-DIP | download | RoHS non-compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 1 | 40mA | - | 20V | 1.4V | 10 mA | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | |||||||
 |
6N136-320E | 0.6638 | |
7917 | 0.00000000 | Broadcom Limited | - | Tube | Active | -55°C ~ 100°C | Surface Mount | 8-SMD, Gull Wing | 6N136 | DC | 1 | Transistor with Base | 8-SMD | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 50 | 8mA | - | 20V | 1.5V | 25 mA | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | |||||||
 |
TLP105(TPR,F) | - | |
5109 | 0.00000000 | Toshiba Semiconductor and Storage | - | Bulk | Obsolete | -40°C ~ 100°C | Surface Mount | 6-SOIC (0.173", 4.40mm Width), 5 Leads | TLP105 | DC | 1 | Push-Pull, Totem Pole | 4.5V ~ 20V | 6-MFSOP, 5 Lead | download | 264-TLP105(TPRF) | EAR99 | 8541.49.8000 | 1 | 25 mA | 5Mbps | 30ns, 30ns | 1.57V | 20mA | 3750Vrms | 1/0 | 10kV/µs | 250ns, 250ns | |||||||||
 |
PC412S0NIP0F | - | |
3659 | 0.00000000 | Sharp Microelectronics | OPIC™ | Tape & Reel (TR) | Obsolete | -40°C ~ 85°C | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | Logic | 1 | Push-Pull, Totem Pole | 4.5V ~ 5.5V | 8-Miniflat | download | 1 (Unlimited) | EAR99 | 8541.49.8000 | 1,500 | 10 mA | 25Mbps | 4ns, 3ns | - | - | 3750Vrms | 1/0 | 10kV/µs | 40ns, 40ns | ||||||||||
|
HCPL-5531#300 | 102.1458 | |
6188 | 0.00000000 | Broadcom Limited | - | Bulk | Active | -55°C ~ 125°C | Surface Mount | 8-SMD, Gull Wing | HCPL-5531 | DC | 2 | Transistor with Base | 8-DIP Gull Wing | download | RoHS non-compliant | 1 (Unlimited) | REACH Unaffected | 3A001A2C | 8541.49.8000 | 1 | 8mA | - | 20V | 1.55V | 20 mA | 1500VDC | 9% @ 16mA | - | 400ns, 1µs | - | |||||||
 |
HCPL-0500-560E | 0.8189 | |
1856 | 0.00000000 | Broadcom Limited | - | Tape & Reel (TR) | Active | -55°C ~ 100°C | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | HCPL-0500 | DC | 1 | Transistor with Base | 8-SO | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 1,500 | 8mA | - | 20V | 1.5V | 25 mA | 3750Vrms | 5% @ 16mA | - | 200ns, 1.3µs | - | |||||||
 |
TLP632(GB,F) | - | |
5172 | 0.00000000 | Toshiba Semiconductor and Storage | - | Tube | Obsolete | -55°C ~ 100°C | Through Hole | 6-DIP (0.300", 7.62mm) | TLP632 | DC | 1 | Transistor | 6-DIP | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8541.49.8000 | 50 | 50mA | 2µs, 3µs | 55V | 1.15V | 60 mA | 5000Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 400mV | ||||||||
|
PS8802-2-AX | - | |
7367 | 0.00000000 | CEL | NEPOC | Strip | Discontinued at SIC | -55°C ~ 100°C | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | DC | 2 | Transistor | 8-SSOP | download | ROHS3 Compliant | 1 (Unlimited) | REACH Affected | PS88022AX | EAR99 | 8541.49.8000 | 100 | 8mA | - | 35V | 1.7V | 25 mA | 2500Vrms | 15% @ 16mA | 45% @ 16mA | 300ns, 600ns | - | |||||||
 |
PC123Y1J000F | - | |
4104 | 0.00000000 | Sharp Microelectronics | - | Tube | Obsolete | -30°C ~ 100°C | Through Hole | 4-DIP (0.300", 7.62mm) | DC | 1 | Transistor | 4-DIP | download | 1 (Unlimited) | 425-2080-5 | EAR99 | 8541.49.8000 | 100 | 50mA | 4µs, 3µs | 70V | 1.2V | 50 mA | 5000Vrms | 50% @ 5mA | 150% @ 5mA | - | 200mV | |||||||||
|
CNX36U | - | |
1860 | 0.00000000 | onsemi | - | Tube | Obsolete | -40°C ~ 100°C | Through Hole | 6-DIP (0.300", 7.62mm) | CNX36 | DC | 1 | Transistor with Base | 6-DIP | download | 1 (Unlimited) | REACH Unaffected | CNX36U-NDR | EAR99 | 8541.49.8000 | 1,000 | 100mA | - | 30V | 1.15V | 100 mA | 5300Vrms | 80% @ 10mA | 200% @ 10mA | 20µs, 20µs | 400mV | |||||||
 |
MCT2ES1(TA) | - | |
6134 | 0.00000000 | Everlight Electronics Co Ltd | - | Tape & Reel (TR) | Active | -55°C ~ 110°C | Surface Mount | 6-SMD, Gull Wing | MCT2 | DC | 1 | Transistor with Base | 6-SMD | download | ROHS3 Compliant | 1 (Unlimited) | 390717T222 | EAR99 | 8541.49.8000 | 1,000 | - | 3µs, 3µs | 80V | 1.23V | 60 mA | 5000Vrms | 20% @ 10mA | - | 3µs, 3µs | 400mV | |||||||
 |
TCLT1010 | 0.2596 | |
9728 | 0.00000000 | Vishay Semiconductor Opto Division | - | Tape & Reel (TR) | Active | -55°C ~ 110°C | Surface Mount | 4-SMD, Gull Wing | TCLT1010 | DC | 1 | Transistor | 4-SOP | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 3,000 | 50mA | 3µs, 4.7µs | 70V | 1.25V | 60 mA | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 5µs | 300mV | |||||||
 |
PS2502L-1-F3-K-A | - | |
6571 | 0.00000000 | Renesas Electronics America Inc | NEPOC | Tape & Reel (TR) | Active | -55°C ~ 100°C | Surface Mount | 4-SMD, Gull Wing | PS2502 | DC | 1 | Darlington | 4-SMD | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 559-1241-2 | EAR99 | 8541.49.8000 | 2,000 | 200mA | 100µs, 100µs | 40V | 1.17V | 80 mA | 5000Vrms | 2000% @ 1mA | - | - | 1V | ||||||
 |
TLP2160(TP,F) | - | |
4451 | 0.00000000 | Toshiba Semiconductor and Storage | - | Tape & Reel (TR) | Active | -40°C ~ 125°C | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | TLP2160 | DC | 2 | Push-Pull, Totem Pole | 2.7V ~ 5.5V | 8-SO | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8541.49.8000 | 2,500 | 10 mA | 20MBd | 15ns, 15ns | 1.55V | 25mA | 2500Vrms | 2/0 | 20kV/µs | 40ns, 40ns | ||||||||
 |
ILQ66-4X009T | - | |
9721 | 0.00000000 | Vishay Semiconductor Opto Division | - | Tape & Reel (TR) | Obsolete | -55°C ~ 100°C | Surface Mount | 16-SMD, Gull Wing | ILQ66 | DC | 4 | Darlington | 16-SMD | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 750 | - | 200µs, 200µs (Max) | 60V | 1.25V | 60 mA | 5300Vrms | 500% @ 2mA | - | - | 1V | |||||||
 |
ACPL-W50L-000E | 3.1400 | |
467 | 0.00000000 | Broadcom Limited | - | Tube | Active | -40°C ~ 105°C | Surface Mount | 6-SOIC (0.268", 6.80mm Width) | ACPL-W50 | DC | 1 | Transistor | 6-SO Stretched | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 100 | 8mA | - | 24V | 1.5V | 20 mA | 5000Vrms | 93% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | |||||||
|
PS2561FL-1Y-F3-A | 1.0700 | |
1749 | 0.00000000 | Renesas Electronics America Inc | - | Tape & Reel (TR) | Active | -55°C ~ 110°C | Surface Mount | 4-SMD, Gull Wing | PS2561 | DC | 1 | Transistor with Base | 4-SMD | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.49.8000 | 2,000 | 50mA | 5µs, 7µs | 80V | 1.2V | 30 mA | 5000Vrms | 300% @ 5mA | 600% @ 5mA | - | 300mV |
