Switches(4563)

Product Number	Pricing(USD)	Quantity	Quantity Available	Mfr	Series	Package	Product Status	Operating Temperature	Mounting Type	Features	Base Product Number	Accessory Type	For Use With/Related Products	Ingress Protection	Length	Termination Style	Height Above Board	DataSheet	RoHS Status	Moisture Sensitivity Level (MSL)	REACH Status	Other Names	ECCN	HTSUS	Standard Package	Circuit	Pitch	Contact Finish	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Illumination	Illumination Voltage (Nominal)	Contact Material	Number of Positions	Voltage Rating	Switch Function	Actuator Marking	Color - Actuator/Cap	Illumination Type, Color	Panel Cutout Dimensions	Mechanical Life	Electrical Life	Contact Rating @ Voltage	Actuator Material	Body Material	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Outline	Actuator Height off PCB, Vertical	Actuator Length, Right Angle	Actuator Orientation	Switch Travel	Actuator Level	Washable
V-10-1A5	4.4400	RFQ	91	Omron Electronics Inc-EMC Div	V	Bulk	Active	-25°C ~ 80°C	Chassis Mount	-	V-10			IP40		Solder, Quick Connect - 0.187" (4.7mm)		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.7000	100	SPDT			10A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)						On-Mom					50,000,000 Cycles	300,000 Cycles				200gf	50gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)
A6SR-2101-P	2.0500	RFQ	8	Omron Electronics Inc-EMC Div	A6SR	Tape & Reel (TR)	Active	-20°C ~ 70°C	Surface Mount, Right Angle	-	A6SR				0.196" (4.98mm)	Gull Wing	0.197" (5.00mm)	download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.9065	700	SPST	0.100" (2.54mm), Full	Gold	25mA			Piano			-	2	24VDC						-	1,000 Cycles			-												Flush, Recessed	No
VX-014-1A3	7.9000	RFQ	96	Omron Electronics Inc-EMC Div	VX	Tray	Active	-25°C ~ 80°C	Chassis Mount	-	VX-014			IP40		Solder, Quick Connect - 0.187" (4.7mm)		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.7000	100	SPDT			100mA (AC/DC)	125 V	30 V	Lever, Simulated Roller						On-Mom					10,000,000 Cycles	1,000,000 Cycles				30gf	2.039gfm	0.738" (18.7mm)	0.157" (4.0mm)	0.031" (0.8mm)	0.062" (1.6mm)
A8A-222-1G	-	RFQ	5241	Omron Electronics Inc-EMC Div	A8A	Bulk	Active	-25°C ~ 50°C	Panel Mount, Snap-In	-	A8A			IP00		Quick Connect - 0.250" (6.3mm)		download	RoHS Compliant	Not Applicable			EAR99	8536.50.9065	50	DPST			16A (AC)	125 V		Flat - Illuminated		220 VAC				On-Off	No Marking	Red	Neon, Red	Rectangular - 30.00mm x 22.00mm	40,000 Cycles	20,000 Cycles
SS-5-FD-T	2.0677	RFQ	3737	Omron Electronics Inc-EMC Div	SS	Bulk	Active	-25°C ~ 85°C	Through Hole	-	SS-5			IP40		PC Pin		download	RoHS Compliant	1 (Unlimited)		SS5FDT	EAR99	8536.50.7000	500	SPDT			5A (AC)	125 V		Round (Pin Plunger)						On-Mom					30,000,000 Cycles	200,000 Cycles				50gf	4.079gf	0.330" (8.4mm)	0.020" (0.5mm)	0.004" (0.1mm)	0.020" (0.5mm)
B3S-1102P	0.7900	RFQ	88	Omron Electronics Inc-EMC Div	B3S	Tape & Reel (TR)	Active	-25°C ~ 70°C	Surface Mount	Grounding Pin, Sealed - Fully	B3S			IP67 - Dust Tight, Waterproof		Gull Wing		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.9031	1,000	SPST-NO						Standard	Non-Illuminated	-				Off-Mom			-		300,000 Cycles		0.05A @ 24VDC	-		230gf						6.60mm x 6.00mm	4.30mm	-	Top Actuated	0.25mm
D3V-11G1M-2A4-K	2.5541	RFQ	2360	Omron Electronics Inc-EMC Div	D3V	Bulk	Active	-25°C ~ 105°C	Chassis Mount	-	D3V			IP40		Solder, Quick Connect - 0.187" (4.7mm)		download	RoHS Compliant	Not Applicable			EAR99	8536.50.7000	100	SPST-NC			11A (AC), 6A (DC)	250 V	30 V	Lever, Straight						On-Mom					10,000,000 Cycles	200,000 Cycles				100gf	15gf	0.600" (15.2mm)	0.063" (1.6mm)	0.020" (0.5mm)	0.031" (0.79mm)
V-162-1C5	7.4800	RFQ	97	Omron Electronics Inc-EMC Div	V	Bulk	Active	-25°C ~ 80°C	Chassis Mount	-	V-162			IP40		Quick Connect - 0.250" (6.3mm)		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.9040	100	SPDT			16A (AC), 600mA (DC)	250 V	125 V	Lever, Straight						On-Mom					50,000,000 Cycles	100,000 Cycles				125gf	14gf	0.600" (15.2mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.062" (1.6mm)
B3FS-1000	0.6700	RFQ	13	Omron Electronics Inc-EMC Div	B3FS	Bag	Active	-25°C ~ 70°C	Surface Mount	-	B3FS			-		Gull Wing		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.9031	1,500	SPST-NO						Standard	Non-Illuminated	-				Off-Mom			-		1,000,000 Cycles		0.05A @ 24VDC	-		100gf						6.30mm x 6.00mm	3.10mm	-	Top Actuated	0.25mm
B3F-6005	-	RFQ	3378	Omron Electronics Inc-EMC Div	B3F	Cut Tape (CT)	Obsolete	-25°C ~ 70°C	Through Hole	-	B3F			-		PC Pin		download		1 (Unlimited)	Vendor Undefined		EAR99	8536.50.9031	1,000	SPST-NO						Standard	Non-Illuminated	-				Off-Mom			-		100,000 Cycles		0.05A @ 24VDC	-		260gf						6.00mm x 6.00mm	4.30mm	-	Top Actuated	0.25mm
D2SW-P01L3H	1.9660	RFQ	7606	Omron Electronics Inc-EMC Div	D2SW-P	Bulk	Active	-20°C ~ 70°C	Chassis Mount	-	D2S			IP67 - Dust Tight, Waterproof		Solder Lug		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.7000	500	SPDT			100mA (AC/DC)	125 V	30 V	Lever, Simulated Roller						On-Mom					1,000,000 Cycles	200,000 Cycles				61gf	5.099gf	0.420" (10.7mm)	-	0.031" (0.8mm)	0.030" (0.76mm)
D2SW-3L3DS	5.3000	RFQ	490	Omron Electronics Inc-EMC Div	D2SW	Tray	Active	-40°C ~ 85°C	Through Hole	-	D2S			IP67 - Dust Tight, Waterproof		PC Pin		download	RoHS Compliant	Not Applicable			EAR99	8536.50.7000	500	SPDT			3A (AC/DC)	125 V	30 V	Lever, Simulated Roller						On-Mom					5,000,000 Cycles	200,000 Cycles				60gf	6.118gf	0.420" (10.7mm)	-	0.031" (0.8mm)	0.040" (1.0mm)
A6HR-8104	9.1500	RFQ	520	Omron Electronics Inc-EMC Div	A6HR	Tube	Active	-30°C ~ 85°C	Surface Mount, Right Angle	-	A6HR				0.444" (11.28mm)	Gull Wing	0.165" (4.20mm)	download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.9065	40	SPST	0.050" (1.27mm), Half	Gold	25mA			Piano			-	8	24VDC						-	1,000 Cycles			-												Raised	No
V-155-1A5-T	7.5500	RFQ	56	Omron Electronics Inc-EMC Div	V	Bulk	Active	-25°C ~ 150°C	Chassis Mount	-	V-155			IP40		Solder, Quick Connect - 0.187" (4.7mm)		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.9040	100	SPDT			15A (AC), 600mA (DC)	250 V	125 V	Lever, Roller						On-Mom					50,000,000 Cycles	20,000 Cycles				240gf	50gf	0.815" (20.7mm)	0.063" (1.6mm)	0.025" (0.6mm)	0.030" (0.76mm)
VX5 0137H	4.3200	RFQ	9692	Omron Electronics Inc-EMC Div	VX	Box	Active	-25°C ~ 80°C	Chassis Mount	-	VX5 0137			IP40		Quick Connect - 0.187" (4.7mm)		download	ROHS3 Compliant		REACH info available upon request	2266-VX50137H	EAR99	8536.50.9040	1	SPDT			5A (AC/DC)	125 V	30 V	Lever, Straight						On-Mom					50,000,000 Cycles	500,000 Cycles				20gf	-	0.598" (15.2mm)	0.354" (9.0mm)	0.080" (2.0mm)	0.126" (3.2mm)
V-10G-1C25-K	4.3300	RFQ	1043	Omron Electronics Inc-EMC Div	V	Bulk	Active	-25°C ~ 80°C	Chassis Mount	-	V-10			IP40		Quick Connect - 0.187" (4.7mm)		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.7000	100	SPDT			10A (AC), 100mA (DC)	250 V	125 V	Round (Pin Plunger)						On-Mom					50,000,000 Cycles	300,000 Cycles				200gf	50gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)
D2VW-5L1-1	7.9700	RFQ	100	Omron Electronics Inc-EMC Div	D2VW	Bulk	Active	-40°C ~ 85°C	Chassis Mount	-	D2VW			IP67 - Dust Tight, Waterproof		Solder, Quick Connect - 0.187" (4.7mm)		download	RoHS Compliant	Not Applicable		D2VW5L11	EAR99	8536.50.7000	100	SPDT			5A (AC/DC)	125 V	30 V	Lever, Straight						On-Mom					10,000,000 Cycles	100,000 Cycles				120gf	15gf	0.600" (15.2mm)	0.157" (4.0mm)	0.031" (0.8mm)	0.062" (1.6mm)
D3V-162M-1C25-K	3.2815	RFQ	9955	Omron Electronics Inc-EMC Div	D3V	Bulk	Active	-25°C ~ 105°C	Chassis Mount	-	D3V			IP40		Quick Connect - 0.187" (4.7mm)		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.9040	100	SPDT			16A (AC), 10A (DC)	250 V	30 V	Lever, Straight						On-Mom					10,000,000 Cycles	100,000 Cycles				125gf	14gf	0.600" (15.2mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.062" (1.6mm)
V-10G-2C24-K	3.6700	RFQ	76	Omron Electronics Inc-EMC Div	V	Tray	Active	-25°C ~ 80°C	Chassis Mount	-	V-10			IP40		Quick Connect - 0.187" (4.7mm)		download	RoHS Compliant	Not Applicable		2266-V-10G-2C24-K	EAR99	8536.50.7000	100	SPST-NC			10A (AC), 100mA (DC)	250 V	125 V	Round (Pin Plunger)						On-Mom					50,000,000 Cycles	300,000 Cycles				100gf	20gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)
V-10G5-1A5-K	5.2700	RFQ	63	Omron Electronics Inc-EMC Div	V	Tray	Active	-25°C ~ 80°C	Chassis Mount	-	V-10			IP40		Solder, Quick Connect - 0.187" (4.7mm)		download	RoHS Compliant	Not Applicable			EAR99	8536.50.7000	100	SPDT			10A (AC), 100mA (DC)	250 V	125 V	Lever, Roller						On-Mom					50,000,000 Cycles	300,000 Cycles				240gf	50gf	0.815" (20.7mm)	0.063" (1.6mm)	0.025" (0.6mm)	0.030" (0.76mm)
SS-01-F2T	6.2400	RFQ	10	Omron Electronics Inc-EMC Div	SS	Bulk	Active	-25°C ~ 85°C	Chassis Mount	-	SS-01			IP40		Quick Connect - 0.110" (2.8mm)		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.7000	500	SPST-NC			100mA (AC/DC)	125 V	30 V	Round (Pin Plunger)						On-Mom					30,000,000 Cycles	200,000 Cycles				50gf	4.079gf	0.330" (8.4mm)	0.020" (0.5mm)	0.004" (0.1mm)	0.020" (0.5mm)
D2S-01L-FD	2.6560	RFQ	2436	Omron Electronics Inc-EMC Div	D2S	Bulk	Active	-25°C ~ 85°C	Through Hole	-	D2S			IP67 - Dust Tight, Waterproof		PC Pin		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.7000	500	SPDT			100mA (DC)		30 V	Lever, Straight						On-Mom					-	-				50gf	25gf	0.370" (9.4mm)	-	0.031" (0.8mm)	0.039" (1.0mm)
V-103-1A4	6.1400	RFQ	78	Omron Electronics Inc-EMC Div	V	Bulk	Active	-25°C ~ 80°C	Chassis Mount	-	V-103			IP40		Solder, Quick Connect - 0.187" (4.7mm)		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.7000	100	SPDT			10A (AC), 600mA (DC)	250 V	125 V	Lever, Straight						On-Mom					50,000,000 Cycles	300,000 Cycles				35gf	-	0.600" (15.2mm)	0.354" (9.0mm)	0.110" (2.8mm)	0.125" (3.2mm)

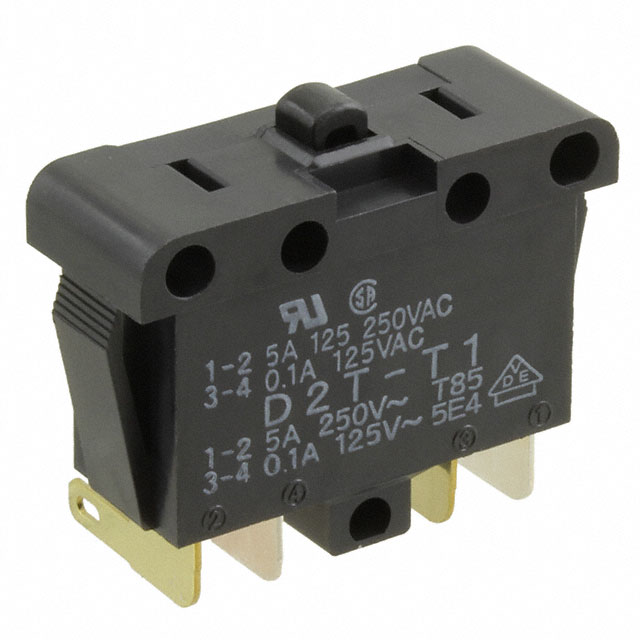

D2T-T1S	7.4900	RFQ	9859	Omron Electronics Inc-EMC Div	D2T	Bulk	Obsolete	-25°C ~ 85°C	Chassis Mount	-	D2T			IP40		Quick Connect - 0.110" (2.8mm)		download	RoHS Compliant	Not Applicable			EAR99	8536.50.7000	100	DPST-NO			5A (AC), 6A (DC)	125 V	30 V	Round (Pin Plunger)						Off-Mom					100,000 Cycles	100,000 Cycles				330gf	50gf	0.173" (4.4mm)	-	-	0.030" (0.76mm)
A6SN-9101-R100	2.9082	RFQ	100	Omron Electronics Inc-EMC Div	A6SN	Tape & Reel (TR)	Active	-30°C ~ 85°C	Surface Mount	-	A6SN				0.976" (24.79mm)	Gull Wing	0.175" (4.45mm)	download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.9065	100	SPST	0.100" (2.54mm), Full	-	25mA			Slide (Standard)			-	9	24VDC						-	1,000 Cycles			-												Flush, Recessed	Yes
SS-5GL-F-3D	2.0000	RFQ	486	Omron Electronics Inc-EMC Div	SS	Bulk	Active	-25°C ~ 85°C	Through Hole	-	SS-5			IP40		PC Pin		download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.7000	500	SPST-NO			5A (AC)	125 V		Lever, Straight						Off-Mom					30,000,000 Cycles	200,000 Cycles				16gf	2.039gf	0.345" (8.8mm)	-	0.031" (0.8mm)	0.047" (1.2mm)
A6H-6101(VNM)	3.8400	RFQ	25	Omron Electronics Inc-EMC Div	A6H	Tube	Active	-20°C ~ 70°C	Surface Mount	-	A6H				0.348" (8.85mm)	Gull Wing	0.061" (1.55mm)	download	RoHS Compliant	1 (Unlimited)			EAR99	8536.50.9065	54	SPST	0.050" (1.27mm), Half	-	25mA			Slide (Standard)			-	6	24VDC						1,000 Cycles	1,000 Cycles			-												Flush, Recessed	No
D3D-131	2.7400	RFQ	2	Omron Electronics Inc-EMC Div	D3D	Bulk	Active	-30°C ~ 60°C	Panel Mount, Snap-In	White Actuator	D3D			IP00		Connector		download	RoHS Compliant	Not Applicable			EAR99	8536.50.7000	100	SPST-NO			1A (AC)	125 V		Overtravel Plunger						Off-Mom					300,000 Cycles	50,000 Cycles				204gf	-	0.472" (12.0mm)	-	-	-
A7B-M-1	1.9400	RFQ	182	Omron Electronics Inc-EMC Div	A7BS	Bulk	Active				A7B-M	End Cap	SW266 ~ SW269-ND					download	RoHS Compliant	Not Applicable			EAR99	8538.90.8160	200
V-16G51-1C5-K(R)	-	RFQ	9835	Omron Electronics Inc-EMC Div	V	Bulk	Active	-25°C ~ 80°C	Chassis Mount	-	V-16			IP40		Quick Connect - 0.250" (6.3mm)		download	RoHS Compliant	1 (Unlimited)		V16G511C5KR	EAR99	8536.50.9040	100	SPDT			16A (AC), 100mA (DC)	250 V	125 V	Lever, Roller						On-Mom					50,000,000 Cycles	100,000 Cycles				240gf	50gf	0.815" (20.7mm)	0.063" (1.6mm)	0.025" (0.6mm)	0.030" (0.76mm)
