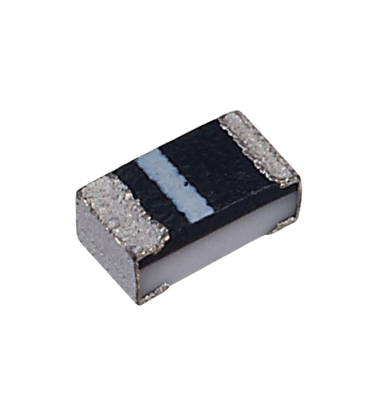

TSMC TS4148 RCG
TSMC TS4148 RCG, a 100mA - 150mA, 75V Surface Mount Switching Diode, possesses the following features: low power loss and high efficiency, high surge current capability, moisture sensitivity level of level 1 as per J-STD-020, and being RoHS Compliant.
TSMC TS4148 RCG’s Mechanical Data
· Molding compound meets UL 94HB flammability rating
· Terminal: Matte tin plated leads, solderable per J-STD-002
· Meet JESD 201 class 1A whisker test
· Polarity: Indicated by cathode band
TSMC TS4148 RCG’s Applications
· Switching mode power supply (SMPS)
· Adapters
· Lighting application
· On-board DC/DC converter
TSMC TS4148 RCG’s Attributes
Type | Description |
Category | Discrete Semiconductor Products |
Mfr | |
Packaging | Tape & Reel (TR) |
Part Status | Active |
Technology | Standard |
Voltage - DC Reverse (Vr) (Max) | 75 V |
Current - Average Rectified (Io) | 100mA |
Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 100 mA |
Speed | Small Signal =< 200mA (Io), Any Speed |
Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
Mounting Type | Surface Mount |
Package / Case | 0603 (1608 Metric) |
Supplier Device Package | 0603 |
Operating Temperature - Junction | -55°C ~ 150°C |
Base Product Number | TS4148 |
TSMC TS4148 RCG’s Datasheet
TSMC TS4148 RCG’s Category - Diodes
A diode, also known as a diode tube, is the most fundamental electronic component in various electronic systems. It is a device with two electrodes, namely the cathode and the anode, and only allows current to flow in one direction. The earliest diodes were composed of vacuum tubes or tubes filled with low-pressure gas, while nowadays they are mostly made of semiconductor materials. A diode is like a valve or switch for current, which can control the current and achieve the function of rectification, that is, converting alternating current (AC) into direct current (DC). Diodes are widely used in electronic products.
Diodes are composed of semiconductor materials. In the past, germanium was mostly used as the material, but now silicon is mostly used. The diode component is formed by joining P-type and N-type semiconductors within the semiconductor to form a PN junction or PN junction. The so-called two poles are two semiconductors with different polarities, namely P-type and N-type. The P-type semiconductor end, which is positively charged, is called the "anode", and the N-type semiconductor end, which is negatively charged, is called the "cathode". When the P-type end is connected to the positive pole of the battery, current can pass through; when it is connected to the negative pole of the battery, current cannot pass through, thus enabling the current to flow in one direction and achieving the effect of rectification, that is, converting alternating current into direct current.
TS4148 RCG’s Manufacturer- TSMC
Recognized for more than 40 years for its core competence in discrete power rectifiers, Taiwan Semiconductor has expanded its product portfolio to include trench schottkys, analog ICs, LED driver ICs, power transistors and MOSFETs, and now provides a complete solution from one source. Taiwan Semiconductor products are used in a vast array of applications in the electronics industry, including automotive, computer, consumer, industrial, telecom and photovoltaic. Through strategic expansion of innovative manufacturing capabilities, and its focus on pioneering efficient semiconductor solutions, Taiwan Semiconductor is committed to being the right choice for a successful and lasting business relationship and offers these key advantages: Broad selection of semiconductor products from one source, Modern, efficient, and customer-oriented logistics processes, Maximum flexibility including customer specific requirements, Maximum level of quality and performance for customer applications.
