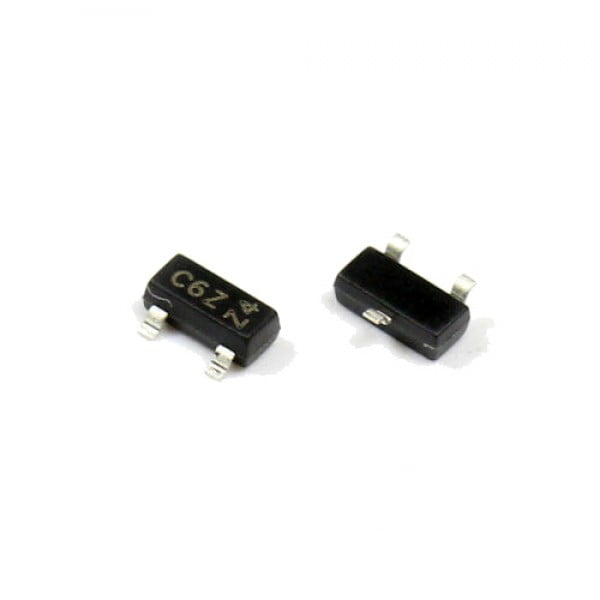

The MMBF170 is a top - of - the - line N - Channel enhancement mode field effect transistor from ON Semiconductor, crafted using its advanced DMOS technology. Optimized for high - speed and low - voltage operations, it is designed with a focus on reducing on - state resistance, thereby offering unmatched reliability and extremely fast switching capabilities. This MOSFET (N - Channel) provides excellent performance for analog and digital signal switching. Ideal for applications that require up to 500mA DC, it shines in low voltage and low current scenarios, such as small servo motor control and power MOSFET gate drivers. Whether you're engaged in precision electronics work or dealing with power - heavy machinery, the versatile MMBF170 is well - positioned to meet your specific requirements.
ONSemi MMBF170's Features
Advanced encryption algorithms for secure data transmission
Fast scan rate for high-speed document scanning
Intelligent sensing technology for precise object detection
Smart energy management for optimized power usage
High-resolution display for vivid and clear visuals
Fine-tuned calibration for precise measurement results
ONSemi MMBF170's Application
Suitable for any project
Works for multiple uses
A versatile product choice
ONSemi MMBF170's Attributes
| Type | Description |
|---|---|
| Category | Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
| Mfr | onsemi |
| Packaging | Tape & Reel (TR) Cut Tape (CT) |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 200mA, 10V |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 40 pF @ 10 V |
| Power Dissipation (Max) | 300mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | MMBF17 |
ONSemi MMBF170's Datasheet
ONSemi MMBF170LT1G's Category-FETs, MOSFETs
Metal - Oxide - Semiconductor Field - Effect Transistors (MOSFETs for short) are a type of semiconductor commonly used in both digital and analog circuits, and they are also useful power devices. As an original compact transistor, MOSFETs are suitable for a wide range of electrical applications.
It has long been widely believed that many technological advancements in the 21st century would not have been possible without MOSFETs. MOSFETs are more widely used than Bipolar Junction Transistors (BJTs) because they require very little control current for the load current. The conductivity of an enhancement-mode MOSFET can be increased in the "normally off" state. The voltage applied through the gate can minimize the conductivity in the "normally on" state. The miniaturization process of MOSFETs is relatively simple, and they can be effectively reduced in size for compact applications.
Other advantages of MOSFETs include fast switching (especially for digital signals), minimum power consumption, and high-density capacitance, which make it an ideal choice for large-scale integration.
MOSFETs are the core components of integrated circuits. Thanks to their miniaturization, they can be designed and manufactured in a single chip. The MOSFETs on an integrated circuit chip are four - terminal elements, namely the source (S), the gate (G), the drain (D), and the body (B). The body is usually connected to the source, enabling the MOSFET to function as a field-effect transistor. There are mainly two types of transistors. One is the Bipolar Junction Transistor (BJT), and the other is the Field - Effect Transistor (FET). MOSFETs belong to the field-effect transistor type. BJTs are usually used for currents below 1 ampere; MOSFETs are typically used for applications with larger currents.
There are two types of MOSFETs: depletion - mode and enhancement - mode. The depletion-mode MOSFET works like a closed switch. A positive voltage generates an operating current, and a negative voltage stops the operating current. The enhancement mode MOSFET is a type commonly used in modern applications. As mentioned before, a MOSFET is a device used to switch or amplify electrical signals. These can be achieved by changing the conductivity, which can be changed by varying the applied voltage.
MOSFETs are the most commonly used transistors in digital circuits and can achieve million-level integration in memory chips or microprocessors. In addition, MOSFET transistors are commonly used as switches in voltage-controlled circuits. It is believed that the emergence of MOSFETs has contributed to the development of a series of technological devices, such as pocket calculators and digital wristwatches.
Manufacturer of MMBF170LT1G - ONSemi
ONsemi is driving energy-efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete, and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power supply applications. onsemi operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices, and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
